Öhlins Road & Track Coilovers – Tesla Model 3 (2017+) & Model Y (2020+)

Öhlins Road & Track Coilovers – Tesla Model 3 (2017+) & Model Y (2020+)

Part Numbers: TES MA10S1 (Road & Track) | TES MA00S1 (Road & Track Street Tuned / Comfort) | Fitment: Tesla Model 3 (2017+) & Tesla Model Y (2020+) — incl. Single & Dual Motor

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring conventional shock absorbers front and rear with a wide 5–30mm lowering range and a complete kit with springs and accessories included.

Vehicle Fitment

Technical Specifications

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment — 5–30mm lowering range
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Complete kit with springs and accessories included

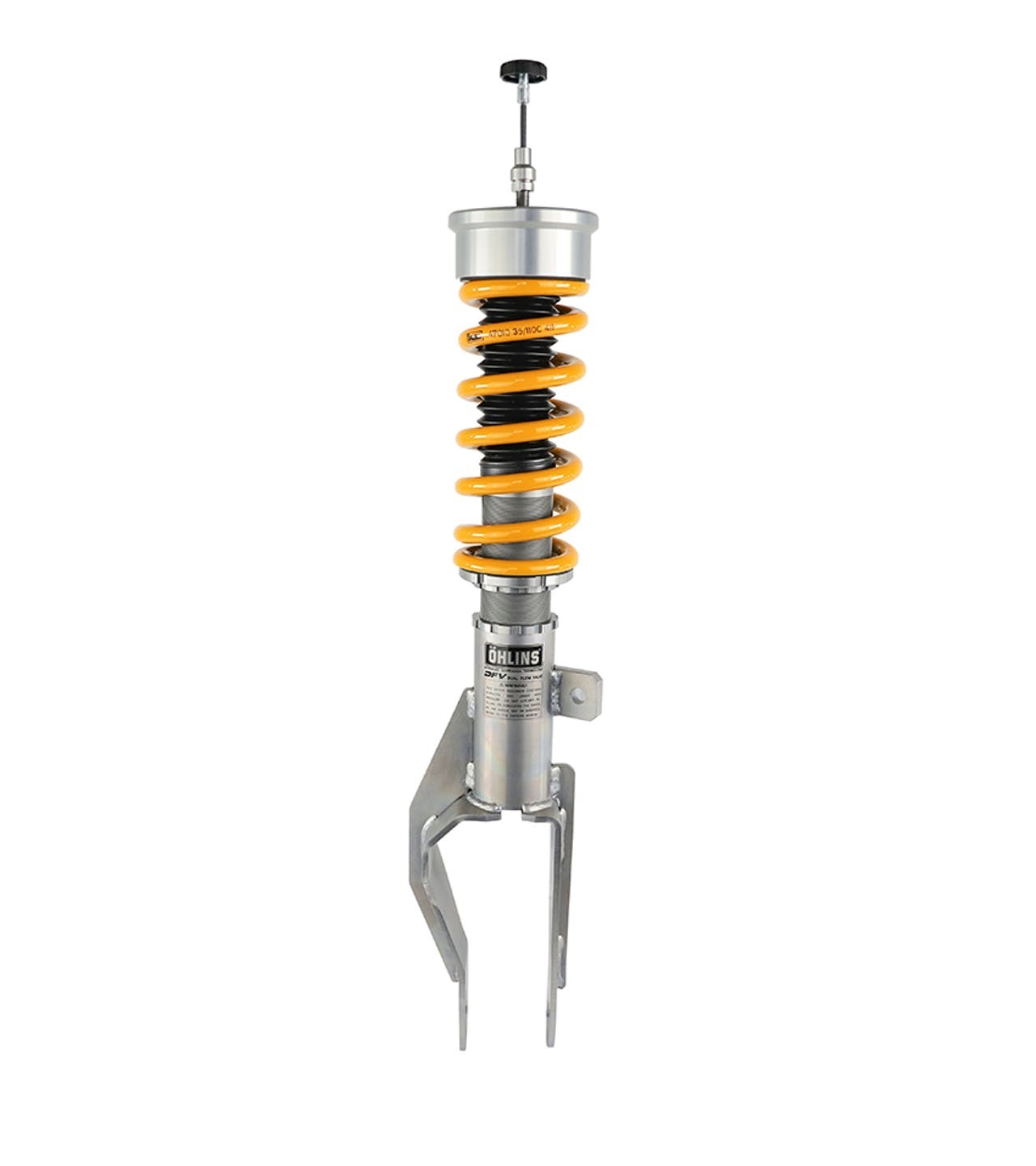

Front Features

• Conventional shock absorber
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 5–30mm below standard
• Coil springs included
• Use with original top mounts

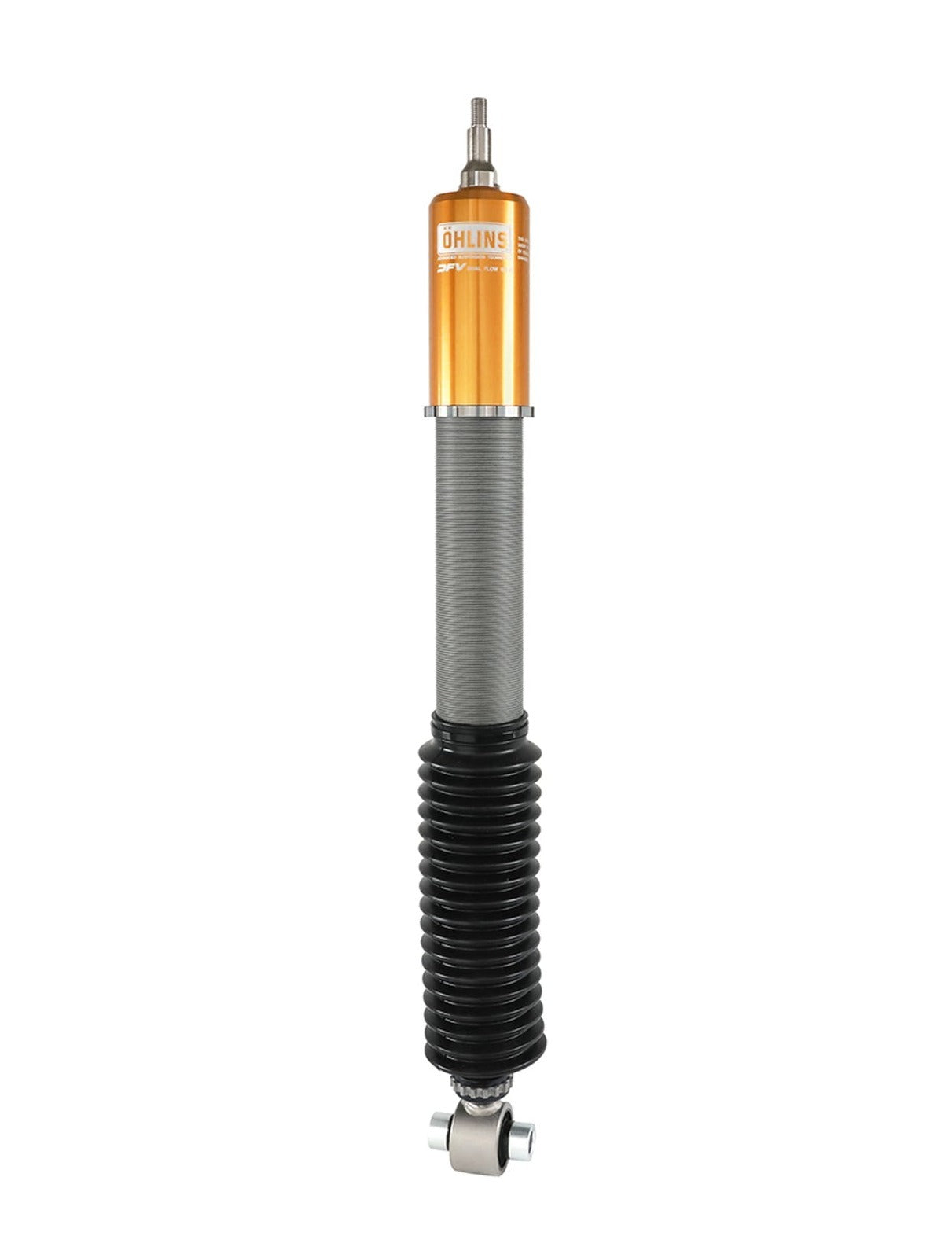

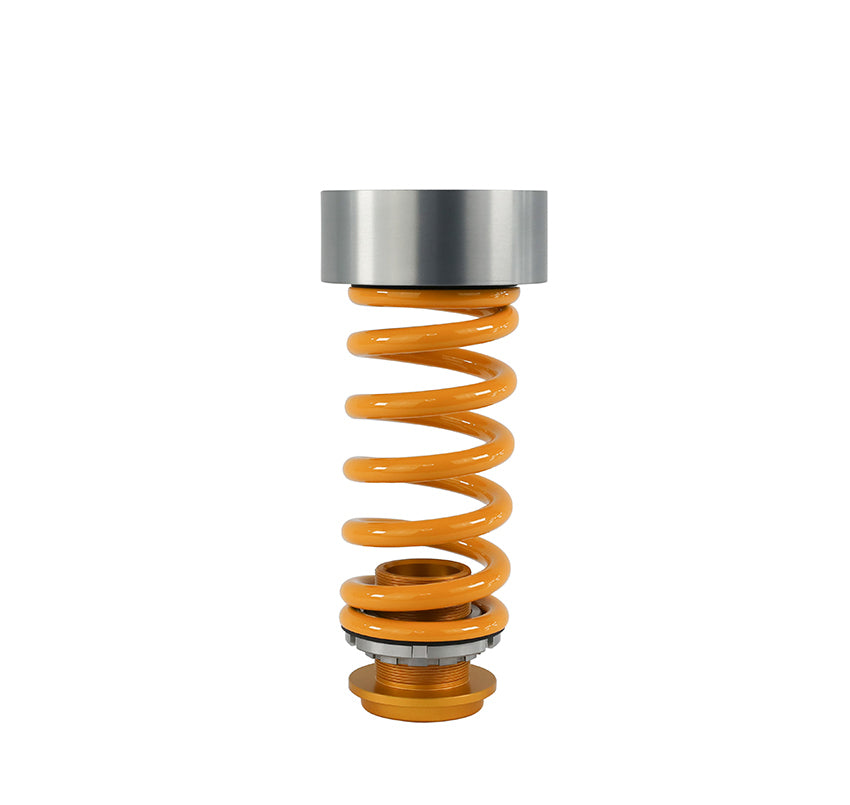

Rear Features

• Conventional shock absorber
• Single bleed adjuster
• Separate spring preload adjuster
• Height adjustable — approx. 5–30mm below standard
• Coil springs included
• Use with original top mounts

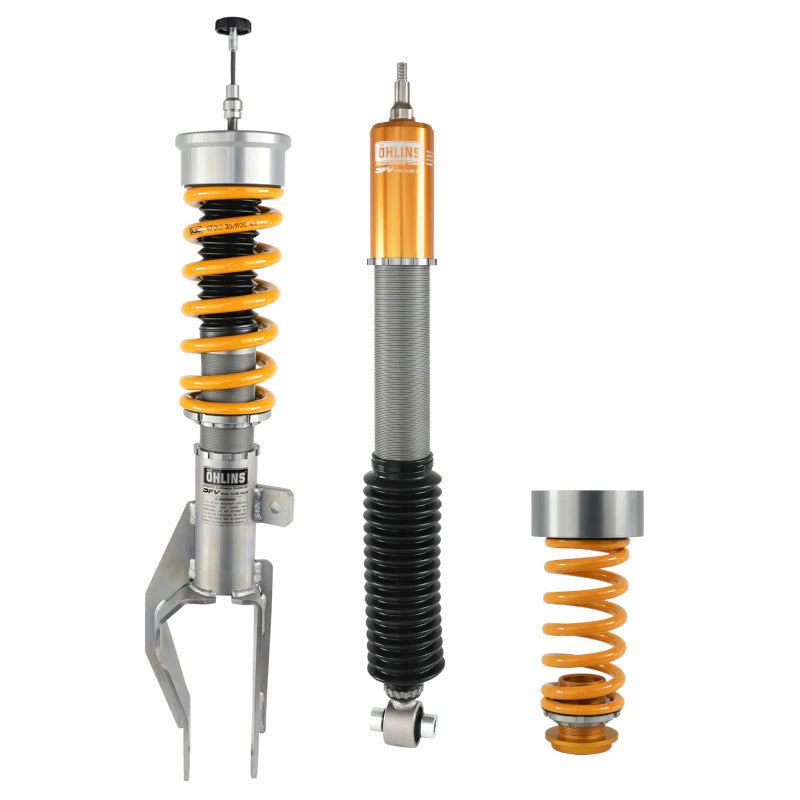

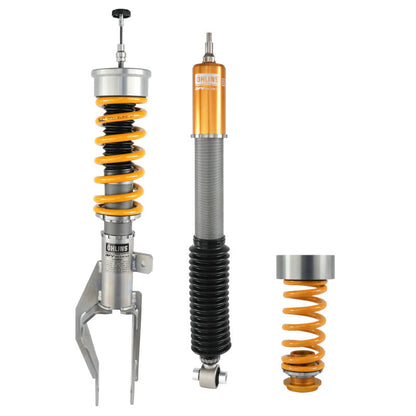

Kit Contents

• Complete coilover kit including springs and all mounting parts
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Suits Model 3 & Model Y — single and dual motor variants
• ✅ Wide 5–30mm lowering range — street and track flexibility
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
