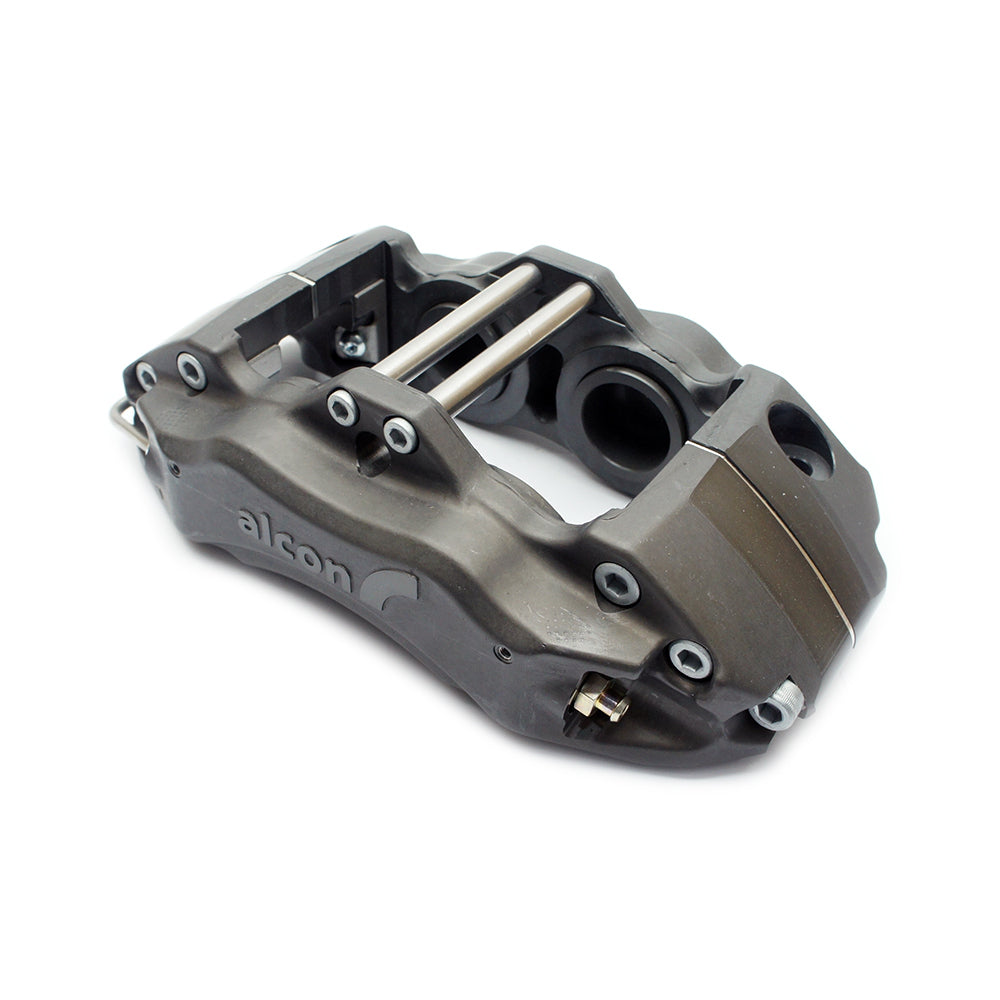

Alcon CRB343 "Motorsports" 4 Piston Calipers (Left SINGLE)

Key features & benefits

• Radial mount for maximum rigidity and firm, consistent pedal
• Differential piston diameters to minimise pad taper wear
• Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
• 2kg anti-knock back springs
• Hard stainless steel wear plates
• Fixed pad retainer bars to increase stiffness, remove caliper to change pads
• Specifications
• Disc diameter range Ø280 – 343mm
• Disc thickness range 28 – 32mm
• Fluid inlet 3/8-24 UNF (-3) female
• Dry weight 2.40kg excluding pads
• Alcon pad reference 4441 or 4423, 16mm thick, 132mm long, 50mm deep, area 133cm2 per caliper
