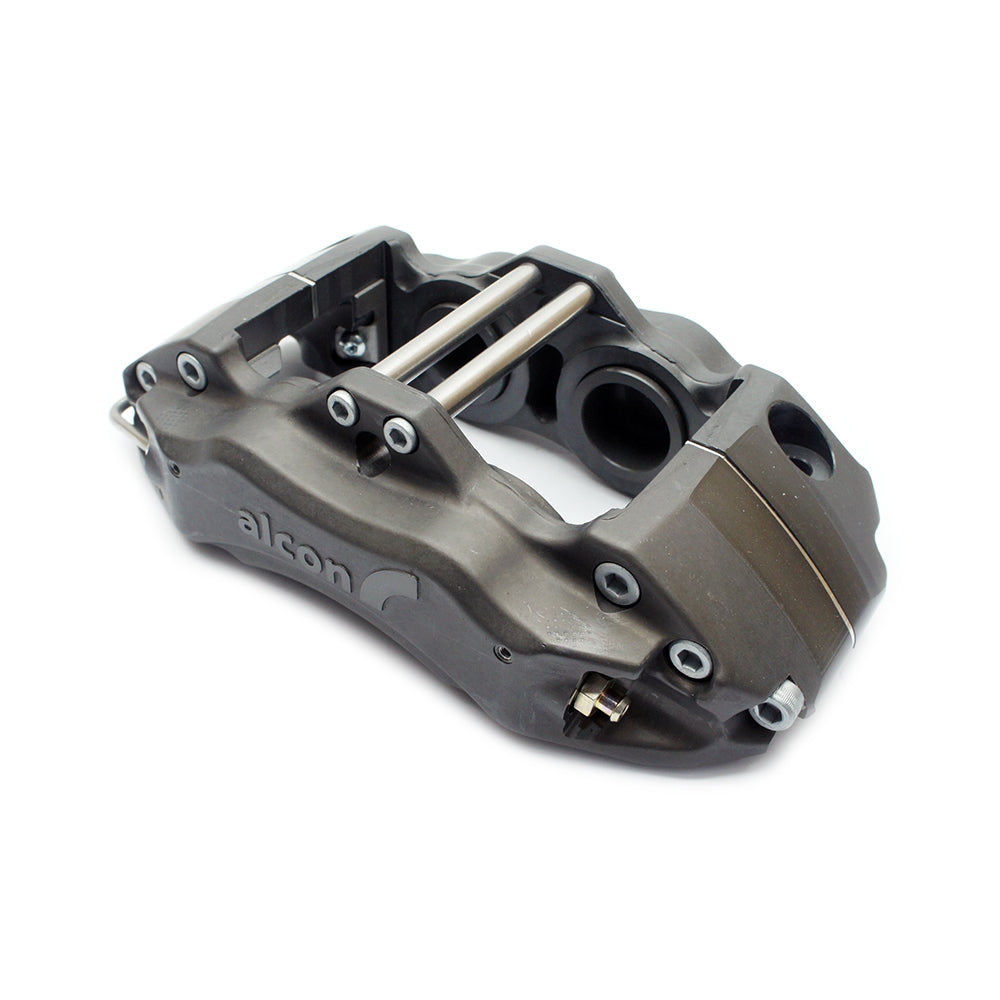

Alcon CRB332 "Motorsports" 4 Piston Calipers LEFT SINGLE

Key features & benefits

• Radial mount for maximum rigidity and firm, consistent pedal
• Differential piston diameters to minimise pad taper wear
• Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
• 2kg anti-knock back springs
• Hard stainless steel wear plates
• Fixed pad retainer

Applications

• Rally Rear, Group N+, Touring Car, General Race use.

Specifications

• Disc diameter range: ø285 - 332mm.
• Disc thickness: CRB332/30; 26 - 30mm, CRB332/32; 28 - 32mm.
• Fluid inlet 3/8-24 UNF (-3) female.
• Dry weight 2.40kg excluding pads.
• Alcon pad reference: 4441 or 4423, 16mm thick, 132mm long, 50mm deep, area 133cm² per caliper.
