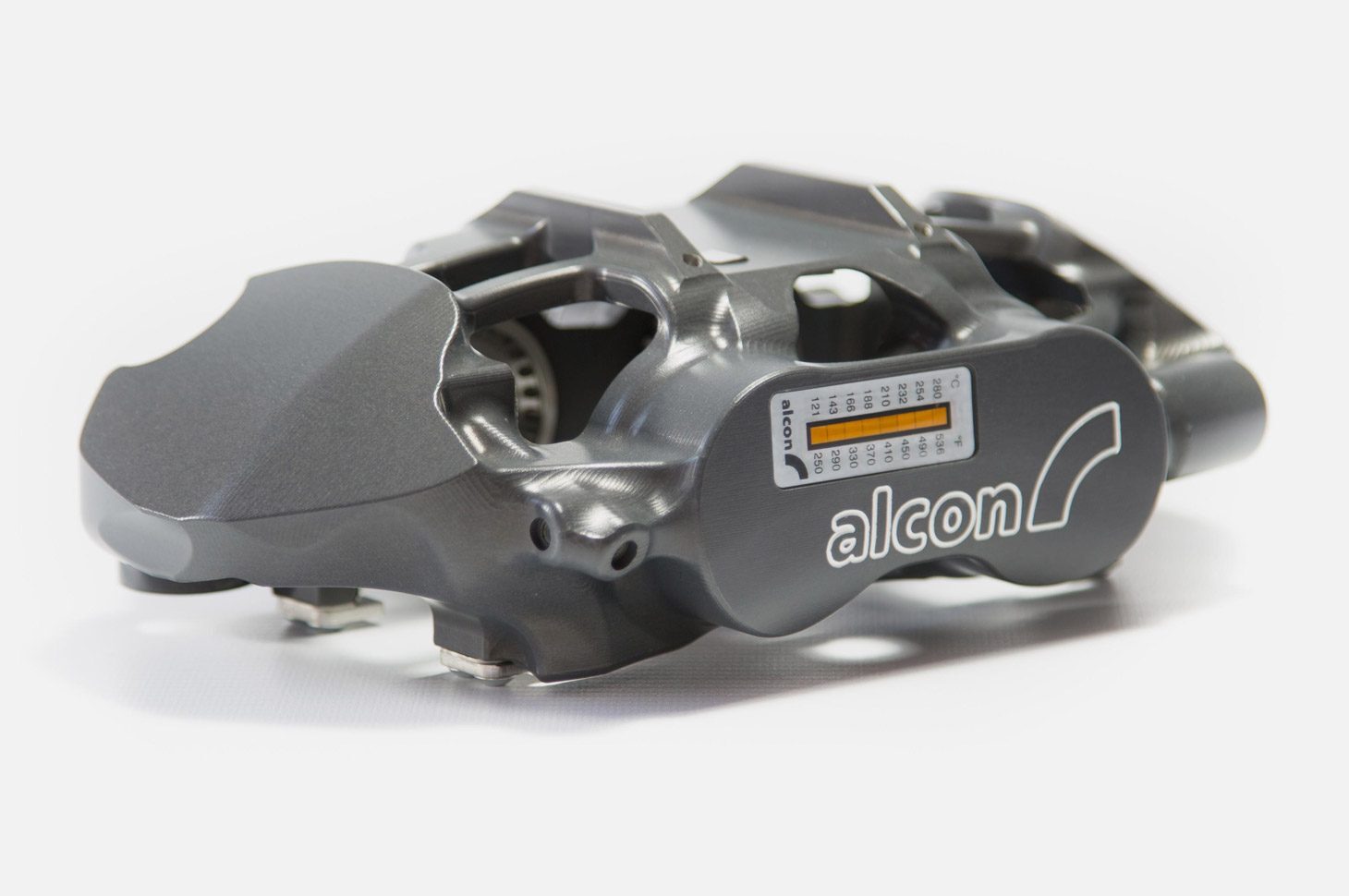

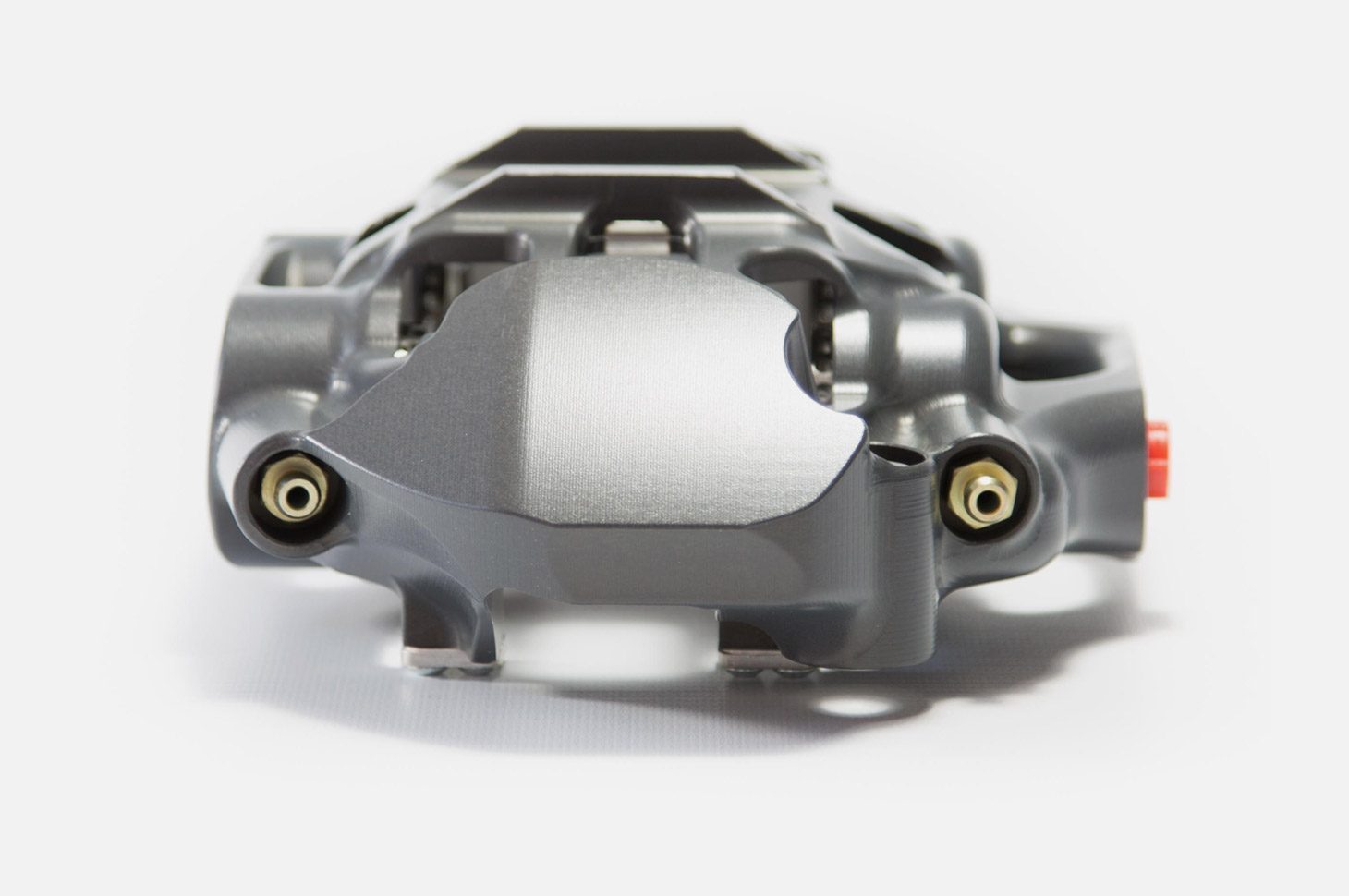

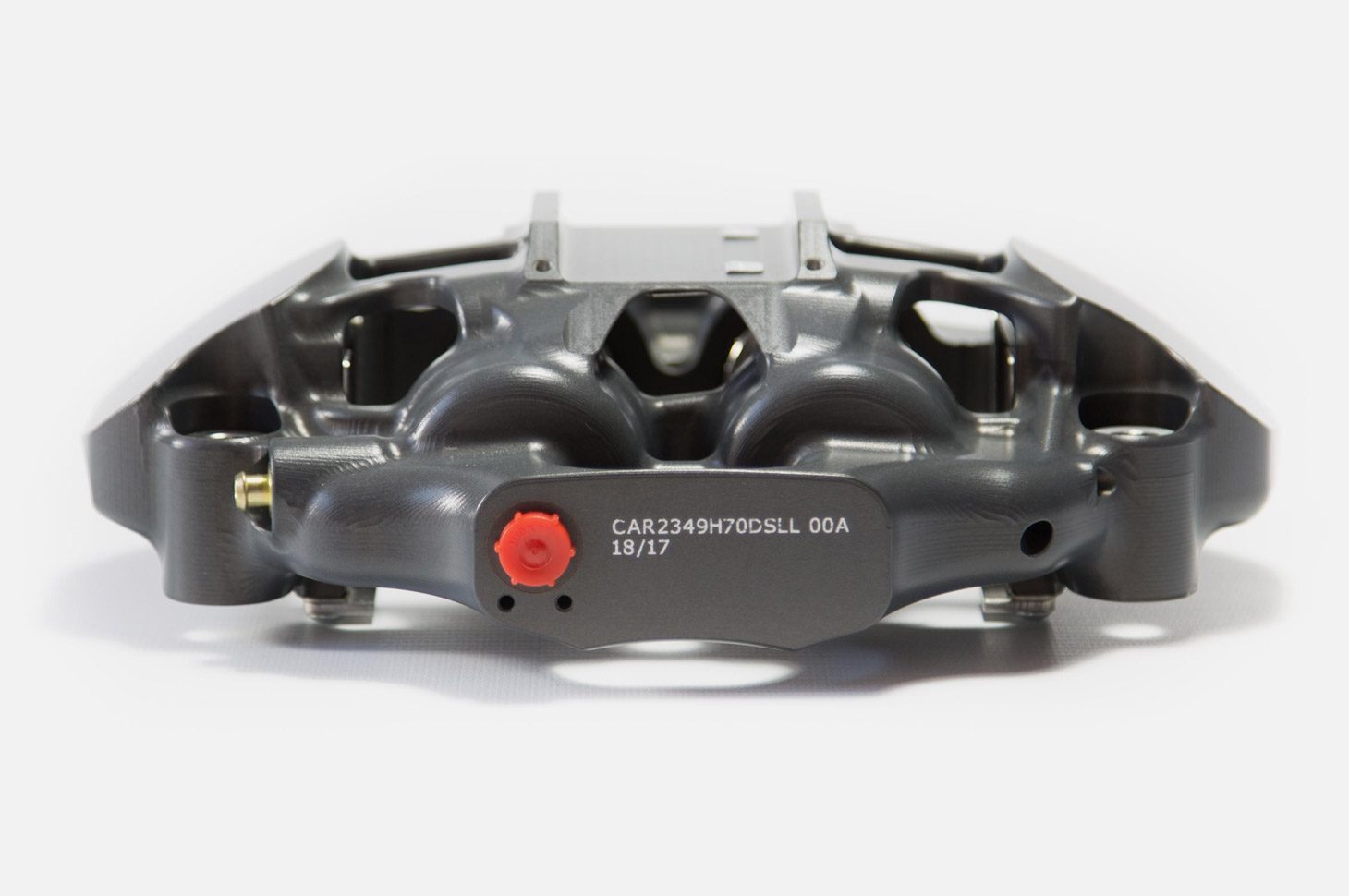

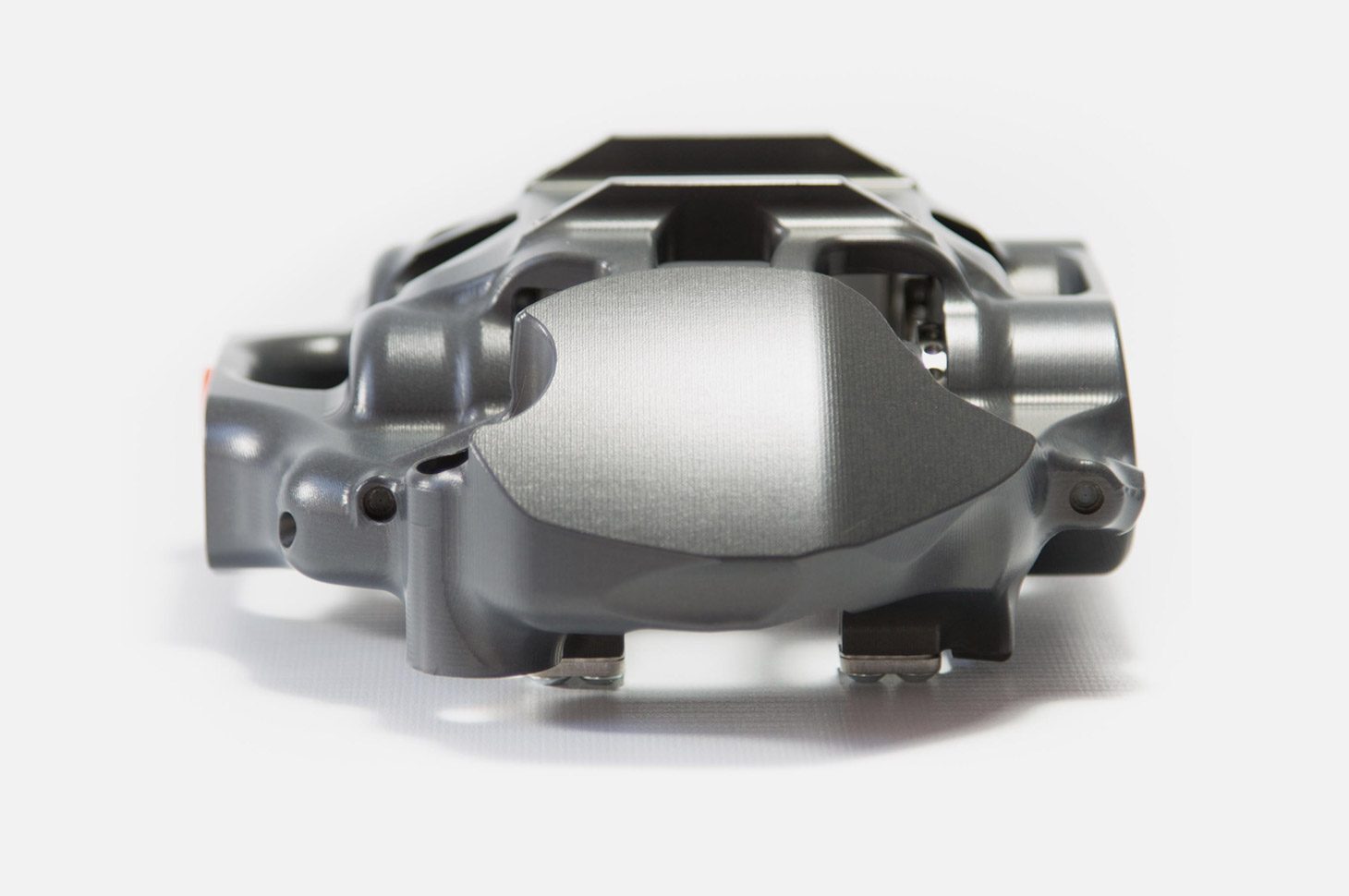

Alcon CAR23 R5 Billet Callipers Right Trailing 38.1/41.3

Designed to meet the FIA R4T and R5 cost cap, Alcon’s new R5 caliper is the most competitive in weight and stiffness on the market.

Its optimised design allowing for integrated cooling features and stainless steel ventilated piston end caps, enables better heat management in any situation. Designed primarily for use in R4T, R5 and Rallycross competition, the R5 caliper is versatile enough to be used in any area of motorsport where a disc range of 300mm – 355mm is required. Benefiting from internally drilled fluid passageways and no external cross over pipes*, Alcon’s new caliper offers the best level of protection in even the harshest of environments.

Key features and benefits

• Billet monobloc 4 piston caliper
• Ø38.1, Ø41.3mm aluminium pistons with stainless steel vented insert
• Floating tab drive disc assembly
• Optimised lightweight design
• Internal fluid transfer

Specifications

• Disc diameter range Ø300×29 to Ø355x33mm
• Dry weight 1.82Kg excluding pads
• Alcon pad reference: 4423 pad shape, 16mm thick, area 64.5cm2
