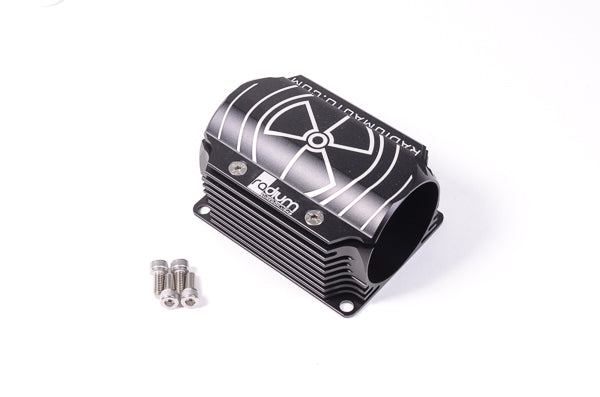

Radium Fuel Filter Clamp 60mm w/Heat Exchanger

Radium Fuel Filter Clamp — 60mm with Heat Exchanger

As engine power levels continue to rise globally, fuel pump heat is fast becoming a critical issue in high-performance fuel systems. This Radium Engineering fuel filter clamp features a custom extruded 6063 aluminium body with integrated cooling fins that actively dissipate heat from the fuel filter body — helping to maintain fuel temperature and protect pump longevity in demanding applications.

The conductive aluminium design clamps directly to a 60mm fuel filter body using two countersunk stainless steel screws. For maximum cooling efficiency, the unit should be mounted in a location where cool air can pass freely through the fins — such as underneath the vehicle. Four M6x1mm stainless steel chassis mounting screws are included. Finished in bright-dip black anodize with a laser-engraved design.

Suits: Universal — 60mm diameter fuel filter bodies

Specifications:

• Clamp diameter: 60mm
• Material: 6063 aluminium (custom extrusion with cooling fins)
• Finish: Bright-dip black anodized, laser-engraved
• Filter mounting: 2x countersunk stainless steel screws
• Chassis mounting: 4x M6x1mm stainless steel screws (included)
• Recommended mounting: Underside of vehicle for maximum airflow through fins

Available Part Numbers:

• 20-0221 — Fuel Filter Clamp, 60mm with Heat Exchanger

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ Custom extruded 6063 aluminium with integrated cooling fins for active heat dissipation
• ✅ Trusted by tuners and race teams running high-power fuel system builds worldwide
• ✅ Bright-dip black anodized with laser-engraved finish — bolt-on fitment, no fabrication required
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel sensor integration
