Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal)

Radium DSV - 12AN ORB to 12AN Male, Quick Fill (Internal)

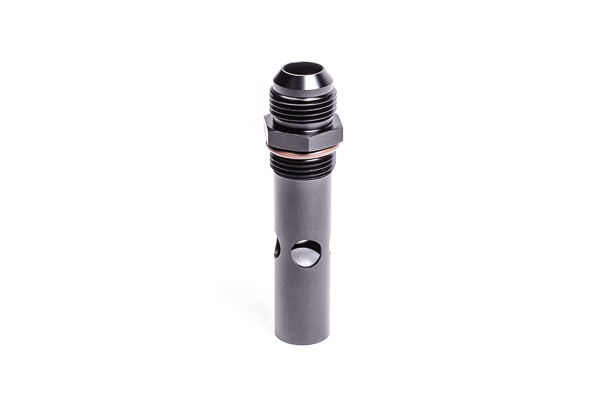

The Radium Engineering DSV (Dump can Shutoff Valve) is an internally mounted quick fill valve designed for fuel tanks with 12AN ORB female threads, including the Radium 20-049X-XX FCST fuel cell surge tanks. The high-flowing 12AN male fitting permits dry break applications using dump cans for rapid, mess-free fuel filling.

Machined as a single piece from billet 6061 aluminium and Type-II anodised, the DSV includes 2 ball valves, an FKM Viton O-ring, and a stainless steel retaining ring. All materials are compatible with all fuel types including methanol and E85. The valve can be easily disassembled for quick cleaning, inspection, and maintenance.

Note: This internally mounted DSV is designed for use with pressureless “vented” dry break receivers. It automatically shuts off airflow when the tank is full, eliminating the need to monitor the filling process.

Features

• 12AN ORB male inlet — installs directly into 12AN ORB female threaded fuel tanks
• 12AN male outlet for dry break dump can connection
• 1-piece billet 6061 aluminium construction, Type-II anodised
• 2x ball valves for automatic shutoff when tank is full
• FKM Viton O-ring sealing — compatible with all fuel types including methanol and E85
• Stainless steel retaining ring
• Fully disassemblable for cleaning, inspection, and maintenance

Compatible Mating Parts

• 20-049X-XX — Radium FCST Fuel Cell Surge Tank (12AN ORB female threaded tanks)
• 20-0495-V — Radium Dry Break, 1.5in, Female, Direct Mount, Vented
• 20-0504-V — Radium Dry Break, 1.5in, Female, Remote Mount, Vented
• 20-0549-V — Radium Dry Break, 1.5in, Female, Vented

Part Number:

• 20-0535 — Radium DSV, 12AN ORB to 12AN Male, Quick Fill (Internal)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
• ✅ FKM Viton sealing — compatible with E85, methanol, and all exotic fuel types
