Radium PA Nylon Submersible Fuel Tubing Kit with Clamps
The Radium Engineering PA Nylon Submersible Fuel Tubing Kit is designed for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from polyamide (PA) nylon, making it resistant to all fuel types including E85 and alcohol blends, and rated for EFI fuel pressures. Available in two inner diameters (5/16" and 3/8") and multiple lengths to suit different pump configurations.
Note: All tubes are translucent white (Clear) except 20-0875 and 20-0895 which are opaque black.
Installation tip: Run hot water over the tube ends before fitting to loosen the material and allow a snug fit over the barb. Torque the stainless steel SAE J1508 clamps to 13.3 in-lbs for a 360° seal. Rolled clamp edges protect the tubing from damage.
Variant & Part Number Guide
| Part Number | Colour | ID | Length |
|---|---|---|---|
| 20-0375 | Clear | 5/16" | 6.5" (165mm) |
| 20-0395 | Clear | 3/8" | 6.5" (165mm) |

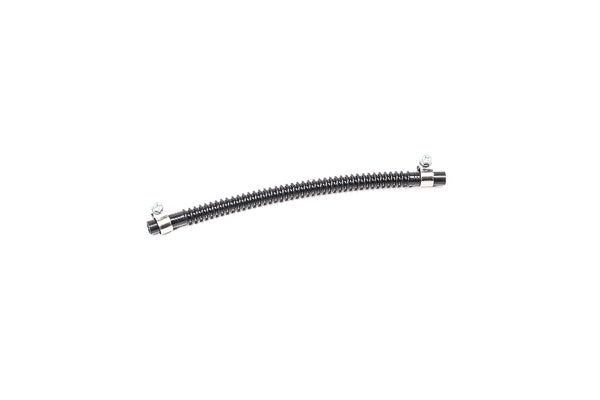

| 20-0875 | Black | 5/16" | 8.2" (208mm) |

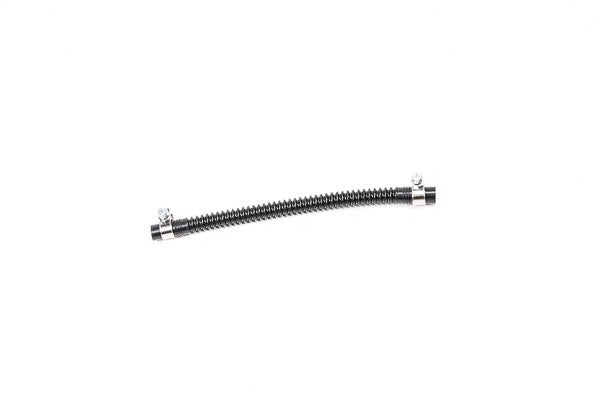

| 20-0895 | Black | 3/8" | 8.2" (208mm) |
| 20-0175 | Clear | 5/16" | 12.8" (325mm) |
| 20-0195 | Clear | 3/8" | 12.8" (325mm) |
| 20-0775 | Clear | 5/16" | 17.7" (450mm) |
| 20-0795 | Clear | 3/8" | 17.7" (450mm) |
Pump Compatibility
5/16" ID kits (20-0175, 20-0375, 20-0775, 20-0875) — compatible with:
- Walbro GSS341 — 255LPH
- Walbro GSS342 — 255LPH
- AEM 50-1000 — Gas
- AEM 50-1200 — E85
- AEM 50-1220 — E85
- Aeromotive 340R 11141
- Aeromotive 340R 11142
- DeatschWerks 9-301-1000
3/8" ID kits (20-0195, 20-0395, 20-0795, 20-0895) — compatible with:
- Walbro F90000262 — Gas
- Walbro F90000267 — E85
- Walbro F90000273 — Gas
- Walbro F90000274 — E85
- Walbro F90000285 — E85
- Walbro F90000295 — E85
- Bosch Motorsport BR540
- DeatschWerks DW400
- DeatschWerks DW440 Brushless
- Ti Automotive E5LM Brushless
Specifications
- Material: Polyamide (PA) nylon — convoluted flexible tubing
- Inner diameters: 5/16" (8mm) and 3/8" (10mm)
- Working pressure: 300 PSI
- Burst pressure: 450 PSI
- Clamps: Reusable stainless steel SAE J1508, torque to 13.3 in-lbs
- Fuel compatibility: All fuel types including E85 and methanol
Kit Includes
- PA nylon convoluted fuel tubing (length and ID per variant selection)
- Stainless steel EFI tube clamps (x2)
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ Tested at Radium Engineering — 300 PSI working pressure, 450 PSI burst pressure
- ✅ Trusted by high-power build tuners and race teams worldwide
- ✅ Compatible with E85, pump petrol, methanol, and all exotic fuel types
- ✅ Reusable stainless steel SAE J1508 clamps with 360° seal and rolled edges
