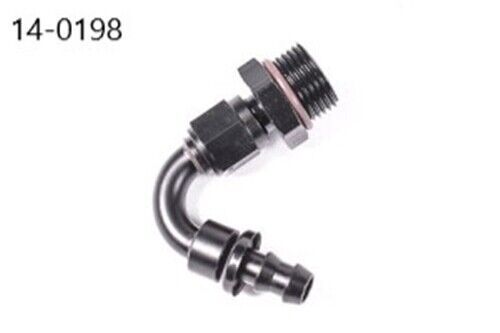

Radium 10AN ORB to 3/8" PushLok 120 Degree Hose End 2 Piece Adaptor

Radium 10AN ORB to 3/8" PushLok 120° Hose End — 2-Piece Adaptor

This 2-piece adapter combines a 10AN ORB (O-Ring Boss) fitting with a reusable black anodized aluminium 3/8" PushLok hose end in a 120° configuration. Designed for use with Radium PCV and fuel hose, it provides a clean and reliable connection between a 10AN ORB port and a 3/8" PushLok hose in tight-routing applications where a straight or 90° fitting won’t clear surrounding components.

The 10AN ORB side uses a 7/8"-14 thread with positive FKM (Viton) O-ring sealing — no PTFE paste or thread sealant required. Lubricate the O-ring with engine oil before installation. The PushLok hose end installs without hose clamps and is rated to withstand more than 800 PSI.

Suits: Universal — any 10AN ORB ported component requiring a 3/8" PushLok hose connection

Specifications:

• ORB side: 10AN ORB (7/8"-14 thread), FKM Viton O-ring included
• Hose side: 3/8" PushLok barb
• Angle: 120°
• Configuration: 2-piece adaptor
• Hose clamps: Not required
• Pressure rating: 800+ PSI

Available Part Numbers:

• 14-0198 — 10AN ORB to 3/8" PushLok 120° Hose End, 2-Piece Adaptor

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium with FKM Viton O-ring — no PTFE required
• ✅ Trusted by tuners and race teams running high-power builds worldwide
• ✅ PushLok hose end rated to 800+ PSI — no hose clamps required
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel applications
