Öhlins Road & Track Coilovers - Mini Cooper R50/Cooper S R53 (2001-2006)

Öhlins Road & Track Coilovers for Mini Cooper R50 & Cooper S R53 (2001-2006)

Experience the perfect balance of track performance and daily comfort with Öhlins Road & Track coilovers, engineered specifically for the 2001-2006 Mini Cooper R50 and Cooper S R53. Featuring Öhlins' revolutionary Dual Flow Valve (DFV) technology, these premium coilovers deliver genuine racing capability without sacrificing ride quality for your daily commute.

Why Choose Öhlins Road & Track?

Öhlins brings over 40 years of motorsport heritage and advanced suspension engineering to your Mini Cooper. These coilovers represent the end of compromises—delivering blistering response times, improved bump absorption, and massive grip increases that enhance both safety and performance at the limit.

Key Benefits:

• ✓ Dual mode operation: Road comfort or track aggression with a simple adjustment
• ✓ Superior bump absorption maintains traction over rough surfaces and curbs
• ✓ Quicker steering response and improved chassis balance
• ✓ Rebuildable design for long-term value
• ✓ ISO 9227 corrosion tested with 2-year worldwide warranty

Dual Flow Valve (DFV) Technology Explained

The DFV system is what sets Öhlins apart from conventional coilovers. This patented technology provides symmetrical damping characteristics on both compression and rebound strokes, ensuring your tyres maintain optimal contact with the road surface.

How DFV Works:

At low shaft speeds, damper fluid flows through precision jet bleeds for comfortable daily driving. At higher shaft speeds during spirited driving or track use, fluid flows through compression and rebound ports in the piston. During sudden impacts or high-speed compressions, the DFV opens additional flow paths, allowing the suspension to absorb bumps while maintaining control—then quickly return the tyre to the road surface for maximum grip.

Real-World Performance:

• Road Mode: Surprisingly supple ride quality, more compliant than many OEM setups
• Track Mode: Aggressive damping prevents loss of racing line over bumps and curbs
• Consistent traction over undulating surfaces and imperfections
• Maintains stability while cresting bumps and potholes

Technical Specifications

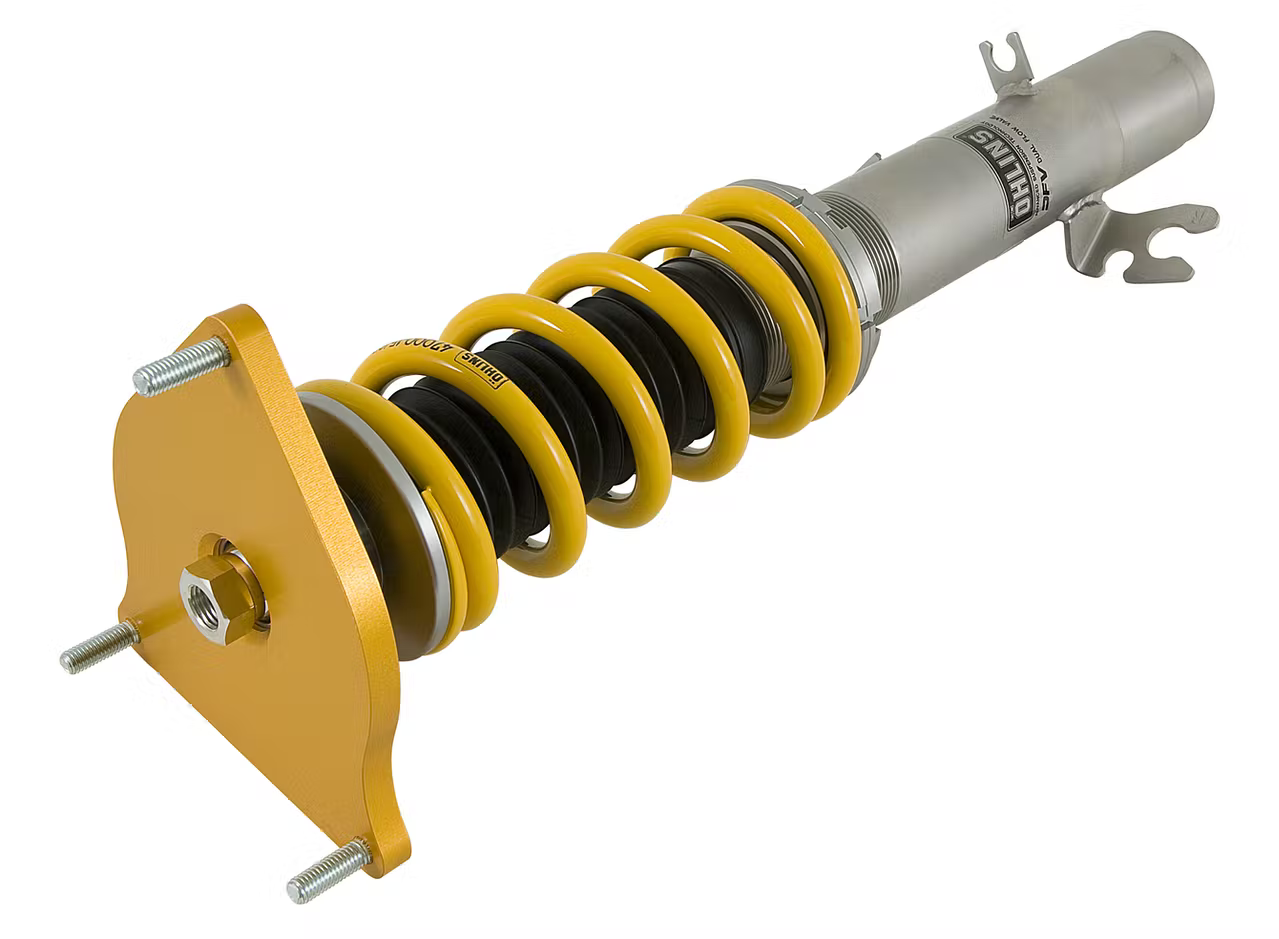

Front Suspension:

• McPherson strut design, upside-down configuration
• Combined compression and rebound damping adjustment
• Spring preload adjuster for precise setup
• Ride height: 5-20mm lower than standard (recommended setup)
• Spring rate: 60 N/mm

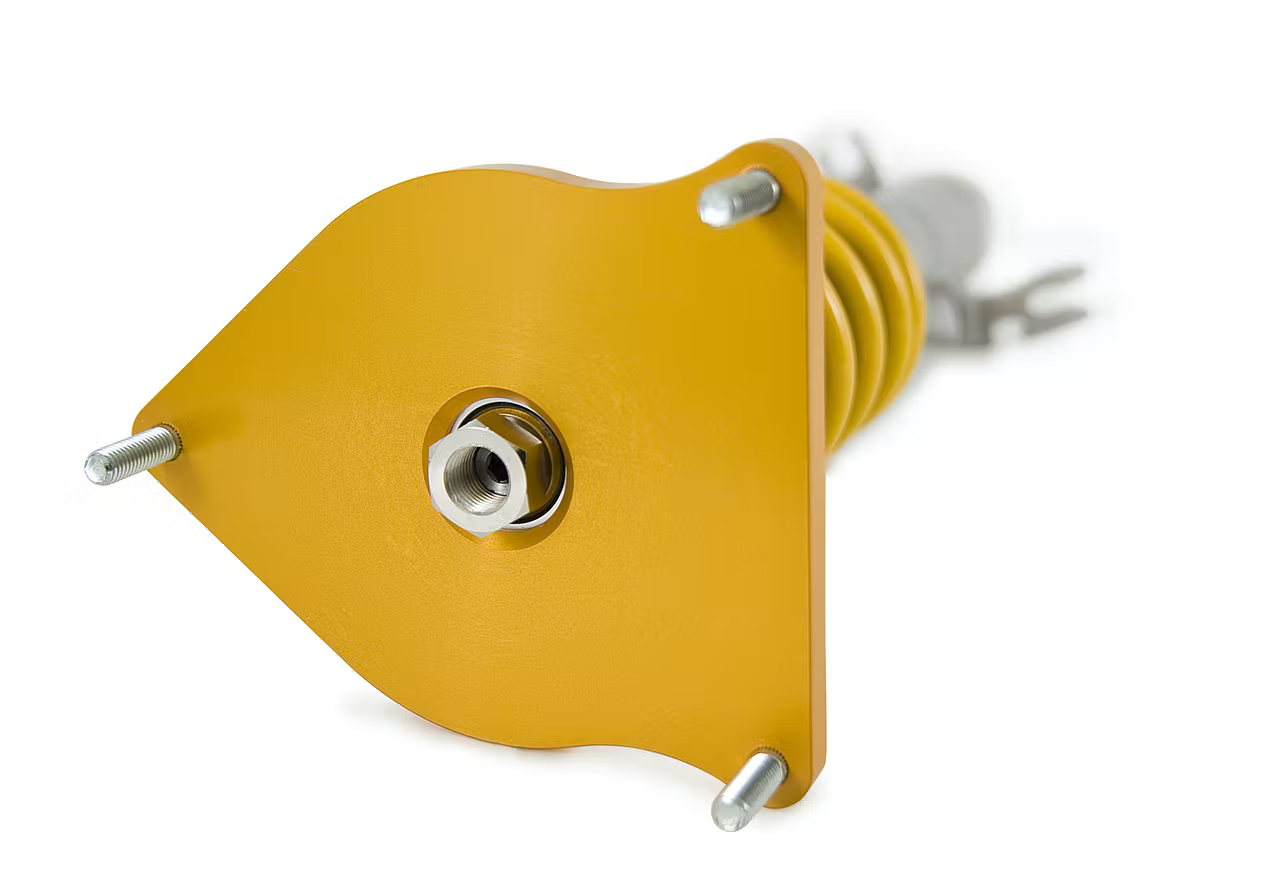

• Includes aluminum top mounts (non-adjustable)

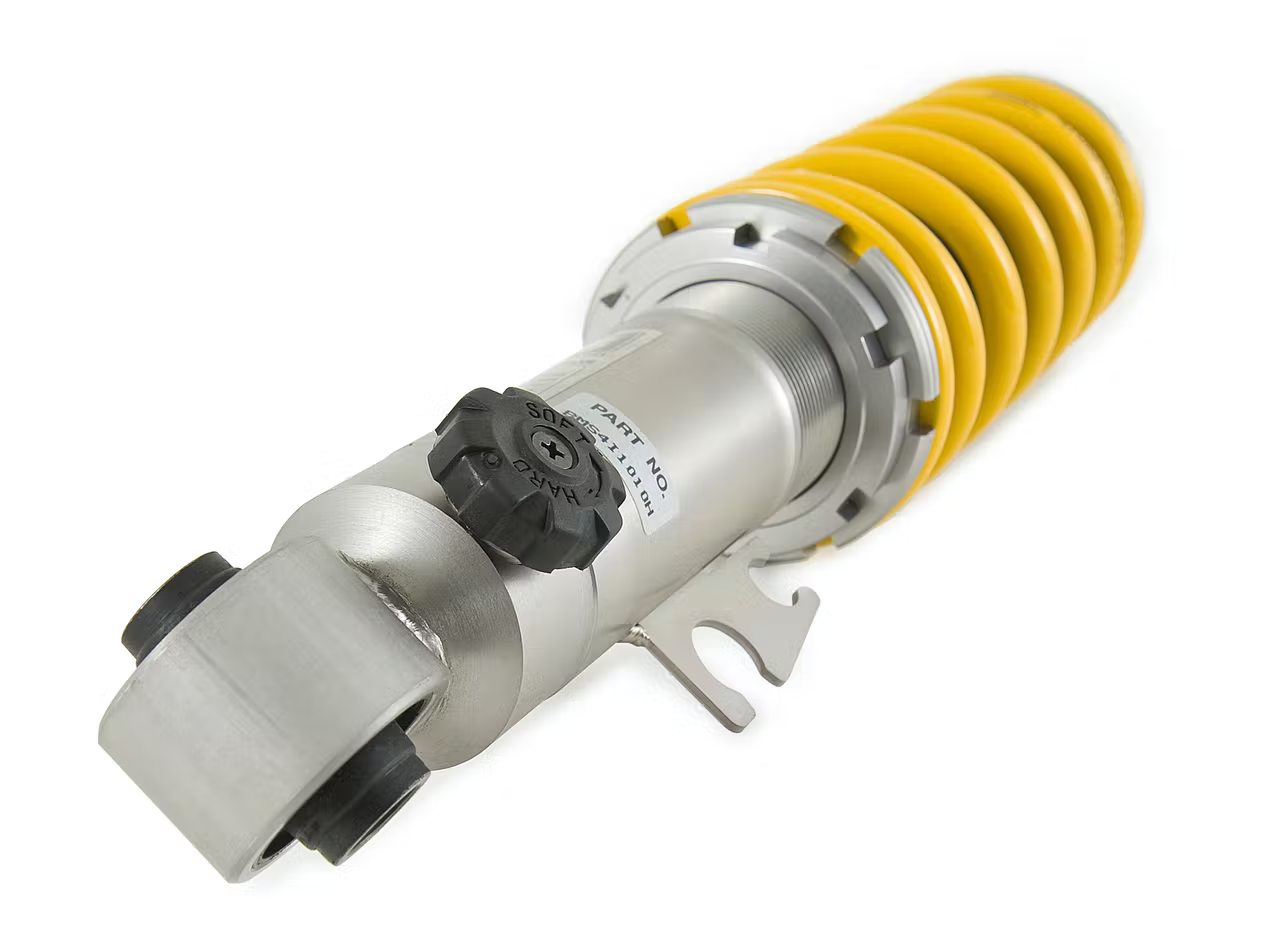

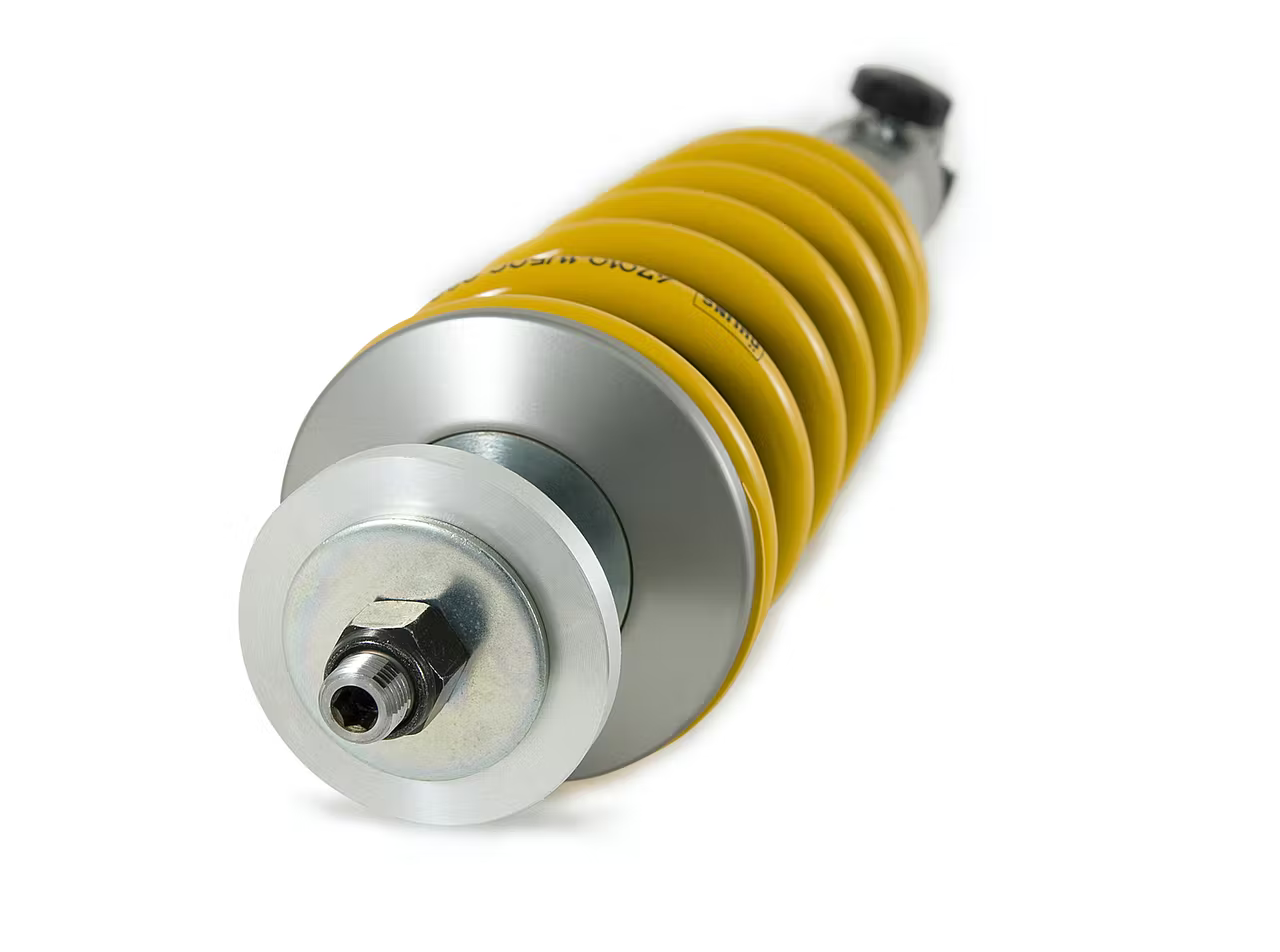

Rear Suspension:

• Conventional shock absorber design
• Combined compression and rebound damping adjustment
• Spring preload adjuster for precise setup
• Ride height: 10-25mm lower than standard (recommended setup)
• Spring rate: 50 N/mm
• Uses original top mounts

Intelligent Height Adjustment System

Unlike inferior designs that adjust height by compressing the spring (which limits suspension travel and can cause topping out), Öhlins uses a superior method. The lower flange threads on the damper body while the spring seat remains in its optimal position, preserving the carefully engineered suspension characteristics and full travel range. Lock rings secure your precise settings once dialed in.

Thermal Stability Technology

Dampers generate heat through friction as the piston moves. Heat changes fluid viscosity, which can alter handling characteristics. Öhlins addresses this with a unique needle bleed valve that expands with temperature, closing the fluid gap to maintain consistent damping rates. The result? Predictable, consistent handling lap after lap, allowing you to focus on driving while the technology manages thermal compensation.

Complete Kit Includes

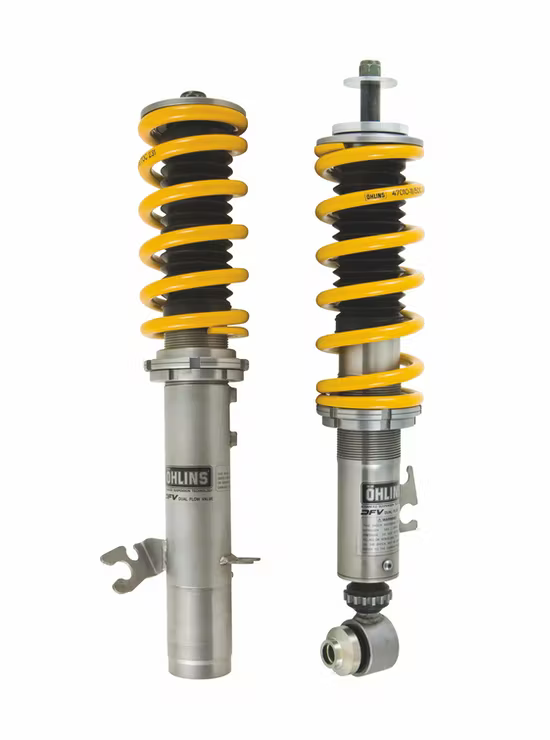

• Front and rear coilover assemblies with springs
• All necessary mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

Fitment Information

Compatible Vehicles:

• 2001-2006 Mini Cooper R50
• 2001-2006 Mini Cooper S R53

Part Number: BMS MI10S1

Adjustment & Tuning

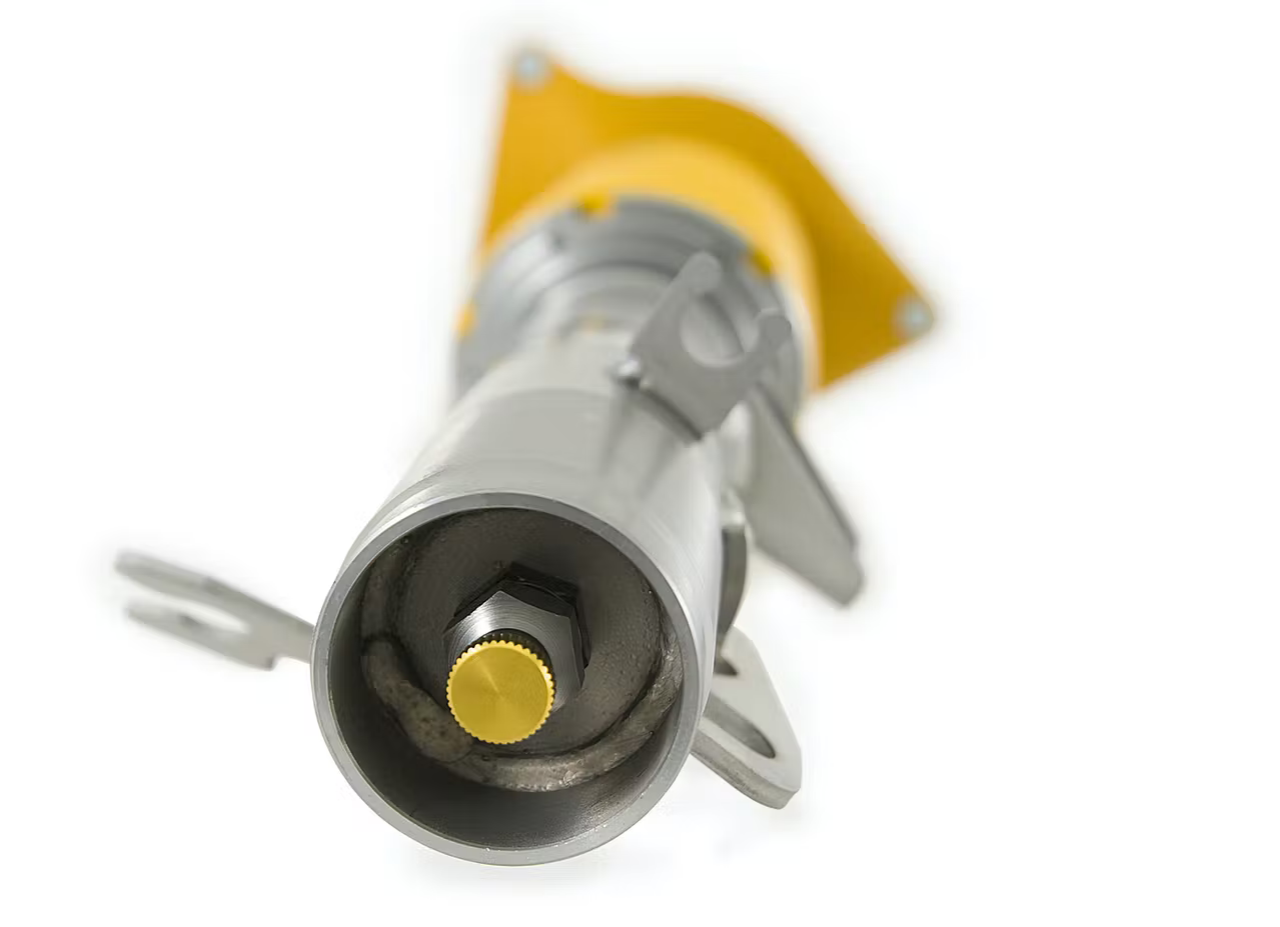

These coilovers work exceptionally well with factory settings, but offer extensive adjustment for personalized setup. Easily accessible damping adjusters at the base of each unit allow precise fine-tuning in small increments. Whether you prefer stiff and reactive or soft and forgiving, the adjustment range accommodates your driving style and conditions.

The golden adjustment knob switches between road and track modes, simultaneously changing all four damping parameters: low-speed compression, high-speed compression, low-speed rebound, and high-speed rebound. Simple, effective, and repeatable.

Warranty & Quality Assurance

Every Öhlins Road & Track coilover undergoes rigorous ISO 9227 salt spray corrosion testing and is backed by a 2-year worldwide limited warranty. The rebuildable design ensures long-term serviceability and value.
