Radium Fuel Rail - Rotax 900 ACE (Can-Am / Sea-Doo / Ski-Doo)

Radium Fuel Rail – Rotax 900 ACE (Can-Am / Sea-Doo / Ski-Doo)

Application: BRP Rotax 900 ACE – Can-Am Maverick X3, Ryker 900, Sea-Doo Spark and Ski-Doo (see fitment below)
Part Type: High-Flow 8AN Fuel Rail
Part Number: 20-1131

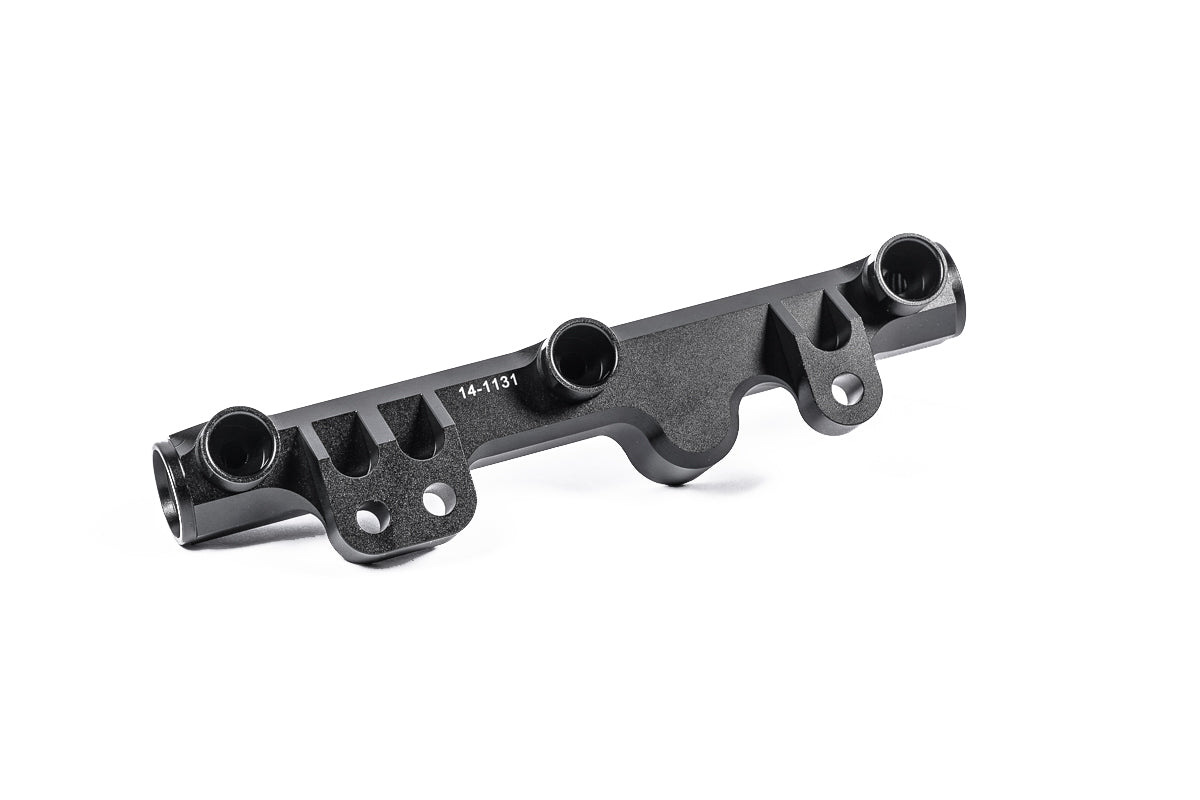

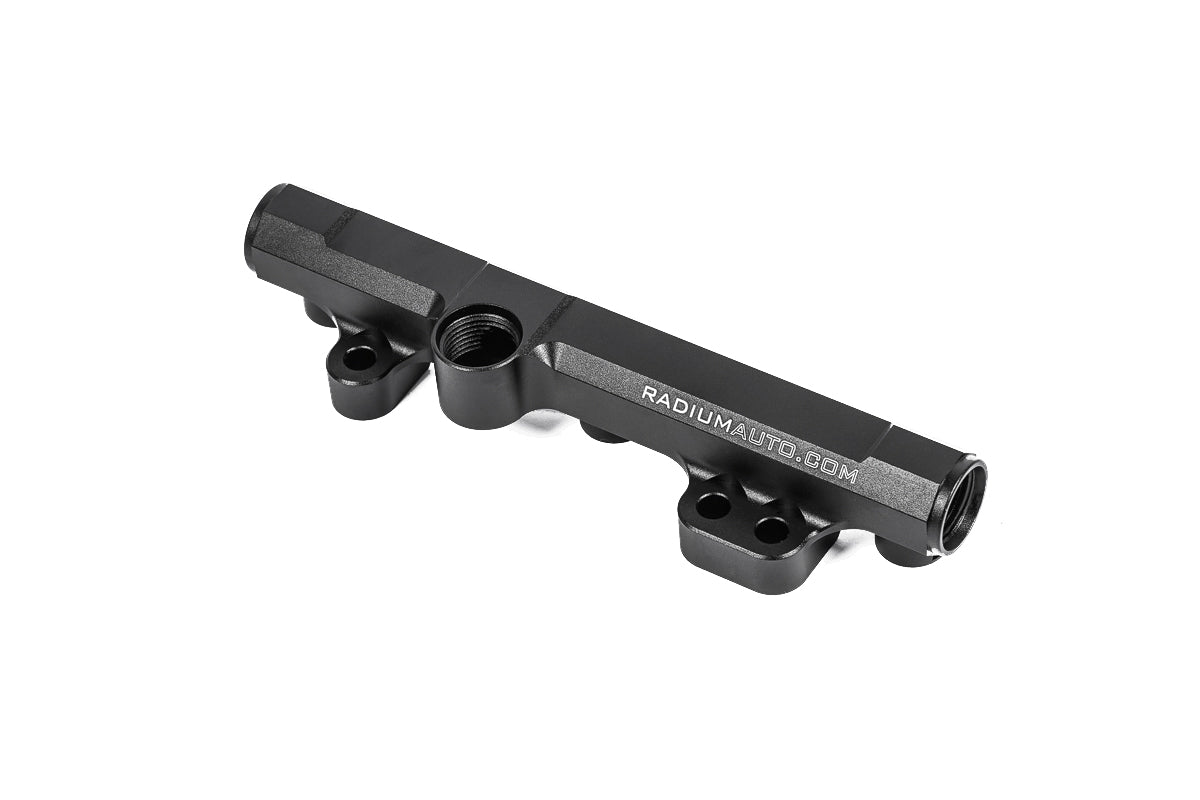

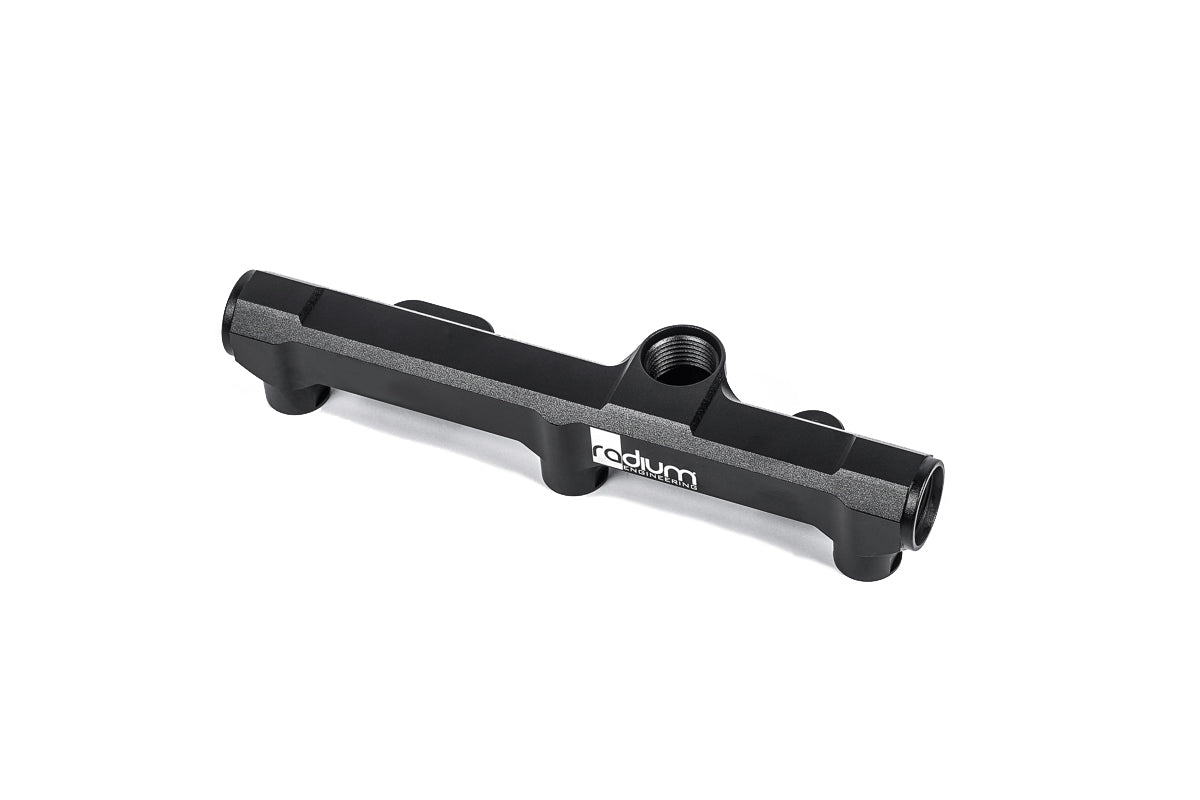

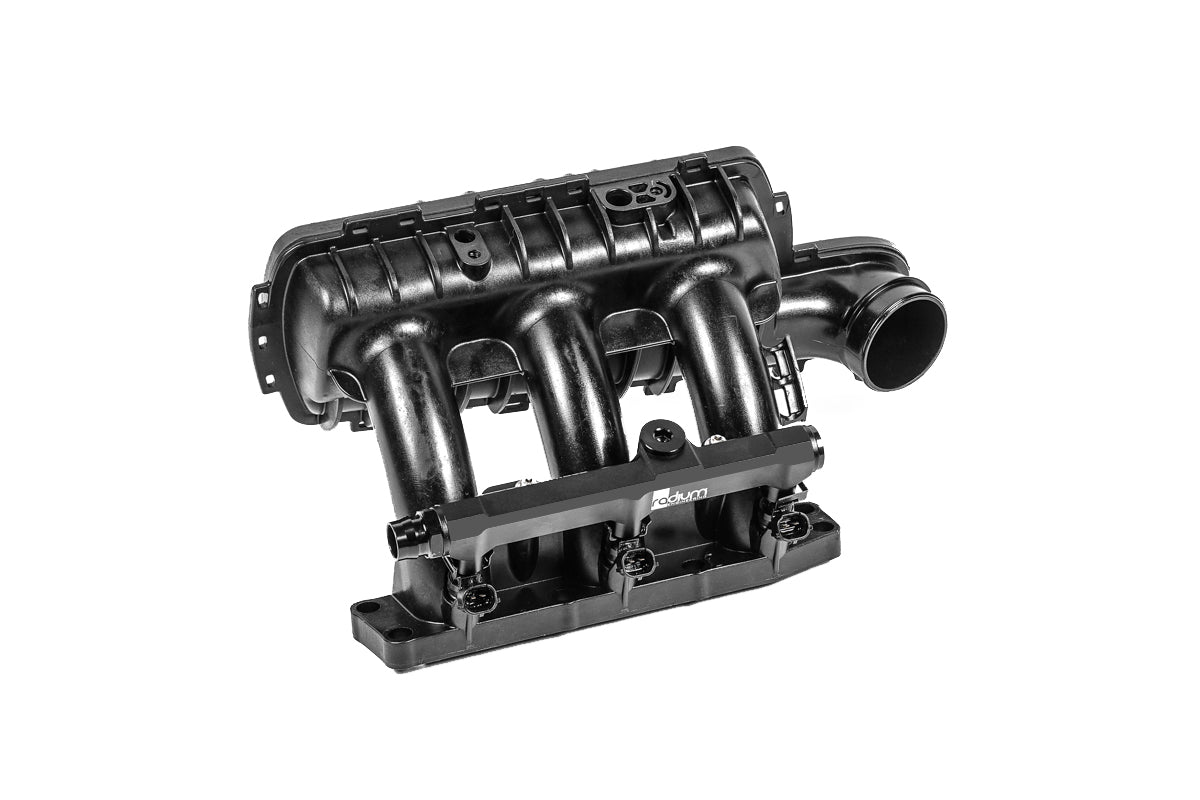

The Radium fuel rail for the Rotax 900 ACE is a large 8AN fuel rail built to support a high-power engine. It's CNC-machined from solid 6061 aluminium, anodised and laser etched, and is compatible with all fuel types, including E85 and other alcohol blends.

The rail's 8AN ORB ports accept Radium direct-mount regulators, fuel pulse dampers and pressure gauges, so you can build the fuel system around it. It's an upgrade rail, not a top-feed conversion – OEM or OEM-equivalent injectors are used.

Key Features

• High Flow: Large 8AN rail to support increased engine power
• Billet Construction: CNC-machined from solid 6061 aluminium, anodised and laser etched
• Fuel Compatibility: All fuel types, including E85
• 8AN ORB Ports: Ready for regulators, pulse dampers and gauges

What's Included

• Anodised billet aluminium fuel rail

Add-On

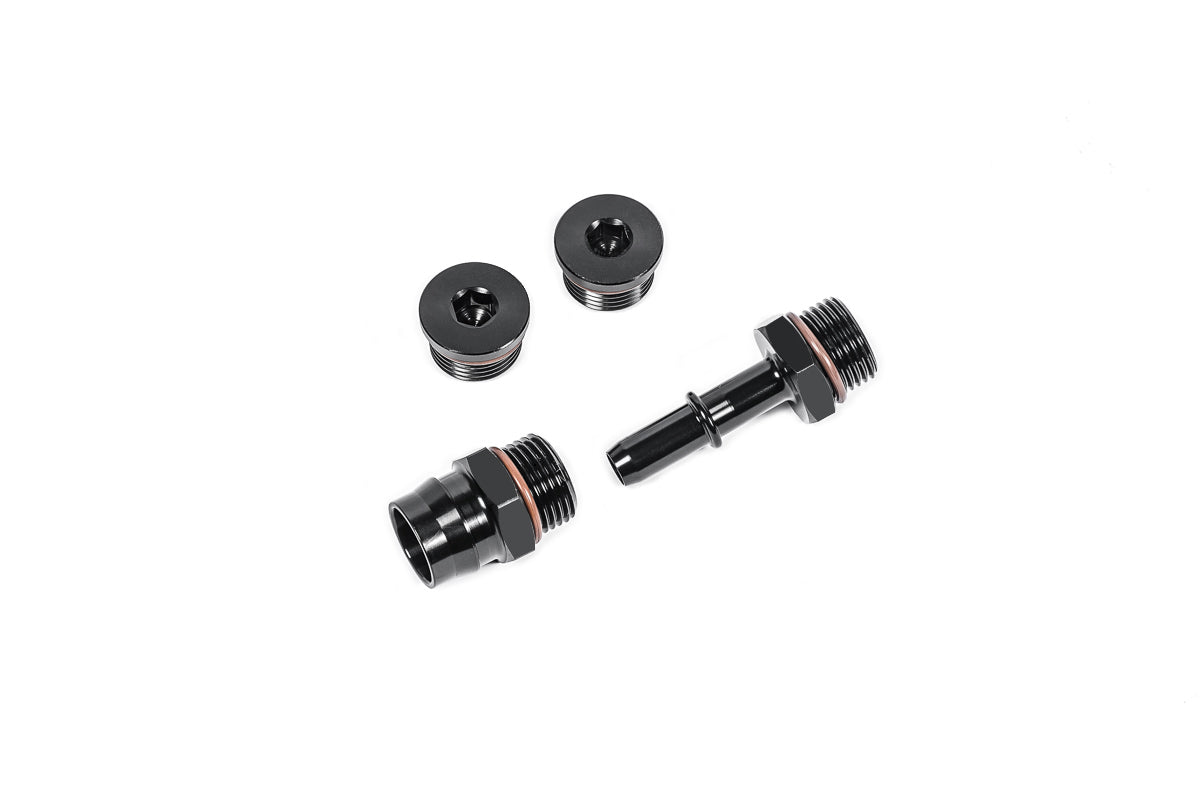

• Radium Fuel Rail Plumbing Kit – Rotax 900 ACE (20-1131-PK) – plug-and-play connection to the factory fuel system, with adapters for early (V2 quick connect) and late (SAE quick connect) engines. Includes 2x 8AN ORB plugs, 1x 8AN ORB to 3/8" male and 1x V2 quick connect 12mm female to 8AN ORB male. Not listed for the Ryker 900.

Optional Parts

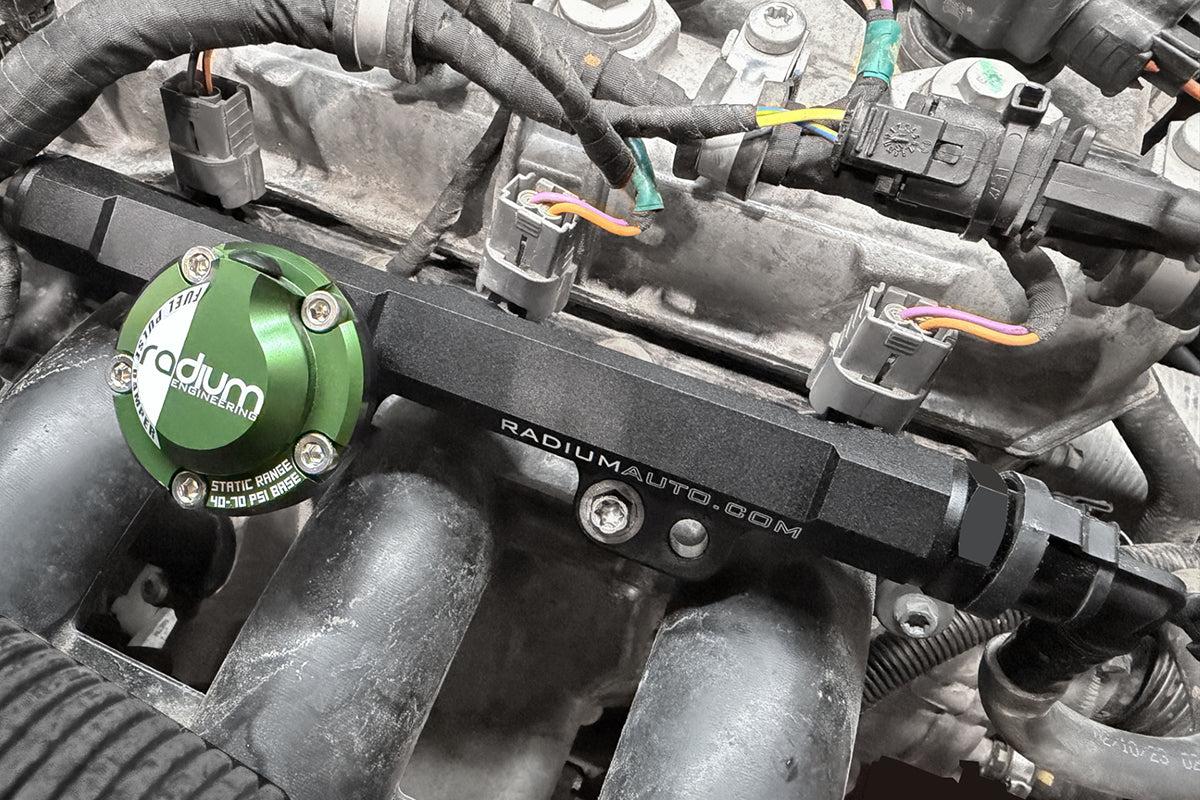

• Radium Fuel Pulse Damper – Direct Mount (8AN ORB)
• Radium Fuel Pressure Gauge 0-100psi w/ 8AN ORB Adaptor
• Radium Fuel Hanger Surge Tank – Can-Am Maverick (20-1150)
• Radium Catch Can Kit (CCV) – Can-Am Maverick X3 (20-0861)
• Radium Coolant Tank Kit – BRP Can-Am / Ski-Doo / Sea-Doo (20-0853)

Important Notes

• OEM or OEM-equivalent injectors must be used. Equivalent injectors must match the OEM height and upper and lower O-ring diameters and styles.
• Radium does not recommend specific injectors – check with your tuner for brand and flow rate, and with the injector manufacturer for the correct dimensions.
• Allow enough clearance around the ports for regulators, gauges and pulse dampers.
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Can-Am Maverick X3 (2017+)

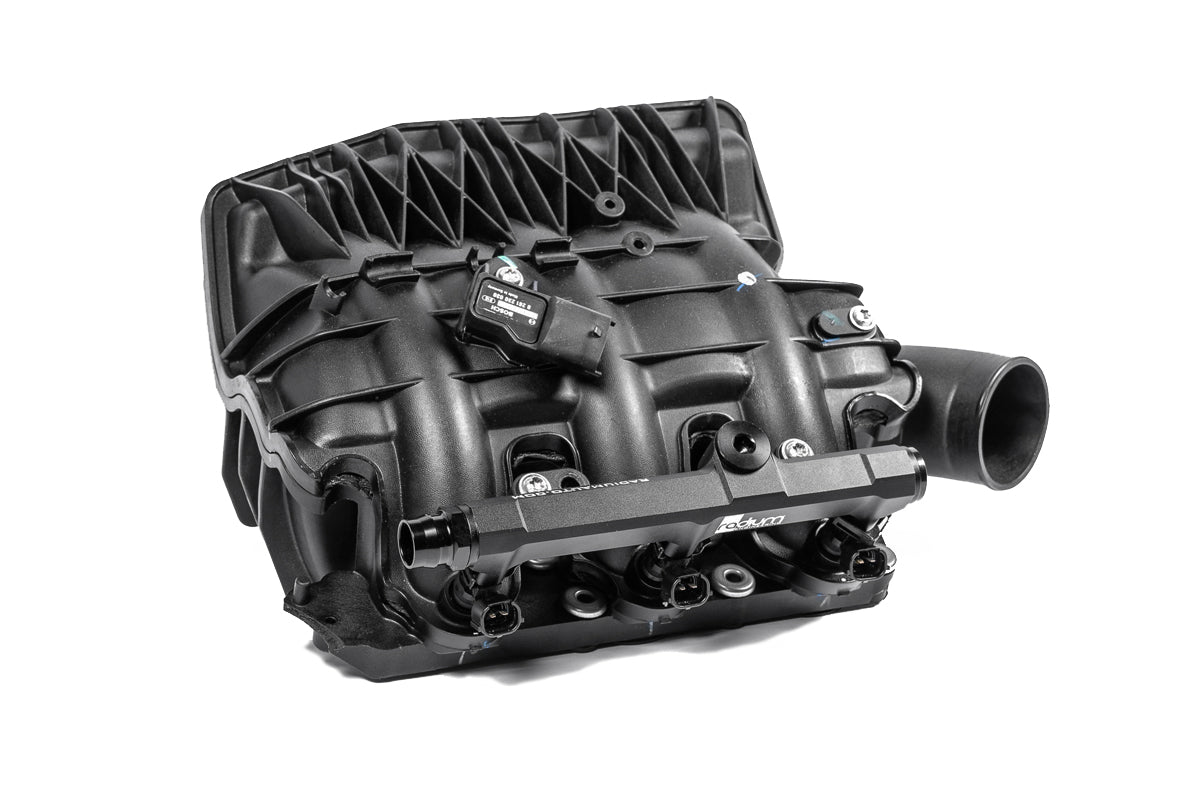

• Can-Am Ryker 900 (2019+)

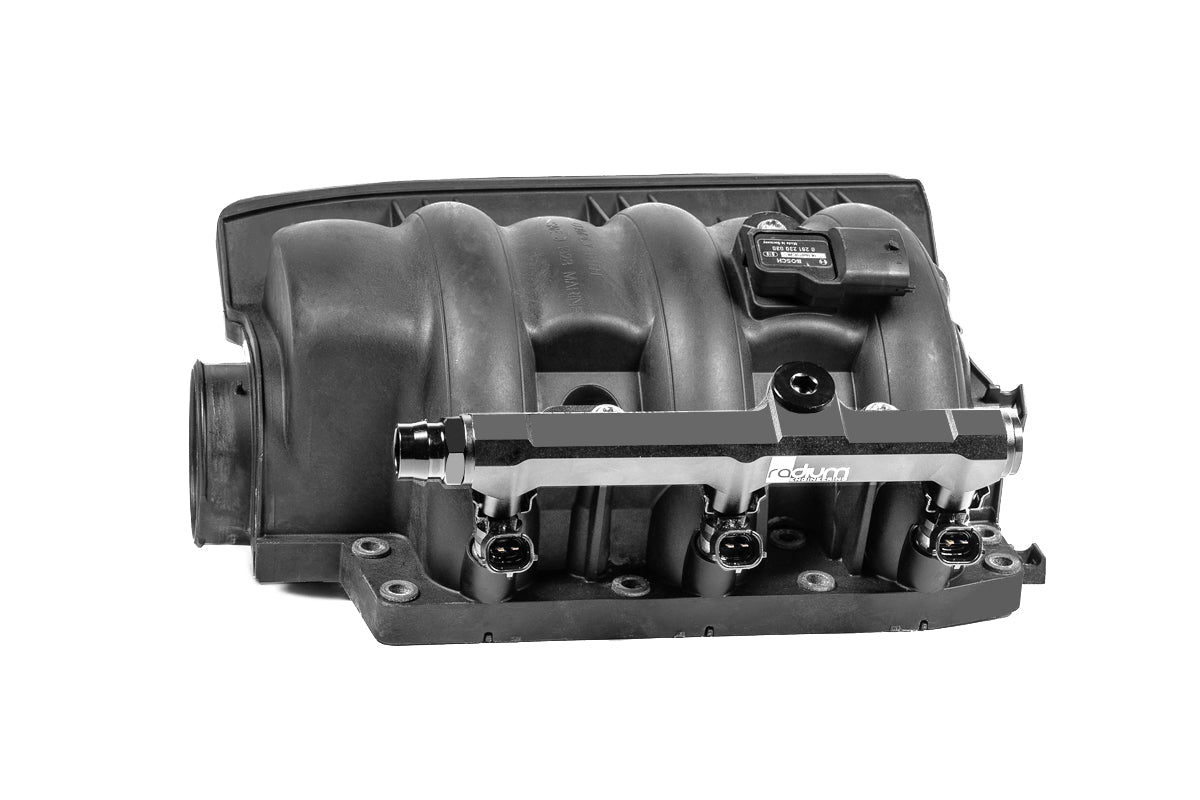

• Sea-Doo Spark (2014+)

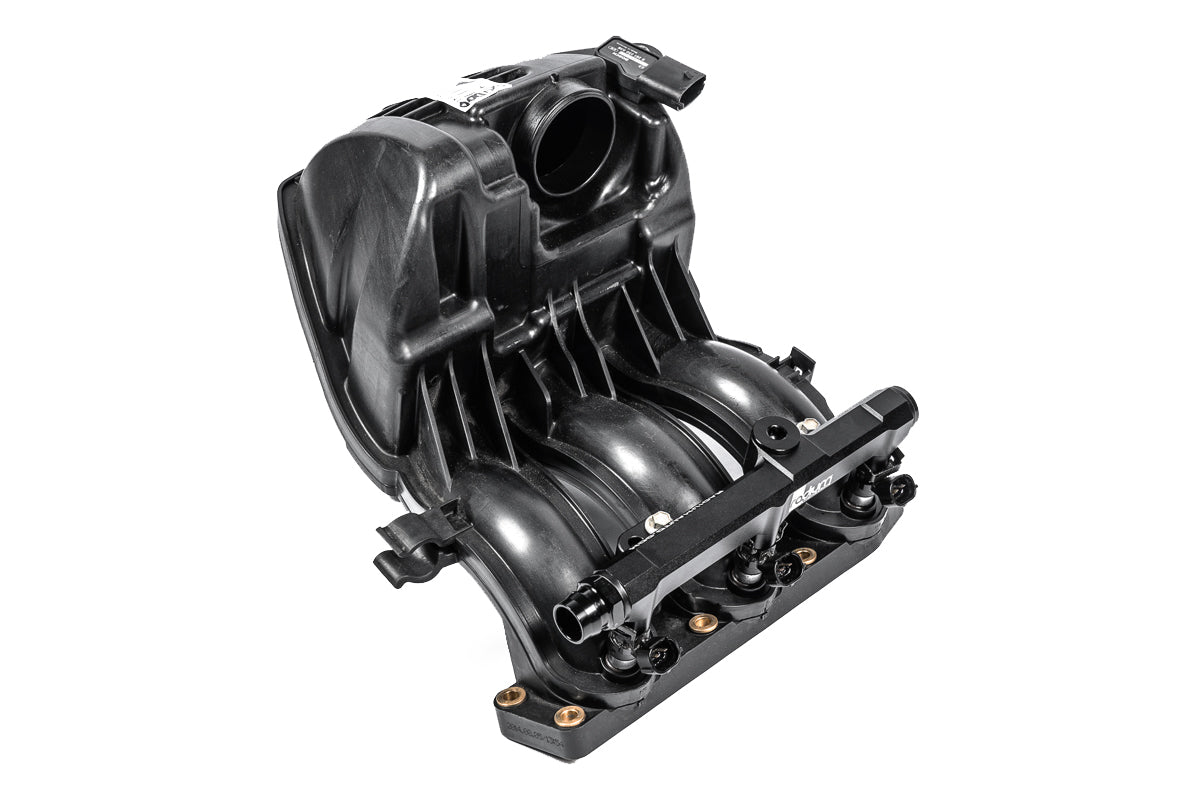

• Ski-Doo Grand Touring (2014+)
• Ski-Doo Skandic (2014+)
• Ski-Doo Expedition (2014+)
• Ski-Doo MXZ (2014+)

Not sure if this suits your machine? Email sales@coore.com.au and our team will confirm fitment.
