Radium Fuel Hanger Surge Tank – Can-Am Maverick X3 / Trail / Sport / R

Application: Can-Am Maverick X3 (2017+), Maverick Trail (2018+), Maverick Sport (2019+), Maverick R (2024+)
Part Type: In-Tank Fuel Hanger Surge Tank (FHST)
Part Number: 20-1150

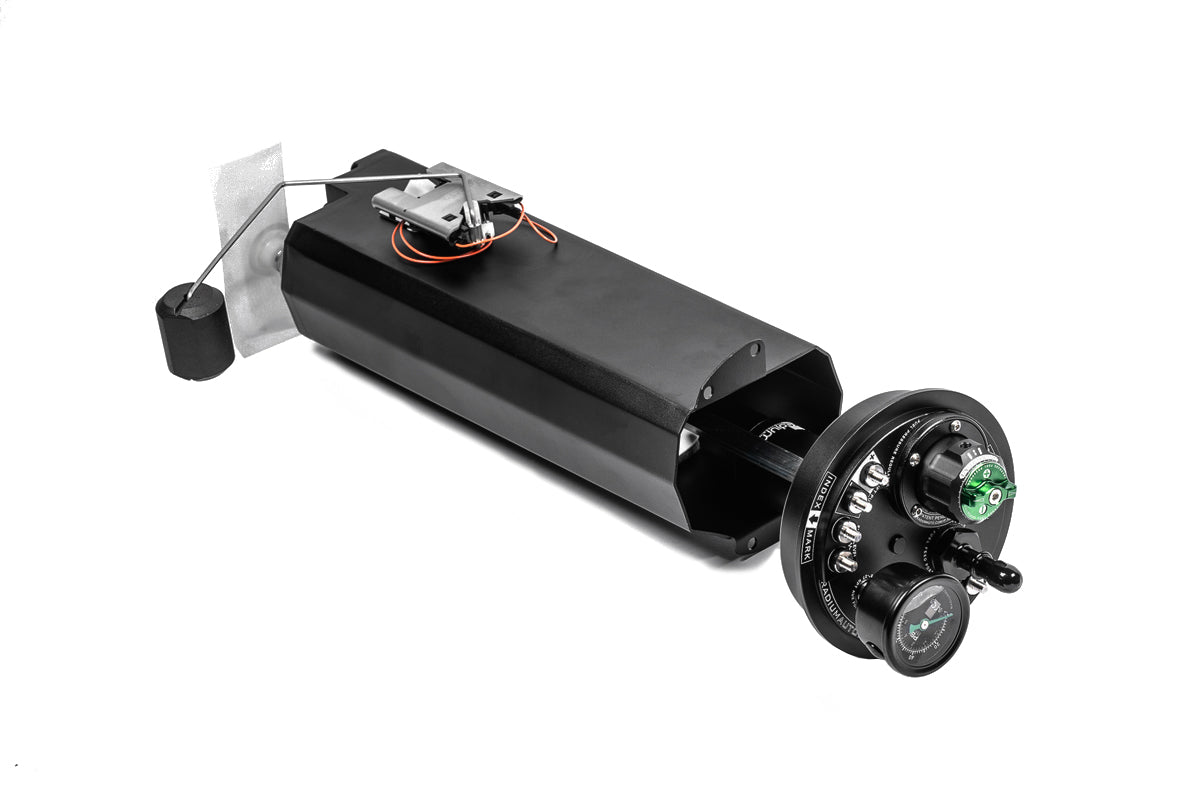

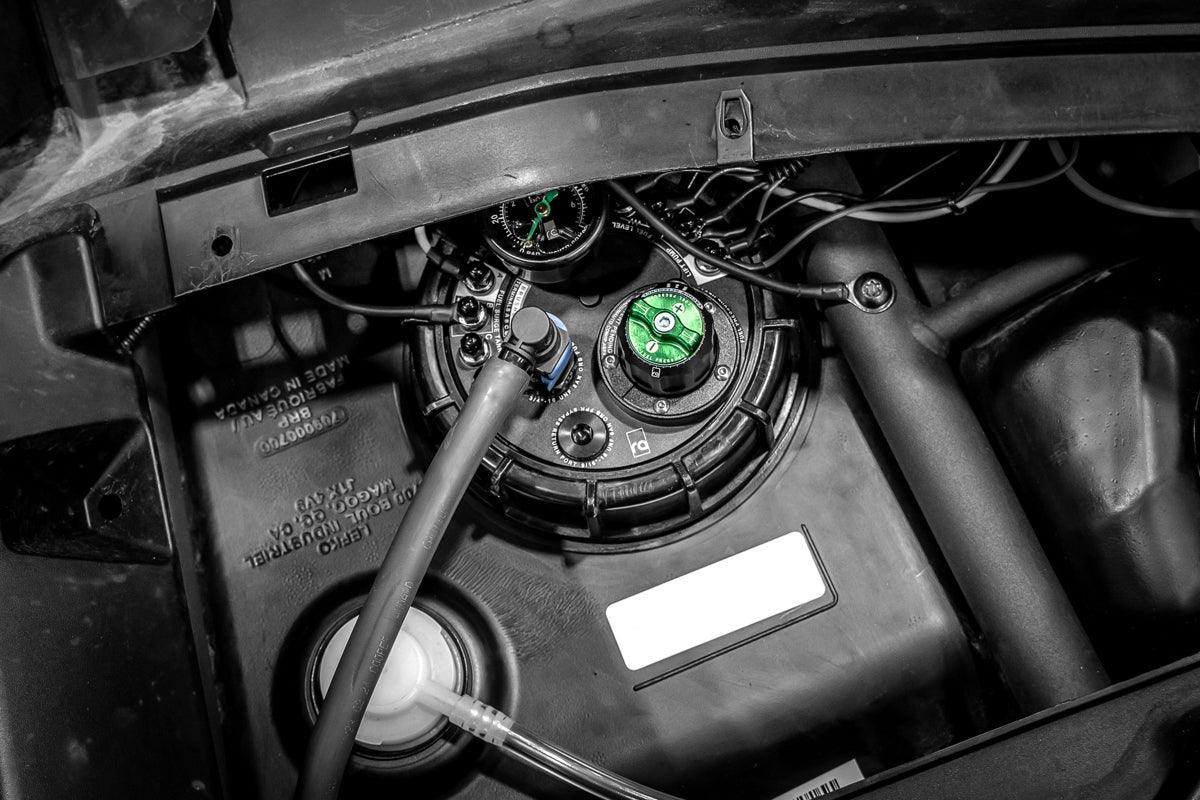

Fuel starvation is common on the Can-Am Maverick when it's driven hard – the factory tank's baffling can't keep fuel at the pickup through long corners, jumps and steep climbs. The Radium Fuel Hanger Surge Tank drops into the factory fuel tank and keeps a dedicated surge tank full at all times, so the engine sees steady fuel pressure no matter what the UTV is doing.

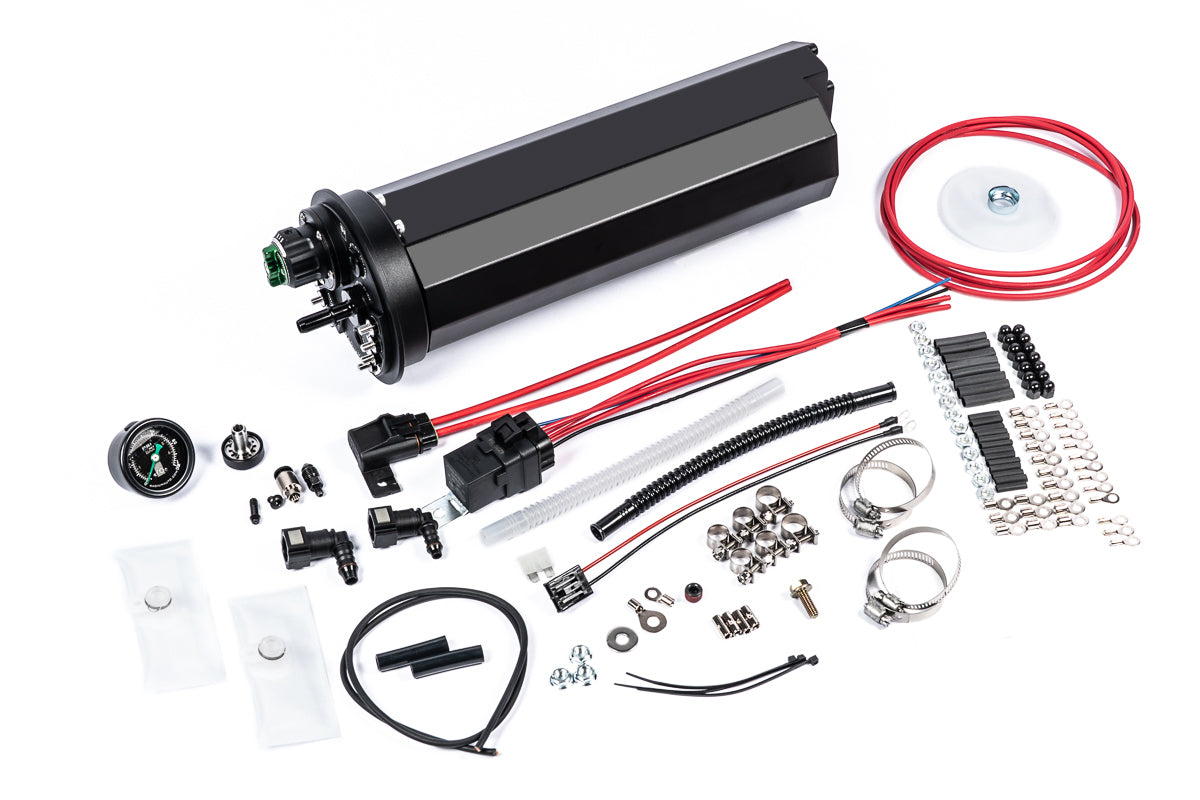

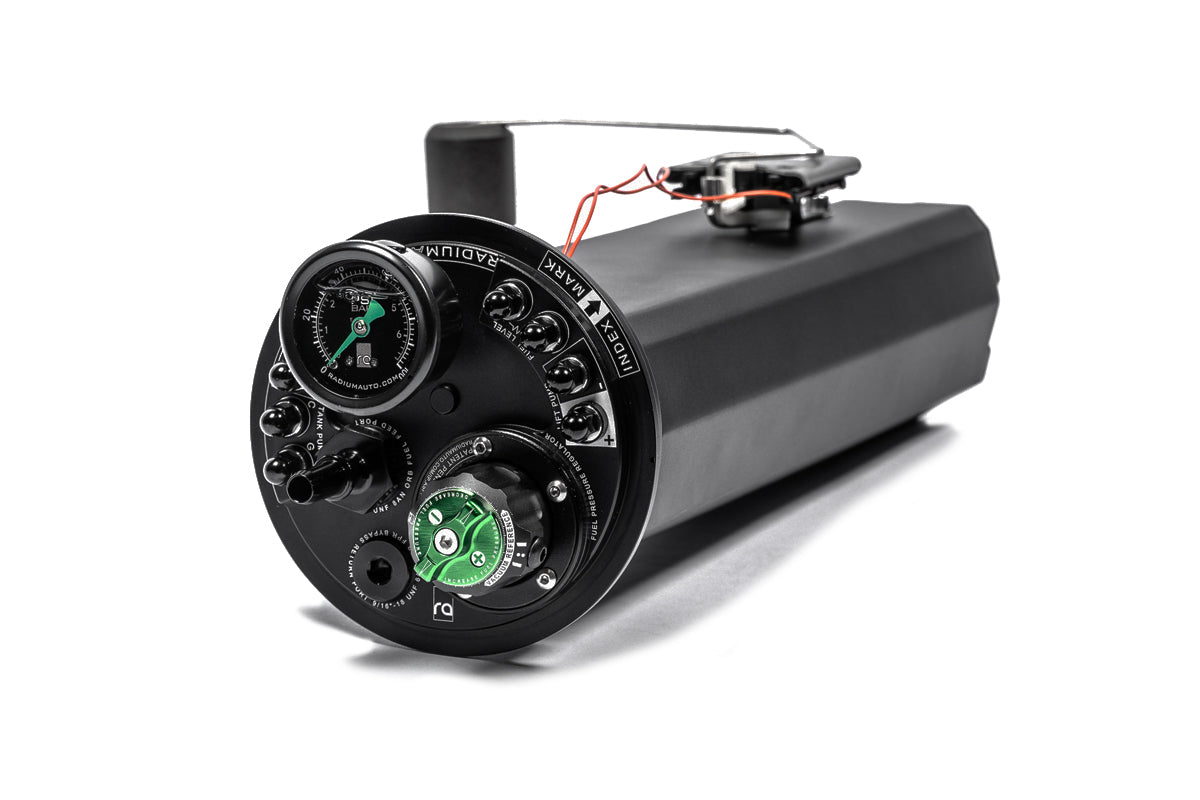

The FHST uses a two-pump layout: a lift pump fills the surge tank, and a second pump feeds the engine from it. An integrated, tool-free adjustable 1:1 fuel pressure regulator and pre- and post-pump filtration are built in, so it's a complete in-tank fuel system in one assembly.

Key Features

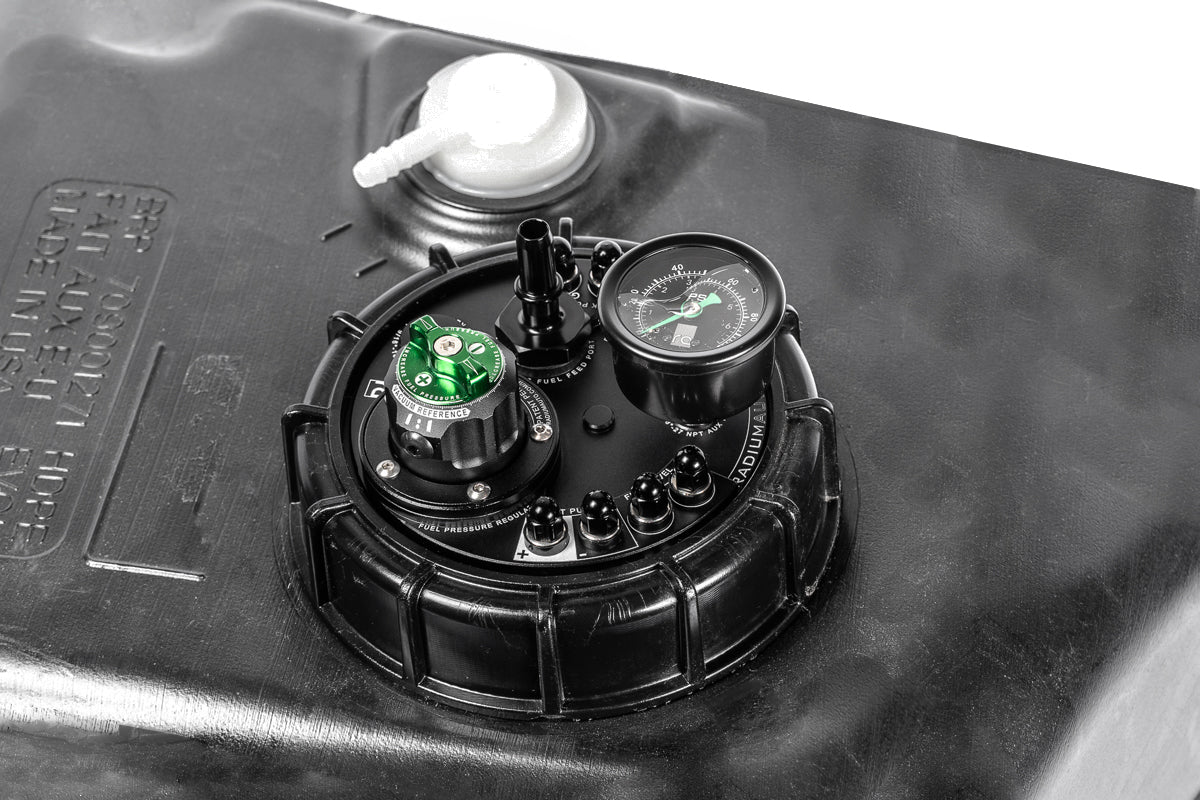

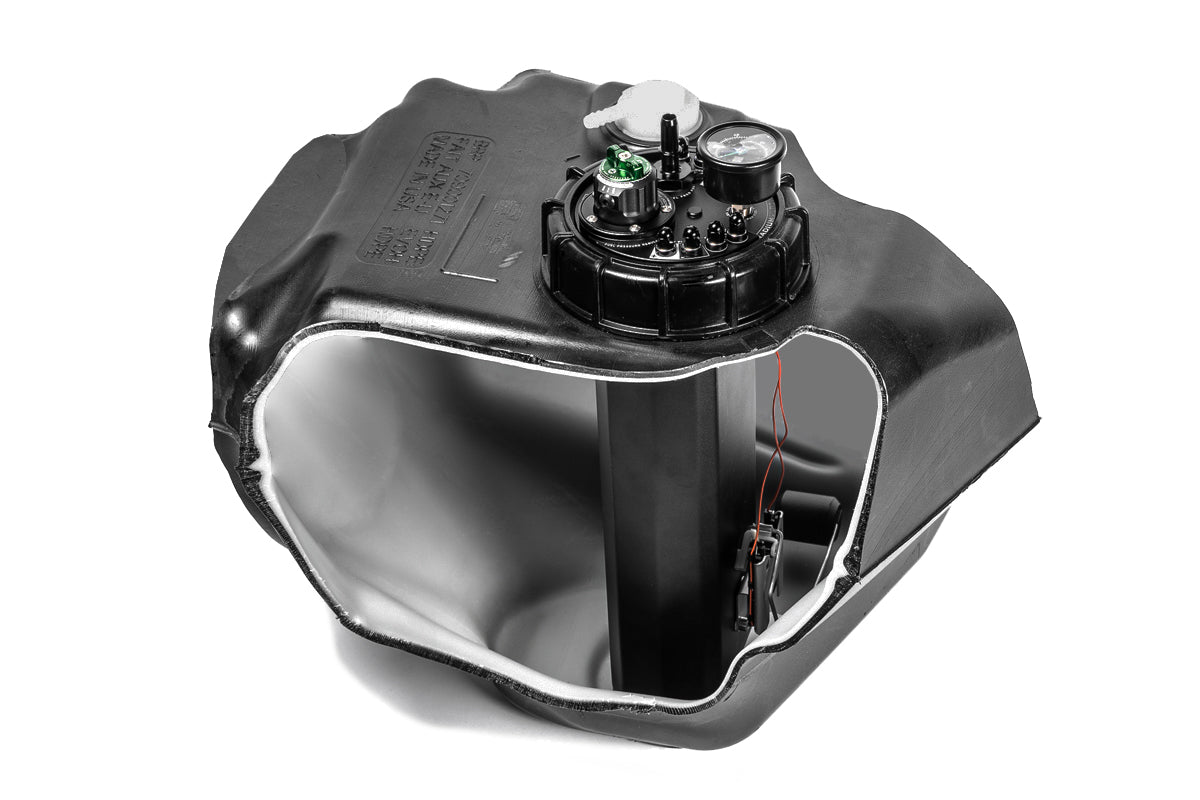

• Drop-In Surge Tank: Fits inside the factory Maverick fuel tank – no external surge tank or extra plumbing needed

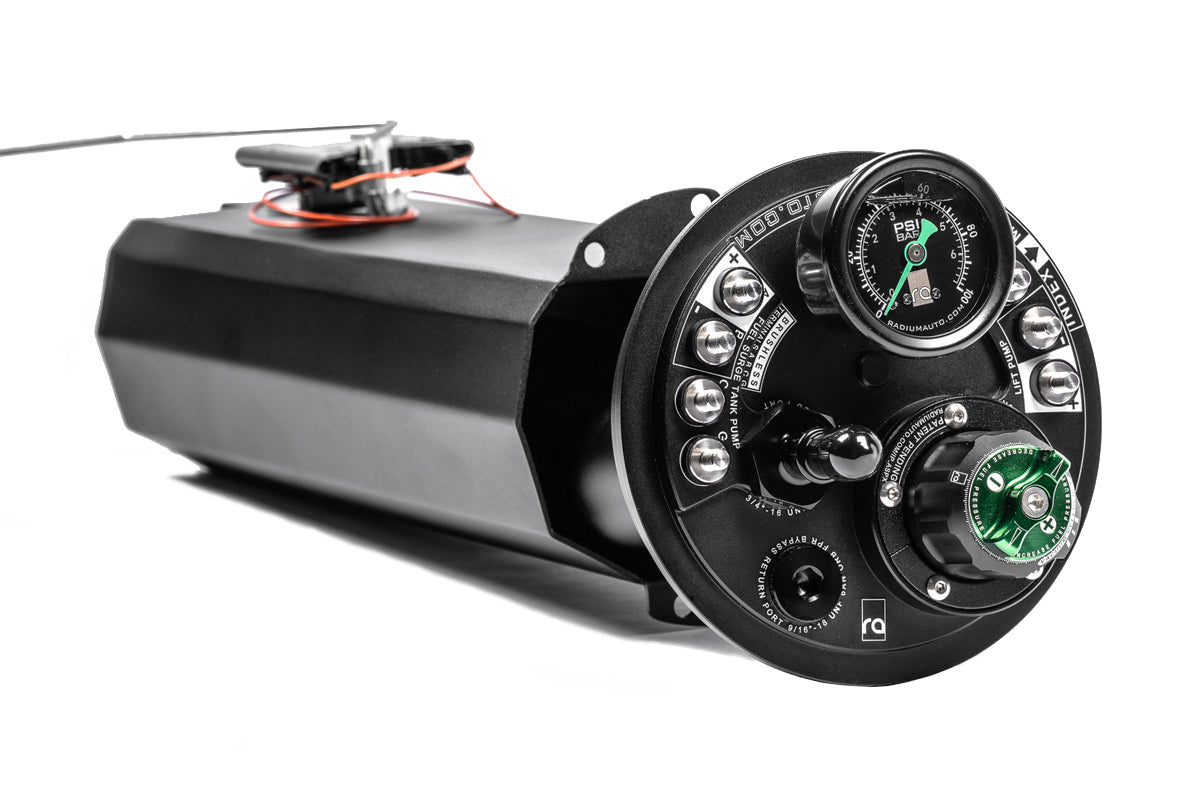

• Integrated Adjustable FPR: Tool-free 1:1 fuel pressure regulator adjustment

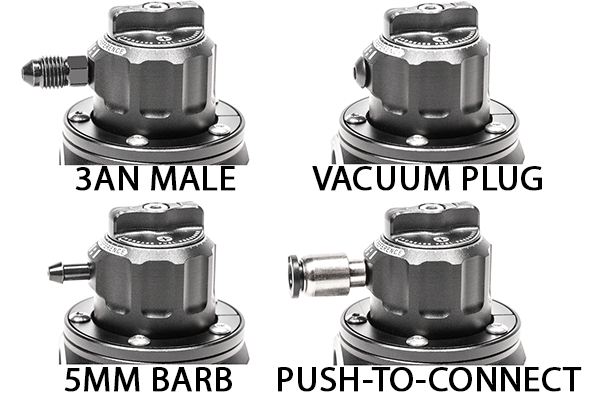

• 360° Swivelling Vacuum Port: Four interchangeable vacuum fittings included – barbed, 3AN, push-to-connect and plug

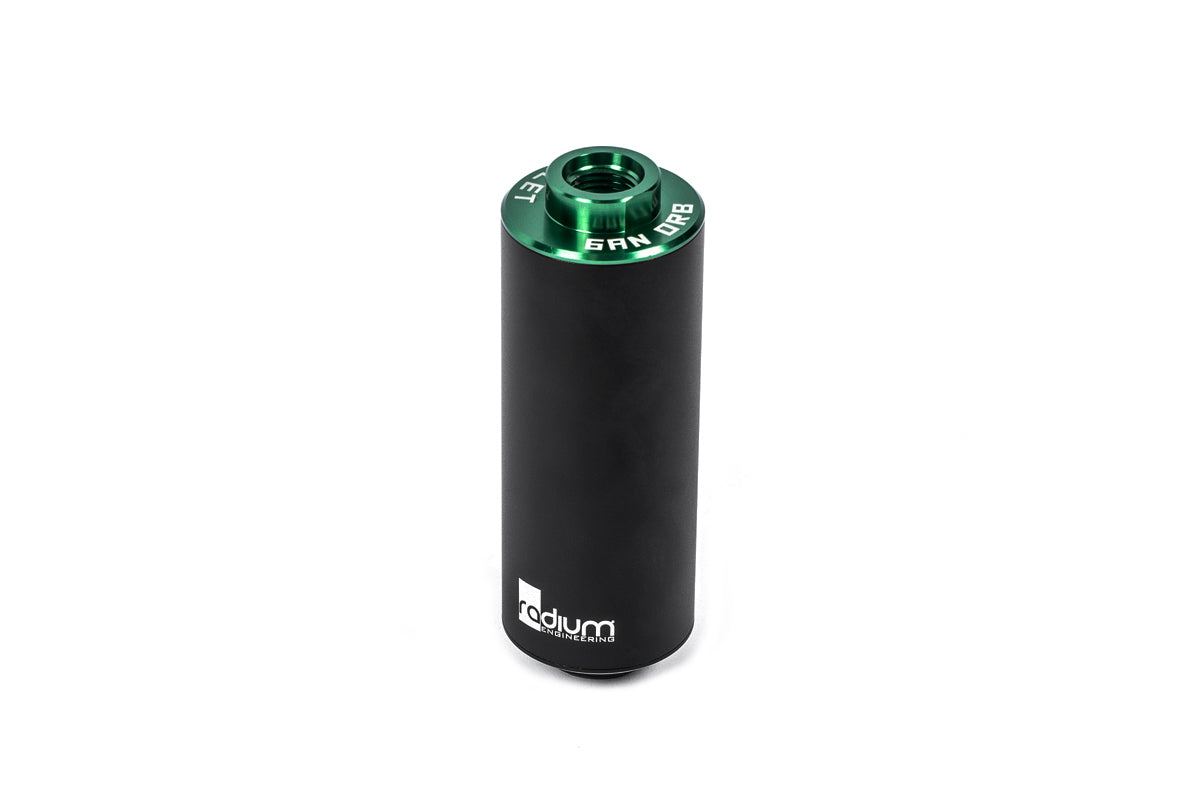

• Pre- and Post-Pump Filtration: Protects the pumps and injectors
• Flexible Plumbing: Push-to-connect feed fitting for the OEM line, with an 8AN ORB outlet for aftermarket lines
• Quality Electrical: High-current stainless electrical hardware and ETFE-insulated wiring, with a relay and fuse for the surge tank pump
• Construction: Anodised aluminium

Compatible Fuel Pumps (sold separately)

Fuel pumps are not included. These pumps have been tested and verified by Radium:

Lift pump:

• OEM Can-Am lift pump
• Walbro GSS342 255 LPH
• AEM 50-1200

Surge tank pump:

• Walbro GSS342 255 LPH
• AEM 50-1200
• Ti Automotive E5LM*
• Protec 11928
• Fuelab 49614
• Deatschwerks DW810*

*The Ti Automotive E5LM and Deatschwerks DW810 have no internal check valve and require a Radium Check Valve 6AN ORB to 10mm Barb (20-1534).

Need help choosing pumps for your power level? Email sales@coore.com.au and we can supply the right pumps with your hanger.

Optional Parts

• Radium Fuel Hanger FPR Block Off (20-0806) – converts the FHST to a return-style system with an external fuel pressure regulator (requires a 6AN ORB return fitting and an external FPR, not included)
• Radium Check Valve 6AN ORB to 10mm Barb (20-1534) – required when running the Ti Automotive E5LM or Deatschwerks DW810 surge tank pump

Important Notes

• Not compatible with the 2013–2018 Maverick 1000R
• Fuel pumps sold separately – see the compatible pump list above
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Can-Am Maverick X3 (2017+)
• Can-Am Maverick Trail (2018+)
• Can-Am Maverick Sport (2019+)
• Can-Am Maverick R (2024+)

Not sure if this suits your machine? Email sales@coore.com.au and our team will confirm fitment.
