Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Commodore VE VF/Chevolet Camaro SS 10-15

Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Commodore VE VF/Chevolet Camaro SS 10-15

Application: Holden Commodore VE / VF, Holden Caprice, Chevrolet Camaro / SS / Caprice PPV / Omega, Cadillac CTS / CTS-V, Pontiac G8
Part Type: Billet aluminium fuel pump hanger – pumps not included
Part Number: 20-1322

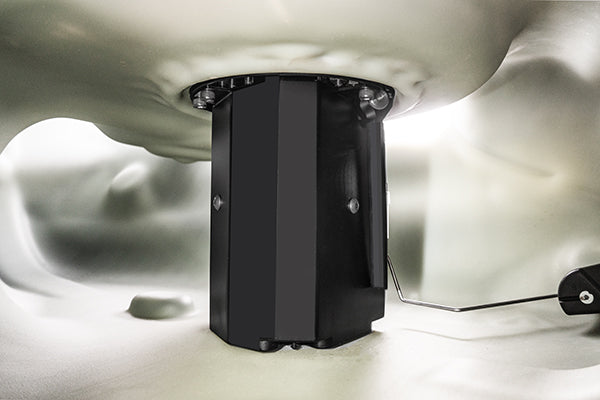

The Radium Fuel Pump Hanger replaces the factory in-tank fuel pump module on 2008-2017 GM cars including the Holden Commodore VE / VF, Chevrolet Camaro and Cadillac CTS-V and supports one, two or three aftermarket fuel pumps. All OEM sensors can be reused.

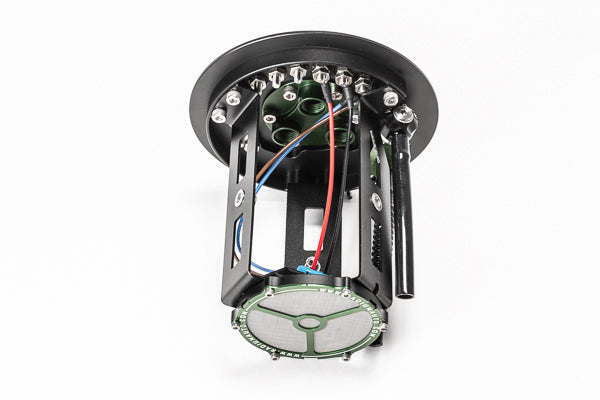

A one-piece anodised aluminium collector box with three one-way fill valves (355 LPH each) keeps fuel around the pump inlets, refilled by the pressure regulator return and the jet pump crossover line. Pre-pump filtration is provided for all three pumps through three separate chambers, and the OEM return line restriction is removed so higher-flow pumps can be used. The OEM pressure regulator and post-pump filter are eliminated – Radium's CTS-V and Camaro plumbing kits include both.

Key Features

• Verified Pumps: Walbro F90000267 / F90000274 / F90000285; Protec 11928, Fuelab 49614 and DeatschWerks DW810 with 13-1187 base
• Up to Three Pumps: Replaces the OEM module with support for one to three aftermarket pumps

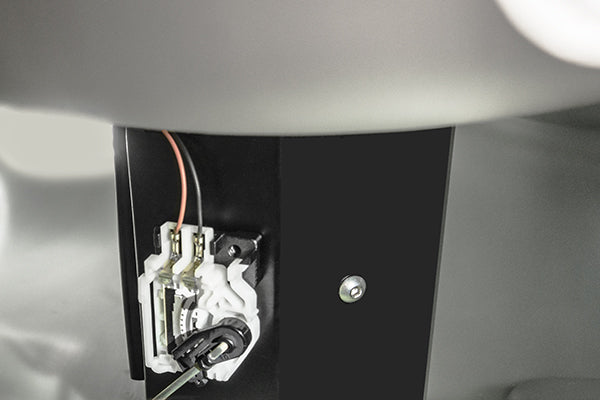

• OEM Sensors Retained: All OEM sensors can be reused, with two billet level sensor mounts

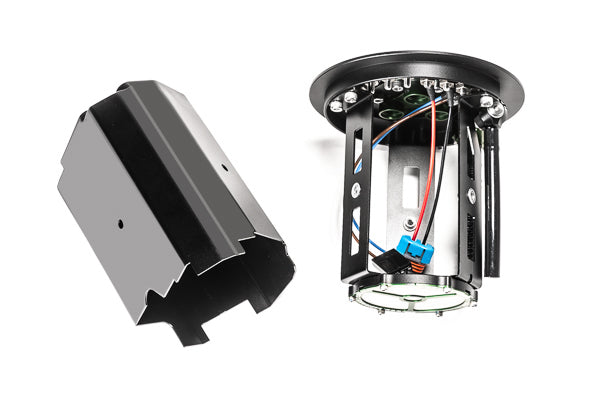

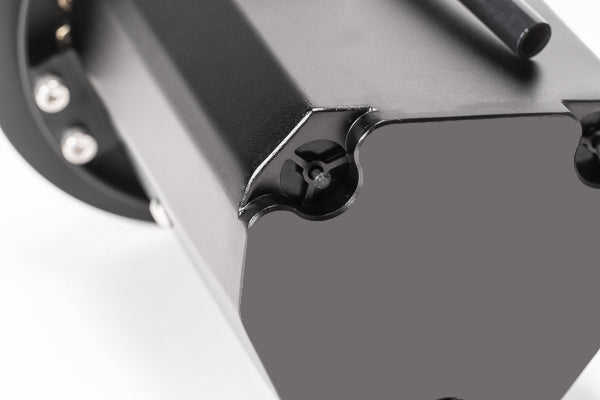

• Collector Box: One-piece anodised aluminium with three 355 LPH one-way fill valves
• Chambered Pre-Filtration: Three separate filter chambers, one per pump
• Reduced Return Restriction: Allows higher-flow pumps to be used

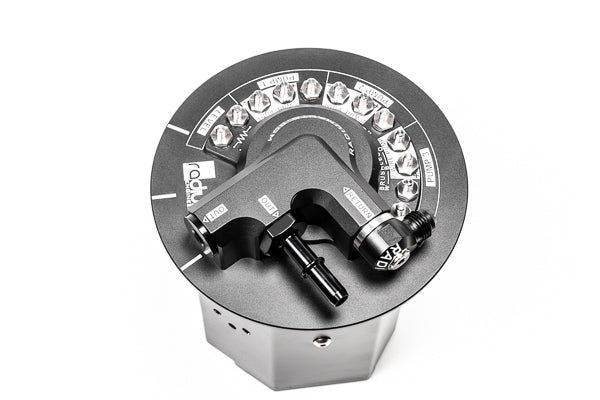

• Electrical: Studs with anti-rotation terminals

What's Included

• Collector box, one-way fill valves and mounting hardware for one to three pumps (unused parts may be left out)
• Two billet aluminium level sensor mounts
• Two SAE quick connect fittings for the factory feed line and two for the crossover line
• SAE plugs to cap the feed line after the pressure sensor
• 8AN ORB to 6AN male banjo fitting for the return port
• Spare 8AN ORB to 6AN male fitting

Optional Parts

• Radium Engineering Fuel Pump Filter Base Adapter – 12mm Brushless Pumps (13-1187) – Required for Protec 11928, Fuelab 49614 and DeatschWerks DW810 pumps
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Cadillac CTS-V (20-1325-03) – 2008-2015 CTS-V only; requires Radium fuel rails
• Radium Fuel Hanger Plumbing Kit with Microglass Filter, Cadillac CTS-V (20-1325-05) – 2008-2015 CTS-V only; requires Radium fuel rails
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015) (20-1326-03) – 2010-2015 Camaro LS3/LS7/L99 only; requires Radium fuel rails
• Radium Fuel Hanger Plumbing Kit with Microglass Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015) (20-1326-05) – 2010-2015 Camaro LS3/LS7/L99 only; requires Radium fuel rails
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – One wiring kit per aftermarket pump

Important Notes

• Fuel pumps are not included
• Protec 11928, Fuelab 49614 and DeatschWerks DW810 pumps do not fit the included strainer and require the 13-1187 base (sold separately)
• The OEM regulator is removed – an aftermarket fuel pressure regulator is required (included in the 20-1325 / 20-1326 plumbing kits)
• The OEM post-pump filter is removed – fit a low-micron filter downstream (included in the plumbing kits)
• Fuel pressure may not hold after shut-down without a check valve – fit one if not using a plumbing kit

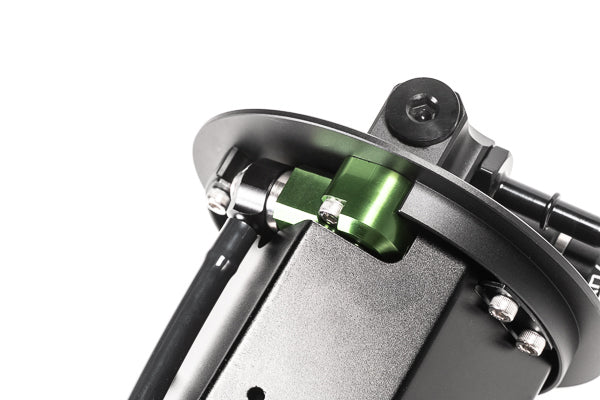

• The OEM venturi jet pump uses approx. 15-45 LPH depending on fuel pressure – factor this into pump sizing
• Single-pump installs can reuse the OEM controller wiring, but upgraded wiring is recommended for full pump performance
• Radium lists the Holden Commodore VE for 2008-2009 and the VF for 2014-2017 – contact us to confirm fitment for other model years
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Holden Commodore VE (2008-2009)
• Holden Commodore VF (2014-2017)
• Holden Caprice (2009-2017)
• Chevrolet Camaro (2010-2015)
• Chevrolet SS (2014-2017)
• Chevrolet Caprice PPV (2009-2017)
• Chevrolet Omega (2008-2009)
• Cadillac CTS (2008-2014)
• Cadillac CTS-V (2008-2015)
• Pontiac G8 (2008-2009)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
