Radium Fuel Hanger Plumbing Kit with Microglass Filter, Cadillac CTS-V

Radium Fuel Hanger Plumbing Kit with Microglass Filter, Cadillac CTS-V

Application: Cadillac CTS-V (2008-2015)
Part Type: Fuel hanger plumbing kit (6 micron microglass filter)
Part Number: 20-1325-05

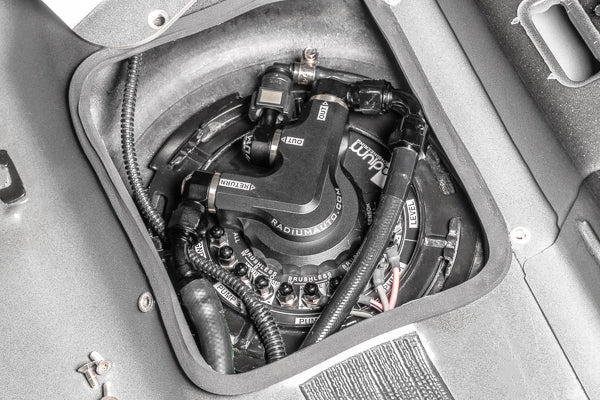

The Radium 20-1325-05 Fuel Hanger Plumbing Kit is part of Radium's complete fuel delivery system for the 2008-2015 Cadillac CTS-V. It plumbs from the Radium 08-17 GM fuel pump hanger to Radium 20-0362 fuel rails, and its high-flow fuel filter (finer 6 micron microglass element), fuel lines, AN fittings and undercarriage fuel line retainer replace the OEM components.

Dual 6AN PTFE feed lines route from the fuel hat to the fuel filter, because a single 8AN line will not fit between the fuel tank and the unibody while two 6AN lines give a larger combined flow area. The back half of the OEM feed line is reused because it carries the OEM fuel pressure sensor needed for ECU diagnostics, and the stock feed line is repurposed as a 6AN return line.

Key Features

• Dual 6AN Feed: Two 6AN PTFE feed lines from the fuel hat to the filter
• OEM Sensor Retained: Reuses the back half of the OEM line with the factory fuel pressure sensor
• Return Line: Repurposed stock feed line becomes a 6AN return
• Check Valve Filter: Fuel filter incorporates a built-in check valve
• Filter Element: finer 6 micron microglass element
• Bolt-In Mounting: Anodised fuel filter bracket needs no permanent vehicle modifications
• Heat Protection: Thermal insulating sleeve protects against chafing and exhaust heat

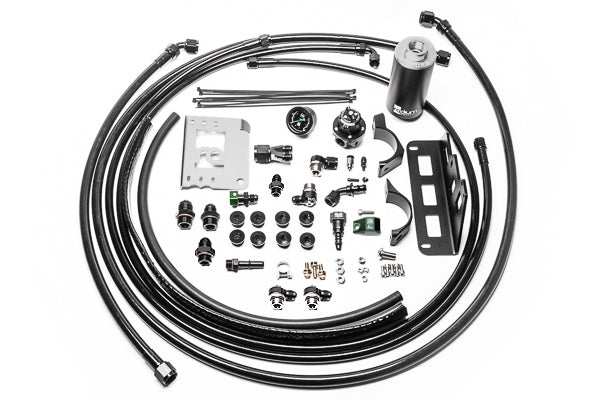

What's Included

• Dual 6AN PTFE feed lines
• Fuel filter with built-in check valve (finer 6 micron microglass element)

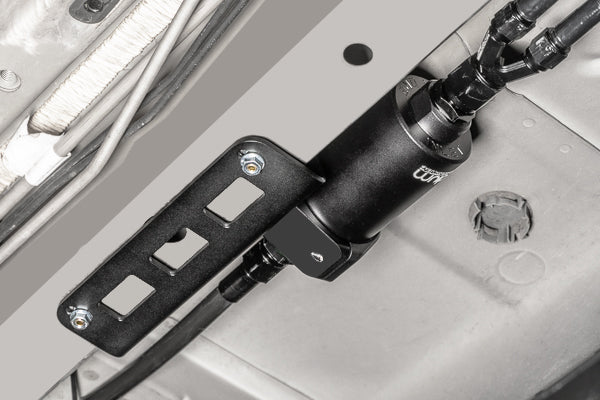

• Anodised bolt-in fuel filter mounting bracket

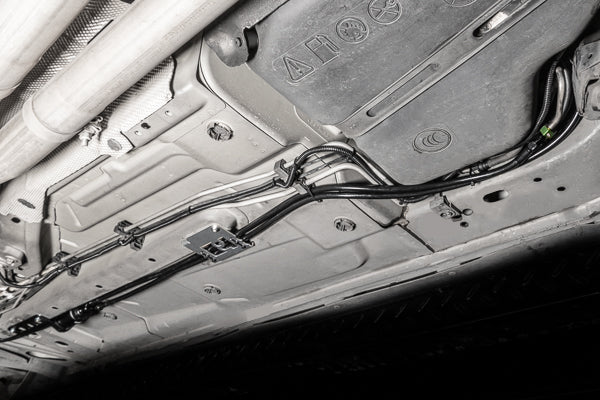

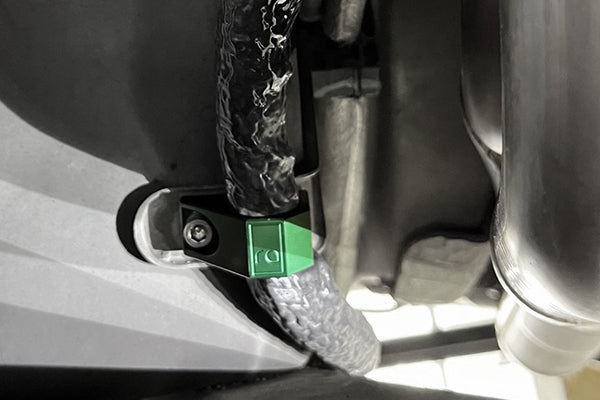

• Aluminium hose retainer bracket / undercarriage fuel line retainer
• Thermal insulating sleeve
• AN fittings

Optional Parts

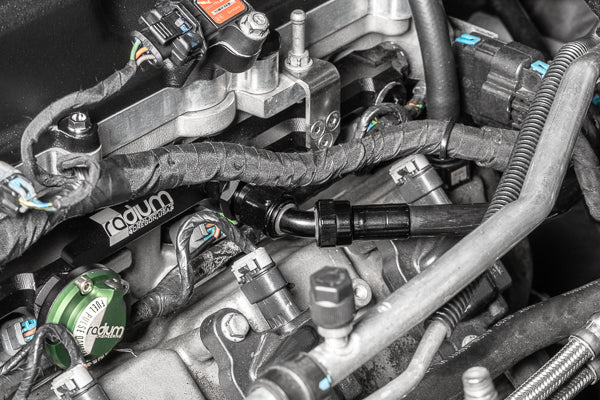

• Radium Fuel Rails - HSV VF GTS/Clubsport/Maloo (LSA/LS9) (20-0362) – Radium LS9/LSA fuel rails – required (sold separately)

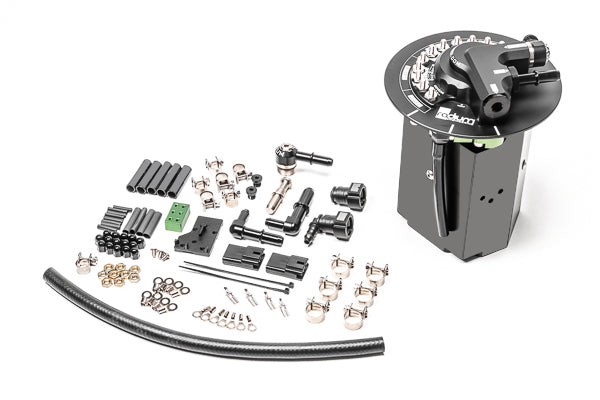

• Radium Fuel Pump Hanger Suit AEM 50-1220/DW440 - Holden Commodore VE VF/Chevolet Camaro SS 10-15 (20-1320) – Radium 08-17 GM fuel pump hanger – select the hanger to suit your pumps

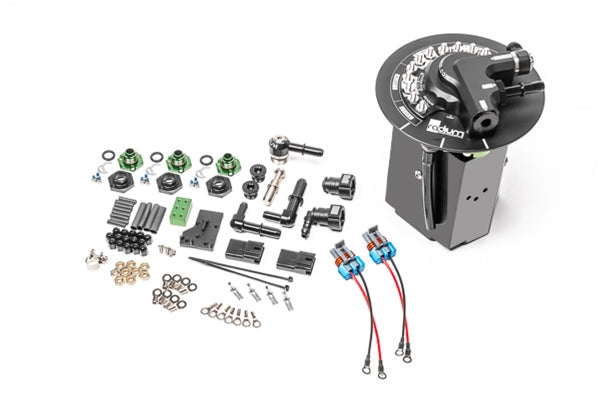

• Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Commodore VE VF/Chevolet Camaro SS 10-15 (20-1322) – Radium 08-17 GM fuel pump hanger – select the hanger to suit your pumps
• Radium Fuel Pump Access Cover, Cadillac CTS-V (20-0835) – CTS-V fuel pump access cover, part of Radium's CTS-V fuel delivery system
• Radium DMR-RA Direct Mount Fuel Pressure Regulator (20-1623-00) – direct mount regulator Radium lists in its CTS-V fuel delivery system
• Radium Fuel Pressure Gauge 0-100psi (20-0029) – 0-100psi gauge Radium uses to monitor and adjust fuel pressure
• Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) – pulse dampers (x2) listed in Radium's CTS-V fuel delivery system
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Cadillac CTS-V (20-1325-03) – same kit with the alternative filter element

Important Notes

• Radium 20-0362 fuel rails are required (sold separately)
• Designed to plumb from a Radium 20-1320 or 20-1322 fuel pump hanger (sold separately) – pumps and injectors are not included

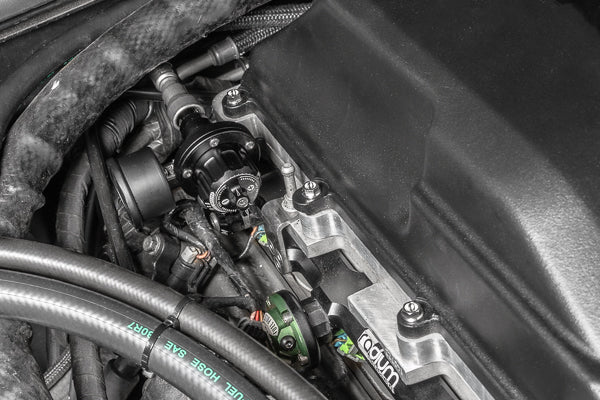

• The fuel pressure regulator and pressure gauge mount directly to the RH fuel rail – confirm with Coore which regulator and gauge are supplied for your build
• The components are specific to the CTS-V even though the hanger suits other GM vehicles
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Cadillac CTS-V (2008-2015)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
