Radium Fuel Pump Access Cover, Cadillac CTS-V

Radium Fuel Pump Access Cover, Cadillac CTS-V

Application: Cadillac CTS and CTS-V sedan, wagon and coupe (2008-2015)
Part Type: Fuel pump access cover
Part Number: 20-0835

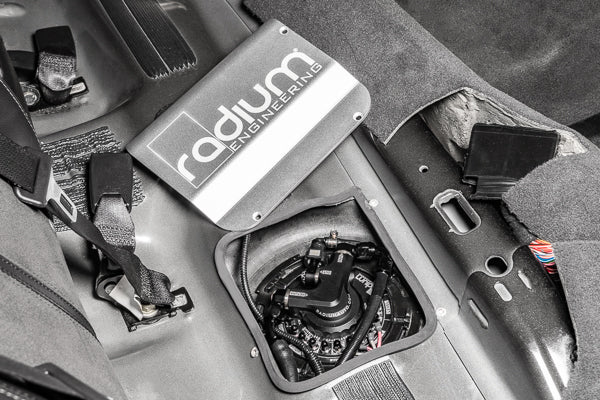

The Radium 20-0835 Fuel Pump Access Cover lets the fuel pump be serviced without dropping the fuel tank. It seals the cabin and protects the fuel pump module.

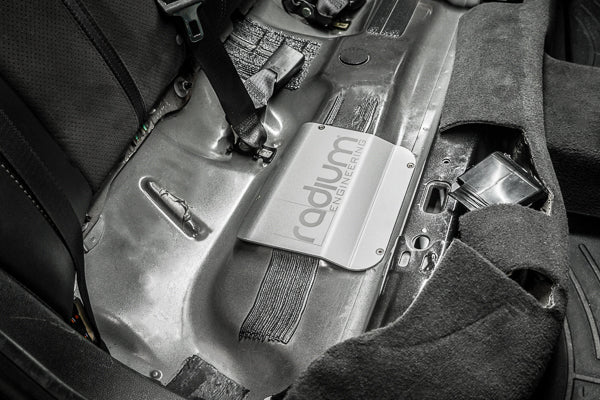

The lightweight aluminium cover is shaped to conform to the floor sheet metal so the rear bench seat can be reused. Because there is no OEM access cover on these cars, the sheet metal under the rear seat has to be cut to install it.

Key Features

• Tank-In Pump Access: Service the fuel pump without dropping the tank
• Sealed Cabin: Adhesive foam strip seals the cover to the floor
• Rear Seat Reused: Shaped to conform to the sheet metal under the rear bench
• Two Fixing Options: Stainless sheet metal screws, or stainless bolts with aluminium rivet nuts
• Lightweight: Laser-etched anodised aluminium plate

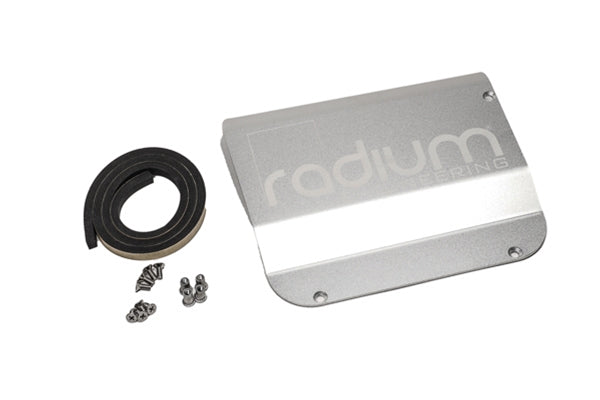

What's Included

• Laser-etched anodised aluminium plate
• Stainless steel sheet metal screws
• Aluminium M5 x 0.8mm rivet nuts
• Stainless steel M5 x 0.8mm bolts
• Adhesive foam sealing strip

Important Notes

• There is no OEM fuel pump access cover – the sheet metal under the rear seat must be cut, keeping the opening as small as possible
• The fuel tank sits directly below the cutting area – confirm clearance before drilling
• Rivet nut tool not included
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Cadillac CTS Sedan (2008-2013)
• Cadillac CTS-V Sedan (2008-2014)
• Cadillac CTS Wagon (2010-2014)
• Cadillac CTS-V Wagon (2010-2014)
• Cadillac CTS Coupe (2011-2014)
• Cadillac CTS-V Coupe (2011-2015)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
