Radium Fuel Vent Charcoal Canister - Can-Am Maverick 2017+

Radium Fuel Vent Charcoal Canister – Can-Am Maverick 2017+

Application: Can-Am Maverick (2017+)
Part Type: Fuel Tank Vent Charcoal Canister
Part Number: 20-0854

The Radium Fuel Vent Charcoal Canister traps fuel vapour from the Maverick's fuel tank vent to cut down on fuel smell. It's especially worthwhile once a windscreen is fitted, as the windscreen can draw vapour back towards the occupants.

Federal (non-CARB) Mavericks have no EVAP purge system, so the tank simply vents raw fuel vapour. In Radium's testing with a combustible gas detector, vapour at the tank vent exit measured over 10,000 ppm without the canister and under 50 ppm with it fitted. The canister mounts discreetly under the right-hand front fender, doesn't restrict the tank vent line, and routes the filtered vapour out the rear of the UTV.

Key Features

• Cuts Fuel Odour: Activated carbon traps fuel vapour from the tank vent
• No Vent Restriction: Doesn't restrict the factory fuel tank vent line

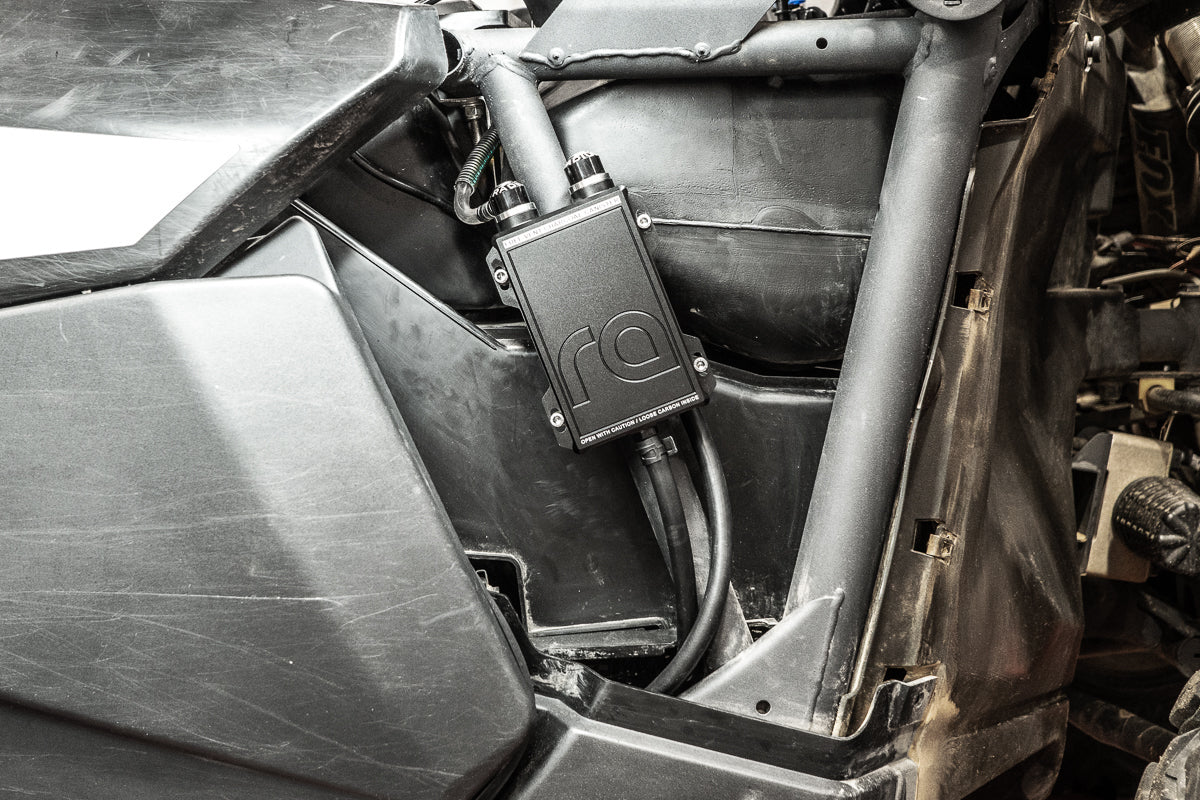

• Hidden Mounting: Mounts under the RH front fender

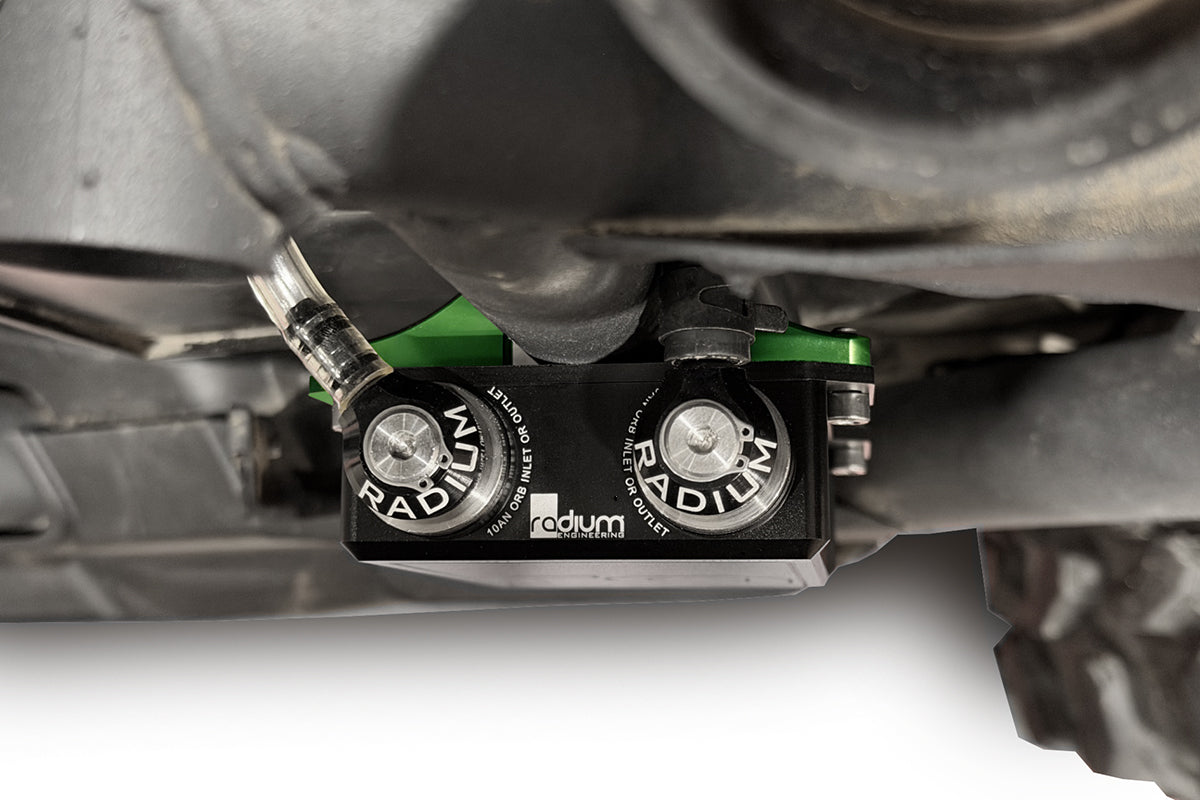

• Interchangeable Ports: Two 10AN ORB top ports work as either inlet or outlet

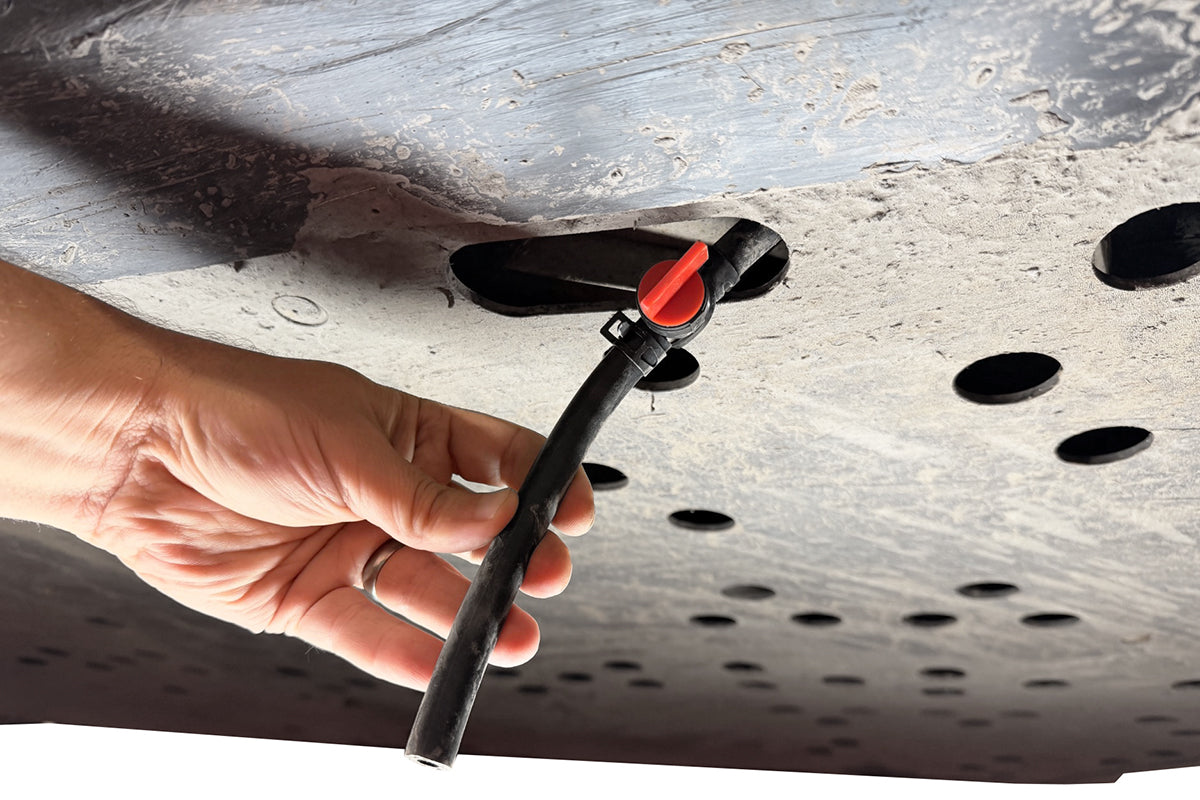

• Drainable: Lower 4AN ORB port drains any trapped fuel to a valve tucked underneath the UTV
• Serviceable: Disassembles to be recharged with fresh activated carbon

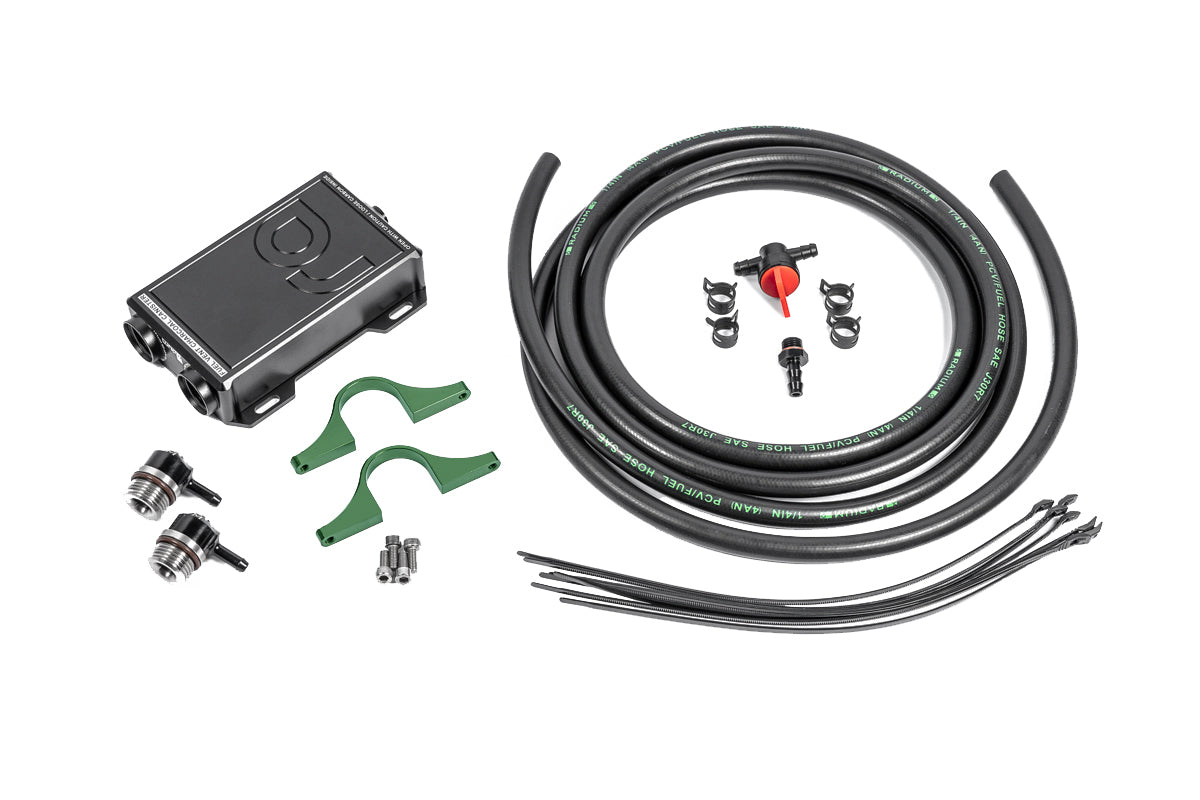

What's Included

• Radium fuel vent charcoal canister
• Mounting brackets

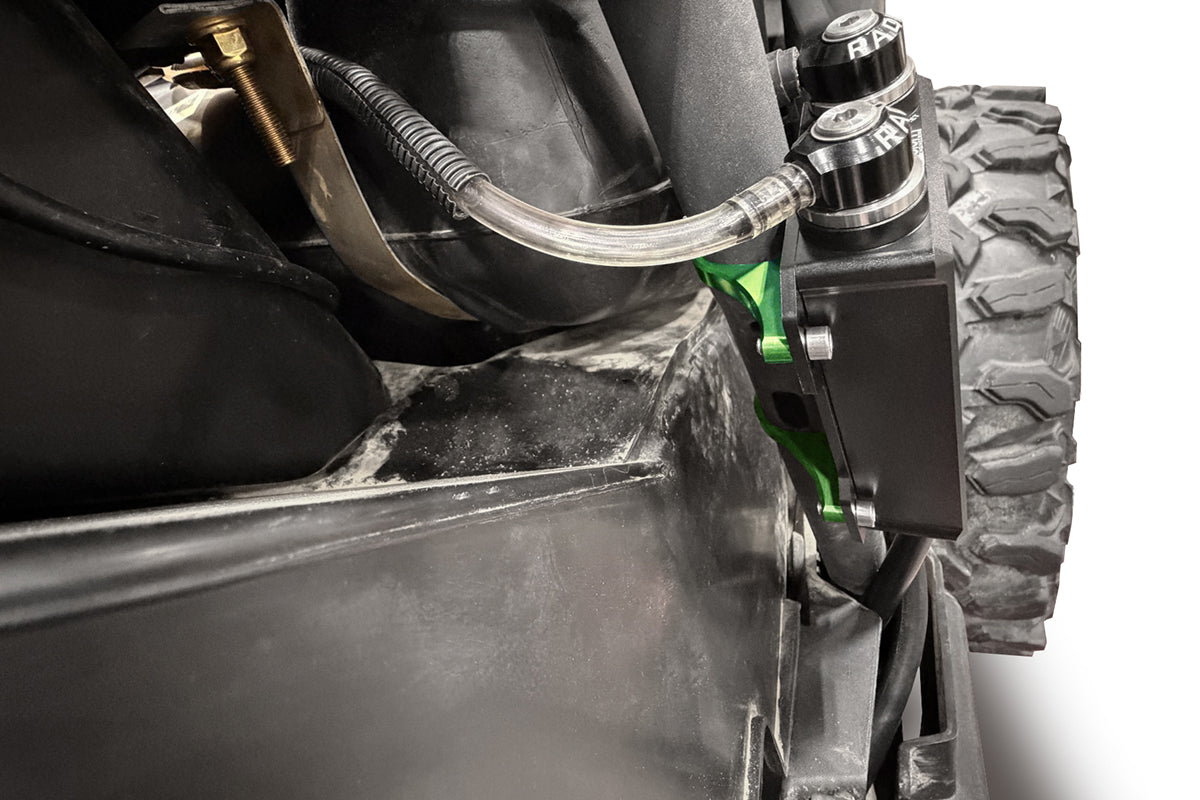

• Hoses and fittings, including 1/4" low-profile barbed fittings for the OEM vent hose connection

Optional Parts

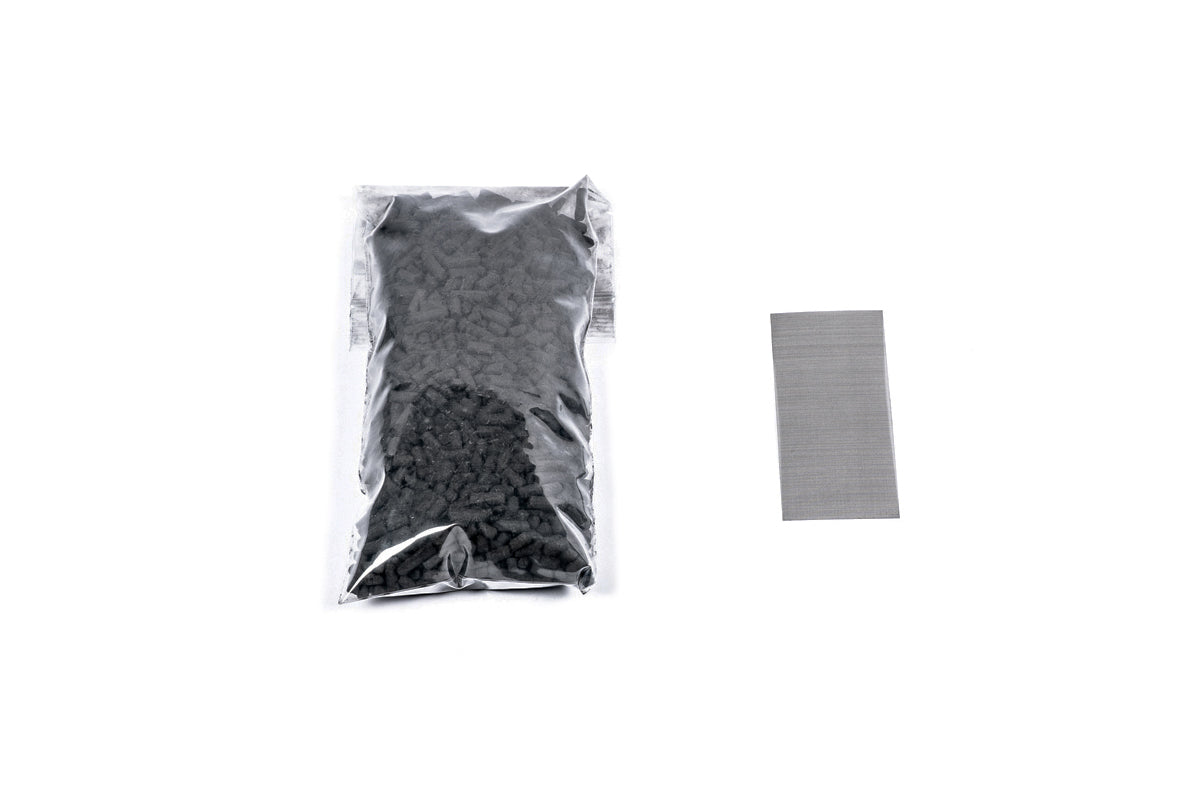

• Radium Charcoal Canister Service Kit (select 20-1827-SK) – fresh activated carbon and a new 150 micron strainer to recharge the canister
• Radium Fuel Hanger Surge Tank – Can-Am Maverick (20-1150) – stops fuel starvation in hard driving
• Radium Catch Can Kit (CCV) – Can-Am Maverick X3 (20-0861) – keeps crankcase oil out of the intake

Important Notes

• California (CARB) Mavericks already have an EVAP purge system that routes vapour into the intake – this canister is aimed at federal (non-CARB) models
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Can-Am Maverick (2017+)

Not sure if this suits your machine? Email sales@coore.com.au and our team will confirm fitment.
