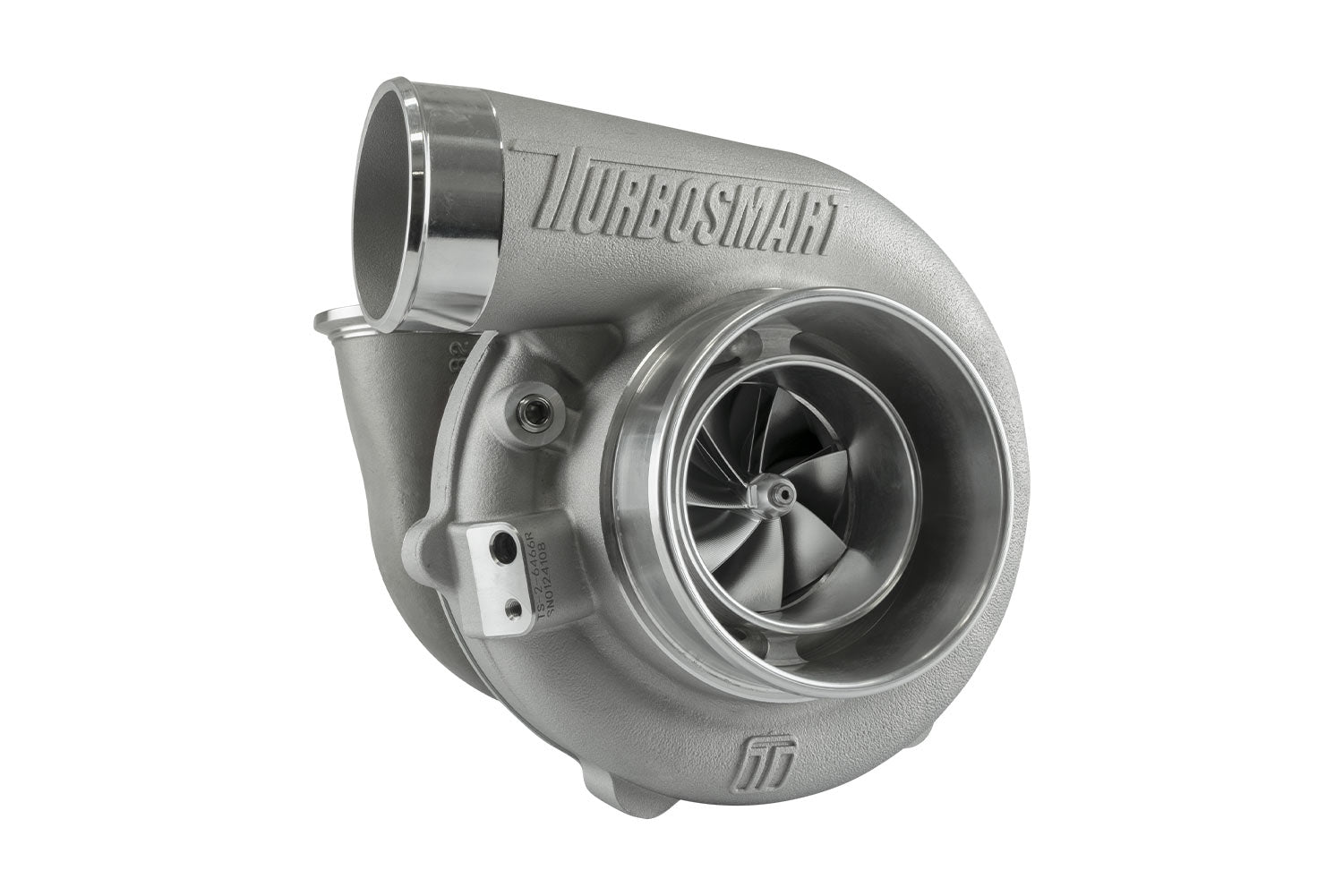

  • Turbosmart TS-1 / TS-2 6466 Turbocharger (825-955HP) - V-Band 0.82AR Externally Wastegated Reverse Rotation Water Cooled
  • Turbosmart TS-1 / TS-2 6466 Turbocharger (825-955HP) - V-Band 1.07AR Externally Wastegated Water Cooled
1 / 28

Turbosmart TS-1 / TS-2 6466 Turbocharger (825-955HP)

Turbosmart TS-1 / TS-2 6466 Turbocharger (825-955HP)

SKU:  TS-1-6466B-T3063E

$3,710.30
$3,710.30
Ships in 1-2 days
税込。
Icon 1 Icon 2 Icon 3 Icon 4 Icon 5 Icon 6 Icon 7
詳細を表示する

Videos

More info

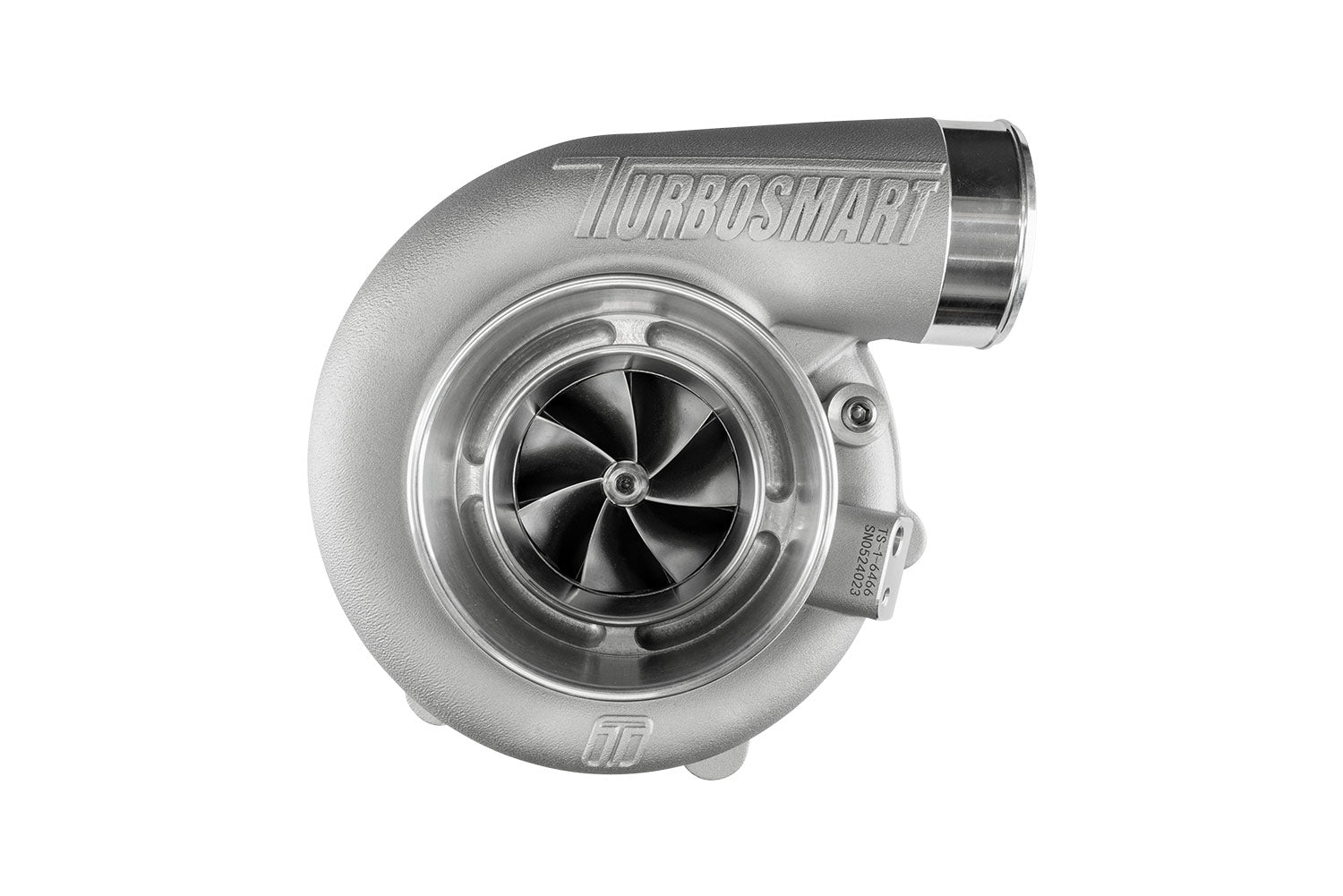

Turbosmart TS-1 / TS-2 6466 Turbocharger (825-955HP)

Application: TS-1 / TS-2 ball bearing turbocharger, 825-955HP
Part Type: Turbocharger
Turbine Flange Options: T3, T4, T4 Divided, V-Band
Bearing Housing: Water Cooled / Oil Cooled

Download Data Sheet (PDF) – compressor map & specs

Smaller, lighter and faster. Turbosmart's turbocharger range uses modern materials, design and manufacturing to deliver a turbo that suits both motorsport and street performance builds. Every Turbosmart turbo comes with everything needed to install it: weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.

A proprietary dual ceramic ball bearing and shaft assembly gives ultra-low rotating mass, matched to aggressive compressor aerodynamics for strong performance at lower shaft speeds, and a unique turbine wheel keeps power flowing at high load. The range is designed engine end-to-end, reducing back pressure while staying smaller, lighter and quicker to respond than comparable turbos.

Features

  • Unparalleled transient response
  • 7+7 2618 aluminium splitter compressor wheel
  • Lightweight 310S stainless steel investment-cast turbine housings
  • Lightweight aluminium compressor covers
  • CFD-designed housings for optimal A/R and flow
  • 713C Inconel turbine wheel for extreme EGTs
  • VSR speed balanced
  • Proprietary dual ceramic ball bearing system
  • Integrated iron backplate on the centre housing

Bearing Housing Cooling

  • Oil Cooled (TS-1) – oil feed and drain only. Simple to plumb and ideal for most street and track builds.
  • Water Cooled (TS-2) – adds coolant lines to the centre housing for extra heat protection and reduced oil coking after hard use.

Common Specifications

  • Compressor Inlet: 4" / 101.6mm
  • Compressor Inducer: 64mm
  • Turbine Exducer: 66mm

Available Options

Turbine Housing Cooling Part No. HP Rating
T3 0.63AR Externally Wastegated Oil Cooled TS-1-6466B-T3063E 825-955HP
T3 0.82AR Externally Wastegated Oil Cooled TS-1-6466B-T3082E 825-955HP

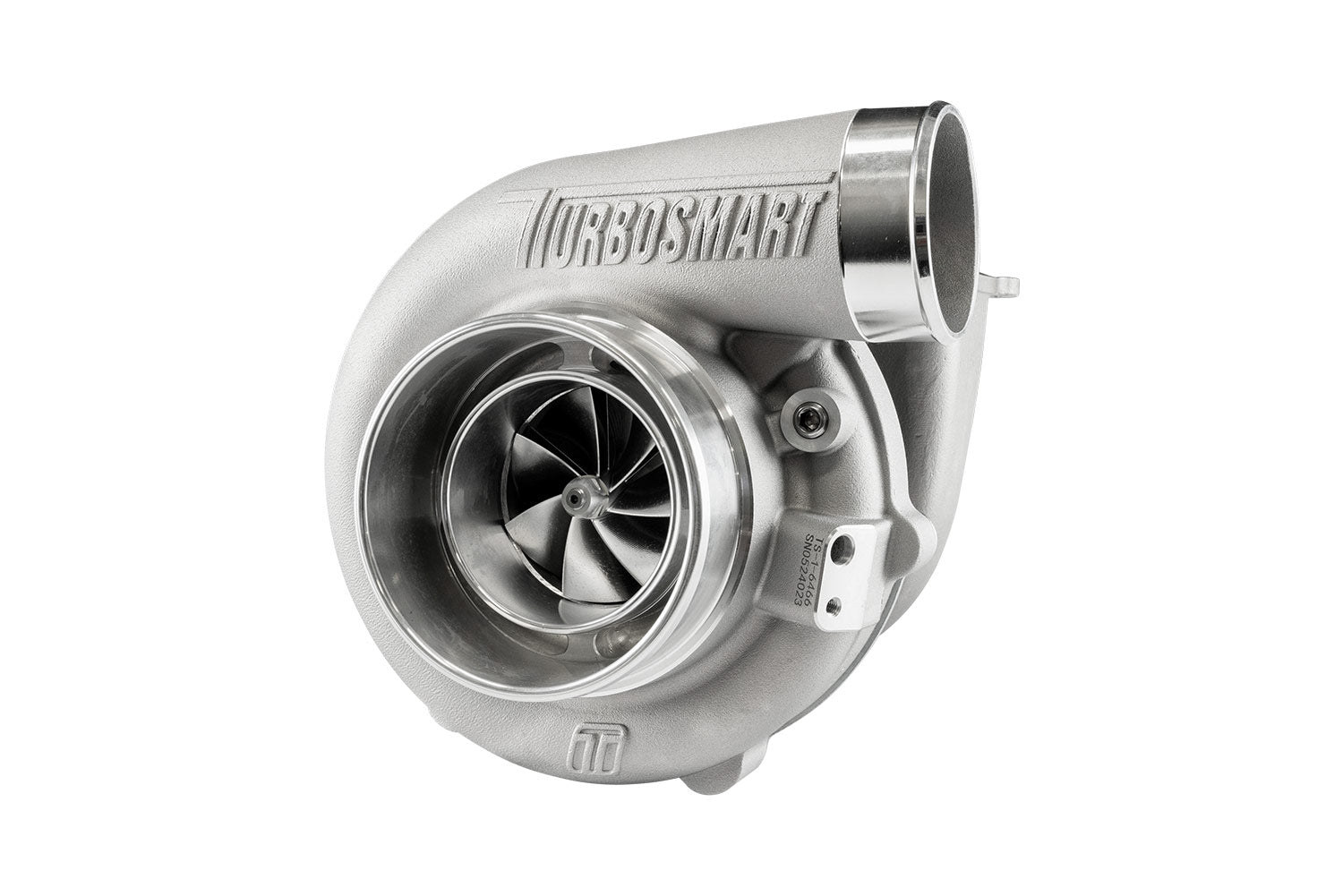

T3 1.10AR Externally Wastegated Oil Cooled TS-1-6466B-T3110E 825-955HP
T4 0.82AR Externally Wastegated Oil Cooled TS-1-6466B-T4082E 825-955HP

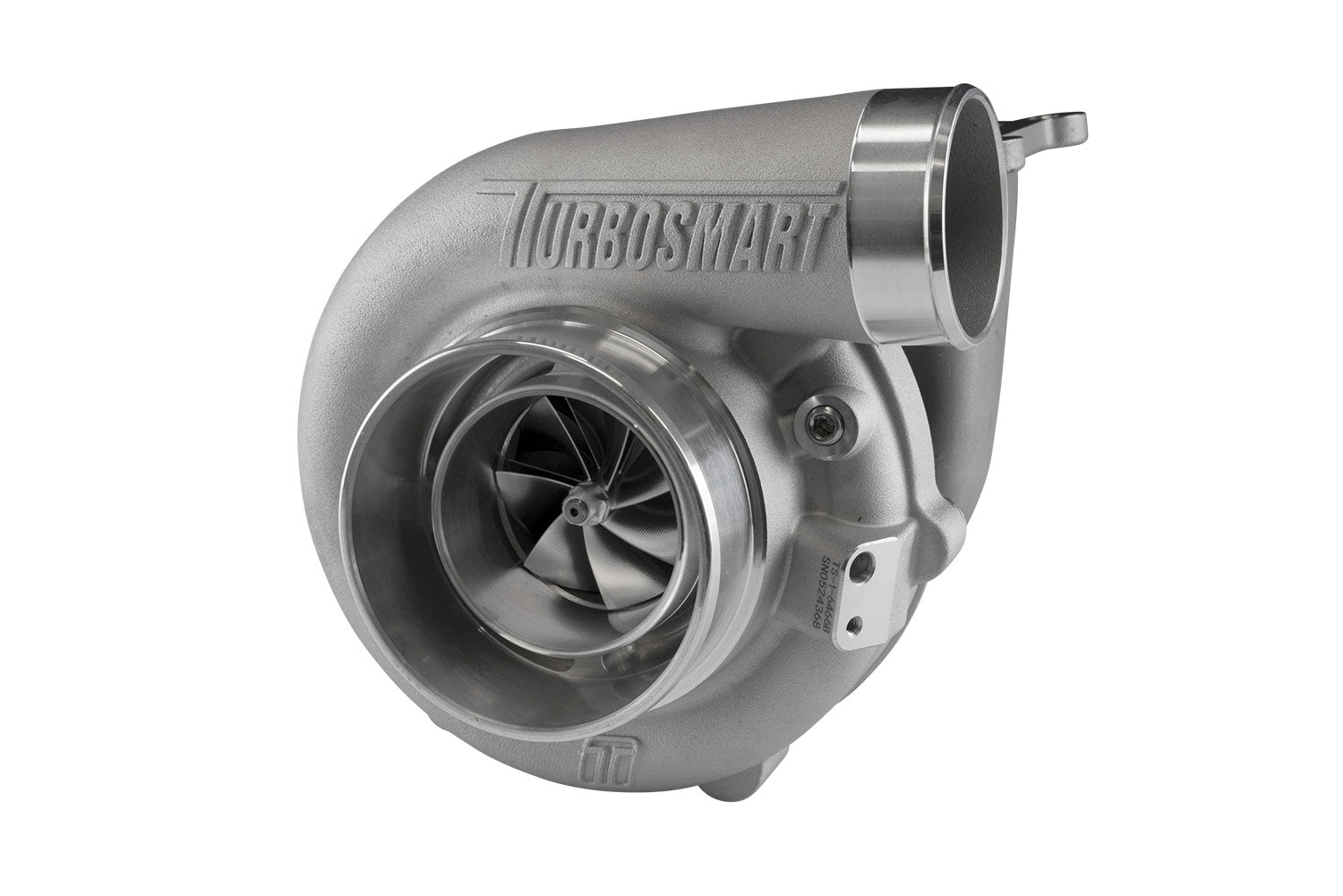

T4 0.96AR Externally Wastegated Oil Cooled TS-1-6466B-T4096E 825-955HP
T4 Divided 0.84AR Externally Wastegated Oil Cooled TS-1-6466B-D4084E 825-955HP

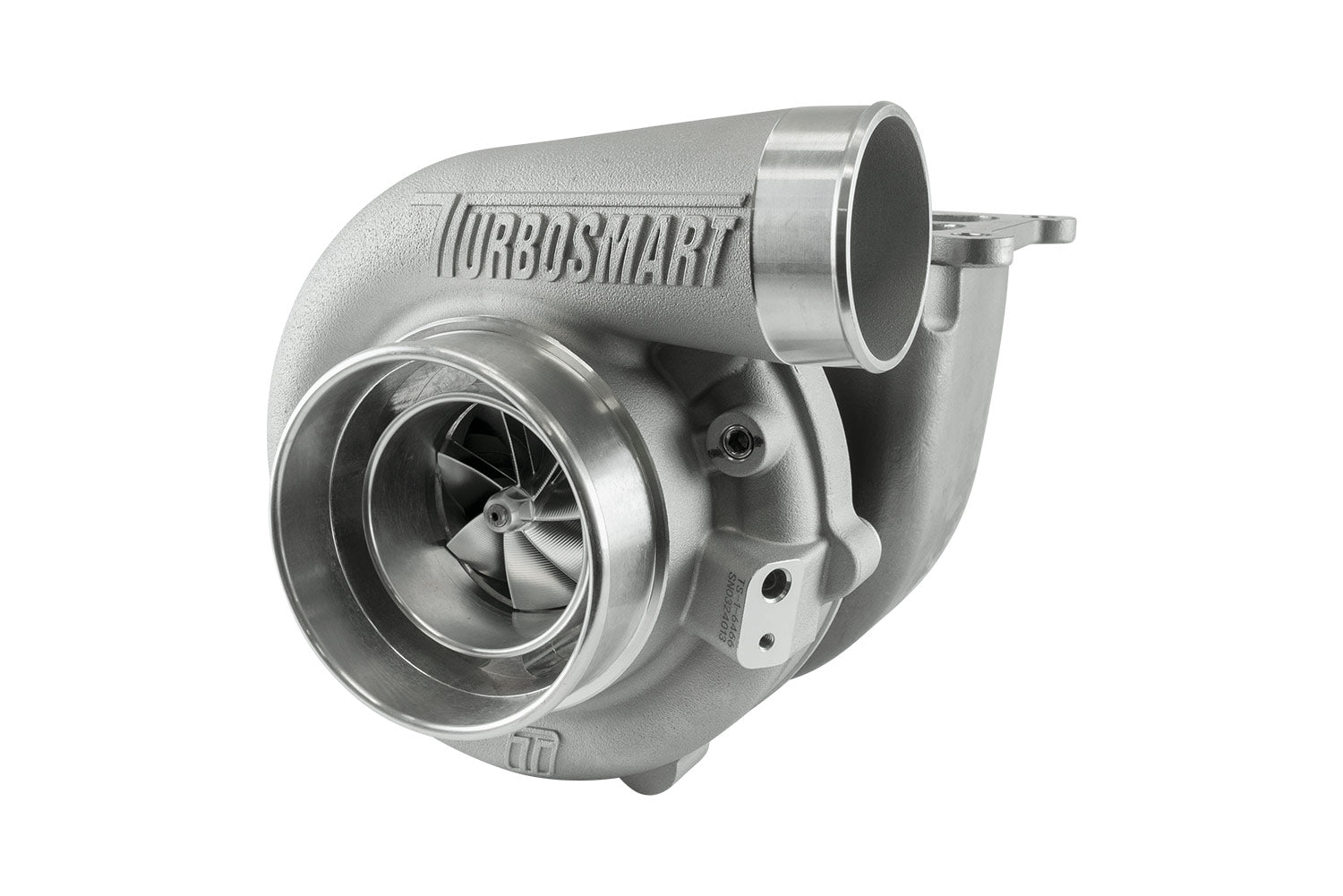

T4 Divided 1.00AR Externally Wastegated Oil Cooled TS-1-6466B-D4100E 825-955HP
V-Band 0.82AR Externally Wastegated Oil Cooled TS-1-6466B-VB082E 825-955HP

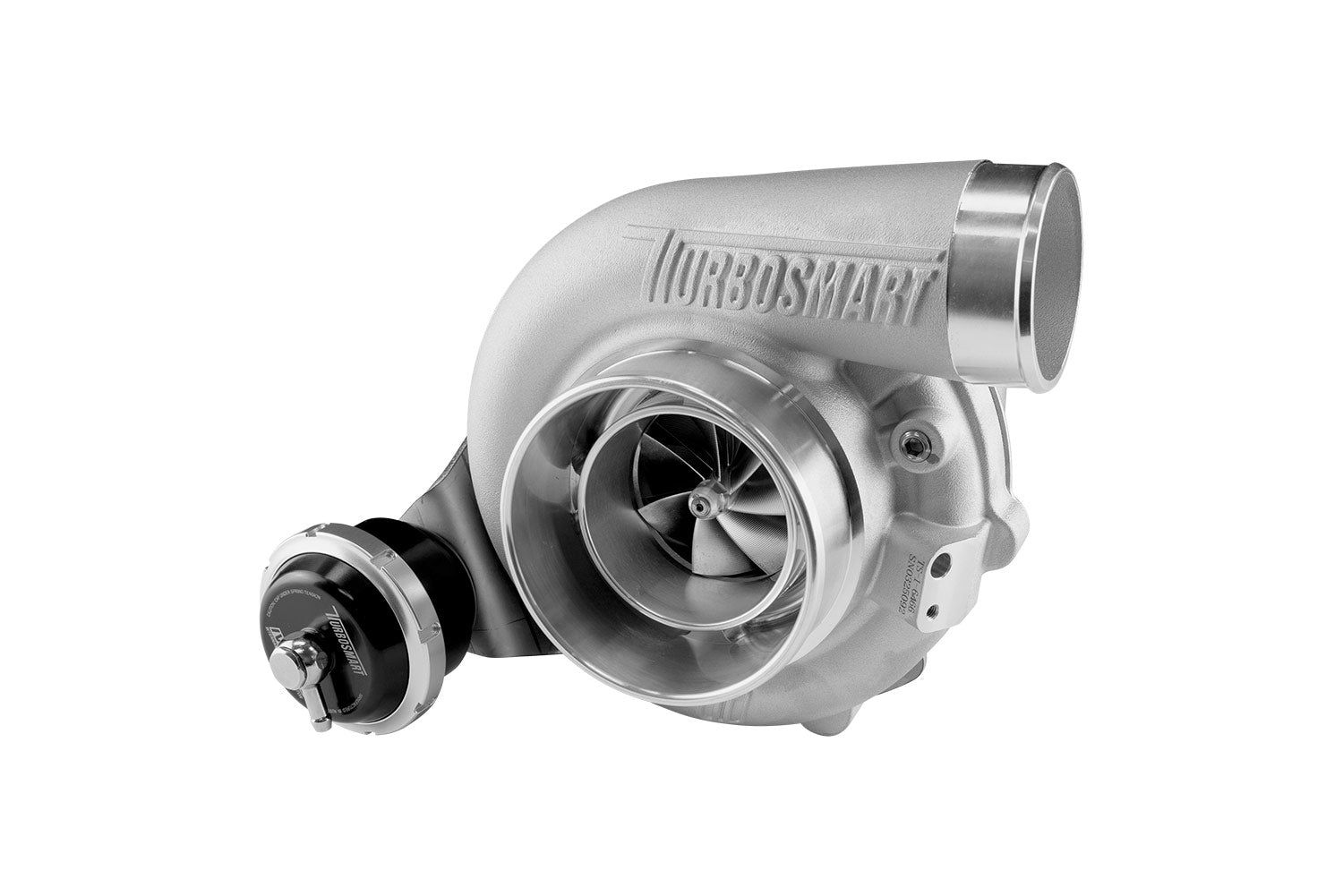

V-Band 0.82AR Internally Wastegated Oil Cooled TS-1-6466B-VB082I 825-955HP
V-Band 0.82AR Externally Wastegated Reverse Rotation Oil Cooled TS-1-6466B-VR082E 825-955HP

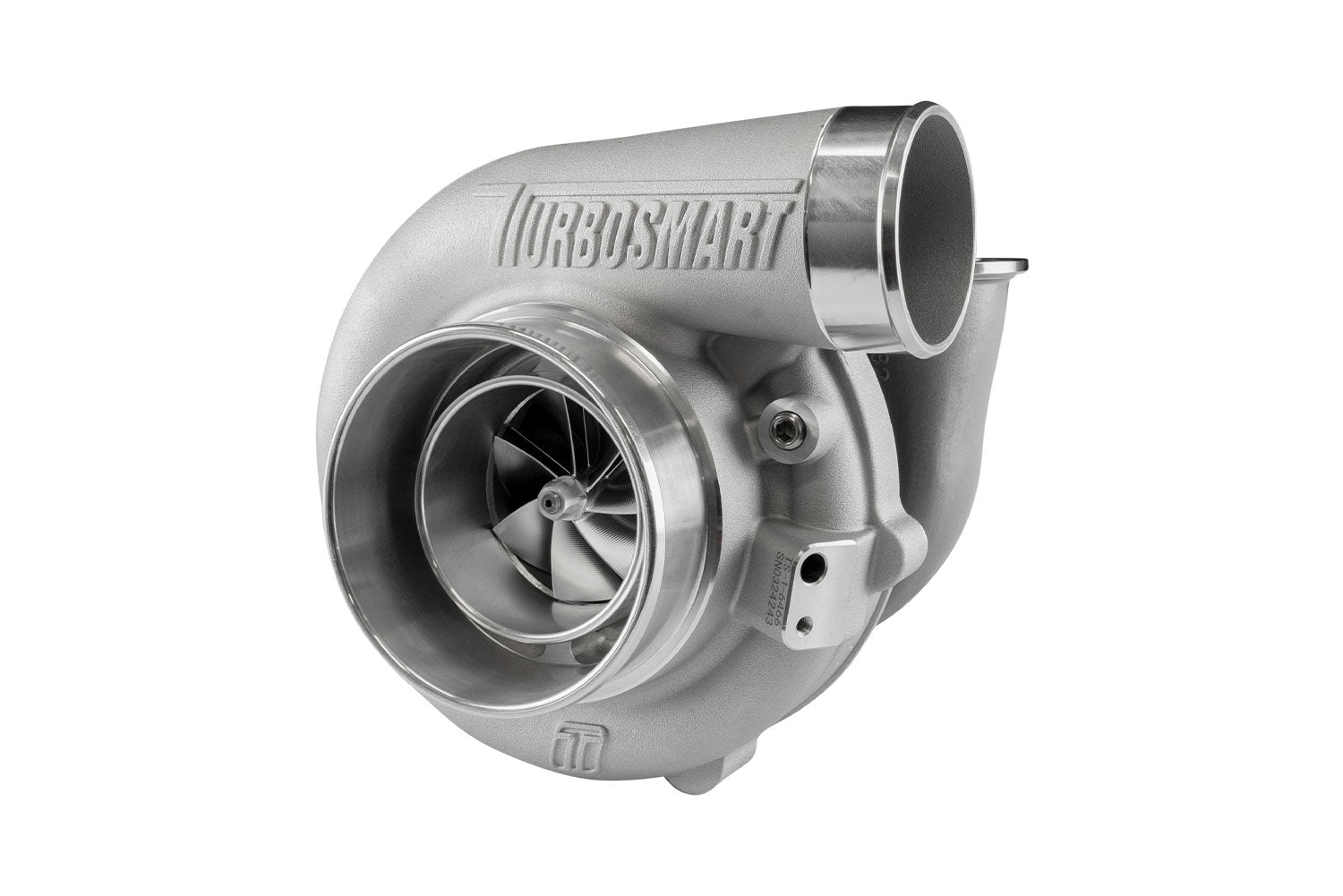

V-Band 1.07AR Externally Wastegated Oil Cooled TS-1-6466B-VB107E 825-955HP

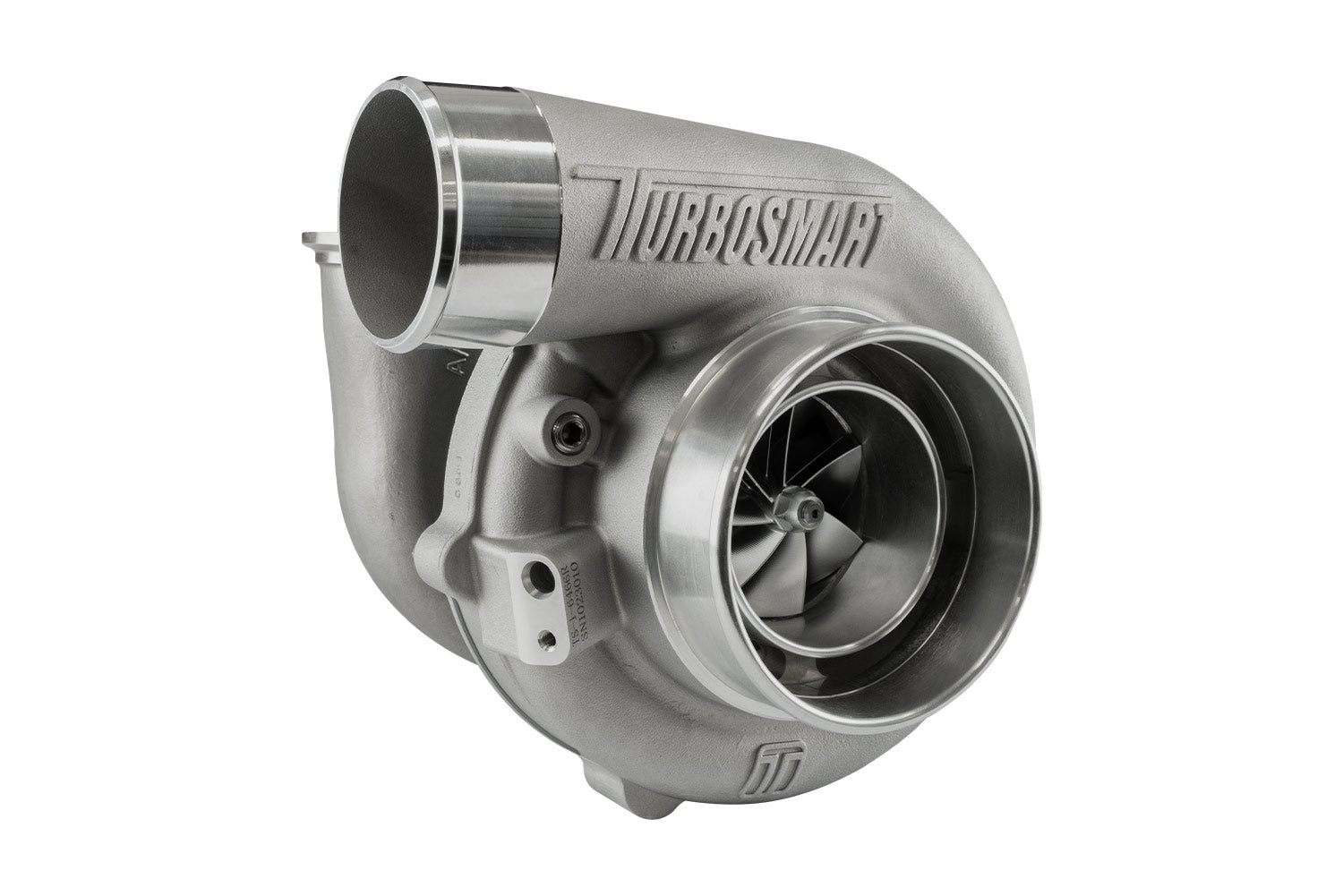

V-Band 1.07AR Externally Wastegated Reverse Rotation Oil Cooled TS-1-6466B-VR107E 825-955HP
T3 0.63AR Externally Wastegated Water Cooled TS-2-6466B-T3063E 825-955HP
T3 0.82AR Externally Wastegated Water Cooled TS-2-6466B-T3082E 825-955HP

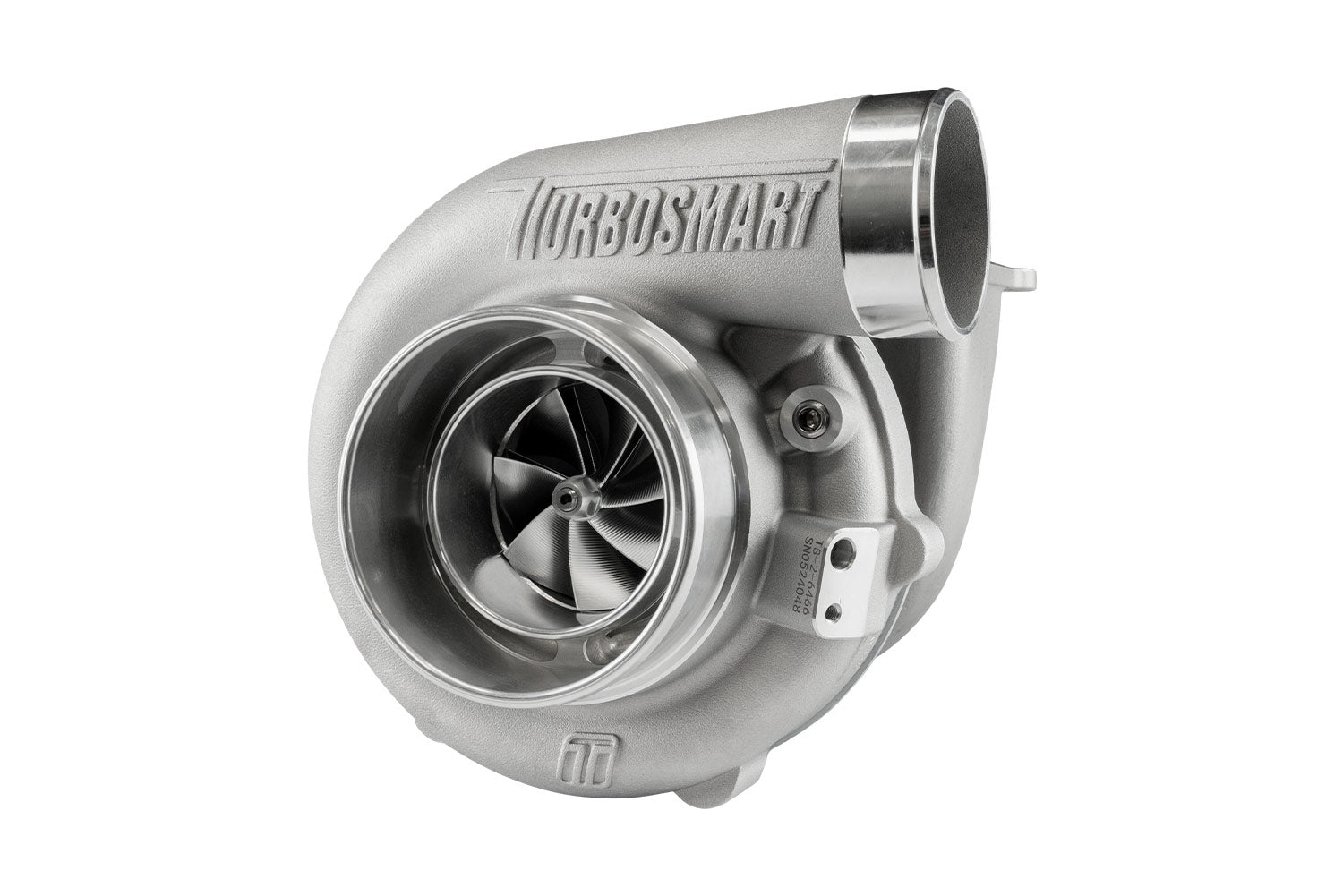

T3 1.10AR Externally Wastegated Water Cooled TS-2-6466B-T3110E 825-955HP
T4 0.82AR Externally Wastegated Water Cooled TS-2-6466B-T4082E 825-955HP

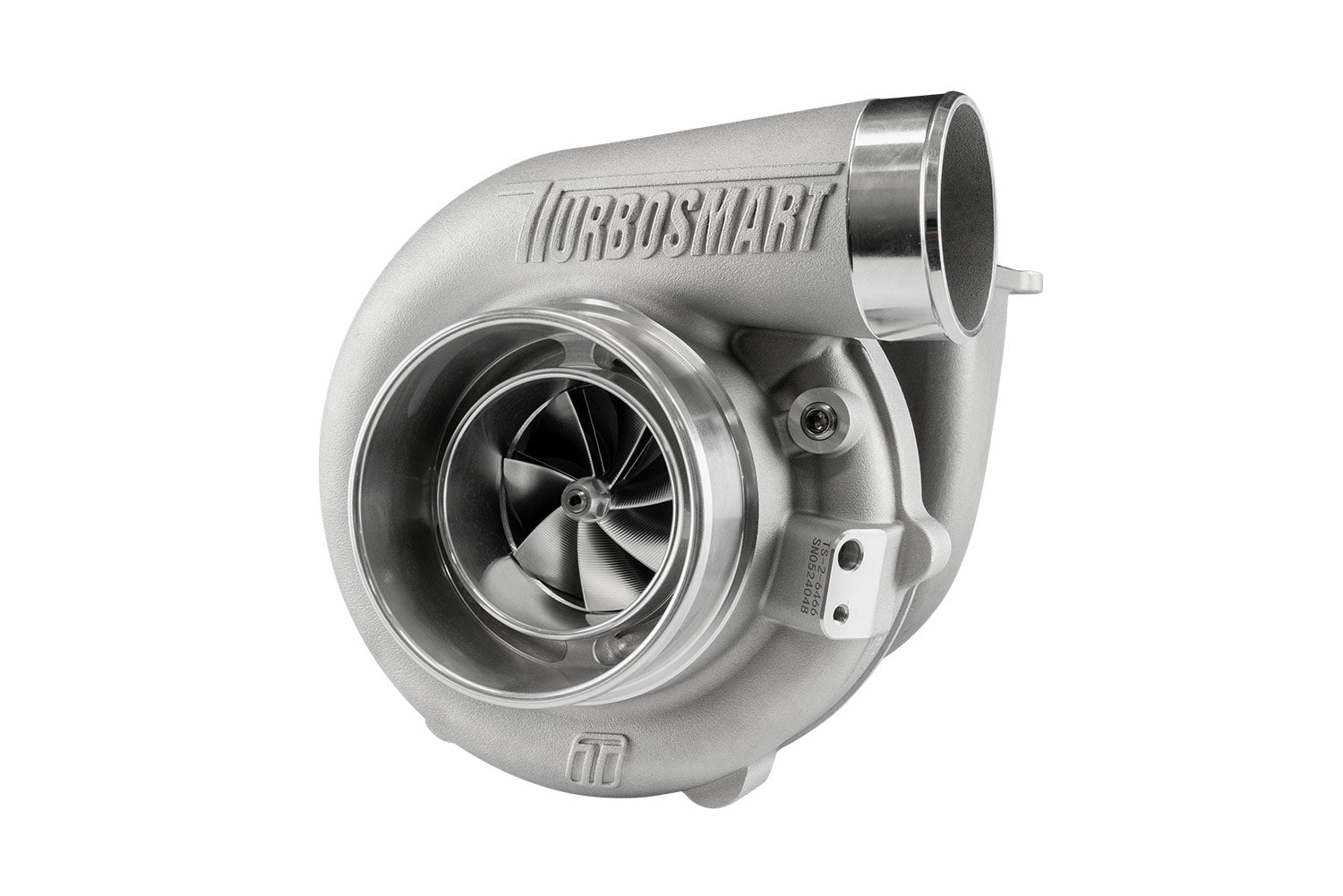

T4 0.96AR Externally Wastegated Water Cooled TS-2-6466B-T4096E 825-955HP

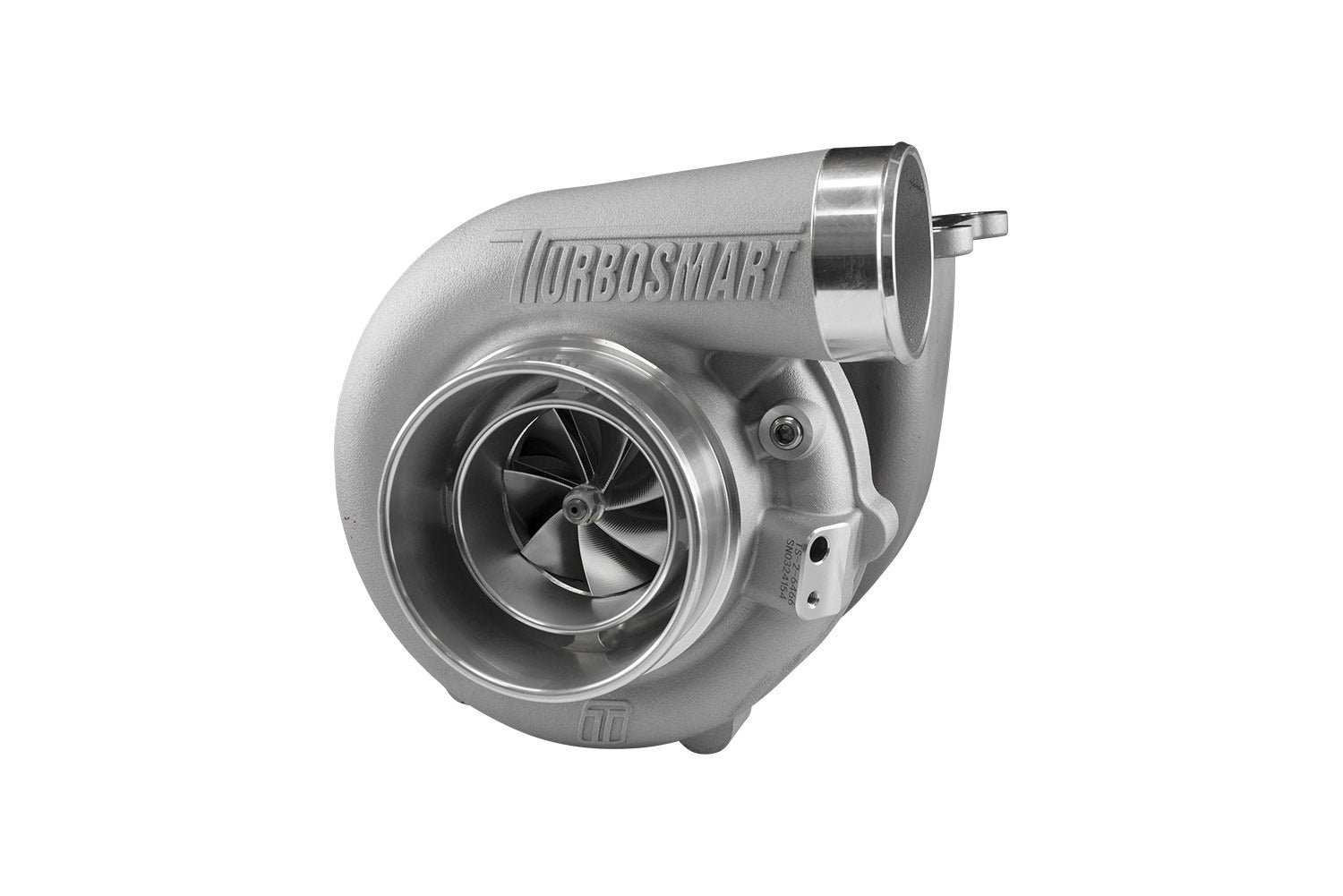

T4 Divided 0.84AR Externally Wastegated Water Cooled TS-2-6466B-D4084E 825-955HP
T4 Divided 1.00AR Externally Wastegated Water Cooled TS-2-6466B-D4100E 825-955HP

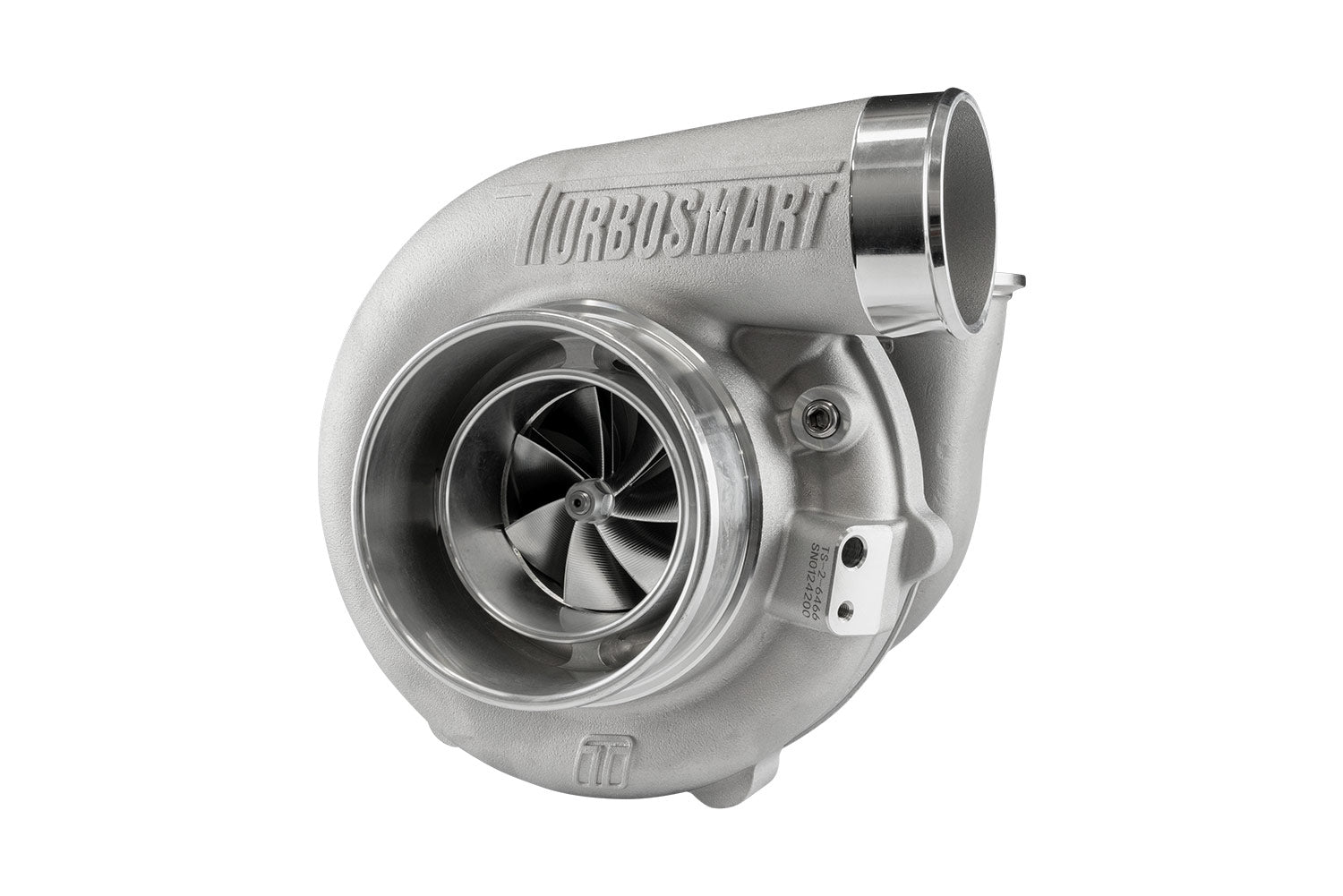

V-Band 0.82AR Externally Wastegated Water Cooled TS-2-6466B-VB082E 825-955HP

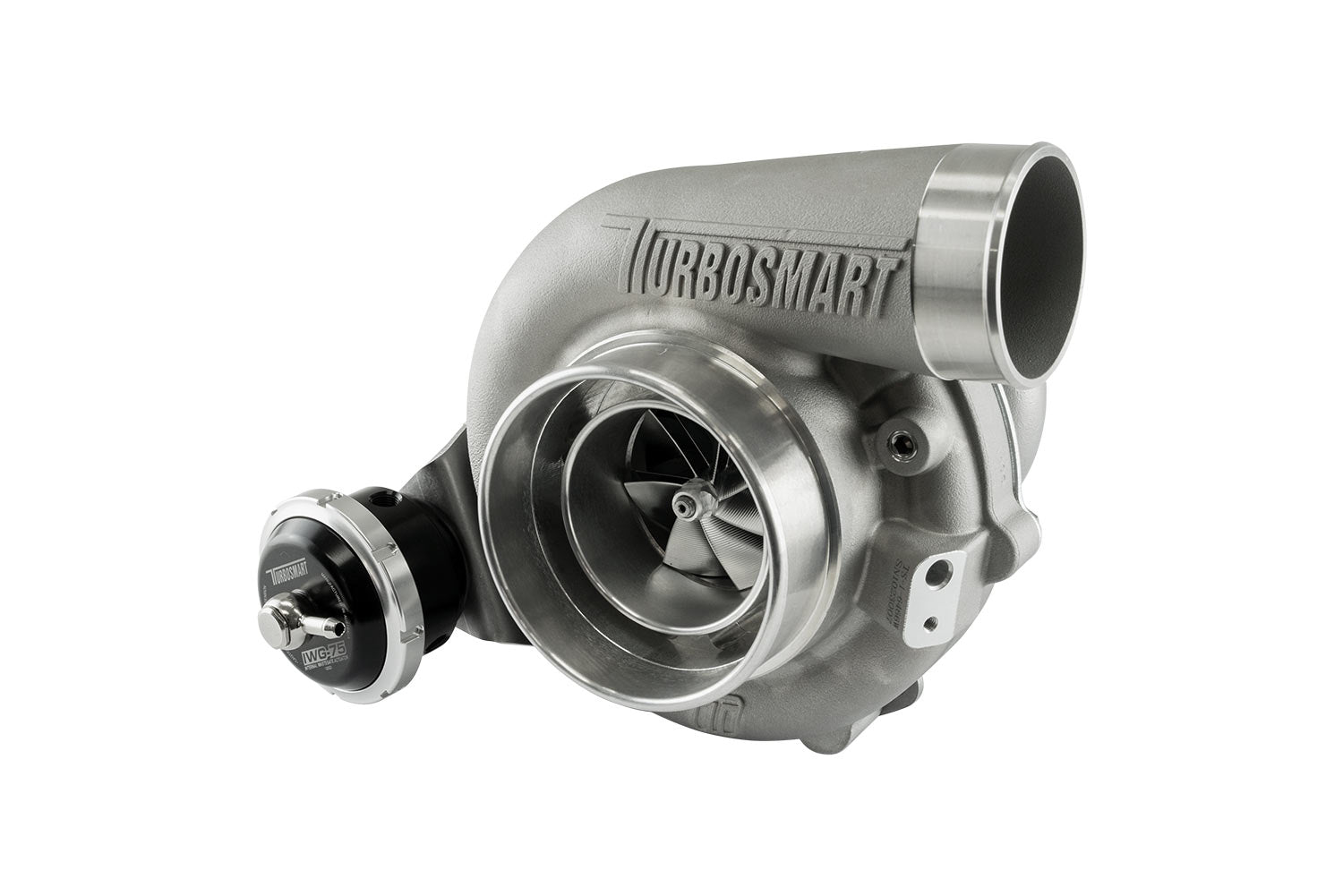

V-Band 0.82AR Internally Wastegated Water Cooled TS-2-6466B-VB082I 825-955HP
V-Band 0.82AR Externally Wastegated Reverse Rotation Water Cooled TS-2-6466B-VR082E 825-955HP
V-Band 1.07AR Externally Wastegated Water Cooled TS-2-6466B-VB107E 825-955HP

Installation: Turbosmart Turbocharger Installation Guide

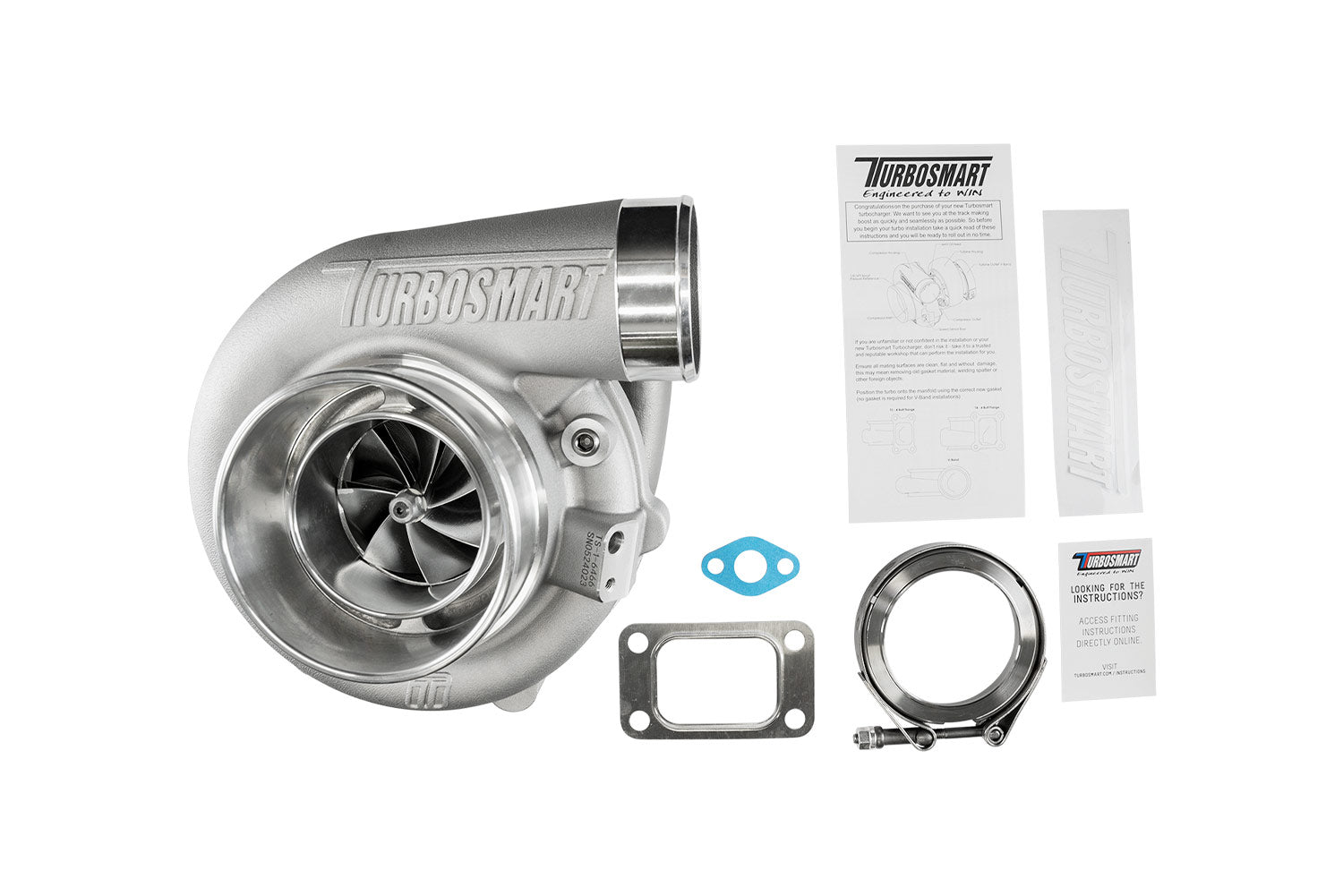

What's Included

  • Turbosmart turbocharger
  • Weld flanges & V-band clamps (where applicable)
  • Gaskets
  • Oil feed & drain fittings

Coore is an Australian Turbosmart stockist. Need help choosing a frame, A/R or flange? Email sales@coore.com.au with your engine and power goals.
