Radium VTE Vent To Engine Baffled Oil Cap Kit - Holden Commodore/HSV LSX V8

Radium VTE Baffled Oil Cap Kit - Holden Commodore / HSV LSX V8

Confirmed Engine Compatibility:

• LS1, LS2, LS3, LS4, LS6, LS7, LS9, LSA
• L76, L99, L9H
• LT1, LT2, LT4

Note: Other compatible engines not listed above may also be supported.

The Radium Engineering VTE (Vent to Engine) Baffled Oil Cap Kit is a direct replacement for the OEM oil cap on LSX and LT-series V8 engines. Unlike a VTA (vent to atmosphere) setup, this system routes filtered crankcase vapours back into the engine — making it emissions compliant and suitable for track regulations that prohibit VTA systems.

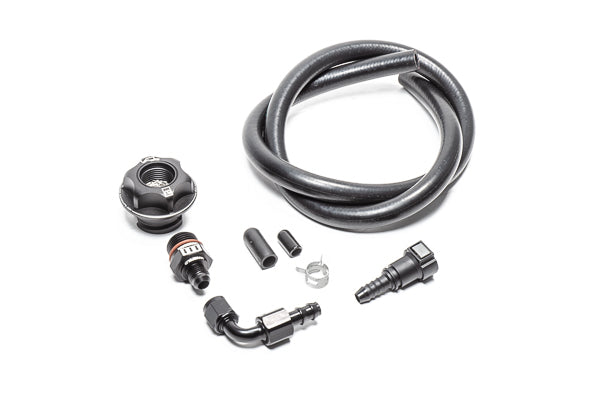

The kit features an anodised billet aluminium oil cap with an integrated air/oil separator and reusable stainless steel baffle that accelerates oil condensation. A new O-ring sealed billet PCV valve is also introduced, preventing intake pressure from entering the crankcase and protecting against combustible vapour ignition in the event of a backfire.

Why Do I Need This?

Gen IV LS Engines (2005+): This kit reintroduces a true PCV system. Turbocharged or centrifugal supercharged applications will pressurize the crankcase without a PCV valve, leading to engine sealing issues. The billet O-ring sealed PCV valve restores crankcase vacuum in all scenarios and only allows metered air back into the intake.

Gen III LS Engines (1997-2004): This kit replaces a potentially old and brittle OEM PCV valve with a new billet O-ring sealed unit, and adds service-free air/oil separating filtration to the crankcase.

Features

• Direct OEM oil cap replacement — no modifications required
• Anodised billet aluminium construction
• Integrated air/oil separator with reusable stainless steel baffle — service free
• New billet O-ring sealed PCV valve — prevents intake pressure entering crankcase
• Backfire protection — PCV valve prevents combustible vapours igniting in the crankcase
• VTE design — emissions compliant and track legal where VTA is prohibited

Part Number:

• 20-0587 — Radium VTE Baffled Oil Cap Kit (Holden Commodore / HSV LSX V8)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
• ✅ Compatible with E85, pump petrol, and flex fuel builds across the full LS and LT platform range
