Radium VTA to VTE Competition Catch Can Adapter 10AN ORB

Radium VTA to VTE Competition Catch Can Adapter 10AN ORB

Application: Radium VTA Competition Catch Cans 20-0771 and 20-0772
Part Type: VTA to VTE conversion plate kit
Part Number: 20-1773

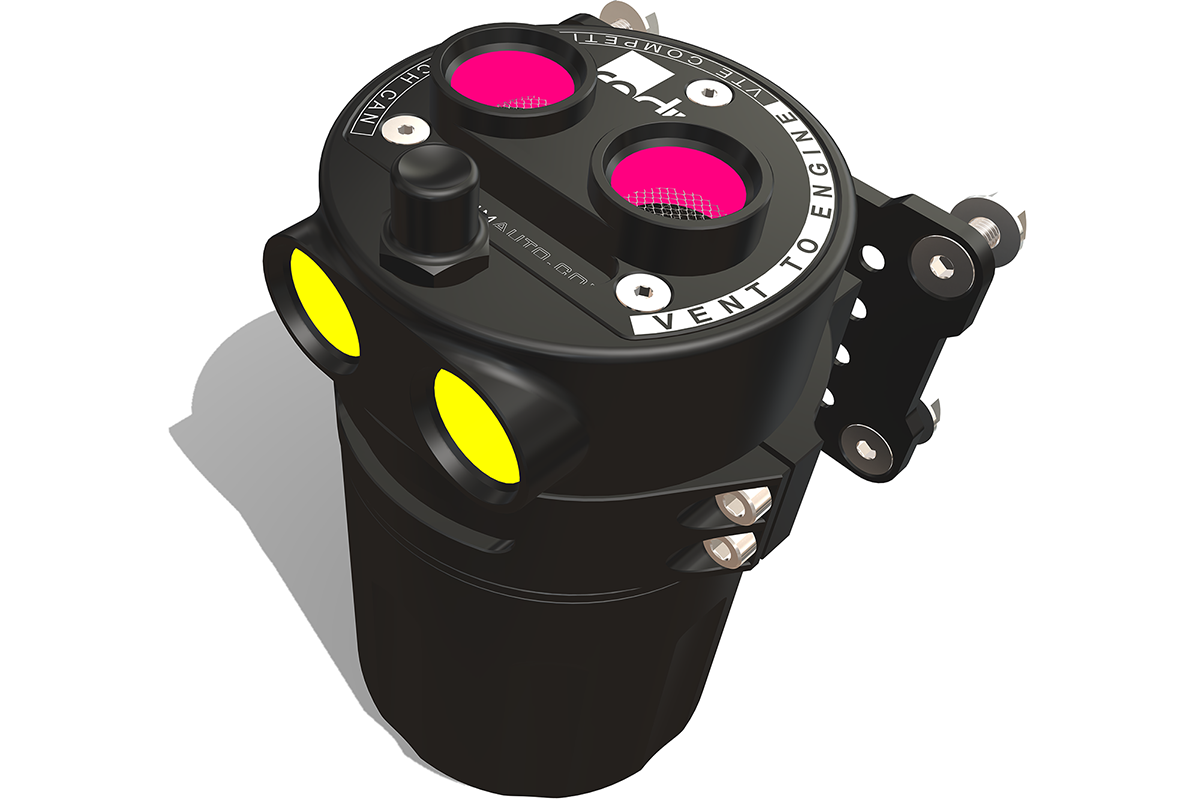

This adapter converts the previous generation of Radium VTA (vent-to-atmosphere) Competition Catch Cans into a dual inlet/outlet VTE (vent-to-engine) catch can that matches the current lineup. Removing the top three screws allows the VTA plate to be swapped for the VTE plate and gasket, adding two 10AN ORB (7/8"-14) ports.

With the can converted to VTE, purified air is recirculated back into the intake. The top and side ports can be used interchangeably as inlets or outlets – just keep both inlets on the same side and both outlets on the same side.

Key Features

• Converts VTA to VTE: Turns a 20-0771/20-0772 VTA can into a dual inlet/outlet VTE can
• Two Extra Ports: Adds two 10AN ORB (7/8"-14) ports
• Simple Swap: Remove three screws and replace the VTA plate with the VTE plate and gasket
• Closed System: Recirculates purified air back into the intake

What's Included

• VTE plate
• Gasket

Optional Parts

• Radium Competition Catch Can, VTA, 2-Port, Extra Large (20-0771) – VTA can this adapter converts
• Radium Competition Catch Can, VTA, 2-Port, Large (20-0772) – VTA can this adapter converts
• Radium Catch Can Petcock Drain Kit (20-0024) – optional drain for the catch can

Important Notes

• Do not purchase for 20-1771 or 20-1772 – the adapter is already included with those kits
• A PCV valve is sold separately – flow direction must be towards the intake manifold (vacuum). An OEM PCV valve only works if it is factory mounted on the intake manifold; if it is on the breather (valve cover) port, a PCV valve must be installed at the catch can
• Adapter fittings and thread locker are not included
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium VTA Competition Catch Can 20-0771
• Radium VTA Competition Catch Can 20-0772

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
