Radium Toyota Injector Seats, Singles

Radium Toyota Injector Seats - Singles (20-0216)

Suits:

• Toyota 2JZ-GTE
• Toyota 1JZ-GTE
• Toyota 3S-GTE
• Other Toyota engines with 22mm injector counterbore — confirm fitment before ordering

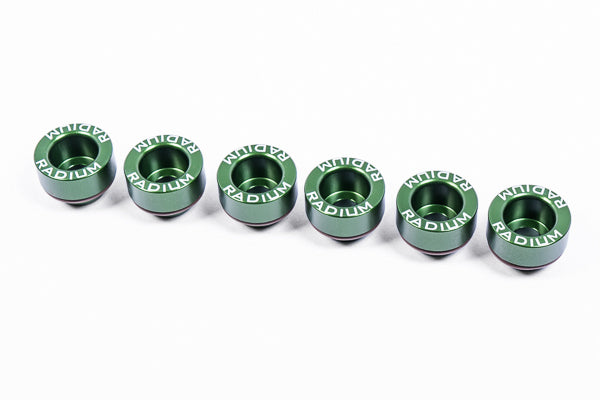

The Radium Engineering Toyota Injector Seats are the same machined aluminium seats used in Radium fuel rails. Required when converting an OEM side-feed fuel rail to a top-feed setup on popular Toyota engines. One seat is required per injector. The seat presses into the intake manifold injector port and seals into the 22mm machined injector counterbore using the included Viton O-ring. The 14mm lower bore is a common standard compatible with a wide range of aftermarket top-feed injectors.

Features

• CNC-machined 6061 aluminium
• Bright-dip anodised finish
• Laser etched logo
• Viton O-ring included — compatible with all fuel types including E85 and methanol
• 14mm lower injector O-ring bore — common standard for aftermarket injectors
• Seals into 22mm machined injector counterbore

Installation

1. Thoroughly clean any dirt or debris from the intake manifold injector seat bores
2. Lubricate the Radium injector seat O-rings with clean engine oil
3. Press the injector seat firmly into the intake manifold injector port until fully seated — use a small rubber mallet if necessary

Note: Sold individually — order the quantity required for your application (1 per injector).

Part Number:

• 20-0216 — Radium Toyota Injector Seat (single)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Same seats used in Radium’s own fuel rail kits
• ✅ Compatible with E85, pump petrol, methanol, and all exotic fuel types
