Radium Top Feed Conversion Fuel Rail, Nissan KA24DE

Radium Top Feed Conversion Fuel Rail, Nissan KA24DE

Application: Nissan KA24DE (twin cam) – 240SX, Bluebird, R'nessa, Presage, Bassara
Part Type: Top feed conversion fuel rail
Part Number: 20-0957

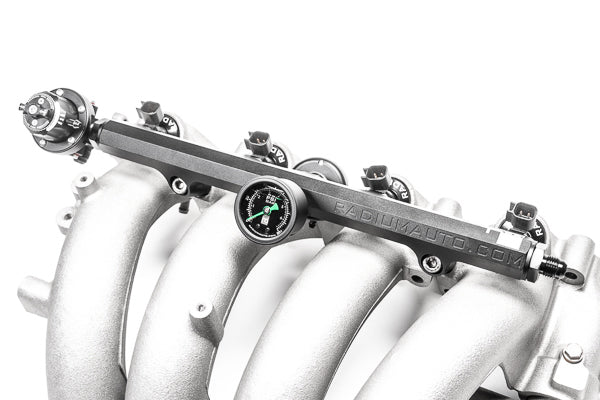

The Radium Engineering 20-0957 fuel rail is a direct bolt-on for all twin cam Nissan KA24DE engines. It converts the OEM side-feed injector setup to top feed, allowing the use of high-flow 14mm O-ring fuel injectors, and its large 17.5mm (0.69in) internal bore supports all necessary engine power requirements.

The rail is CNC machined from solid 6061 aluminium and black anodised, making it compatible with all fuel types including E85. It has three 8AN ORB ports (both ends and the bottom) and one 1/8in NPT port on top, and comes with thermal insulating spacers, washers and injector seats.

Key Features

• Direct Bolt-On: Fits all twin cam KA24DE engines
• Top Feed Conversion: Converts side feed to top feed for 14mm O-ring injectors
• High Flow: 17.5mm (0.69in) internal bore
• Billet Construction: CNC machined solid 6061 aluminium, black anodised
• All Fuels: Compatible with all fuel types including E85
• Ports: 3 x 8AN ORB (ends and bottom) plus 1 x 1/8in NPT (top)

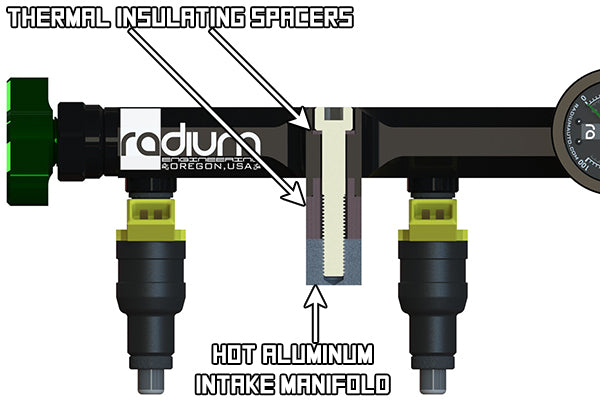

• Thermal Isolation: Thermal insulating spacers and washers included

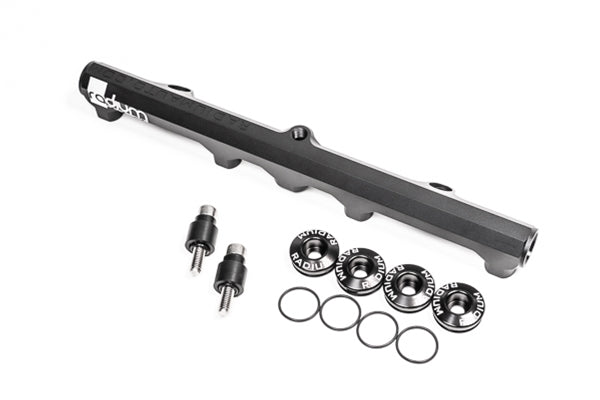

What's Included

• Black anodised aluminium fuel rail
• Thermal insulating spacers
• Thermal insulating washers

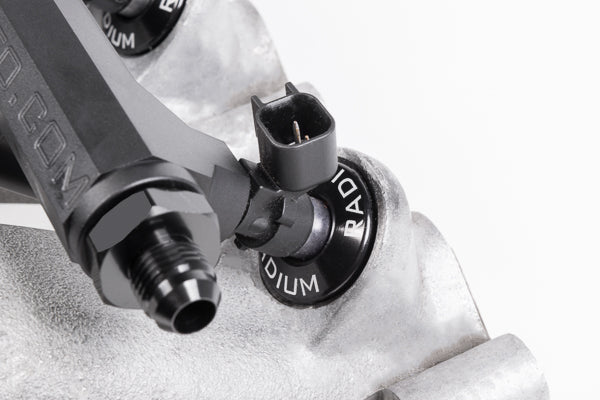

• Black anodised aluminium injector seats
• Stainless steel mounting bolts

Optional Parts

• Radium FPR Adaptor 8AN ORB, 11mm Bore, 32mm Spacing, M5 - Subaru/Nissan/Mazda RX-7 (20-0303) – Radium's install instructions use this adapter in an 8AN ORB port to retain the stock fuel pressure regulator
• Radium Fuel Pressure Gauge 0-100psi (20-0029) – 0-100psi gauge Radium offers for monitoring rail pressure

Important Notes

• Fuel injectors are NOT included – injectors must be 34mm in height with 14mm O-rings top and bottom (the thermal spacers are sized for 34mm injectors)
• Injector Dynamics examples: 1050-XDS, 1300-XDS, 1700-XDS and 2600-XDS (34mm, 14mm O-ring versions)
• With an Xcessive intake manifold the rail may need to be shimmed to the correct height depending on the injectors used, and the included injector seats are not used
• Fittings are sold separately
• Fittings must be selected to suit the application – allow ample clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan 240SX KA24DE (1991-1998)
• Nissan Bluebird KA24DE (1993-1997)
• Nissan R'nessa KA24DE (1997-2000)
• Nissan Presage U30 KA24DE (1998-2001)
• Nissan Bassara U30 KA24DE (1999-2001)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
