Radium Single Pump Fuel Collector Add-On, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100)

Radium Single Pump Fuel Collector Add-On, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100)

Application: Toyota Chaser / Mark II / Cresta (X90, X100) – with the Radium 20-0940 fuel pump hanger
Part Type: Single pump fuel collector add-on for the Radium 20-0940 fuel pump hanger
Part Number: 20-0941

The Radium 20-0941 Single Pump Fuel Collector Add-On fits a collector around the pump on the Radium 20-0940 fuel pump hanger for the Toyota Chaser, Mark II and Cresta (X90 / X100), adding protection against fuel starvation. It is also the fix when the OEM basket has broken off and is no longer attached to the tank.

The collector is designed to hold as much fuel as possible and sits at an angle to keep fuel trapped around the pump under heavy acceleration. Two 1-way fill valves flow 355LPH each (710LPH total), and all fuel from the regulator returns directly into the collector. It can be used with the OEM basket for added protection and is shaped to pass through the small OEM fuel tank access hole.

Key Features

• Starvation Protection: Angled collector keeps fuel around the pump under hard acceleration

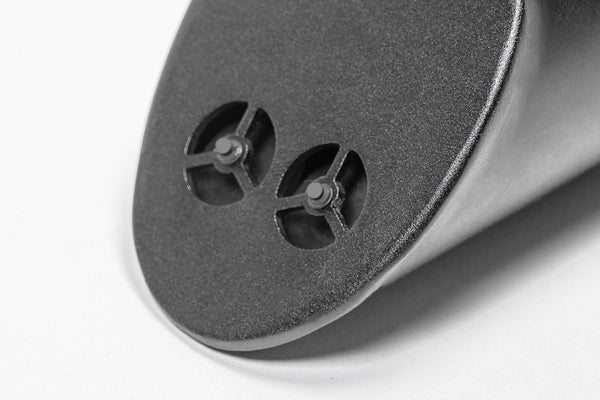

• 710LPH Fill Capacity: Two 1-way fill valves at 355LPH each
• Direct Return: All regulator return fuel flows straight into the collector

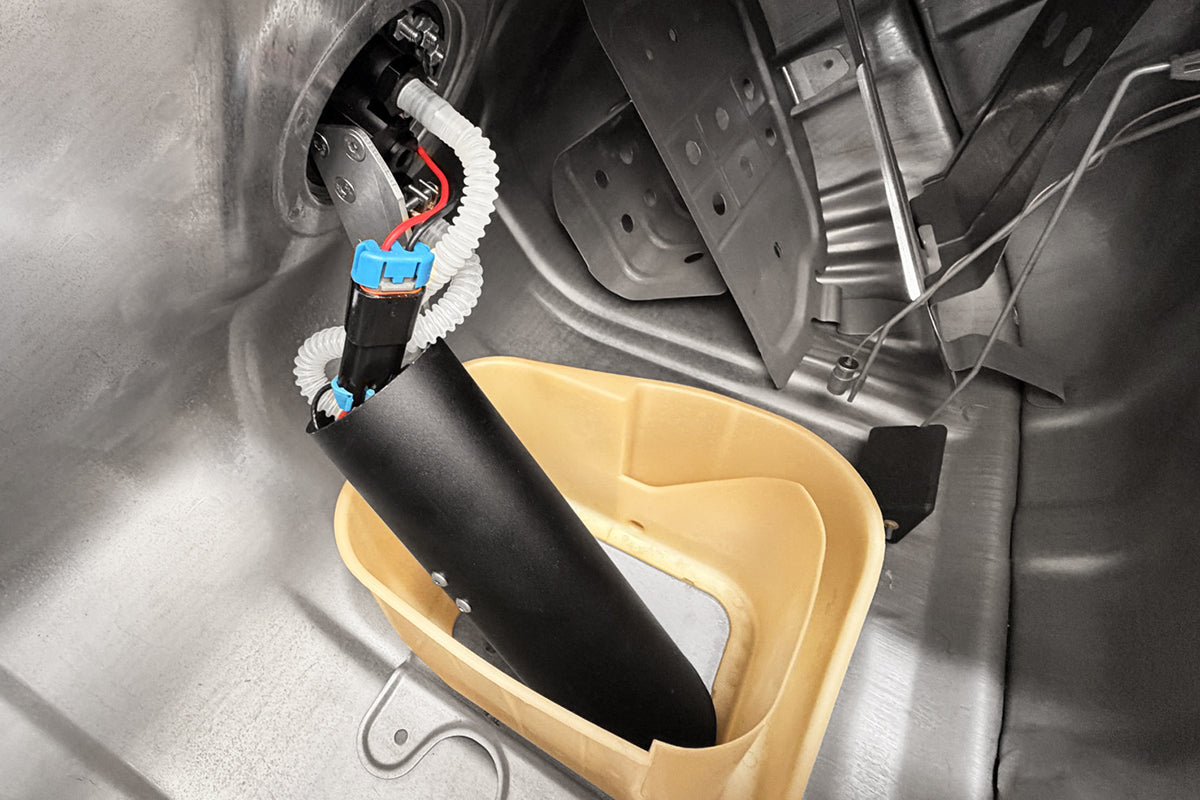

• OEM Basket Compatible: Works alongside the OEM basket, or replaces a broken-off basket
• Easy Install: Passes through the small OEM fuel tank access hole

What's Included

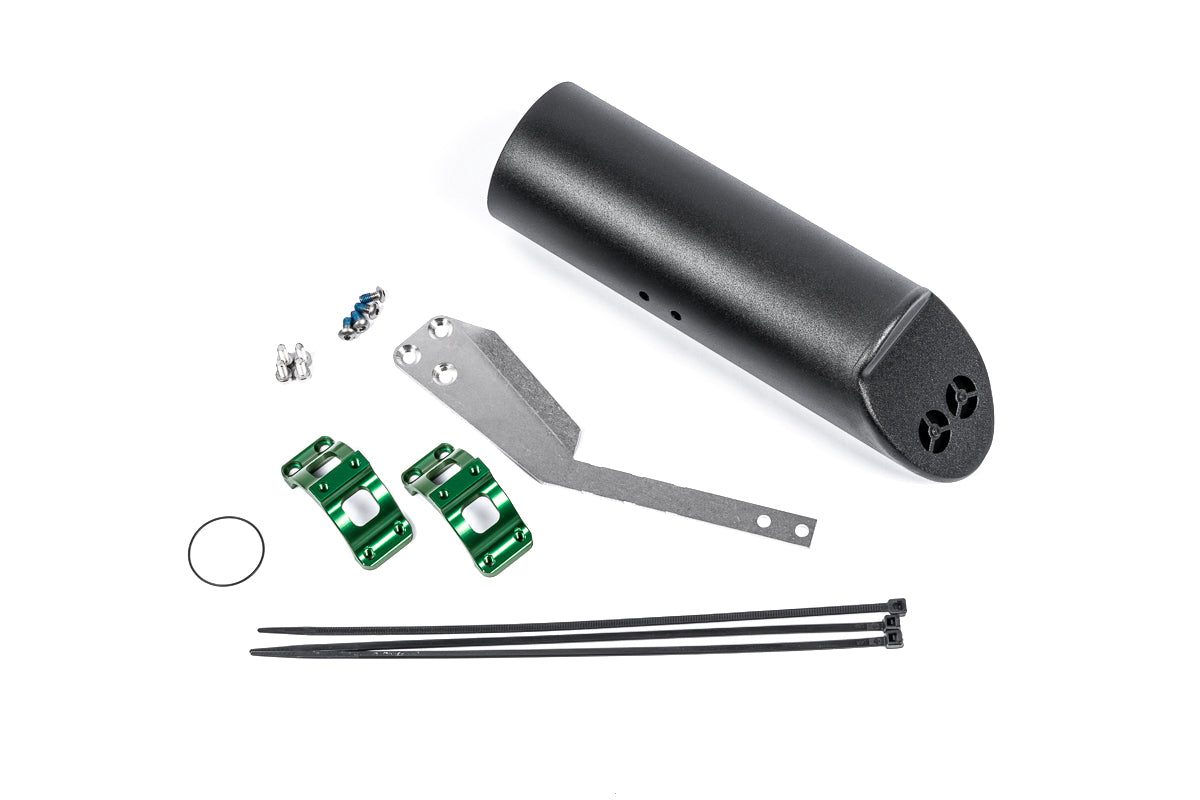

• Single pump fuel collector with two 1-way fill valves

Optional Parts

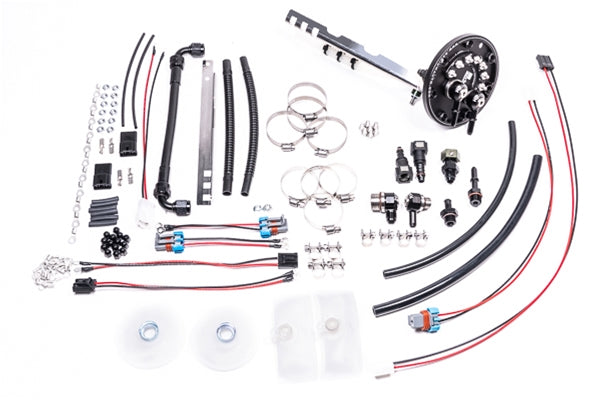

• Radium Fuel Pump Hanger, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100) (20-0940) – required – the collector add-on fits this hanger
• Walbro/Ti Automotive F90000274 E85 Fuel Pump with Fitting kit (F90000274) – one of Radium's verified pumps for this add-on
• Radium Fuel Pump Clamp for 41-43mm Pump Bodies (20-0441) – required for the DeatschWerks DW440 / DW810, Protec 11928 and Fuelab 49614 pumps
• Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) – check valve for the Walbro F90000295 and Ti Automotive E5LM, which have no internal check valve
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – high-current pump wiring

Important Notes

• Requires the Radium 20-0940 fuel pump hanger (sold separately)
• Allows one fuel pump only – dual pumps cannot be used with the collector add-on
• Radium states the collector is only compatible with 39mm diameter fuel pumps
• Radium's verified pumps: Walbro F90000267, F90000274, F90000285, F90000295, GSS342; AEM 50-1000, 50-1200, 50-1230, 50-1235; Ti Automotive E5LM; DeatschWerks DW440, DW810; Protec 11928; Fuelab 49614
• Per Radium's pump list, sock filters are supplied for the Walbro, AEM and Ti Automotive pumps; DeatschWerks, Protec and Fuelab pumps use the pump maker's sock filter
• AEM 50-1230 / 50-1235, Walbro F90000295 and Ti Automotive E5LM have no internal check valve – Radium's check valve kit (20-1534) is available
• Radium's installation instructions are the 20-0940 hanger document, which includes notes for the collector add-on
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota Chaser (X90 / X100)
• Toyota Mark II (X90 / X100)
• Toyota Cresta (X90 / X100)
• Requires the Radium 20-0940 fuel pump hanger
