Application: Nissan S13 SR20DET (RWD intake manifold) – Silvia, 180SX, 200SX, 240SX
Part Type: Top feed conversion fuel rail
Part Number: 20-0558

The Radium Engineering Top Feed Conversion Fuel Rail for the Nissan SR20DET converts the factory side-feed injection to top-feed injectors. The CNC-machined rail has a 17.5mm (0.69in) internal bore and high-flow ports that accept a wide range of adapter fittings, with a black satin anodised finish safe for all gasoline and alcohol blends.

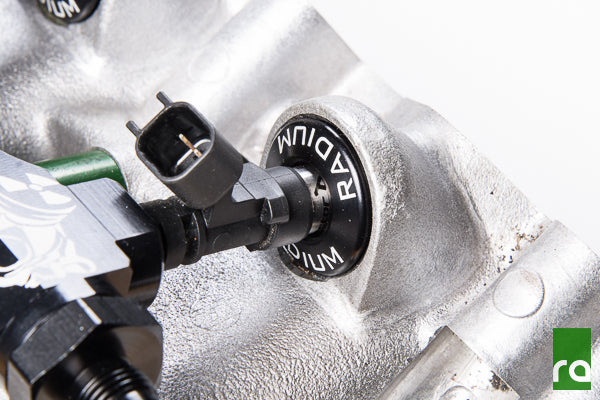

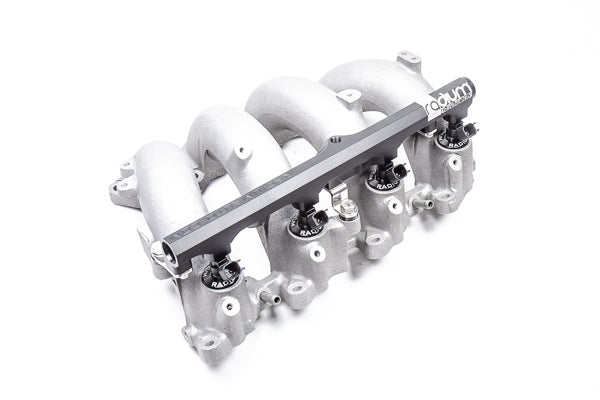

The rail bolts to the factory fuel rail mounting points. Billet aluminium injector seats – anodised and laser etched – press into the intake manifold to seal the top-feed injectors. Designed for the S13 SR20DET RWD intake manifold, it may also suit some aftermarket intake manifolds that use the OEM fuel rail.

Key Features

• Top Feed Conversion: Converts side-feed SR20DET to top-feed injectors
• Large Bore: 17.5mm (0.69in) internal bore
• 8AN ORB Ports: Two end ports plus a bottom port, all 8AN ORB female
• Pulse Damper Port: Extra centre-bottom 8AN ORB port for an FPD-R or plug
• Gauge Port: 1/8in NPT female port on top
• Factory Mounting: Bolts to the OEM fuel rail mounting points

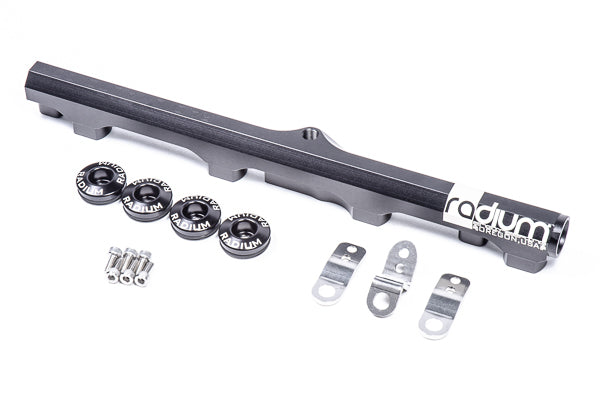

What's Included

• Black anodised aluminium fuel rail
• Black anodised aluminium 30mm injector seats
• Stainless steel mounting brackets
• Stainless steel mounting bolts

Optional Parts

• Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) – FPD-R fuel pulse damper for the centre-bottom port
• Radium FPR Adaptor 8AN ORB, 11mm Bore, 32mm Spacing, M5 (20-0303) – FPR adaptor needed if reusing the factory pressure regulator (per Radium instructions)

Important Notes

• Injectors are not included and not sold by Radium – use a 34mm tall universal top-feed injector with 14mm upper and lower O-rings (e.g. Injector Dynamics 1050/1300/1700/2600-XDS in .34.14.14 form)
• Short injectors are specified because taller injectors may cause bonnet clearance issues
• Fittings are not included
• Fittings must be selected to suit the application and hose type; allow ample clearance around the ports for larger accessories such as regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

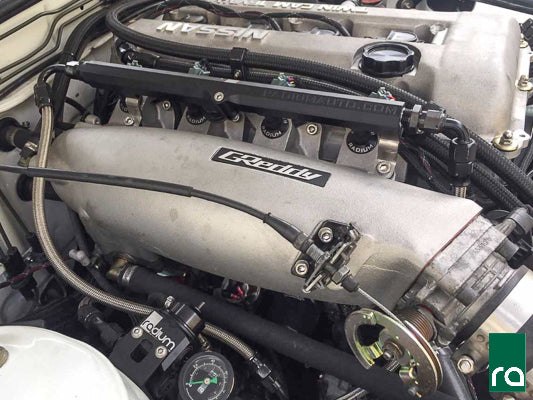

• Nissan Silvia / 180SX / 200SX / 240SX S13 (SR20DET, RWD intake manifold)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
