Radium RA Series FPR Fuel Pressure Regulator Conversion Kit

Radium RA Series FPR Fuel Pressure Regulator Conversion Kit

Application: Universal – previous-generation Radium adjustable fuel pressure regulators
Part Type: RA-series fuel pressure regulator conversion kit
Part Number: 20-1101-00

The Radium RA-Series FPR Conversion Kit allows all previous Radium Engineering adjustable fuel pressure regulators to be converted to an RA-Series FPR, adding the newest RA-Series features and performance improvements to an existing regulator.

It suits all generations of the Radium Direct Mount Regulator, Multi-Port Regulator and Fuel Pressure Regulator Damper, as well as Radium hangers and surge tanks with an integrated regulator.

Key Features

• Tool-less Adjustment: Turn the knob to set fuel pressure – detents give approx. 1 psi (±0.5 psi) per click, no jam nut or set screw
• Stable Pressure: Single stainless steel return orifice designed for laminar flow
• 1:1 Vacuum Reference: 360° swivelling, double O-ring sealed vacuum port

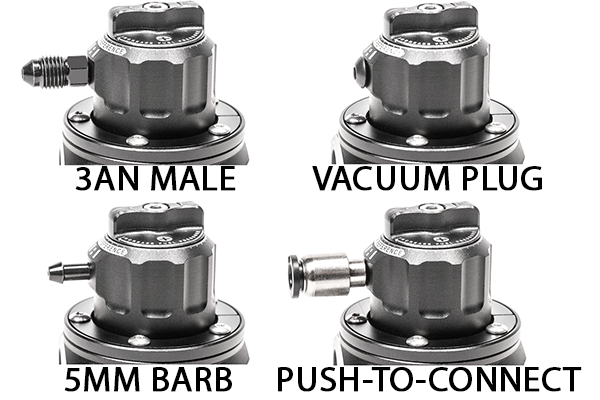

• Interchangeable Vacuum Fittings: Four #10-32 threaded fittings: 5mm barb, 3AN male, 1/4in push-to-connect and vacuum plug for returnless systems
• Wide Compatibility: Converts DMR, MPR and FPR damper regulators of all generations
• Fuel Compatibility: All petrol types (unleaded, leaded, oxygenated, pre-mix) plus methanol, ethanol and E85

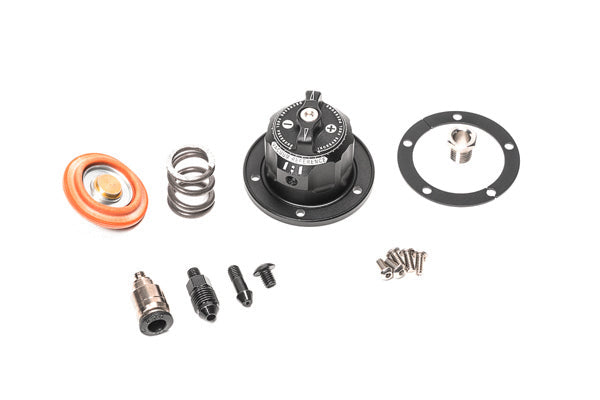

What's Included

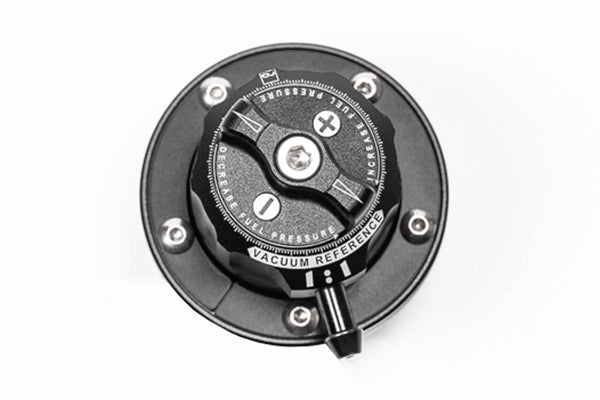

• Upper rotating assembly
• 5mm barbed vacuum fitting
• Vacuum plug fitting (returnless)
• 1/4in push-to-connect vacuum fitting
• 3AN male vacuum fitting
• Anodised half moon retainers
• Stainless steel return orifice
• Stainless button head screws
• Stainless steel spring
• Fluorosilicone diaphragm

Important Notes

• Use a wicking, medium-strength threadlocker when installing the vacuum fitting
• A rapid fuel pressure drop after shut-off is normal for aftermarket regulators – pressure resets when the pump runs again
• Long cranking or slow pressure build-up is not caused by the regulator – it typically indicates fuel draining back to the tank from an internal pump module leak (e.g. venturi jet pump or missing check valve)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application
• Radium Direct Mount Regulator (all generations)
• Radium Multi-Port Regulator (all generations)
• Radium Fuel Pressure Regulator Damper (all generations)
• Radium hangers and surge tanks with integrated regulator

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
