Radium RA-Series FPR Conversion Kit, Green

Radium RA-Series FPR Conversion Kit, Green

Application: Radium adjustable fuel pressure regulators – DMR, MPR and FPR damper (all generations), and Radium hangers / surge tanks with an integrated regulator
Part Type: FPR conversion kit, RA-Series
Part Number: 20-1101-01

This Radium Engineering kit converts previous Radium adjustable fuel pressure regulators to the RA-Series design, adding the newest features and performance improvements to older regulators.

RA-Series regulators offer tool-less pressure adjustment – no jam nut or set screw, just turn the knob – with detents that give haptic feedback and roughly 1psi (+/-0.5psi) per click. A redesigned single stainless steel return orifice generates laminar flow for better pressure stability, and the 360 degree swivelling, double O-ring sealed vacuum reference port can be pointed in any direction without tools.

Key Features

• Tool-less Adjustment: Turn the knob; detents give about 1psi (+/-0.5psi) per click
• Minimum Pressure: 1.3bar (18.5psi)
• Maximum Pressure: Not limited by the regulator – set by the pump relief valve or pump controller current limit

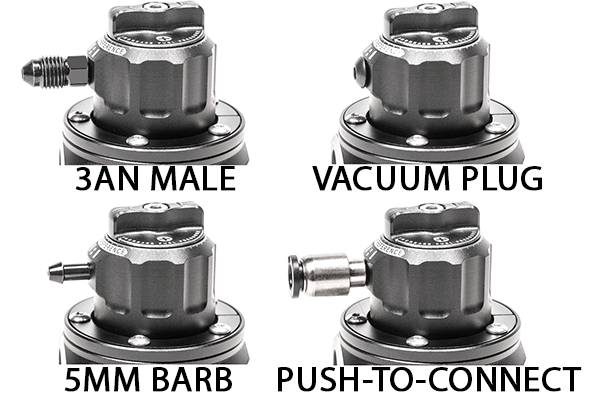

• Vacuum Reference: 1:1 rising rate, 360 degree swivel, double O-ring sealed, four interchangeable #10-32 fittings
• Return Orifice: Single stainless steel orifice for laminar flow and stability
• Fuel Compatibility: All petrol types (unleaded, leaded, oxygenated, premixed) and alcohol blends incl. methanol, ethanol and E85

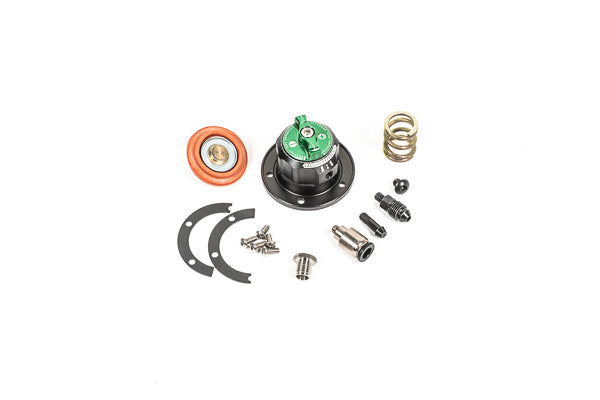

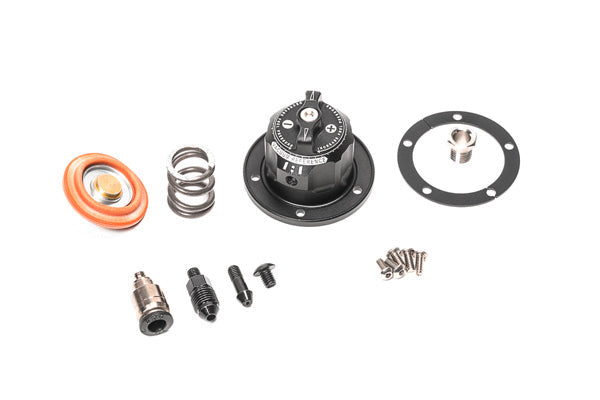

What's Included

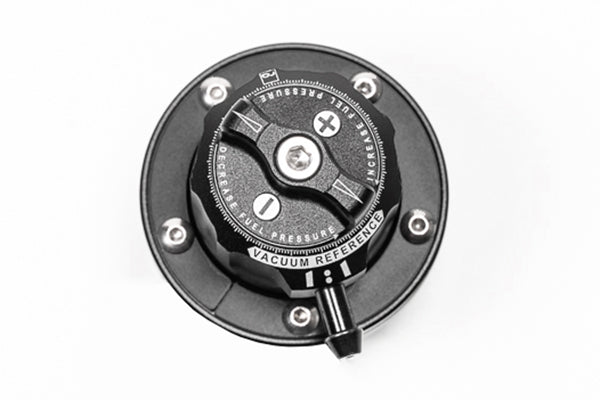

• Upper rotating assembly
• 5mm (3/16in) barbed vacuum fitting
• Vacuum plug fitting (returnless)
• 1/4in push-to-connect vacuum fitting
• 3AN male vacuum fitting
• Anodised half-moon retainers
• Stainless steel return orifice
• Stainless steel button head screws
• Stainless steel spring
• Fluorosilicone diaphragm

Important Notes

• Use a wicking medium-strength threadlocker on the vacuum fitting
• Radium's instructions: return orifice 4.0Nm (35 in-lb), top cap screws 0.7Nm (6 in-lb) in a cross pattern; do not reuse the old spring hat
• A rapid fall in fuel pressure after the pump shuts off is normal for high-flow aftermarket regulators and is not a defect – pressure resets as soon as the pump runs
• Long cranking or slow pressure build is unrelated to the regulator – check for feed line drain-back (e.g. a jet pump leak or missing pump check valve)
• The vacuum plug is for returnless systems where the regulator cannot be vacuum referenced
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium Direct Mount Regulator (DMR) – all generations
• Radium Multi-Port Regulator (MPR) – all generations
• Radium Fuel Pressure Regulator Damper – all generations
• Radium hangers and surge tanks with integrated regulator

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
