Radium Quick Fill Dump Can, 6Gal, Standard Filler

Radium Quick Fill Dump Can, 6Gal, Standard Filler

Application: Universal – motorsport refuelling
Part Type: Quick fill dump can – standard filler
Part Number: 20-0697-00

Dump cans are used in motorsport where quick pit-stop refuelling is essential. Radium's quick fill design fills up to 14 times faster than a standard fuel jug because of its vent architecture – air entering the can replaces the exiting fuel at the same rate, avoiding the vacuum restriction that causes a "gurgle" or "chug".

The large 1.675in (43mm) OD vent tube comes from the bottom of the can to minimise refuelling leaks, and can also be used for refilling. This standard filler version suits most motorsport use: the stainless steel spout's inner flow diameter is maximised while still fitting all OEM fuel fillers.

Key Features

• Quick Fill Vent: 1.675in (43mm) OD bottom vent tube for fast, smooth flow

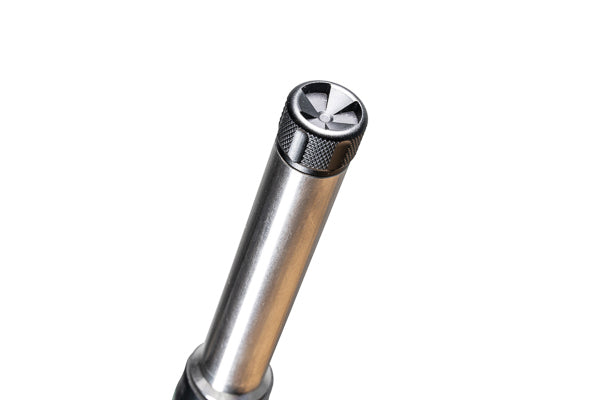

• Standard Filler: Stainless steel spout compatible with all OEM fuel fillers

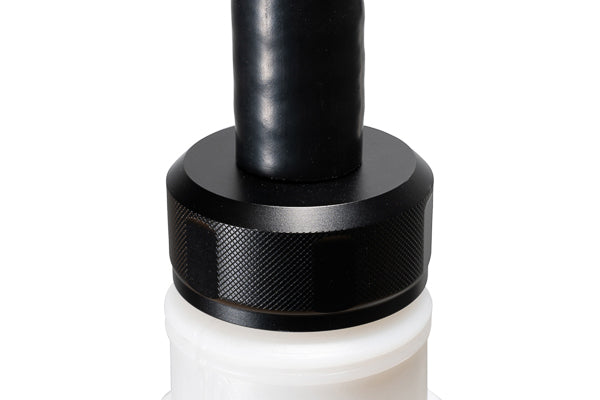

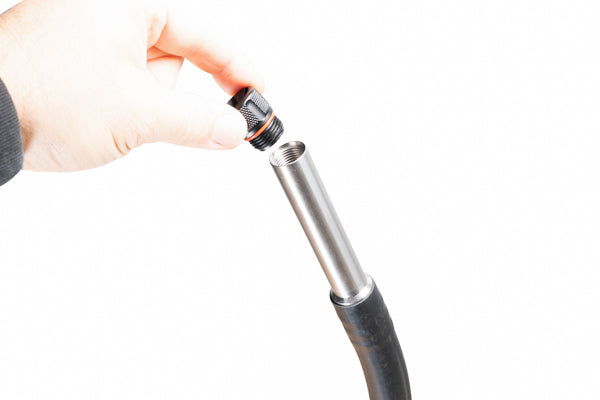

• Knurled Aluminium Caps: Positive grip, with an anodised spout plug

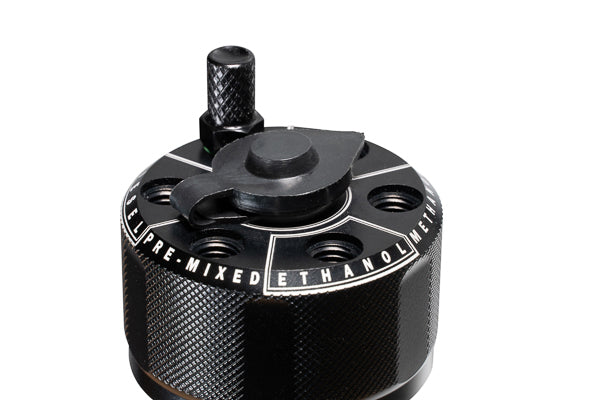

• Fuel-Type Indicator: Vent cap with six fuel-type indicator holes
• Controlled Venting: Flip cap can be unlatched for controlled filling, or the vent cap removed for faster filling

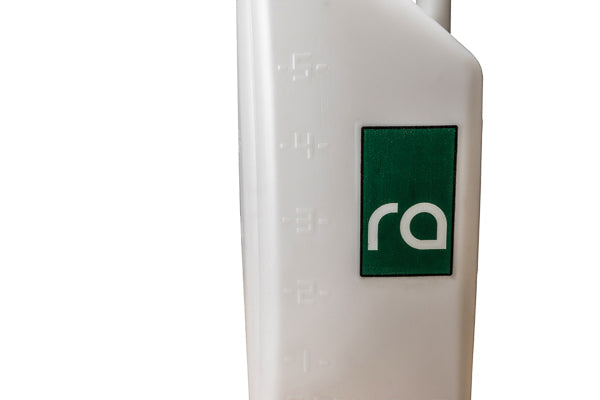

• Graduations: Marked in US gallons and litres
• Industry-Standard Footprint: 241 x 241mm (9.5 x 9.5in) to store and secure alongside other fuel jugs
• Ergonomic Grips: Finger grips on the vent handle and base
• Fuel Compatibility: Moulded polymer body rated safe for all listed fuel types including E85 and methanol

What's Included

• Quick fill dump can, 19 L (5 US gal)
• Standard filler cap assembly with stainless steel spout
• Vent cap with flip cap

Optional Parts

• Radium Dump Can Cap Assembly - Dry Break Filler (20-1687-01) – converts this can to a 1.5in dry break with PRV
• Radium Dump Can Cap Assembly - Standard Filler (20-0687-00) – replacement standard filler cap assembly
• Radium Quick Fill Dump Can Caps (20-0997) – filler cap for storage or transport

Important Notes

• Radium's measured flow: 5.86 gpm (vent cap on, flip cap open) and 6.70 gpm (vent cap off), versus 1.86 gpm for a generic fuel jug
• Removing the vent cap gives the fastest fill – take care when doing so

Vehicle Fitment

• Universal – suits all OEM vehicle fuel fillers

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
