Application: 2020+ Toyota GR Supra (A90/A91) and 2018+ BMW Z4 (G29) – B58B30O1 (B58B30B), B58B30M1 (B58B30C) and B58TU engines
Part Type: Port injection kit (cylinder head adapter plate and fuel rail)
Part Number: 20-0753

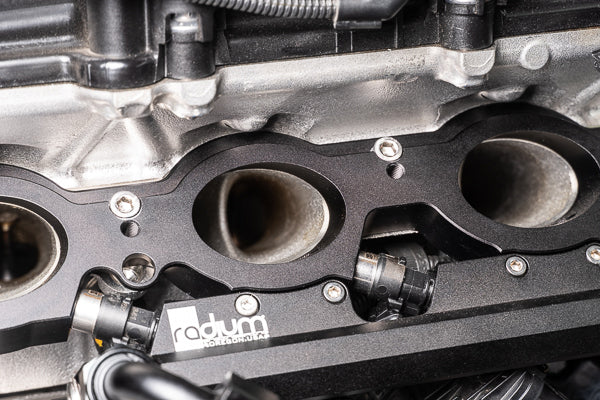

The Radium Port Injection Kit (PIK) is an adapter that sits between the intake manifold and the cylinder head, permitting the use of port injectors for the additional fuel required by highly modified B58 engines. It does not replace the OEM direct injection system, and the adapter plate can also be used as a simple intake manifold spacer without the fuel rail by fitting 2AN ORB plugs.

The fuel rail is CNC machined from extruded 6063 aluminium and laser etched, with 8AN ORB (3/4"-16 female) threads in both end ports. The injectors are mounted at a calculated angle to spray into the centre of the intake ports, and relocation hardware (four adapters under the cover) lets you reuse the OEM engine cover. Compatible with all fuel types including E85.

Key Features

• Port Injection Adapter: Adds port injectors without replacing OEM direct injection
• Spacer Option: Plate can be run as an intake manifold spacer with 2AN ORB plugs
• 6063 Aluminium Fuel Rail: CNC machined, laser etched, 8AN ORB end ports
• Targeted Spray: Injectors angled into the centre of the intake ports

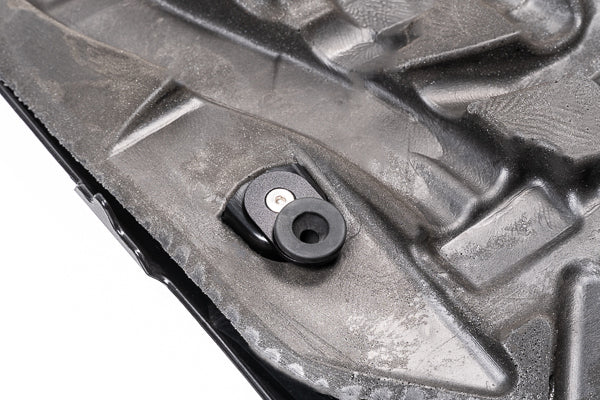

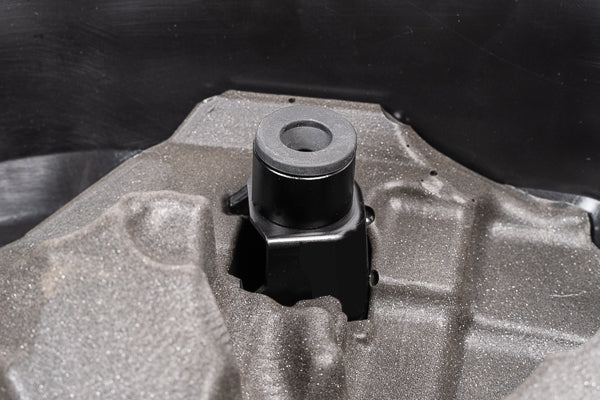

• Retains Engine Cover: Relocation hardware for the OEM vanity cover
• Fuel Compatibility: All fuel types including E85

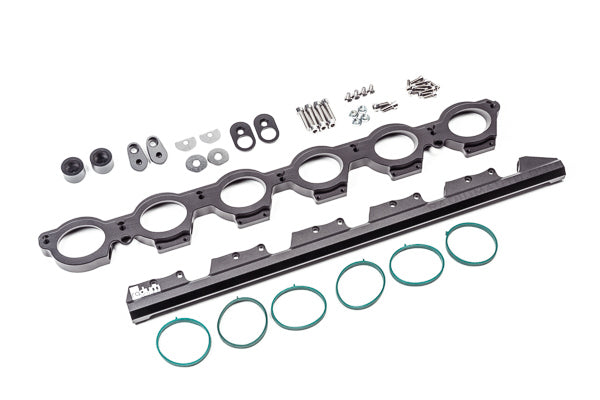

What's Included

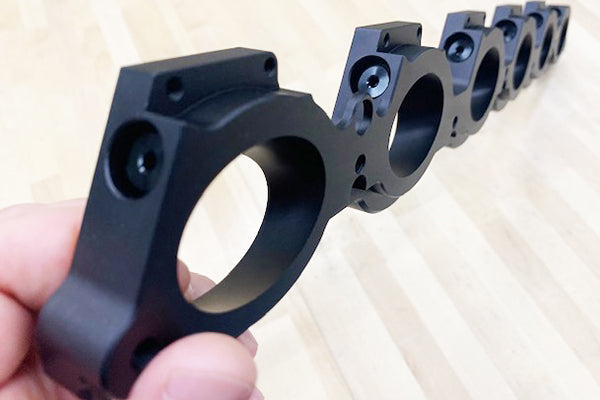

• Anodised aluminium PIK adapter plate
• Anodised aluminium fuel rail
• Engine cover relocation hardware
• B58TU intake port gaskets
• Stainless steel hardware

Optional Parts

• Radium Port Injection Fuel Rail Plumbing Kit - Toyota Supra A90 19+/BMW Z4 G29 18+ (20-0753-PK) – feeds the rail from the OEM low-pressure fuel line
• Radium Fuel Pump Hanger, Toyota GR Supra A90 / A91 (2019+) (20-0760) – for an independent high-horsepower port fuel system (plumbing kit then not required)
• Injector Dynamics XDS Fuel Injectors- Universal Fitment- ID1050 / 1300 / 1750 / 2600cc Options – short 34mm body, 14mm O-ring XDS injectors (e.g. 1050.34.14.14)

Important Notes

• NOT compatible with 1st generation B58B30M0 (B58B30A) engines

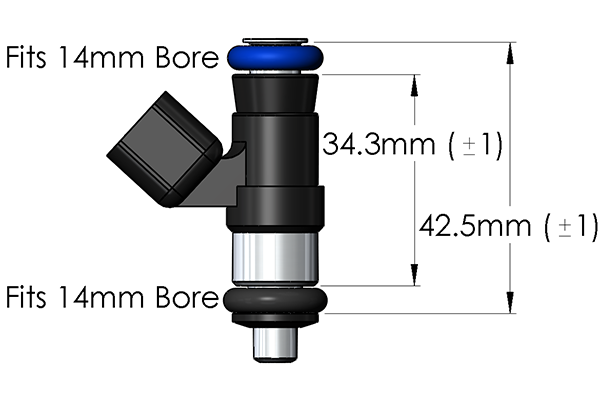

• Injectors must have 14mm upper and lower O-rings and the short 34mm body – taller injectors cannot be used. Direct-fit examples: Injector Dynamics ID1050-XDS, ID1300-XDS, ID1700-XDS and ID2600-XDS (xxxx.34.14.14)
• Not included: fuel injectors, port fittings, fuel hose, wiring, injector controller and fuel pressure regulator
• An aftermarket charge pipe is required for the throttle body connection
• Leave ample space around the fuel rail port(s) for regulators, gauges and pulse dampers
• Radium's install instructions cover LHD vehicles; RHD is described as similar but not covered
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• 2020+ Toyota GR Supra (A90/A91) – B58B30O1 (B58B30B), B58B30M1 (B58B30C) and B58TU
• 2018+ BMW Z4 (G29) – B58B30O1 (B58B30B), B58B30M1 (B58B30C) and B58TU
• Not compatible with 1st generation B58B30M0 (B58B30A)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
