Radium Large Fuel Vent Charcoal Canister Universal

SKU: SKU: 20-1828-00

$454.99

4 In Stock

税込。

数量

詳細を表示する

More info

Radium Large Fuel Vent Charcoal Canister Universal

Application: Universal – EFI and carburetted fuel tank vent systems, incl. Radium fuel cell surge tanks
Part Type: Fuel vent charcoal canister (standard size)
Part Number: 20-1828-00, 20-1828-08, 20-1828-12

Radium fuel vent charcoal canisters filter fuel vapour odours from the fuel tank vent system on both EFI and carburetted vehicles. In Radium testing, a combustible gas detector read above 10,000 ppm at the vent without a canister and under 50 ppm with one fitted, while a dry break dump can flow test showed a negligible pressure drop.

The standard-size 20-1828 canister holds about five times more activated carbon than the compact version, so it needs less frequent servicing. Vibratory-packed activated carbon sits inside a 150 micron strainer and anodised aluminium baffle so no loose carbon can escape, and the canister can be recharged with a service kit.

Key Features

Vapour Filtration: Reduces outlet fuel vapour to under 50 ppm in Radium testing
High Flow: 16AN ORB (1-5/16"-12) female ports, usable interchangeably as inlet or outlet
Drain Ports: Two 4AN ORB (7/16"-20) drain ports with preinstalled plugs – one can take a petcock drain kit
Contained Media: Activated carbon inside a 150 micron strainer and anodised aluminium baffle
Construction: CNC machined 6061 aluminium, type-II anodised
Serviceable: Recharge with fresh carbon and a new strainer using service kit 20-1828-SK

Available Configurations

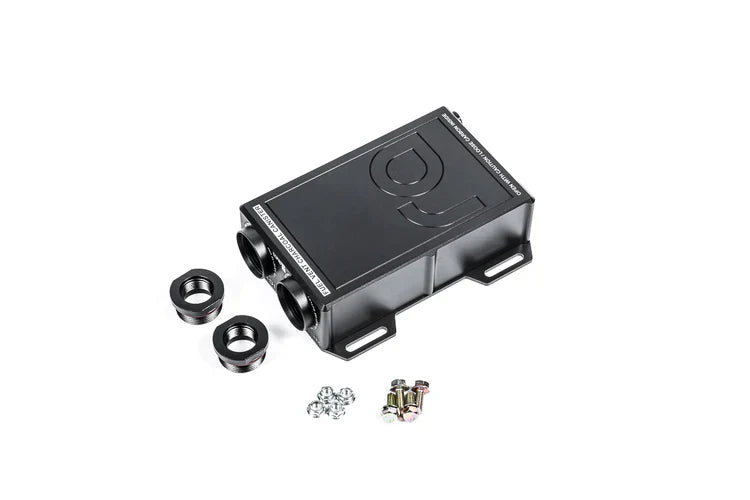

20-1828-00: Universal – includes two 16AN ORB male to 10AN ORB female couplers

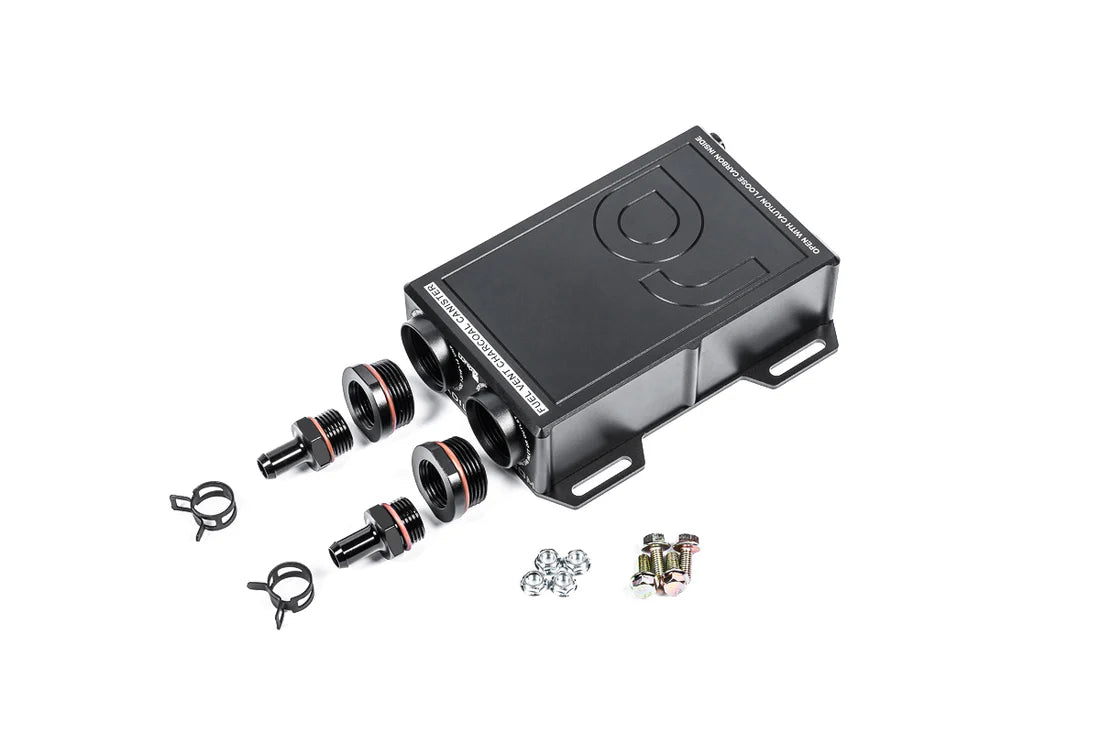

20-1828-08: Standard flow – for 1/2" fuel vent hose; pairs with vent kit 20-0484-08

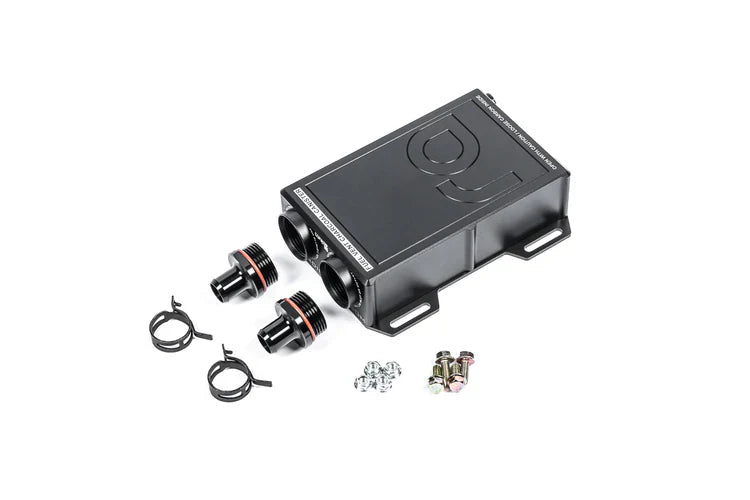

20-1828-12: High flow – for 3/4" fuel vent hose; pairs with vent kit 20-0484-12, and the 3/4" barb accepts an air filter directly

Optional Parts

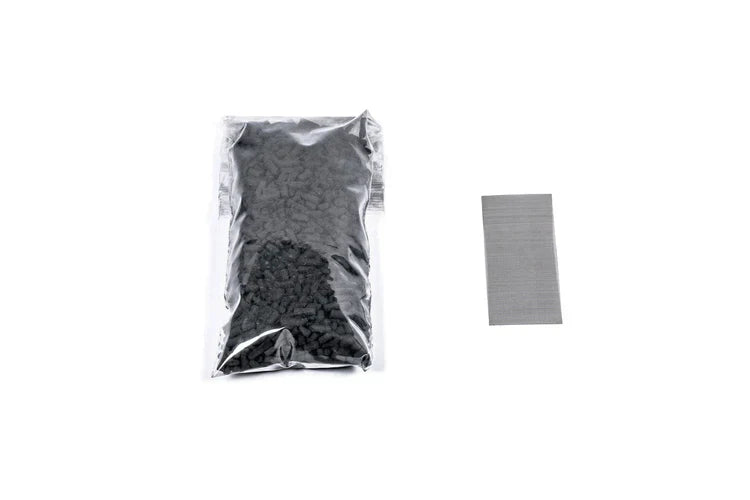

Radium Fuel Vent Charcoal Canister Service Kit Standard/Compact/Cannister (20-1828-SK) – recharges the canister
Radium Fuel Cell Vent Kit - 8AN (20-0484-08) – vent kit for the -08 canister
Radium Fuel Cell Vent Kit - 12AN (20-0484-12) – vent kit for the -12 canister
Radium Air Filter 0.75" ID (18-0042) – 3/4" air filter for the vent outlet
Radium Catch Can Petcock Drain Kit (20-0024) – fits one of the 4AN ORB drain ports

Important Notes

A section of vent hose upstream of the air filter must sit higher than the fuel filler

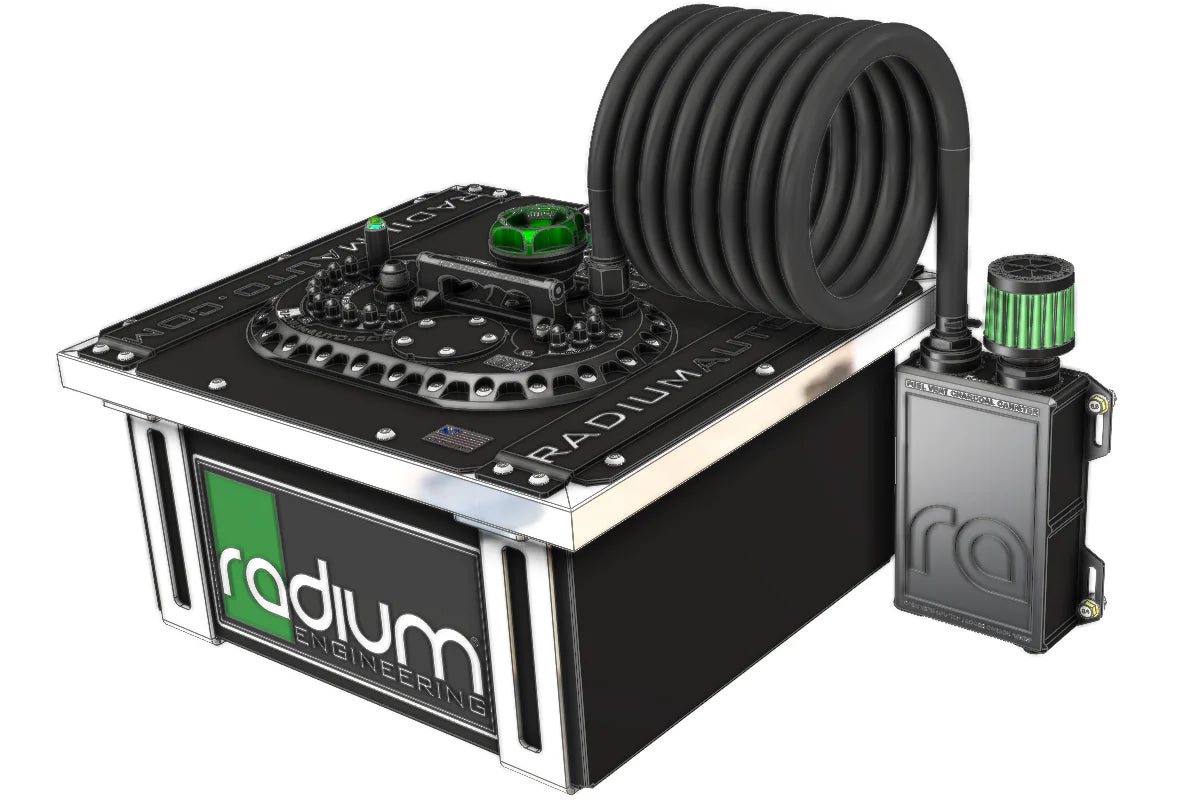

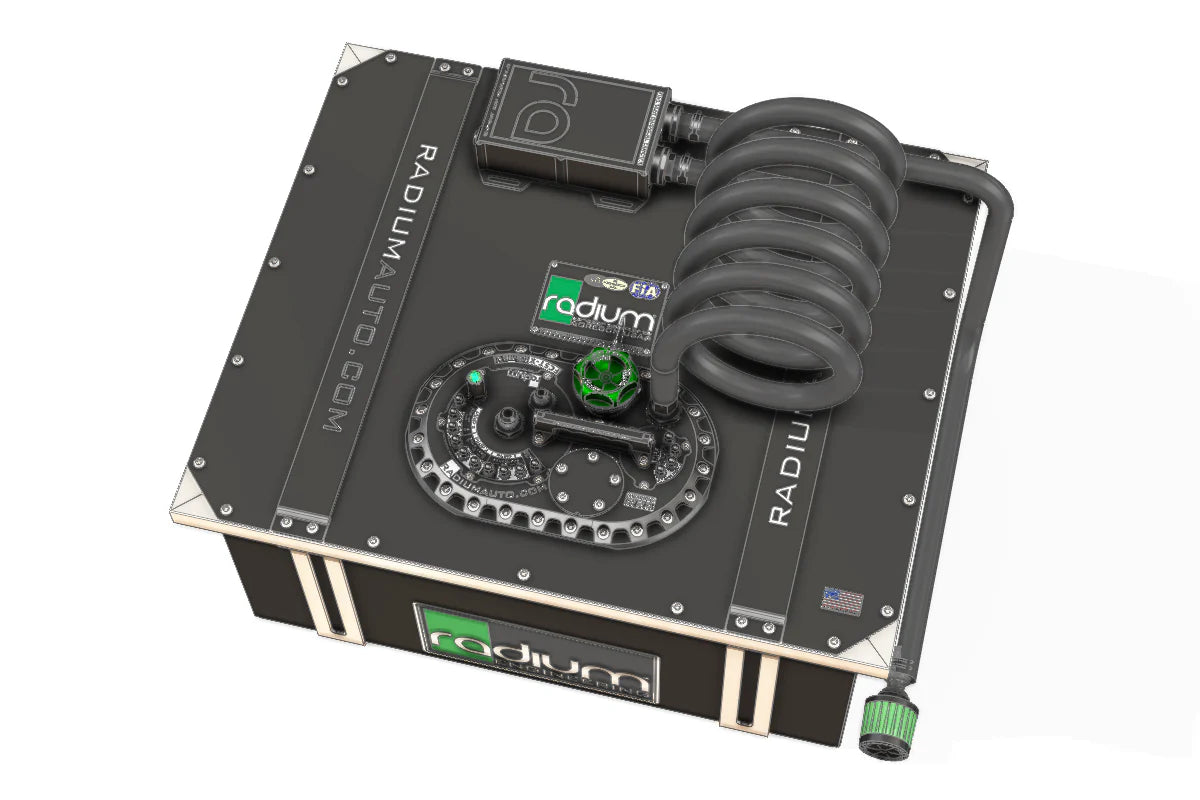

Vent line loops are recommended to keep debris out of the fuel system
Mount the air filter at the rear of the vehicle, away from the exhaust
Most classic car tanks use a 1/4" (6mm), 5/16" (8mm) or 3/8" (10mm) vent line
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.

Specs & Features

The fuel vent charcoal canisters are CNC machined from 6061 aluminum. They are type-II anodized for corrosion resistance.

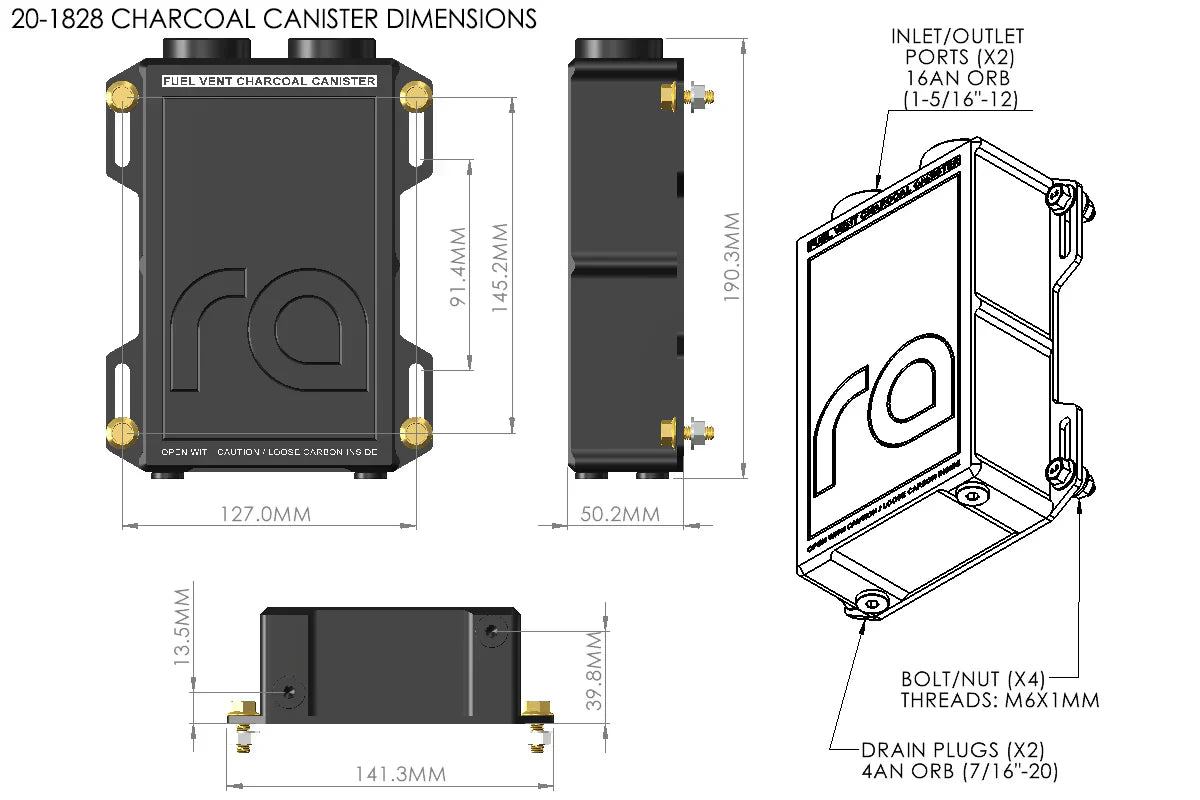

The volume of an empty charcoal canister is 44.1 cubic inches.

The preassembled vibratory-packed activated carbon resides inside a 150 micron strainer and an anodized aluminum baffle. This prevents any loose carbon media debris from escaping the canister.

For high flow fuel venting, 16AN ORB (1-5/16"-12) female ports are featured on all fuel vent charcoal canister kits. These ports can be used interchangeably as the inlet or outlet.

To drain any unwanted fuel from the canister, two 4AN ORB (7/16"-20) female ports are machined at the bottom with preinstalled plugs. Depending on mounting orientation, one of these ports can be used if a Petcock Drain Kit is installed.
