Radium Fuel Surge Tank Install Kit - Ford Focus ST LW/LZ 13-18/Ford Focus RS LZ 16-17

Radium Fuel Surge Tank Install Kit - Ford Focus ST LW/LZ 13-18/Ford Focus RS LZ 16-17

Application: Ford Focus ST and Focus RS MK3 EcoBoost
Part Type: Fuel surge tank install kit (FST-R and pumps not included)
Part Number: 20-0365

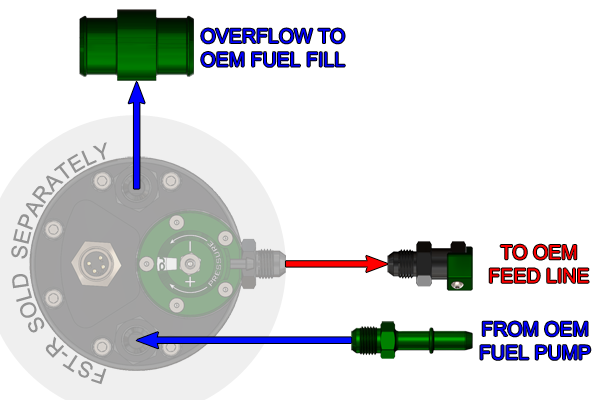

The Radium Fuel Surge Tank Install Kit fits a Radium FST-R (Fuel Surge Tank, Regulated) to the MK3 Ford Focus ST and RS to eliminate fuel starvation in all driving conditions. The surge tank pump replaces and mimics the OEM fuel supply line, feeding the factory high-pressure fuel pump, while the OEM low-pressure pump is redirected to keep the surge tank full. Overflow fuel returns to the OEM filler hose through a billet adapter.

The FST-R's integrated regulator can be vacuum referenced for 1:1 fuel pressure or run static. The tank mounts under the car in a collision-safe area in front of the rear bumper support, with heat tape to shield it from exhaust heat, and the wiring uses solderless splices with a fuse and relay – no soldering required, and it can be wired in under 30 minutes.

Key Features

• Starvation Protection: OEM low-pressure pump keeps the surge tank full
• OEM-Style Feed: Surge tank pump feeds the factory high-pressure fuel pump
• Overflow Return: Billet adapter returns overflow to the OEM filler hose
• Flexible Regulation: Vacuum referenced for 1:1 pressure, or static

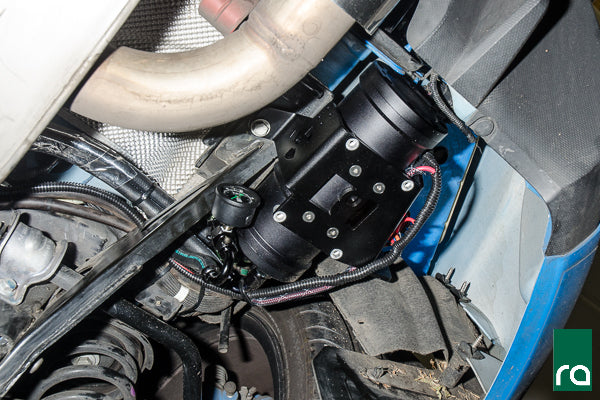

• Collision-Safe Mounting: Under the vehicle, in front of the rear bumper support
• Heat Shielding: Heat tape protects the unit from exhaust heat

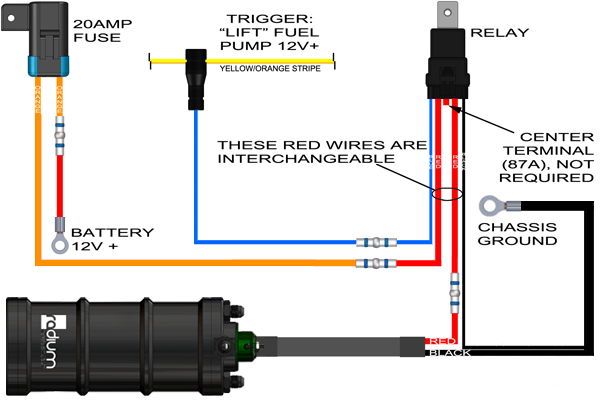

• Solderless Wiring: Raychem solderless butt splices, weatherproof fuse and relay

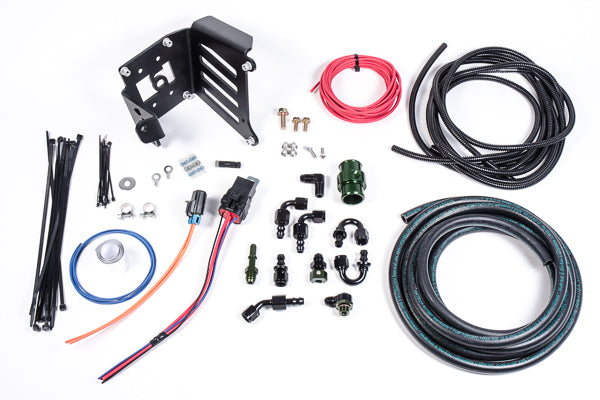

What's Included

• Aluminium MK3 Focus FST mounting bracket
• Aluminium Push Lok 6AN hose ends
• AN and OEM-style adapter fittings
• Vapor Shield 3/8" (6AN) EFI hose
• Wiring components with relay, fuse, flying leads and Raychem solderless butt splices
• Heat tape
• Stainless steel hardware

Optional Parts

• Radium Fuel Pressure Gauge w/ 6AN Inline Adapter (20-0152) – Fits the FSTR-RA outlet port for setting surge tank fuel pressure

Important Notes

• The Radium FST-R fuel surge tank is not included and must be purchased separately
• The surge tank fuel pump is not included
• A means of adjusting FST-R fuel pressure is required – OBD-II tuning software (e.g. COBB Accessport) or Radium 20-0152 on the FSTR-RA outlet port
• A main tank drop-in pump upgrade may be required – as an estimate, the main tank pump should flow roughly 40-50% of the surge tank pump
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Focus ST MK3 (2013+)
• Ford Focus RS MK3 (2015+)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
