Radium Fuel Rail, VW 2.8L 24V VR6

Radium Fuel Rail, VW 2.8L 24V VR6

Application: VW 2.8L 24V VR6
Part Type: Billet aluminium fuel rail
Part Number: 20-0878

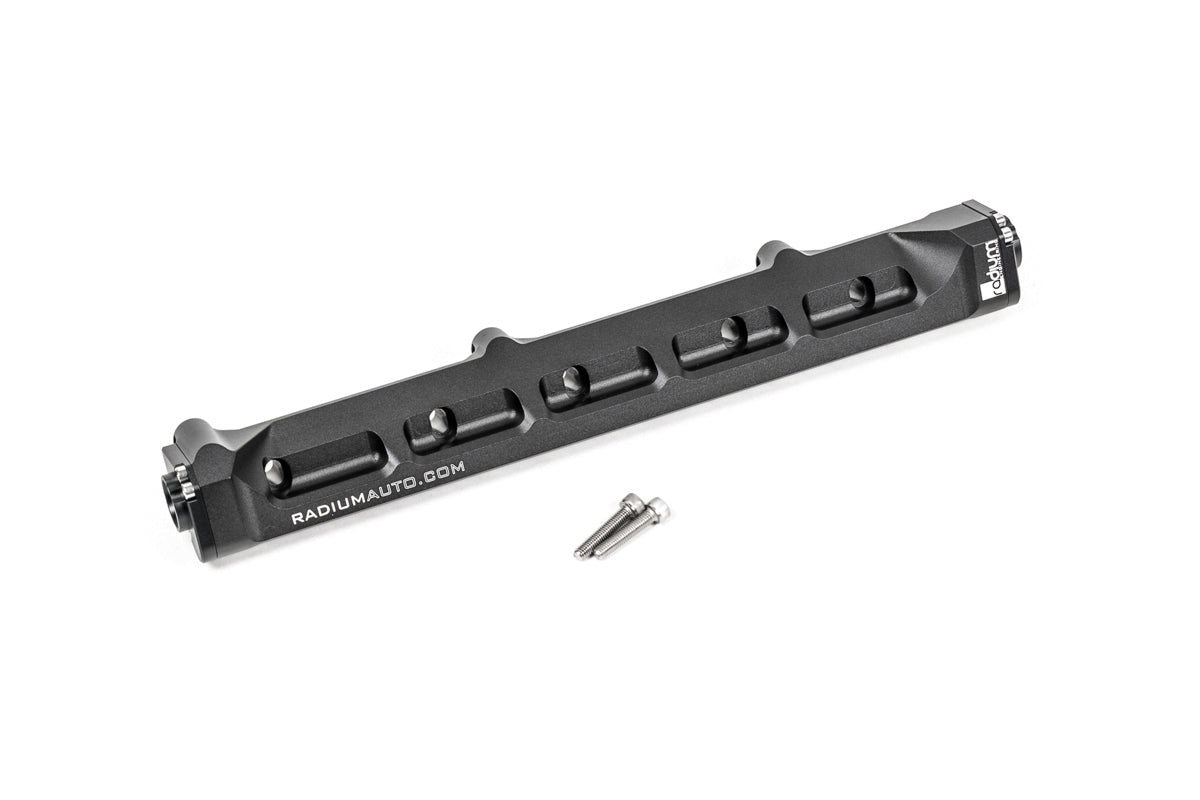

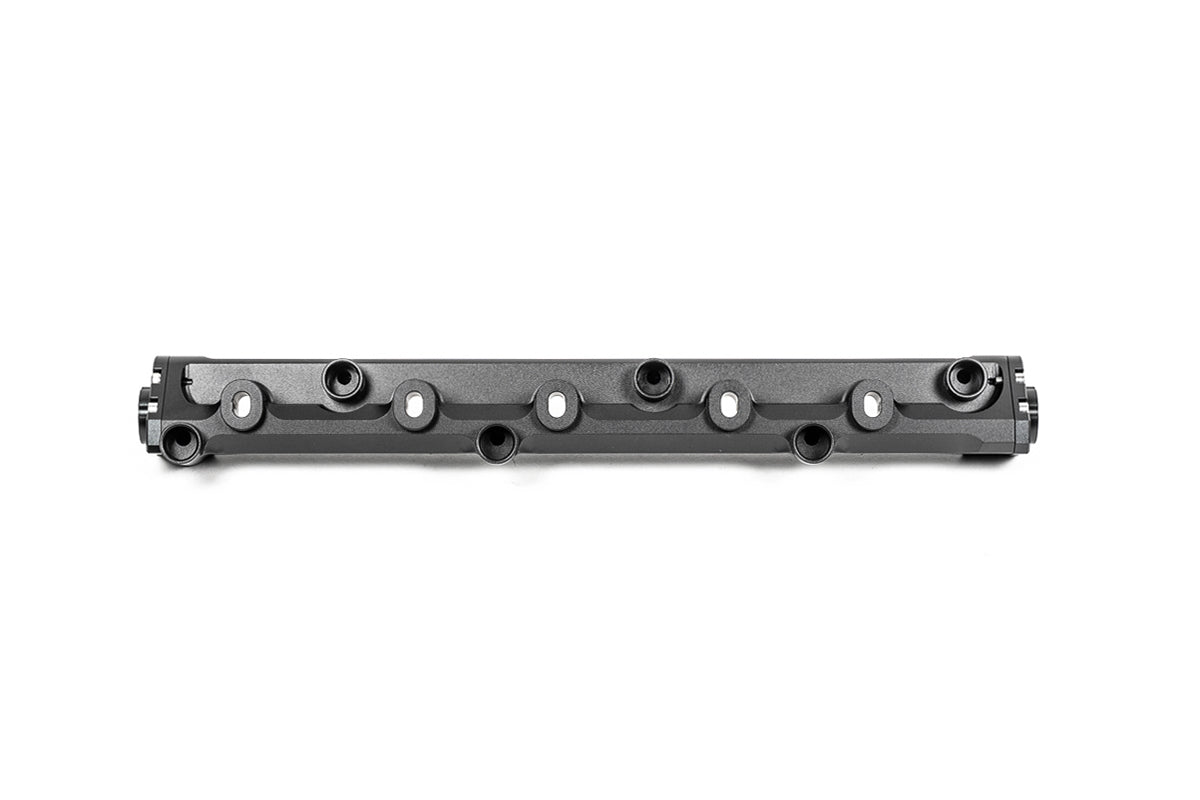

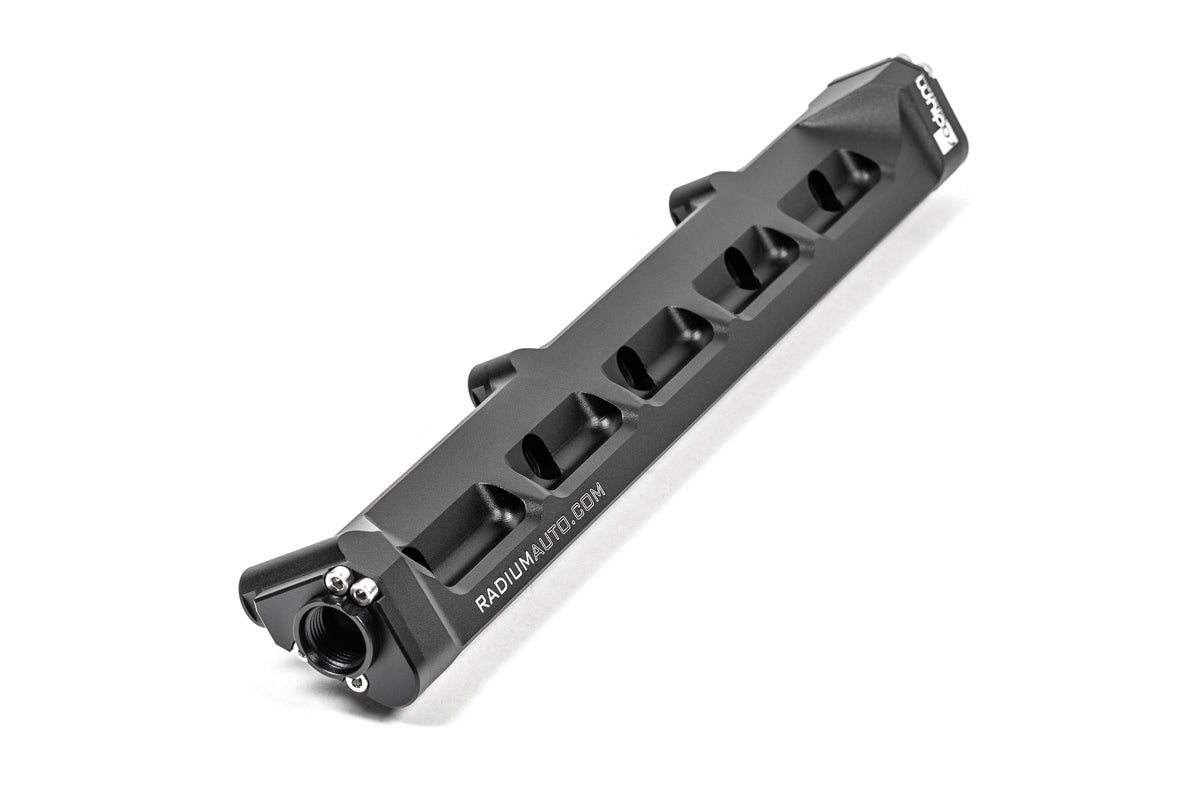

The Radium 20-0878 billet aluminium fuel rail suits the VW 2.8L 24V VR6. It is machined with dual 3/8in (6AN) internal bores that connect internally to all six injectors – combined, 12% larger than a single 1/2in (8AN) bore – supporting all necessary engine power requirements, and it is compatible with all alternative fuels.

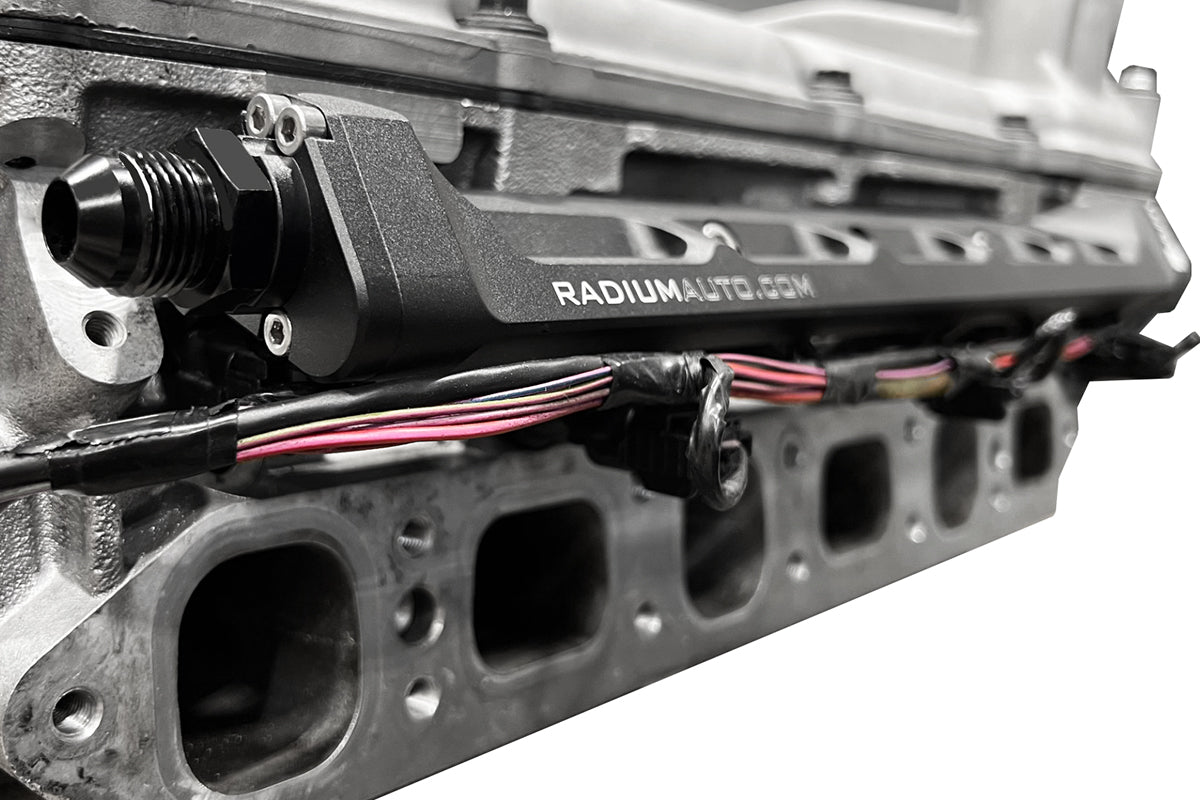

Machined low profile, the rail is compatible with the OEM intake manifold. Single 8AN ORB ports at both ends allow it to be plumbed to suit, and Radium's matching 20-0878-PK plumbing kit includes everything needed to connect it to the OEM fuel system.

Key Features

• Dual 6AN Bores: Feed all six injectors, 12% more flow area than a single 8AN bore
• Low Profile: Compatible with the OEM intake manifold
• 8AN ORB Ports: Single 8AN ORB port at each end
• Alternative Fuels: Compatible with all alternative fuels
• Anodised Finish: Lightweight aluminium, anodised; no special tools required

What's Included

• Anodised billet aluminium fuel rail
• Stainless steel mounting hardware

Optional Parts

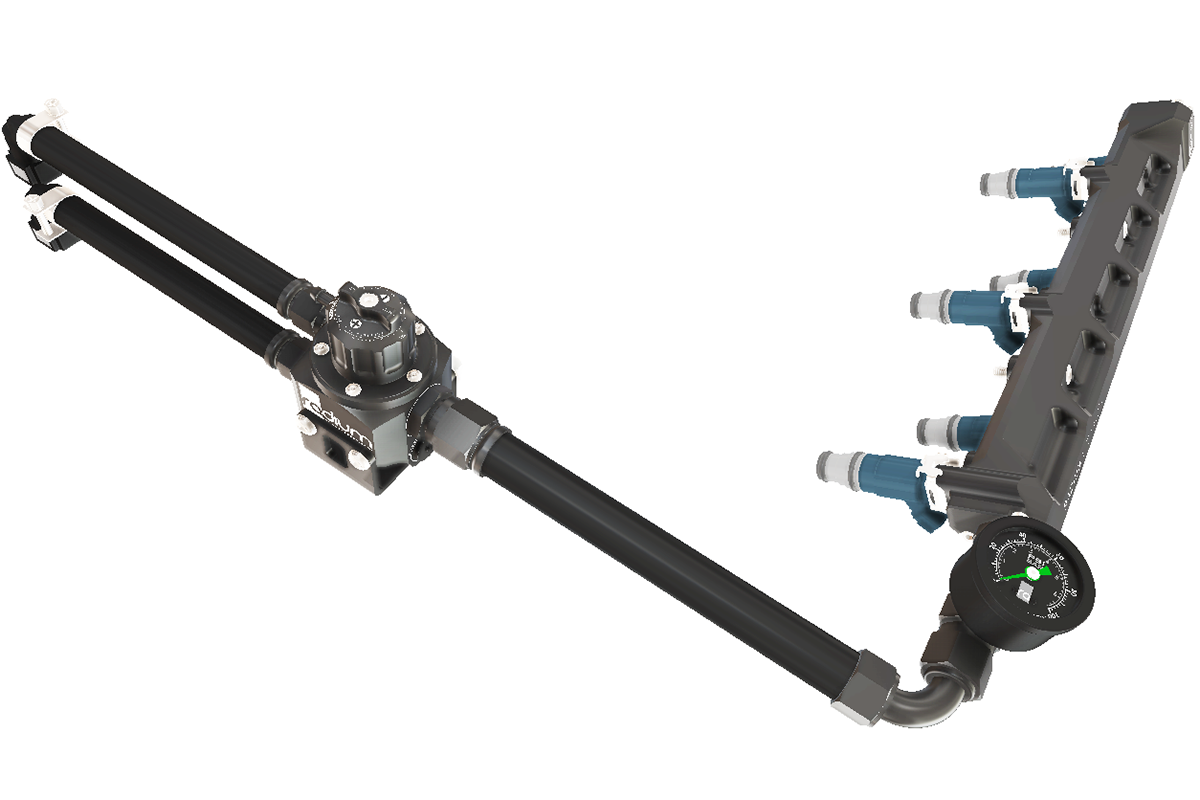

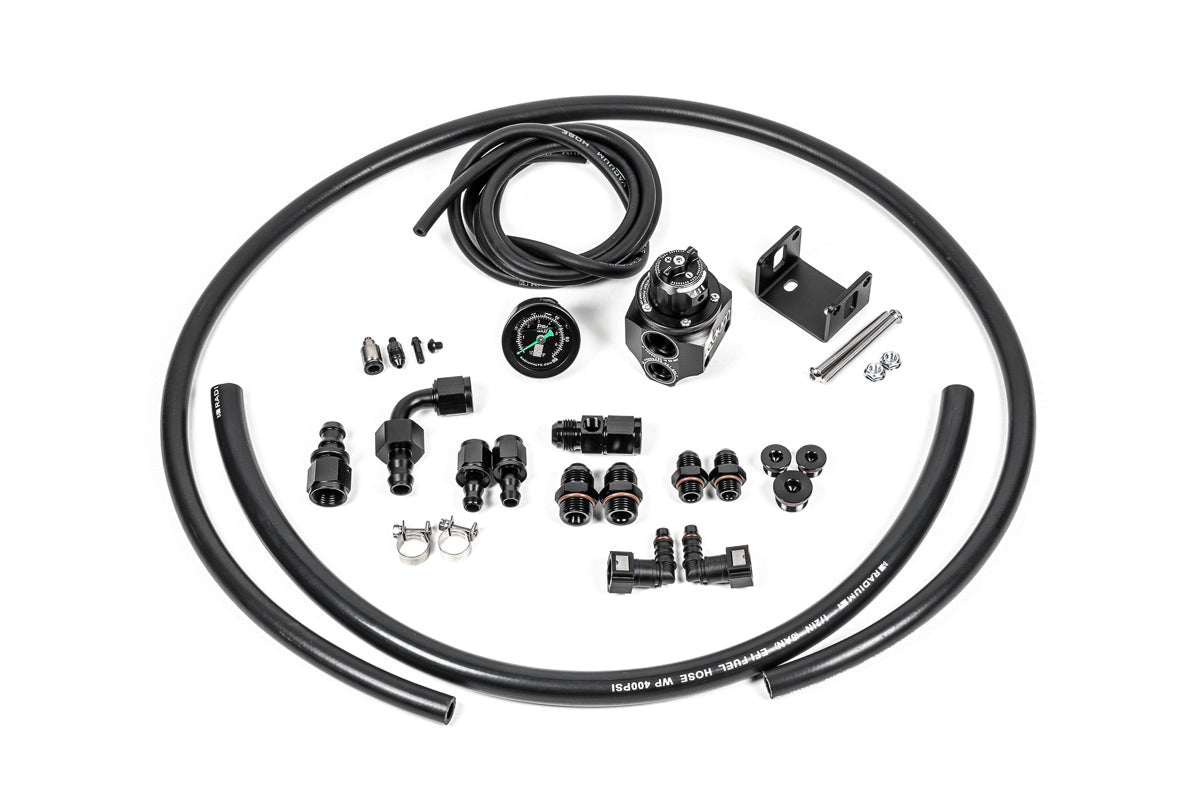

• Radium Fuel Rail Plumbing Kit, VW/Audi 2.8L 24V VR6 (20-0878-PK) – everything needed to connect this rail to the OEM fuel system

Important Notes

• This is an upgrade rail: OEM or OEM-equivalent injectors must be used (same height and the same upper and lower O-ring diameters and styles). Radium does not make injector recommendations – ask your tuner about brand and flow rate, and the injector manufacturer for a dimensionally correct part number
• Fuel injectors and fittings are not included – see the 20-0878-PK plumbing kit
• Leave enough space around the ports for accessories such as fuel pressure regulators, gauges and fuel pulse dampers – contact Coore for Radium's dimensional drawings to check clearance
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• VW Golf GTI 2002–2005 (2.8L 24V VR6)
• VW Jetta GLX 2001–2004 (2.8L 24V VR6)
• VW Jetta GLI 2001–2004 (2.8L 24V VR6)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
