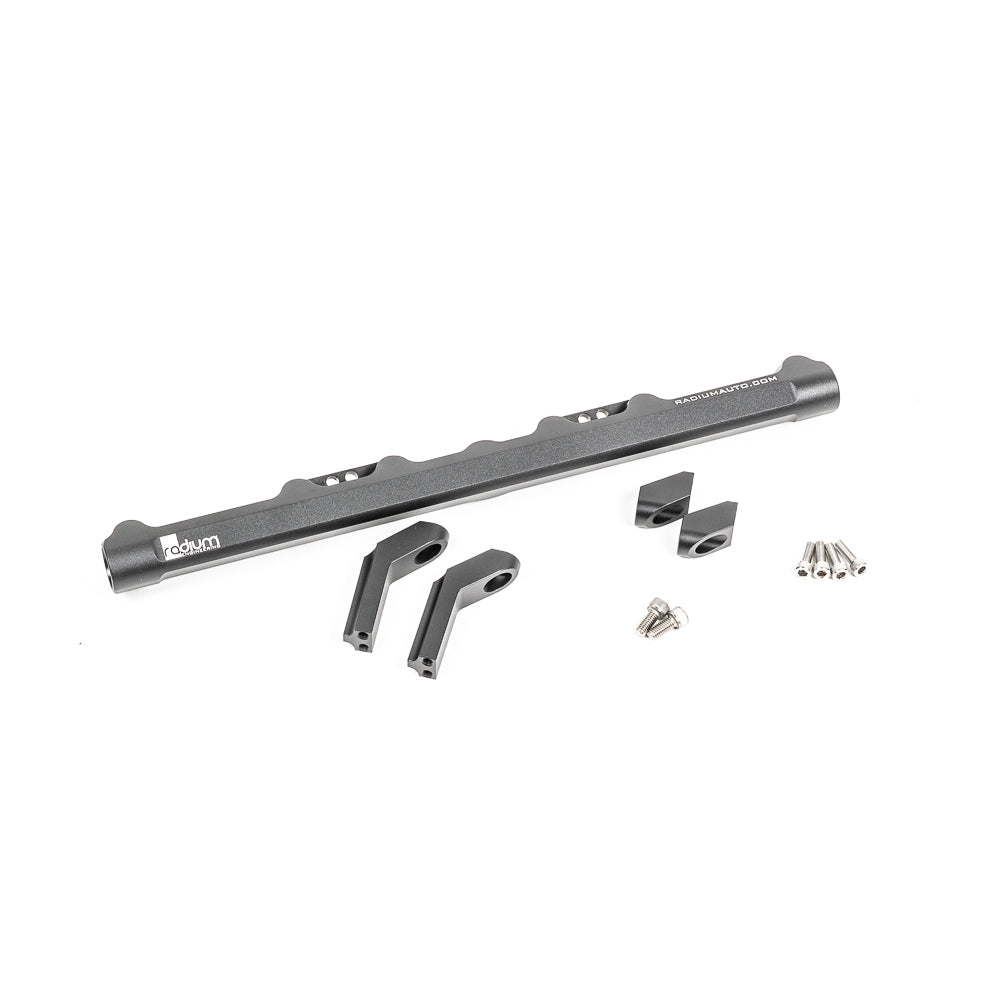

Radium Fuel Rail, VW 2.8L 12V VR6

Radium Fuel Rail, VW 2.8L 12V VR6

Application: VW 2.8L 12V VR6
Part Type: Billet aluminium fuel rail
Part Number: 20-0877

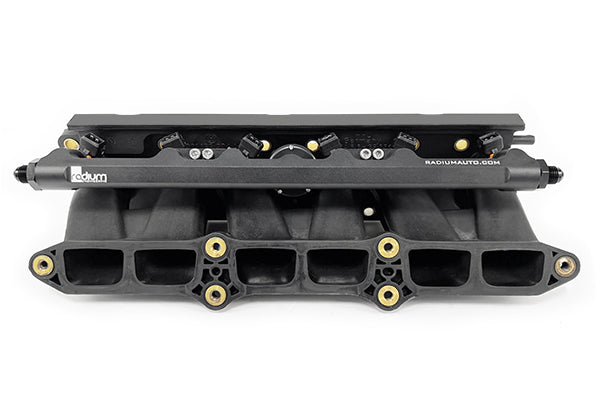

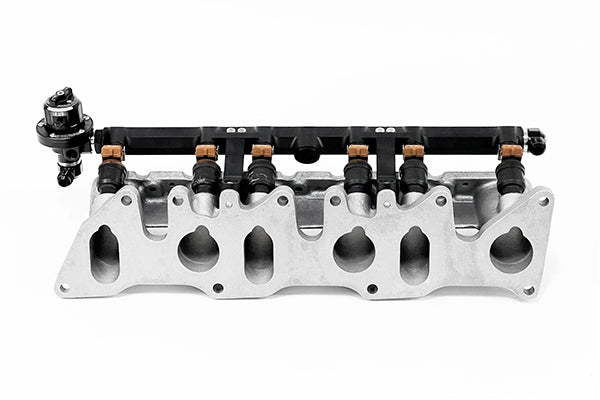

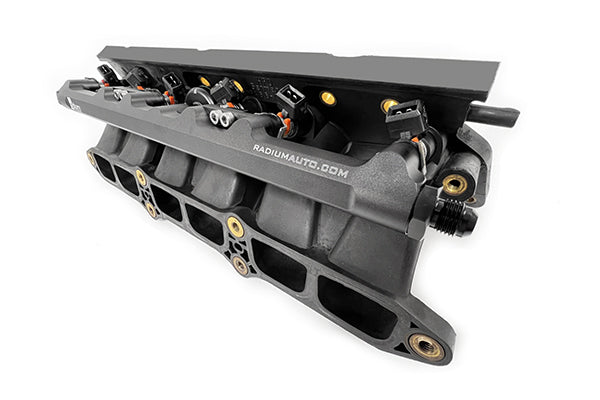

The Radium 20-0877 fuel rail suits the VW 2.8L 12V VR6 and ships with two sets of mounts to suit either lower intake manifold: early engines with the aluminium lower intake manifold use the long mounts, and late engines with the polymer lower intake manifold use the short mounts. On late manifolds a Radium fuel pulse damper can be fitted in the centre port.

The rail has a 0.7in internal bore and ports tapped for 8AN ORB fittings. It is compatible with the OEM late model upper intake manifold when using OEM-equivalent injectors, and the OEM injector retaining clips can be reused.

Key Features

• Two Mount Sets: Suits early aluminium and late polymer lower intake manifolds
• Large Bore: 0.7in (17.8mm) internal bore
• 8AN ORB Ports: Plumb to suit with 8AN ORB fittings
• Centre Port: Accepts a Radium fuel pulse damper on late manifolds

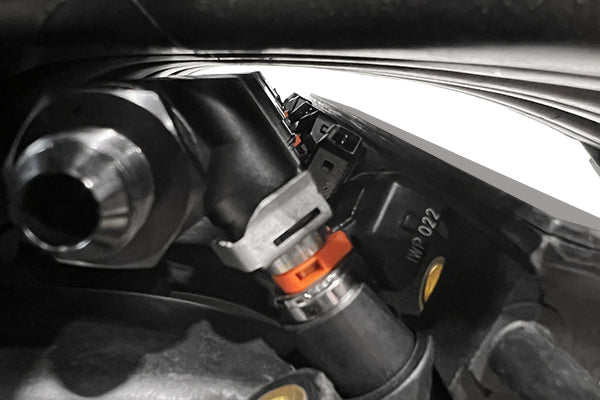

• Reuses OEM Clips: OEM injector retaining clips can be reused

What's Included

• 2.8L 12V VR6 fuel rail
• Early model fuel rail mount set (long)
• Late model fuel rail mount set (short)
• Stainless steel mounting hardware

Optional Parts

• Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) – direct-mount 8AN ORB fuel pulse damper for the rail ports

Important Notes

• Not compatible with the early model aluminium upper intake manifold
• This is an upgrade rail: OEM or OEM-equivalent injectors must be used (same height and the same upper and lower O-ring diameters and styles). Radium does not make injector recommendations – ask your tuner about brand and flow rate, and the injector manufacturer for a dimensionally correct part number
• Fittings are not included – select 8AN ORB fittings to suit your application
• Leave enough space around the ports for accessories such as fuel pressure regulators, gauges and fuel pulse dampers – contact Coore for Radium's dimensional drawings to check clearance
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• VW Corrado 1991–1995 (2.8L 12V VR6)
• VW Passat 1991–2000 (2.8L 12V VR6)
• VW Golf GTI 1991–2003 (2.8L 12V VR6)
• VW Jetta 1992–2002 (2.8L 12V VR6)
• Early aluminium and late polymer lower intake manifolds – not the early aluminium upper intake manifold

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
