Radium Fuel Rail - Toyota 3S-GE / 3S-GTE Gen 3-5

Radium Fuel Rail - Toyota 3S-GE / 3S-GTE Gen 3-5

Application: Toyota 3S-GE Gen 3–5 (incl. BEAMS) and 3S-GTE Gen 3–5
Part Type: Billet aluminium fuel rail
Part Number: 20-0949

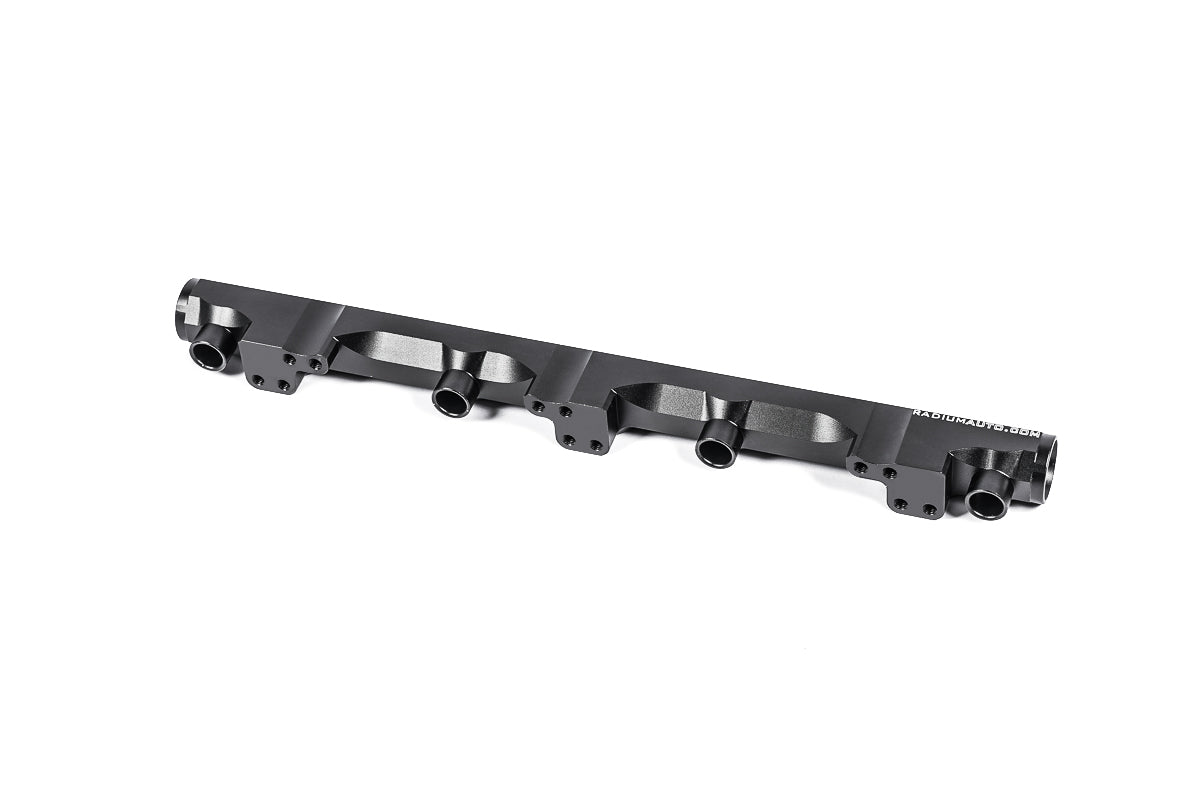

The Radium 20-0949 fuel rail suits the Toyota 3S-GE and 3S-GTE Gen 3–5, including BEAMS engines. It is machined with a large 0.7in internal bore that supports the power requirements of a built engine, and both fuel rail ports are tapped for 8AN ORB so the rail can be plumbed into any fuel system with the appropriate fittings.

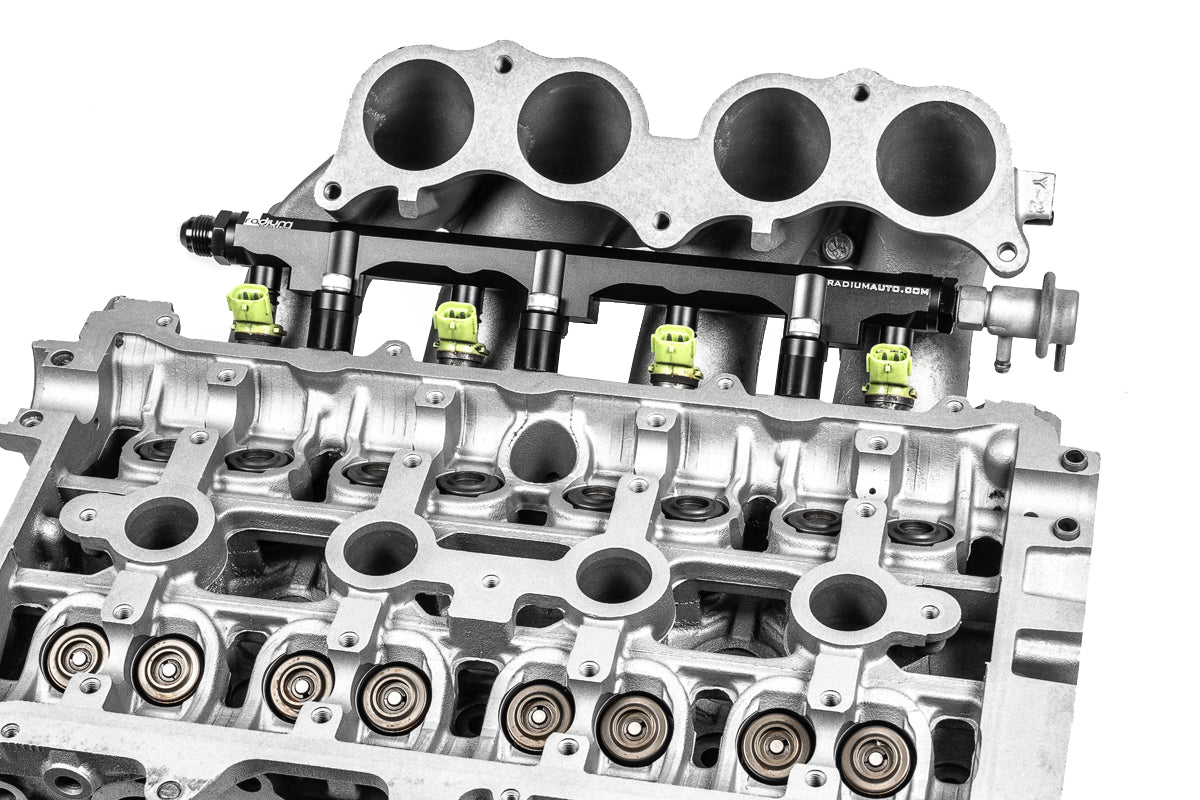

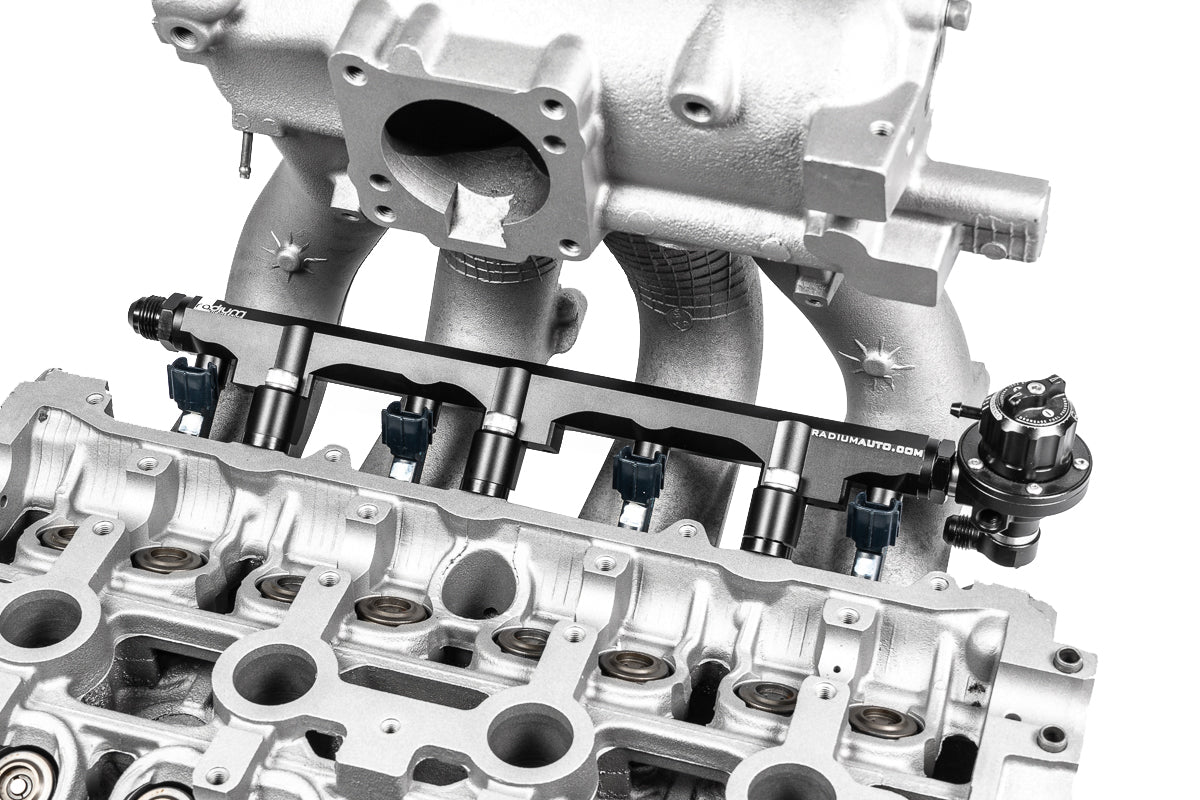

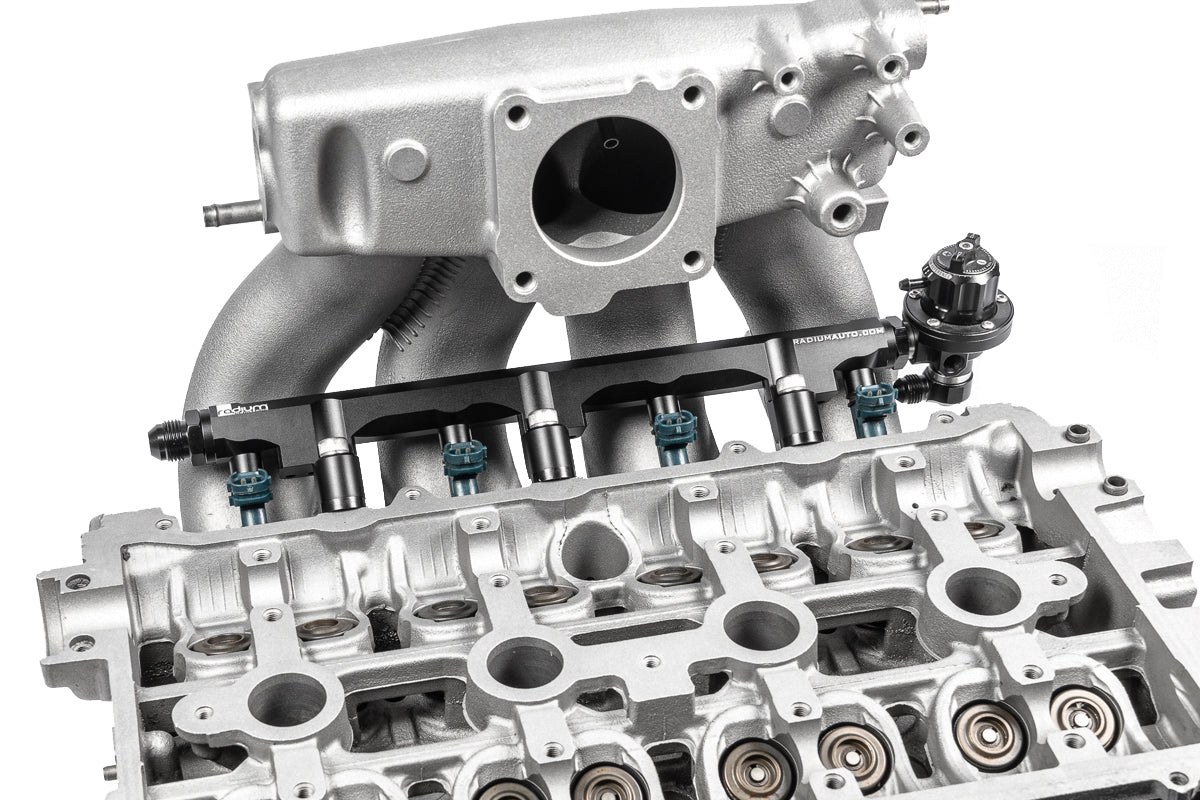

Three sets of billet mounting feet are supplied to suit all Gen 3–5 engines, the OEM thermal insulating spacers are reused, and no special tools are needed. On the 3S-GE Gen 3–5 and 3S-GTE Gen 4–5 the rail takes OEM top feed injectors or OEM equivalents with no modification; the side feed 3S-GTE Gen 3 needs aftermarket 48mm injectors (see Important Notes).

Key Features

• Large Bore: 0.7in (17.8mm) internal bore
• 8AN ORB Ports: Two ports tapped for 8AN ORB fittings
• Three Mounting Feet Sets: Billet mounting feet to suit all Gen 3–5 engines
• Gen 3 3S-GTE Adapters: Top feed injector adapters for the 3S-GTE Gen 3
• Reuses OEM Spacers: Uses the OEM thermal insulating spacers
• Anodised Finish: Lightweight aluminium, anodised for wear and corrosion resistance

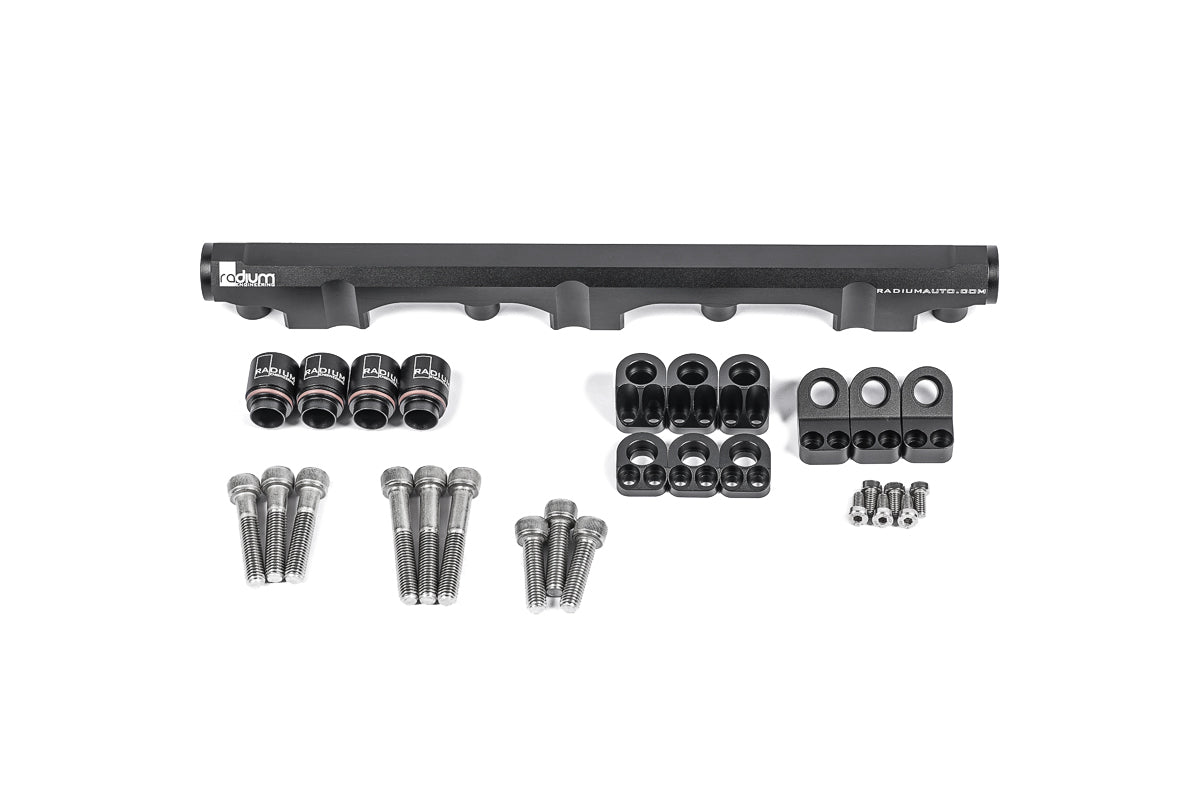

What's Included

• Anodised billet aluminium fuel rail
• Anodised billet aluminium mounting feet
• Anodised aluminium injector seats
• Stainless steel mounting hardware

Optional Parts

• Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) – direct-mount 8AN ORB fuel pulse damper for the rail ports

Important Notes

• 3S-GE Gen 3–5 and 3S-GTE Gen 4–5: use OEM top feed injectors or OEM equivalents (same height and O-ring dimensions)
• 3S-GTE Gen 3: the OEM side feed injectors do not fit – use aftermarket 48mm injectors with 11mm upper and 14mm lower O-rings. Radium has verified Injector Dynamics ID1050-XDS, ID1300-XDS, ID1750-XDS and ID2600-XDS (xxxx.46.11.14)
• Fuel injectors and fittings are not included
• Leave enough space around the ports for accessories such as fuel pressure regulators, gauges and fuel pulse dampers – contact Coore for Radium's dimensional drawings to check clearance
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota Celica 1993–1999
• Toyota Celica GT-Four 1994–1999
• Toyota MR2 1994–1999
• Toyota RAV4 1994–2000
• Toyota Caldina / Caldina GT / Caldina GT-T 1997–2002
• Toyota Caldina GT-Four 2002–2007
• Toyota Altezza 1998–2005

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
