Radium Engineering Fuel Rail Plumbing Kit - Nissan R35 GT-R

Radium Engineering Fuel Rail Plumbing Kit - Nissan R35 GT-R

Application: Nissan R35 GT-R (VR38DETT) – for use with Radium 20-0556-02 fuel rails
Part Type: Fuel rail plumbing kit
Part Number: 20-0956-PK

The Radium 20-0956-PK plumbing kit is designed to work with Radium's 20-0556-02 fuel rails for the Nissan R35 GT-R. Used together, the rail upgrade becomes a bolt-on, plug-and-play job.

Low-profile 90° SAE adapters connect the OEM hard lines to a multi-port fuel pressure regulator on a stainless steel mount. PTFE lines then run from the regulator to the rear fuel rail ports. Two FPD-R direct-mount pulse dampers and a 0-100 psi fuel pressure gauge are included. The kit suits all petrol types and alcohol blends, including methanol, ethanol and E85.

Key Features

• Plug-and-Play: Bolt-on plumbing for the Radium 20-0556-02 R35 GT-R fuel rails
• OEM Line Connection: Low-profile 90° 5/16in and 3/8in SAE to 6AN elbows connect the OEM hard lines

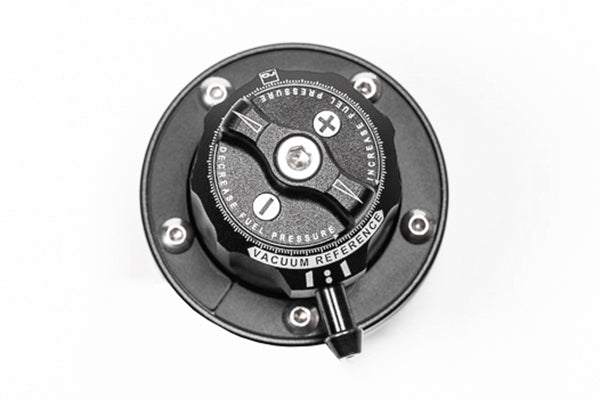

• Fuel Pressure Regulator: Multi-port FPR with a stainless steel mount
• Pulse Dampers: Two FPD-R direct-mount fuel pulse dampers
• Pressure Gauge: 0-100 psi fuel pressure gauge with 8AN ORB to 1/8in NPT adapter
• PTFE Hoses: Four PTFE fuel hoses run from the regulator to the rear rail ports
• Fuel Compatibility: All petrol types plus methanol, ethanol and E85

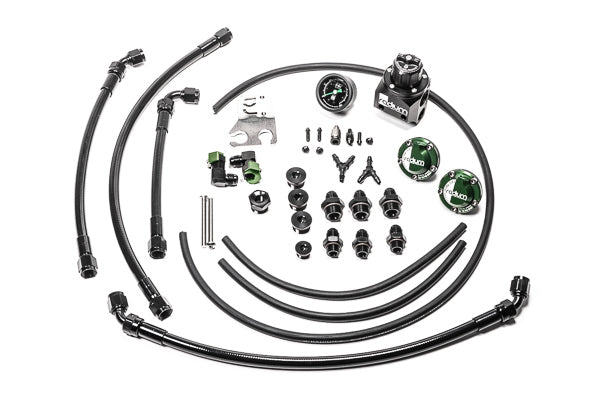

What's Included

• Multi-port fuel pressure regulator
• Stainless steel FPR mount
• Two FPD-R direct-mount fuel pulse dampers
• 0-100 psi fuel pressure gauge
• Four PTFE fuel hoses
• 5/32in vacuum hose
• 8AN ORB to 1/8in NPT fitting (x1)
• 6AN ORB plug (x1)
• 8AN ORB plugs (x3)
• 8AN ORB to 6AN male fittings (x3)
• 6AN ORB to 6AN male fittings (x3)
• 5/16in SAE to 6AN elbow (x1)
• 3/8in SAE to 6AN elbow (x1)

Optional Parts

• Radium Fuel Rail Kit - Nissan GT-R R35 (20-0556-02) – the Radium R35 GT-R fuel rails this kit is designed for (required)
• Radium FPD Adapter 8AN ORB / 27mm Bore - Nissan 350Z 07-09/370Z/Skyline V36/Infiniti G35/G36 V36 (VQ35HR/VQ37VHR) (20-0459) – fits the spare top rail port so the OEM VR38DETT pulse damper can be reused

Important Notes

• Fuel rails are not included – this kit is designed for the Radium 20-0556-02 rails
• The 20-0556-02 rails are upgrade rails – OEM or OEM-equivalent injectors must be used
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan R35 GT-R (VR38DETT) with Radium 20-0556-02 fuel rails

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
