Radium Fuel Rail Plumbing Kit, Ford Coyote / Voodoo

Radium Fuel Rail Plumbing Kit, Ford Coyote / Voodoo

Application: Ford 5.0L Coyote / 5.2L Voodoo with Radium 20-1433 fuel rails (not 2024+ S650)
Part Type: Fuel rail plumbing kit
Part Number: 20-1433-PK

The Radium 20-1433-PK Fuel Rail Plumbing Kit makes the Radium 20-1433 Coyote/Voodoo fuel rails an OEM bolt-on affair – nothing else is required to fully replace the OEM fuel rail system, and all OEM fuel hoses and sensors (where applicable) are reused. Some parts will not be used on every engine.

The 8AN crossover is high-quality PTFE hose compatible with all fuel types including E85, and plugs are included for all unused ports. A pressure sensor adapter and mechanical pump feed adapter are included specifically for the 2018+ direct injected Coyote; on 2011-2017 Coyote engines the supplied 1/8in NPT plugs are used instead.

Key Features

• Bolt-On: Nothing else required to fully replace the OEM fuel rail system
• OEM Hoses Reused: Reuses all OEM fuel hoses and sensors where applicable
• PTFE Crossover: 8AN PTFE crossover hose, compatible with all fuels including E85
• Direct Injection Adapters: Pressure sensor and mechanical pump feed adapters for 2018+ Coyote
• Port Plugs: Plugs included for all unused ports

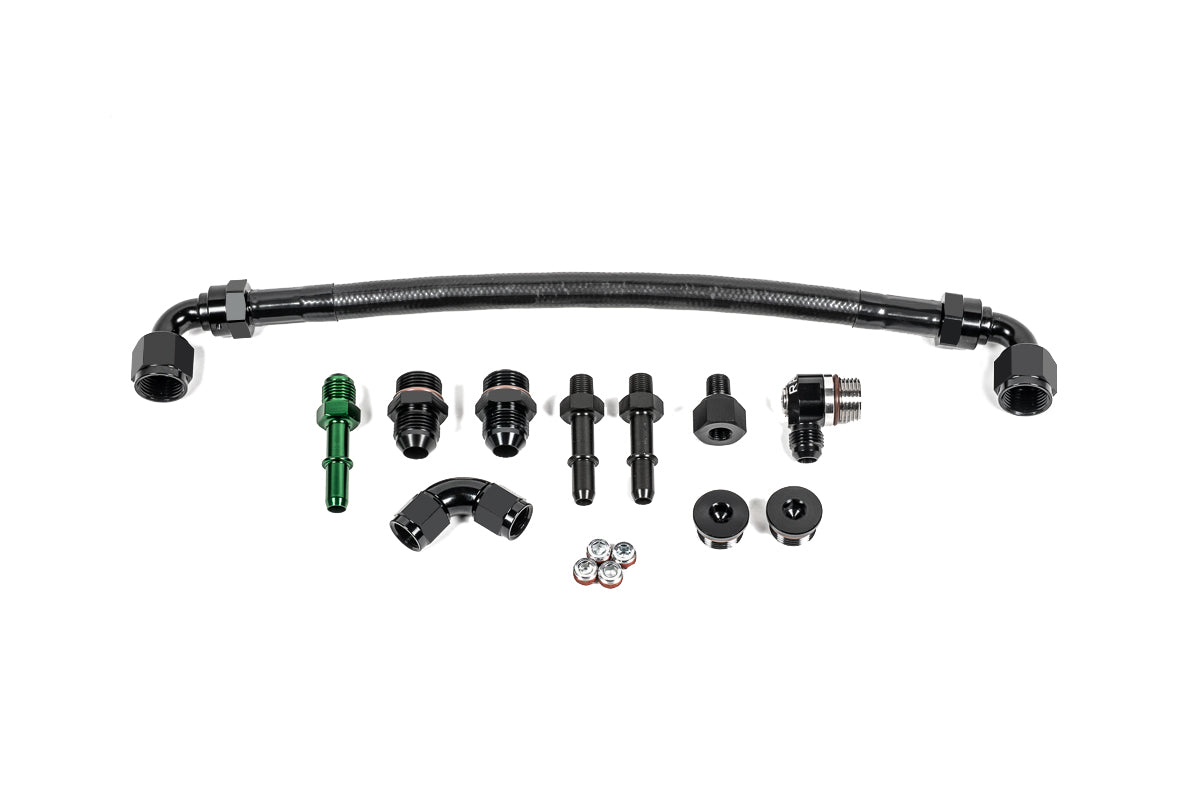

What's Included

• PTFE crossover hose
• 1/8in NPT plug (x4)
• M10 to 1/8in NPT fitting
• 3/8in SAE to 1/8in NPT fitting (x2)
• 8AN ORB plug (x2)
• 8AN ORB to 8AN male fitting (x2)
• 8AN ORB to 6AN male swivel fitting
• 3/8in SAE to 6AN male fitting
• 6AN female to female coupler fitting

Optional Parts

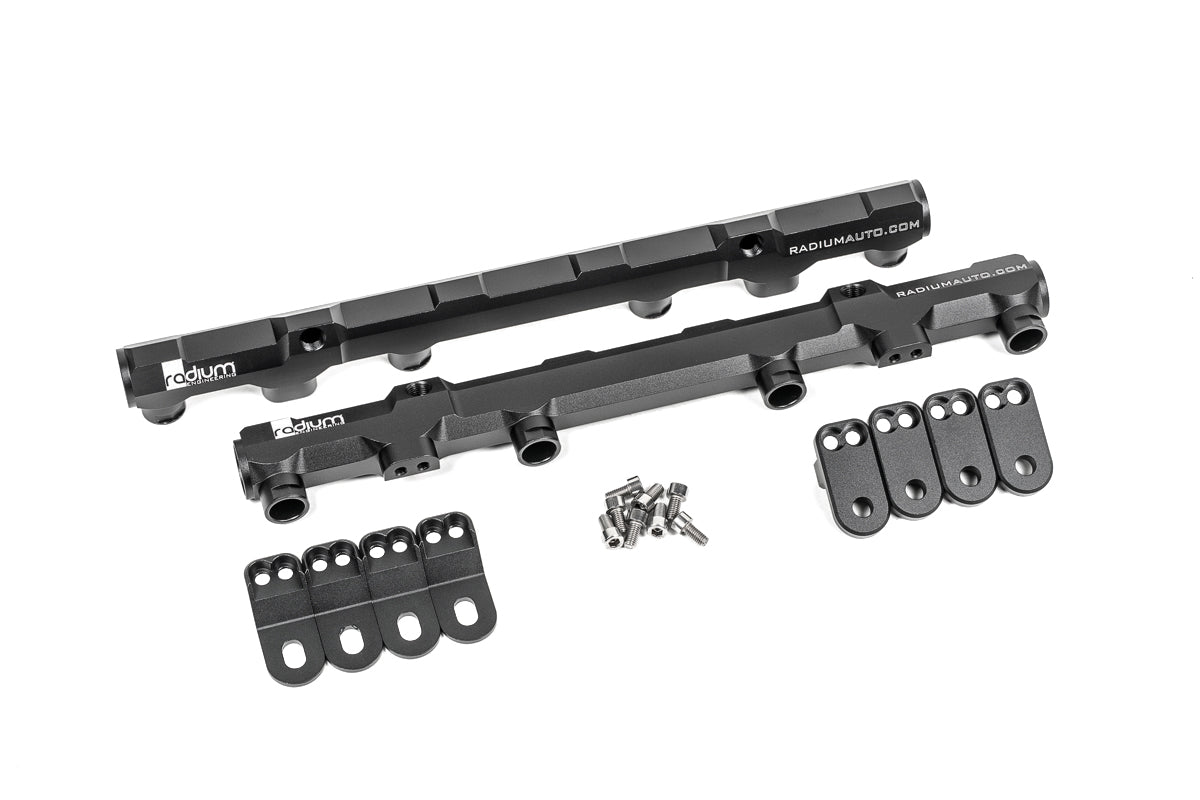

• Radium Fuel Rails, Ford Coyote / Voodoo (20-1433) – the Radium Coyote/Voodoo fuel rails this kit plumbs (required)

Important Notes

• Not compatible with the 2024+ Ford Mustang Coyote (S650)
• Requires Radium 20-1433 fuel rails (sold separately)
• Purchasing this kit removes the need for the separate 14-0358 and 14-0359 adapters
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang GT (2011-2023) with Radium 20-1433 rails
• Ford Shelby GT350 5.2L Voodoo (2015-2020) with Radium 20-1433 rails
• Ford F-150 5.0L Coyote with Radium 20-1433 rails
• Not compatible with 2024+ Mustang (S650)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
