Application: Nissan SR20VE (JDM U14 Bluebird SSS-Z, P11 Primera Te-V / G-V, 1997-2000)
Part Type: Top-feed conversion fuel rail kit
Part Number: 20-0331

The Radium SR20VE Fuel Rail converts the OEM side-feed injector setup to top feed, allowing high-flow 14mm O-ring injectors to be used. Anodised billet aluminium injector seats press into the intake manifold, and the rail is extruded and CNC-machined from solid 6063 aluminium and rated for E85.

Short 34mm injectors are specified because taller injectors can cause bonnet clearance problems. The OEM insulating spacers plus Radium's thermal insulating mounting washers fully isolate the rail from intake manifold heat.

Key Features

• Top-Feed Conversion: Replaces the OEM side-feed injector setup
• Injector Seats Included: 25mm anodised aluminium seats press into the intake manifold
• Large Internal Bore: 17.5mm (0.69") ID
• 8AN ORB Ports: For fittings, regulators, gauges and pulse dampers
• Heat Isolation: Thermal insulating mounting washers
• E85 Compatible: Extruded and CNC-machined solid 6063 aluminium

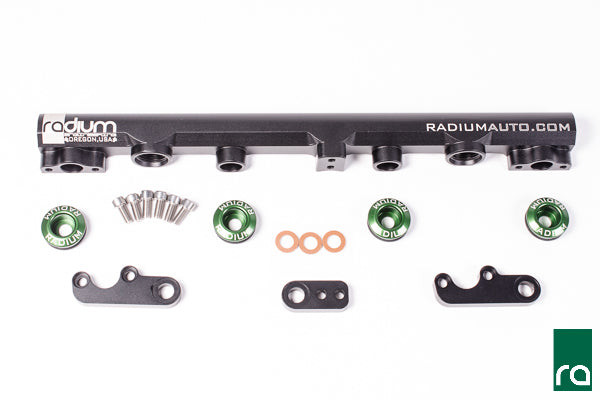

What's Included

• Black anodised aluminium fuel rail
• Black anodised aluminium mounting feet
• Stainless steel mounting feet bolts
• Thermal insulating mounting washers
• Green anodised aluminium 25mm injector seats

Optional Parts

• Injector Dynamics XDS Fuel Injectors- Universal Fitment- ID1050 / 1300 / 1750 / 2600cc Options (1050.34.14.14 / 1300.34.14.14 / 2600.34.14.14) – Compatible 34mm, 14mm O-ring injectors listed by Radium

Important Notes

• Requires 34mm tall universal injectors with 14mm upper and lower O-rings – injectors are not included
• Radium lists Injector Dynamics ID1050-XDS (1050.34.14.14), ID1300-XDS (1300.34.14.14), ID1700-XDS (1700.34.14.14) and ID2600-XDS (2600.34.14.14) as compatible
• Fittings are sold separately – allow enough clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan U14 Bluebird SSS-Z SR20VE (1997-2000, JDM)
• Nissan P11 Primera Te-V SR20VE (1997-2000, JDM)
• Nissan P11 Primera G-V SR20VE (1997-2000, JDM)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
