Radium Fuel Rail Kit - Nissan Skyline R32 (RB20DET)

Radium Fuel Rail Kit - Nissan Skyline R32 (RB20DET)

Application: Nissan RB20DET silver top (1989–1993), e.g. Skyline R32
Part Type: Upgrade fuel rail (rail only)
Part Number: 20-0757

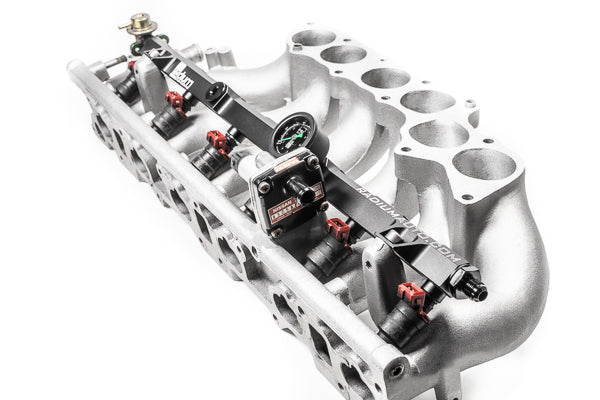

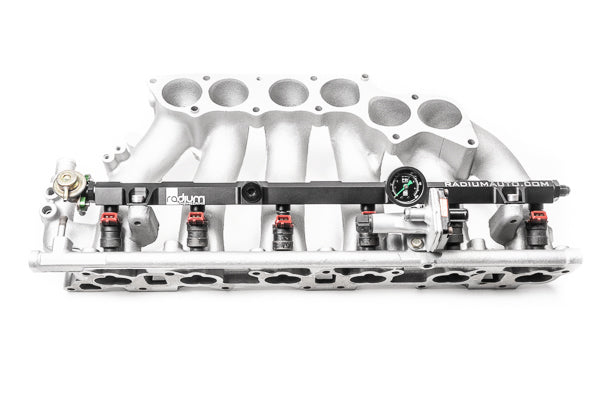

The Radium 20-0757 is a high-flow upgrade fuel rail for the 1989–1993 Nissan RB20DET "silver top". It has a large 0.69" internal bore to support high power levels and is CNC machined from a custom 6063 aluminium extrusion, black anodised and laser etched, with lightweight features and integrated gusset mounts.

This is an upgrade rail, not a top feed conversion: the OEM injectors can be reused, or OEM-equivalent injectors with an 11mm upper O-ring. The rail is supplied without fittings – a complete bolt-on plumbing kit (20-0217-PK) is available separately.

Key Features

• Large Bore: 17.5mm (0.69in) internal bore supports high engine power requirements
• Construction: CNC machined custom 6063 aluminium extrusion, black anodised and laser etched
• 8AN ORB Ports: Front, rear and centre ports tapped 8AN ORB (3/4"-16) for adapter fittings
• Gauge Port: 1/8" NPT port
• Injector Bores: 11mm ID (Denso) upper injector bores for maximum injector compatibility
• Integrated Mounts: Gusset mounts machined into the rail
• Fuel Compatibility: All fuel types, including E85 and other alcohol blends

What's Included

• Black anodised aluminium fuel rail
• Stainless steel mounting bolts
• FKM O-rings for OEM injectors

Optional Parts

• Radium Fuel Rail Plumbing Kit - Nissan Skyline GTS-T & GT-R R32/GT-R R33, R34 (RB20/RB26) (20-0217-PK) – complete bolt-on plumbing kit with FPR adaptor, hoses, hose end, plugs and EFI clamps
• Radium FPR Adaptor 8AN ORB, 11mm Bore, 32mm Spacing, M5 - Subaru/Nissan/Mazda RX-7 (20-0303) – to reuse the OEM fuel pressure regulator

Important Notes

• Fuel rail only – fittings, fuel hose and FPR are not included
• Upgrade rail: use OEM injectors or OEM-equivalent injectors (same height and O-ring sizes, 11mm upper O-ring)
• Radium does not make injector recommendations – consult your tuner for brand and flow rate
• Check clearance around the ports for regulators, gauges and pulse dampers before ordering fittings
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan RB20DET silver top (1989–1993)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
