Radium Fuel Pump Hanger, 2011+ Ford Mustang/Shelby

Radium Fuel Pump Hanger, 2011+ Ford Mustang/Shelby

Application: Ford Mustang 2011+ (S197/S550/S650) including Shelby models – see Vehicle Fitment
Part Type: In-tank fuel pump hanger with integrated regulator – fuel pumps not included
Part Number: 20-1800, 20-1801, 20-1802, 20-0802-00

The Radium fuel pump hanger is a drop-in replacement for the OEM fuel pump module, increasing fuel flow for modified 2011+ Mustangs. It supports one or two aftermarket pumps and is rated for E85 and other alternative fuels.

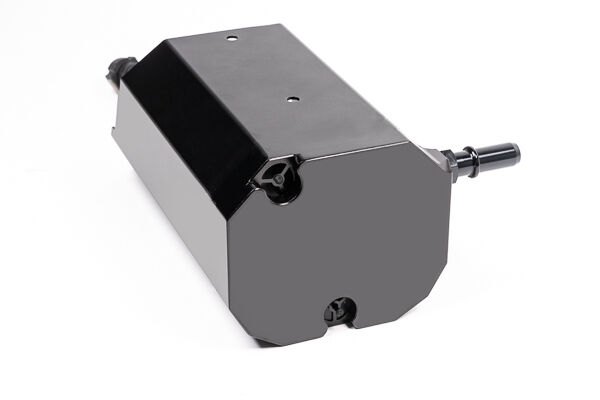

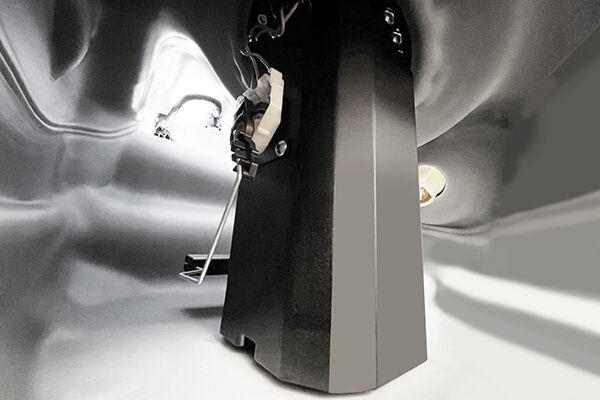

A collector box keeps fuel around the pump(s), fed by venturi scavenging, regulator return fuel and two one-way fill valves. A single adjustable regulator is built in, and the OEM fuel level sender and tank cover are reused.

Key Features

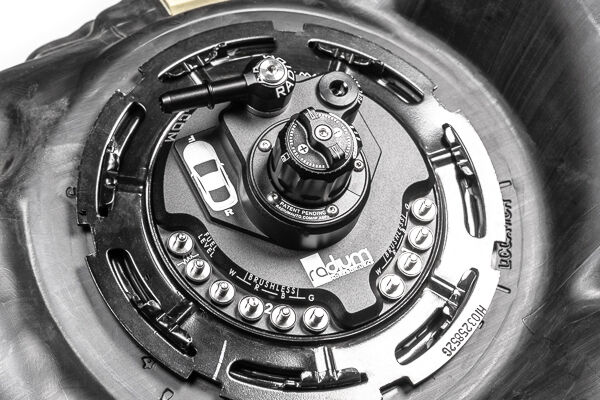

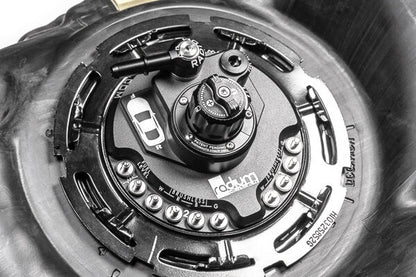

• Drop-In Installation: Replaces the OEM fuel pump module, reusing the OEM level sender and tank cover

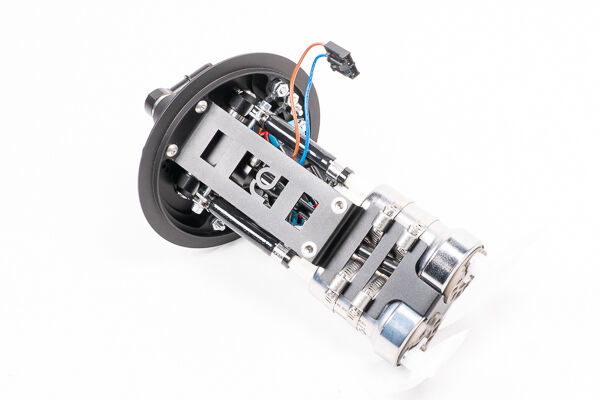

• 1 or 2 Pumps: Runs one or two aftermarket pumps
• Integrated Regulator: Single adjustable 1:1 fuel pressure regulator built in
• Starvation Protection: Collector box fed by venturi scavenging, regulator return and two one-way fill valves

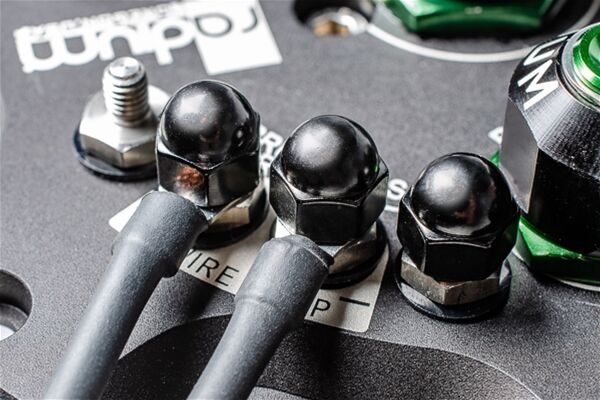

• High-Current Electrical: Anti-rotation electrical terminals and high-current hardware
• Construction: Anodised aluminium with stainless hardware, fuel-resistant tubing and wiring
• Fuel Compatibility: Petrol, methanol and ethanol compliant

Available Configurations

• 20-1800: Walbro GSS342 (255 LPH) or AEM 50-1200 – one or two pumps
• 20-1801: Ti Automotive BKS1001 (brushless E5LM) – includes two bolt-on check valves so pumps can be staged
• 20-1802: Walbro F90000267, F90000274, F90000285, F90000295*, Bosch BR540*, DeatschWerks DW400, DW440 (brushless), DW810 (brushless)*, Protec 11928 and Fuelab 49614 (brushless) – *no integrated check valve, can't be staged with two pumps

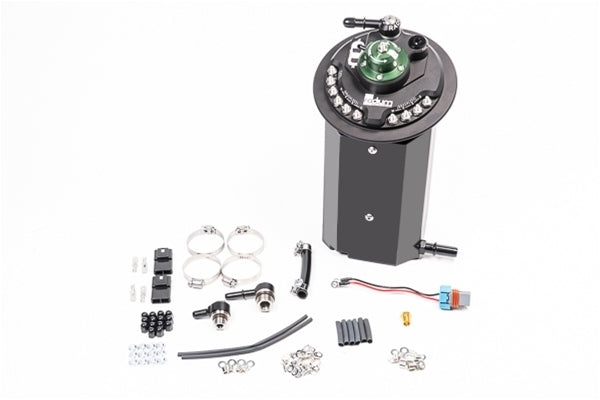

• 20-0802-00: This part number is not on Radium's current listing – please contact us to confirm before ordering

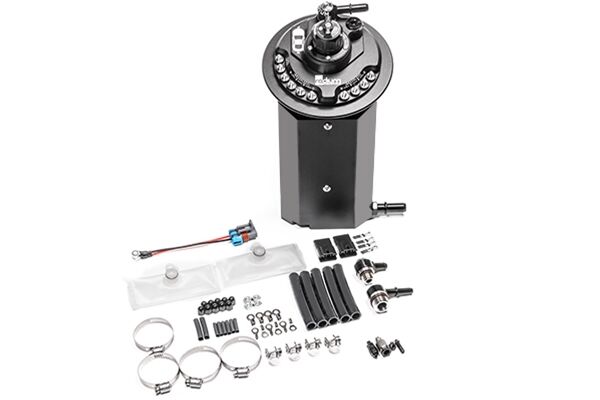

What's Included

• Fuel pump hanger with collector box and integrated adjustable regulator
• Electrical studs and hardware
• OEM level sender transfer parts
• Single outlet fitting with pre-installed 6AN return plug on the top plate
• Four 10-32 vacuum fittings – barb, 3AN, push-to-connect and plug
• Two bolt-on check valves (20-1801 only)

Optional Parts

• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Ford Mustang (2015-2017) (20-1816-03) – plumbing kit for 2015-2017 models (also available with microglass filter, 20-1816-05)
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Ford Mustang (2018+) (20-1817-03) – plumbing kit for 2018+ models (also available with microglass filter, 20-1817-05)
• Radium Fuel Hanger FPR Block Off Plate - Ford Mustang S197/S550 11+ (20-0806) – converts the built-in regulator to a return-style system (included with the plumbing kits)
• Radium 20-1000-0606 Low Profile Swivel Banjo Fitting, 6AN ORB to 6AN Male (20-1000-0606) – low-profile 6AN ORB return fitting needed with the 20-0806 when the rear seat is retained
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – wiring kit – one per aftermarket pump

Important Notes

• Fuel pumps are not included or pre-installed – the installer mounts the pumps
• The hanger removes the in-tank low-micron filter, so an external low-micron filter is required (included in the plumbing kits)
• Radium notes the starvation protection isn't a guaranteed solution – a surge tank may be needed for true redundancy
• The venturi uses roughly 15-45 LPH from the feed line, which must be allowed for in pump sizing
• OEM pump wiring can only be reused for a single pump; upgrading is recommended
• Only one regulator should be in the system when the built-in regulator is used
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang 2011+ – all models (S197/S550/S650)
• Ford Shelby GT/GTE/GT-H/GTS (2011-2016, S197/S550)
• Ford Shelby GT350 (2011-2013 S197, 2015-2020 S550)
• Ford Shelby GT500 (2013-2014 S197, 2020-2022 S550)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
