Radium Fuel Hanger Plumbing Kit, 17-21 Honda Civic Type-R

Radium Fuel Hanger Plumbing Kit, 17-21 Honda Civic Type-R

Application: Honda Civic Type R FK8 (2017-2021)
Part Type: Fuel hanger plumbing kit with dual fuel pressure regulator
Part Number: 20-1085-03, 20-1085-05

The Radium plumbing kit connects Radium's Civic fuel pump hanger on the FK8 Type R. An 8AN PTFE line runs from the hanger pump outlet, behind the fuel tank, to a high-flow filter on the left side of the tank mounted on a two-piece billet bracket, with billet retainers replacing the factory plastic line retainers.

The dual fuel pressure regulator (DFPR) mounts on the firewall using OEM threaded holes and has two independent outputs: the black knob and gauge calibrate the OEM direct-injection low-pressure pump supply, while the green knob is for a future port-injection system (its outlet is plugged with the supplied 8AN ORB plug). In the engine bay, 6AN EFI hose and SAE quick connects convert the OEM feed line into a return line.

Key Features

• Dual Fuel Pressure Regulator: Two independent outputs for direct injection now and port injection later
• Firewall Mounting: DFPR mounts using OEM threaded holes
• High-Flow Filter: Filter mounts on a two-piece billet bracket beside the tank
• 8AN PTFE Feed: 8AN PTFE feed line from the hanger to the filter and regulator
• Billet Line Retainers: Three billet retainers replace the factory plastic retainers
• Return Conversion: OEM feed line is converted to a return line
• Pressure Gauge: 0-100 psi fuel pressure gauge included

Available Configurations

• 20-1085-03: 10 micron stainless steel filter element
• 20-1085-05: 6 micron microglass filter element

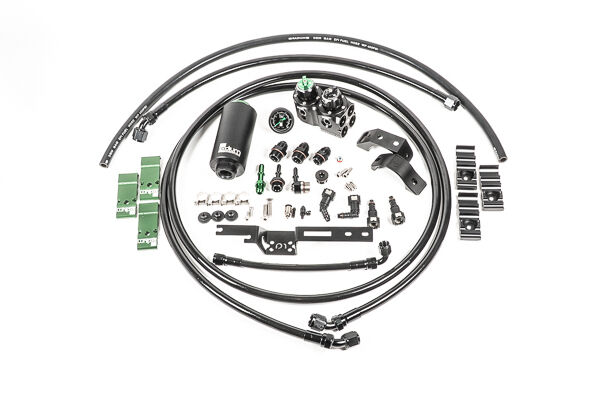

What's Included

• Dual fuel pressure regulator (DFPR)
• 0-100 psi fuel pressure gauge
• Fuel filter – 10 micron stainless (-03) or 6 micron microglass (-05)
• 8AN filter adapter fittings
• 8AN and 6AN hanger fittings
• Billet fuel/brake line retainers (x3)
• 8AN PTFE fuel feed hoses
• SAE quick connect adapters
• Stainless steel hardware
• 5/32in vacuum tubing
• Miscellaneous adapter fittings

Optional Parts

• Radium 2016+ Honda Civic Fuel Pump Hanger (20-1080) – the Radium Civic fuel pump hanger this kit plumbs

Important Notes

• Radium has tested this kit only on the FK8 Civic Type R – it may fit other models that haven't been tested
• Fuel pump hanger and pumps are sold separately
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Civic Type R FK8 (2017-2021)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
