Radium Engineering Fuel Hanger Feed Kit - Nissan R35 GT-R (Stainless Filter)

Radium Engineering Fuel Hanger Feed Kit - Nissan R35 GT-R (Stainless Filter)

Application: Nissan R35 GT-R (LHD only) with Radium 20-0572 fuel hanger
Part Type: Fuel hanger feed kit with stainless filter
Part Number: 20-0851-03

With high-flow pumps the stock R35 fuel lines may not be sufficient. This kit connects the Radium in-tank fuel hanger directly to Radium fuel rails with new PTFE feed lines, and reuses the factory feed line as the regulator return.

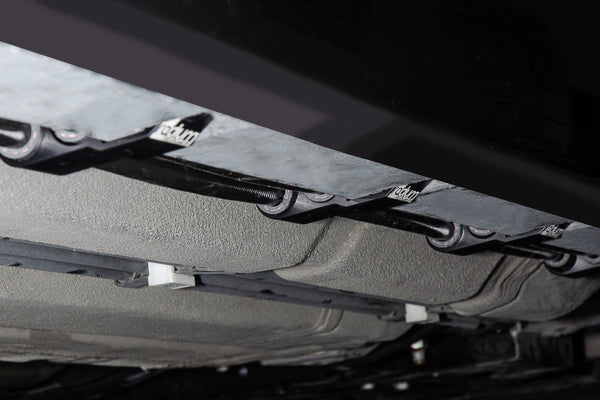

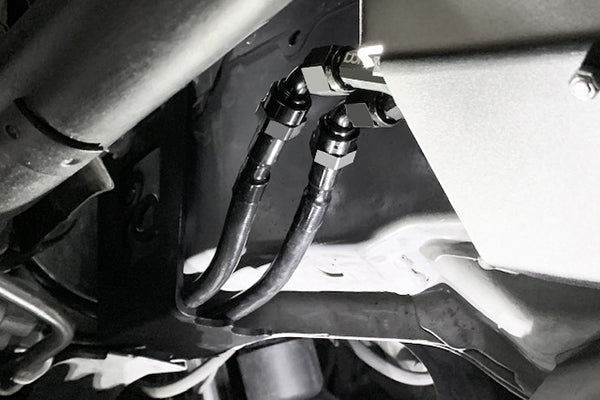

The 10AN pump outlet splits into two 6AN lines that run under the vehicle, held by billet retainers, through a serviceable fuel filter with a GT-R heat shield, to the front 6AN ports on the fuel rails. The Radium hanger eliminates the factory post-pump filter, so this kit supplies the downstream filter – here a cleanable, reusable 10 micron stainless element with an integrated check valve to hold fuel pressure after shutdown.

Key Features

• PTFE Feed Lines: Twin 6AN PTFE hoses from the hanger to the front rail ports
• Stainless Filter: 10 micron cleanable, reusable stainless element
• Check Valve: Filter has an integrated check valve to hold pressure after shutdown
• Heat Shield: R35-specific filter heat shield bracket
• OEM Line Reuse: Factory feed line is reused as the regulator return

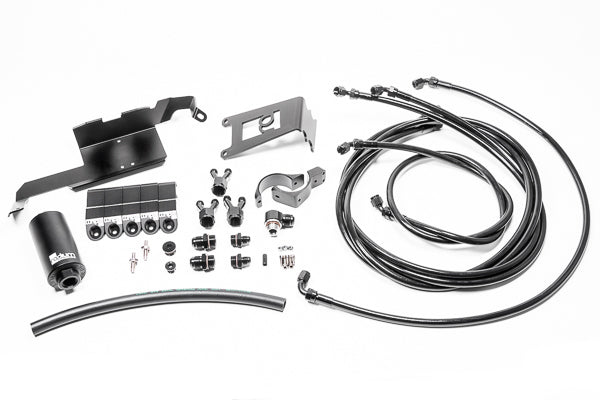

What's Included

• 10 micron stainless fuel filter with check valve
• 10AN ORB to 10AN male low profile fitting
• 10AN to 6AN Y-adapter fittings
• Fuel line retaining mounts
• R35 filter heat shield bracket
• 60mm 2-piece filter clamp
• 6AN PTFE fuel hoses
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Hanger - Nissan GT-R R35 (20-0572) – the Radium in-tank hanger this kit connects to
• Radium Fuel Rail Kit - Nissan GT-R R35 (20-0556-02) – Radium rails with the front 6AN feed ports
• Radium Engineering Fuel Rail Plumbing Kit - Nissan R35 GT-R (20-0956-PK) – rail plumbing with regulator, damper and gauge
• Radium Fuel Hanger Feed Kit w/Microglass Filter - Nissan GT-R R35 (20-0851-05) – same kit with a finer 6 micron microglass filter

Important Notes

• Radium lists the R35 fuel hanger feed kit as compatible with LHD vehicles only – it does not suit RHD (Australian/JDM-delivered) GT-Rs
• Fuel hanger and fuel rails are not included
• Radium recommends reviewing the installation instructions before purchase
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan R35 GT-R – LHD only (not compatible with RHD vehicles)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
