Radium Fuel Filter Mounting Kit - Nissan GT-R R35

Radium Fuel Filter Mounting Kit - Nissan GT-R R35

Application: Nissan R35 GT-R
Part Type: Fuel filter mount and heat shield kit
Part Number: 20-0559

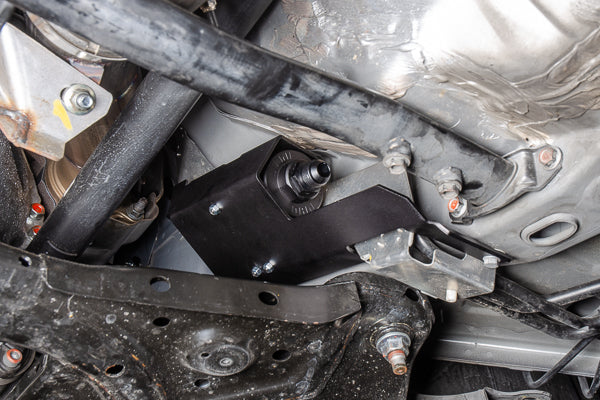

The Radium Engineering Fuel Filter Mount for the R35 GT-R includes a heat shield, filter mounting bracket and hardware to mount a Radium fuel filter (sold separately). The anodised aluminium bracket attaches to the chassis using existing threaded bosses, in a location well away from the hot downpipes.

A separate hose bracket and hardware secure the fuel hoses further toward the front of the vehicle, and all hardware is stainless steel. The 60mm clamp also suits an external Bosch 0 580 254 044 fuel pump.

Key Features

• OEM Threaded Bosses: Bolts to existing chassis mounting points
• No Permanent Modifications: Bolt-in installation
• Heat Shield: Anodised aluminium shield, mounted away from the downpipes
• Billet Clamps: Anodised aluminium, 60mm (2.36in) diameter
• Stainless Hardware: All mounting hardware is stainless steel

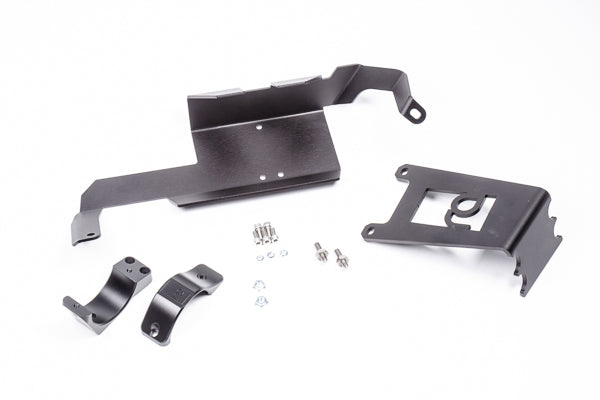

What's Included

• Anodised aluminium mounting bracket
• Anodised aluminium fuel filter mount
• Anodised aluminium heat shield
• Stainless steel mounting hardware

Important Notes

• Fuel filter is not included
• Aftermarket fuel lines and fittings must be configured separately
• The clamp also suits an external Bosch 0 580 254 044 fuel pump
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan R35 GT-R

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
