Radium Engineering Fuel Filter Mount - Subaru BRZ/Toyota GT86/GR86

Radium Engineering Fuel Filter Mount - Subaru BRZ/Toyota GT86/GR86

Application: Subaru BRZ, Toyota GT86 / GR86, Scion FR-S (manual transmission only)
Part Type: Fuel filter mount with heat exchanger
Part Number: 20-0912

Hardware for installing a Radium Engineering fuel filter. The sheet metal bracket conforms to the chassis, using three OEM mounting points underneath the vehicle, just left of the transmission bell housing.

The anodised extruded aluminium heat exchanger mounts directly to the bracket where it receives cool air flow, and the fuel filter secures inside the heat exchanger.

Key Features

• OEM Mounting: Mounts to OEM threaded holes – no permanent modifications
• Heat Exchanger: Anodised extruded aluminium heat exchanger in the cooling air flow
• Clamp Diameter: 60mm (2.36in)
• Hardware: Stainless steel bolts

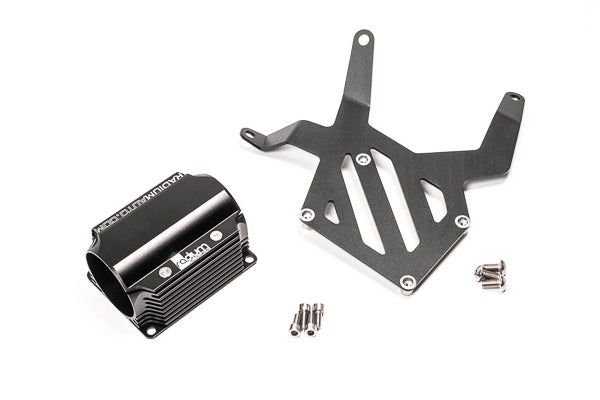

What's Included

• Anodised aluminium mounting bracket
• Anodised extruded aluminium heat exchanger
• Stainless steel mounting hardware

Important Notes

• Not compatible with automatic transmissions

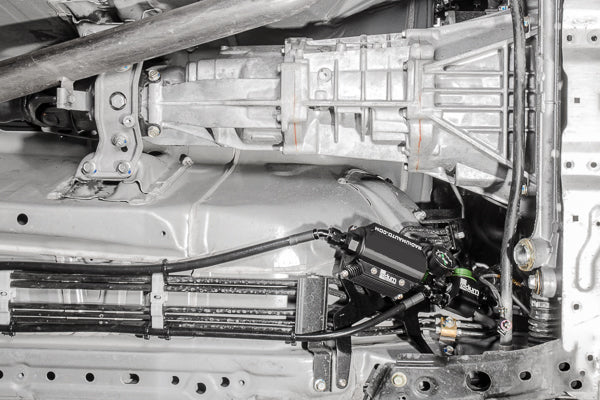

• Fuel filter not included (product images show the filter and 10AN ORB fittings, sold separately)
• Aftermarket fuel lines and fittings must be configured separately
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Subaru BRZ 2012+ (manual)
• Toyota GR86 2022+ (manual)
• Toyota GT86 2012-2021 (manual)
• Scion FR-S 2012-2016 (manual)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
