Radium FPR Mount, Honda Civic (2016+)

Radium FPR Mount, Honda Civic (2016+)

Application: 2016+ Honda Civic (all)
Part Type: Fuel pressure regulator mount
Part Number: 20-1087

The Radium 20-1087 is the hardware for installing a Radium MPR (Multi-Port Fuel Pressure Regulator) or DFPR (Dual Fuel Pressure Regulator) in a 2016+ Honda Civic.

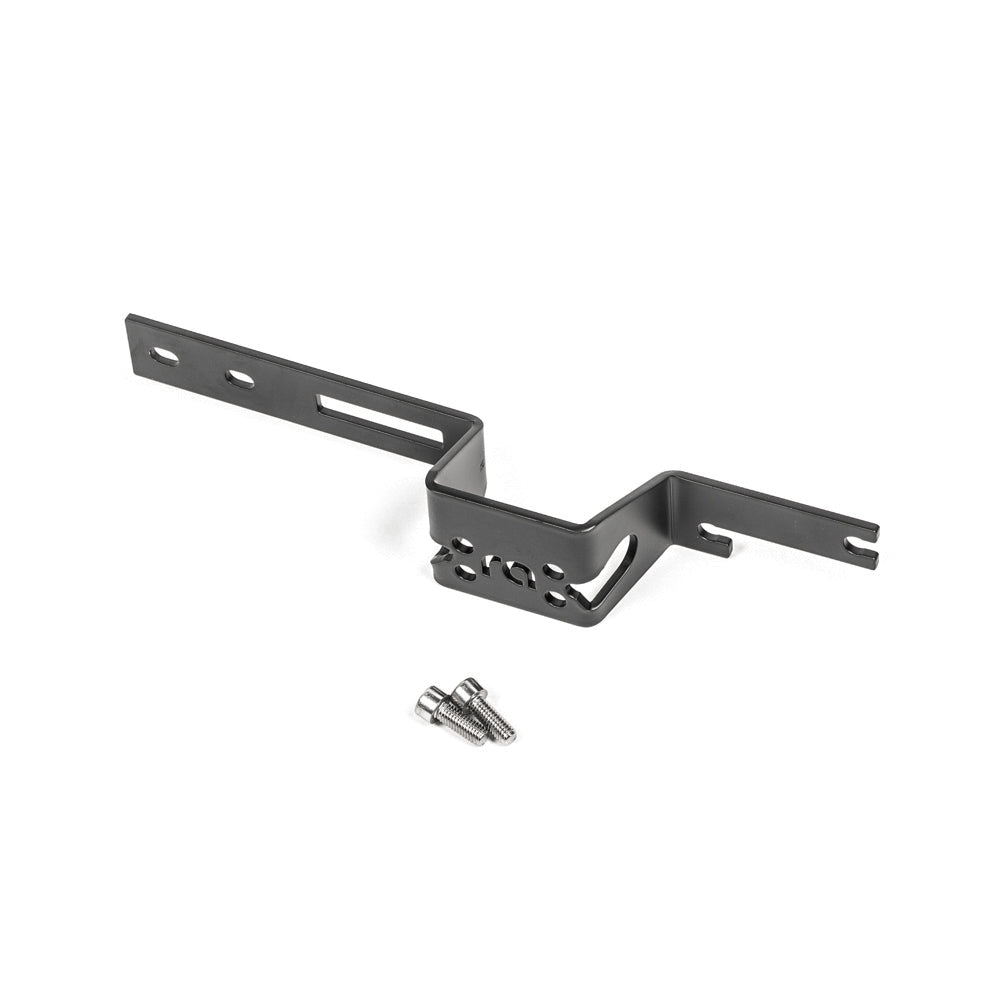

The powder-coated steel mount locates the regulator on the firewall where the OEM fuel line bracket was, using two OEM threaded holes and stainless steel M6x1 screws. The OEM fuel line passes through two holes in the new bracket.

Key Features

• Firewall Mount: Locates the regulator on the firewall in place of the OEM fuel line bracket
• OEM Threaded Holes: Bolts to two OEM threaded holes
• MPR or DFPR: Lower holes suit the Radium MPR, upper holes suit the DFPR
• Construction: Powder-coated steel with stainless steel M6x1 screws

What's Included

• Powder-coated steel FPR mount
• 2 x stainless steel M6x1 screws

Optional Parts

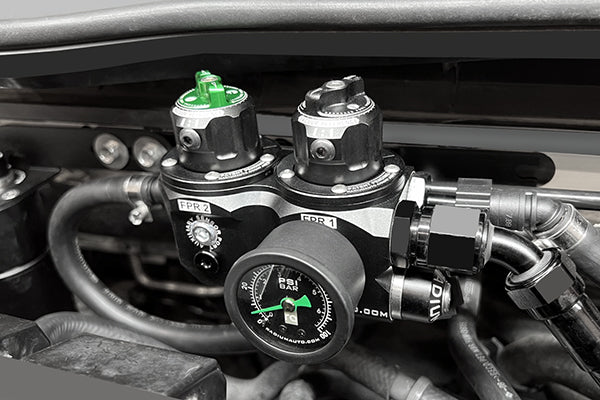

• Radium MPR RA Multi Port FPR Fuel Pressure Regulator (20-1100-00 / 20-1100-01) – Radium multi-port regulator – mounts to the lower two holes of the bracket
• Radium DFPR, Dual Fuel Pressure Regulator (20-1102) – Radium dual regulator – mounts to the upper two holes of the bracket
• Radium Fuel Filter Mount, Honda Civic (2016+) (20-1086) – Radium fuel filter mount for the same car

Important Notes

• Fuel pressure regulator not included
• Aftermarket fuel lines and fittings must be configured separately
• Reuse the OEM M6x1mm screws; the OEM mounting bracket and metal fuel line cover are not reused
• The vacuum line bracket is removed and the vacuum lines rerouted to make room for the regulator
• FK8 and FL5 Civic Type R use different mounting hole locations – see the instructions
• Honda's fuel pressure upstream of the HPFP is about 4.8 bar (70psi) – discuss the target pressure with your tuner
• Radium lists all 2016+ Civics but gives no RHD-specific statement – confirm RHD fitment with Coore
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Civic 2016+ (all)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
