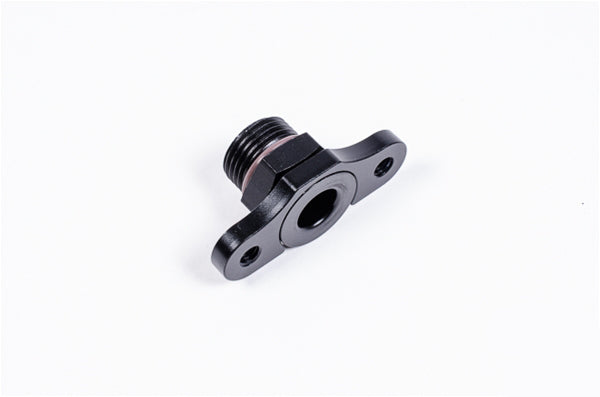

Radium FPR Adaptor 8AN ORB, 11mm Bore, 39mm Spacing, M6 - Subaru WRX STI 01-07/Mitsubishi Evo X/Mazda MX-5/Toyota 2JZ

Radium FPR Adaptor 8AN ORB, 11mm Bore, 39mm Spacing, M6 - Subaru WRX STI 01-07/Mitsubishi Evo X/Mazda MX-5/Toyota 2JZ

Application: OEM FPR/FPD with 11mm bore and 39mm spacing – Mazda, Mitsubishi, Saab, Subaru, Suzuki and Toyota (see Vehicle Fitment)
Part Type: FPR/FPD adaptor fitting, 8AN ORB, 11mm bore, 39mm spacing, M6
Part Number: 20-0301

Radium FPR adaptors are anodised billet 6061 aluminium fittings that allow an OEM fuel pressure regulator (FPR) or fuel pulse damper (FPD) to be reused on a fuel rail other than the one it was designed for. They suit virtually any fuel rail with an 8AN ORB female port and enough surrounding space for the regulator, and every fitting allows the unit to be clocked into the correct orientation.

This version accepts OEM components with an 11mm bore and 39mm mounting hole spacing, using M6x1.0mm fasteners.

Key Features

• Reuse OEM Components: Fit an OEM FPR or FPD to an aftermarket fuel rail
• 8AN ORB Rail Side: Suits virtually any fuel rail with an 8AN ORB female port
• 11mm Bore / 39mm Spacing: Matches the listed OEM regulators and dampers
• M6x1.0mm Mounting Threads: For the OEM FPR/FPD mounting bolts
• Clockable: Can be clocked into the correct orientation
• Billet 6061 Aluminium: Anodised finish

Important Notes

• The OEM FPR/FPD must match both the 11mm bore and the 39mm mounting hole spacing
• The fuel rail needs an 8AN ORB female port with enough clearance around it for the FPR/FPD

Vehicle Fitment

• Mazda MX-5 B6 – FPR
• Mazda MX-5 BP – FPR and FPD
• Mitsubishi Lancer Evolution X 4B11T – FPR
• Toyota 1GR-FE – FPR
• Toyota 2JZ-GE – FPR
• Toyota 2JZ-GTE – FPR
• Toyota 2RZ-FE – FPR
• Toyota 2UZ-FE – FPR
• Toyota 3RZ-FE – FPR
• Toyota 3S-GTE (Gen 4-5) – FPR
• Saab 9-2X Aero 2.0L – FPR
• Subaru EJ20 GDA WRX – FPR
• Subaru EJ221 – FPR
• Subaru EJ222 – FPR
• Subaru EJ223 – FPR
• Subaru EZ30 Phase-I – FPR
• Suzuki G16B – FPR

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
