Radium Fluid Lock Catch Can Kit - GM LS V8 Engines

Radium Fluid Lock Catch Can Kit - GM LS V8 Engines

Application: GM LS1 and LS6 (Gen III) V8
Part Type: Fluid Lock PCV catch can kit
Part Number: 20-0260-FL

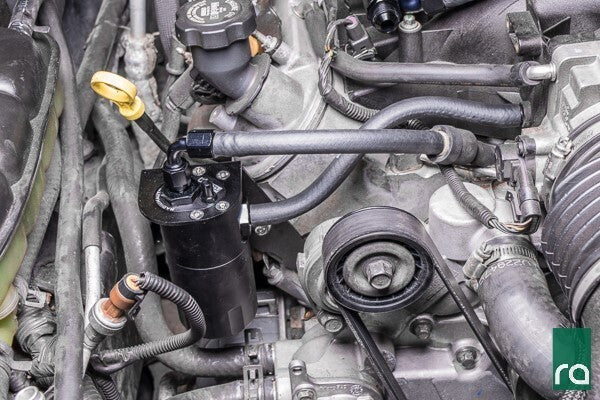

The Radium Fluid Lock Catch Can Kit for Gen III GM LS1 and LS6 engines draws oil and water condensation out of the crankcase gases before they reach the intake manifold. It plumbs inline with the OEM PCV valve and mounts on an anodised aluminium bracket at the front right-hand side of the cylinder head.

Radium's patented Fluid Lock system stops the reservoir overfilling and traps the collected fluids, while 2-step baffling separates the oil and an O-ring sealed dipstick makes checking the level easy. The kit is direct fit with no drilling and works with wet and dry sump engines.

Key Features

• Fluid Lock System: Patented design prevents overfilling and traps collected fluid
• 2-Step Baffling: Effective oil separation
• Large Ports: 10AN ORB inlet and outlet, 4AN ORB drain
• O-Ring Sealed Dipstick: Easy level checks
• Direct Fit: Front RH cylinder head bracket, no drilling
• Wet or Dry Sump: Suits both configurations

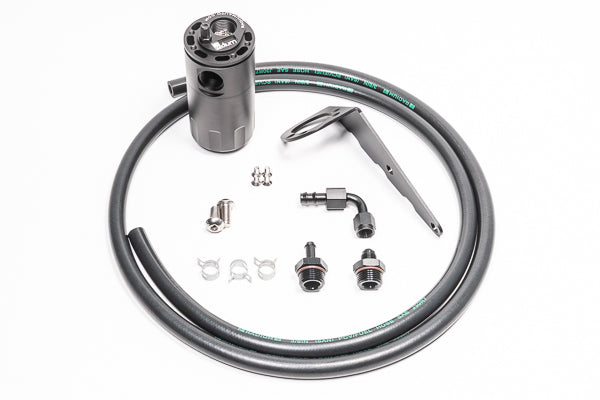

What's Included

• Baffled oil catch can with integrated condenser and dipstick
• Anodised aluminium mounting bracket
• Anodised aluminium 6AN hose ends
• Anodised aluminium 6AN fittings
• Stainless steel mounting hardware
• 3/8in PCV rubber hose
• Spring clamps

Optional Parts

• Radium Catch Can Kit, PCV, GM LS2/LS3/LS7 Engine, Fluid Lock (20-0785-FL) – kit for Gen IV LS2/LS3/LS7 engines

Important Notes

• This kit is NOT compatible with LS2, LS3, LS4, LS7, LS9 or LSA engines – Gen IV LS2/LS3/LS7 use 20-0785-FL
• Confirm clearance in the catch can mounting area before ordering – extra belt-driven accessories such as an aftermarket supercharger may prevent fitment
• Check the dipstick from 3–4 weeks of driving and empty as needed; excessive oil can indicate engine blow-by, overfilled oil, poor breather baffling or a PCV valve not closing under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• GM LS1 (Gen III) V8
• GM LS6 (Gen III) V8

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
