Radium FHST Extension Add-On, Audi R8 Type 4S / Lamborghini Huracan

Radium FHST Extension Add-On, Audi R8 Type 4S / Lamborghini Huracan

Application: Radium 20-0860 FHST in the Audi R8 Gen 2 (Type 4S) and Lamborghini Huracan
Part Type: FHST extension add-on
Part Number: 20-0868

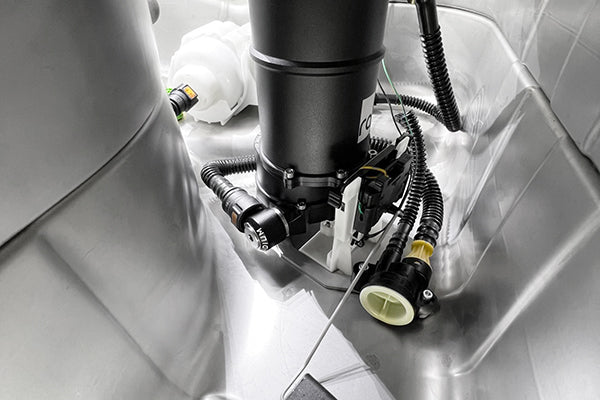

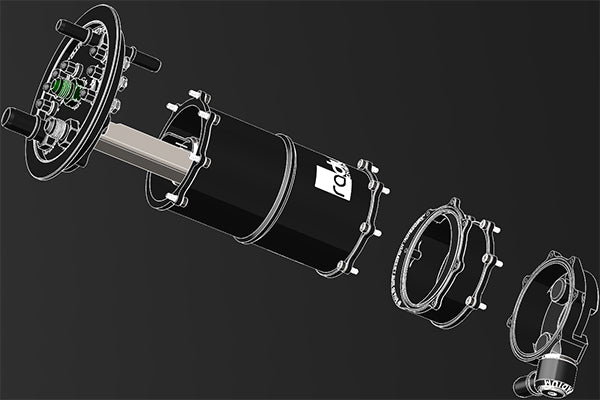

The Radium Engineering 20-0868 extension kit adds about 0.2L (7oz) of fuel capacity to the Radium 20-0860 fuel hanger surge tank by using a 39mm (1.5in) deeper canister. The extension section mounts between the canister and the bottom cap, locating the bottom of the FHST to clear the fuel level sensor.

Longer tubing and a longer pump bracket are included to keep the fuel pump inlet at the bottom of the surge tank, and a stainless steel mount secures the OEM venturi jet pump out of the way. Radium strongly advises fitting the extension to Huracan and Gen 2 R8 installations so the FHST reaches the lowest parts of the tank.

Key Features

• Extra Capacity: Adds approximately 0.2L (7oz) to the FHST
• Deeper Canister: Extends the canister by 39mm (1.5in)
• Clears Level Sensor: Positions the bottom of the FHST to clear the fuel level sensor
• Pump Inlet Low: Extended tubing and pump bracket keep the pump inlet at the bottom
• Jet Pump Mount: Stainless steel mount secures the OEM venturi jet pump

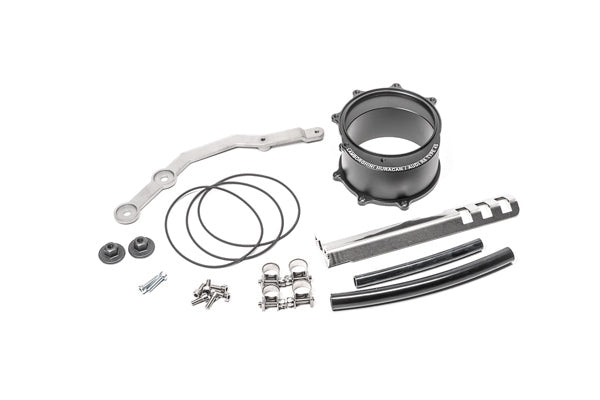

What's Included

• Canister mid section
• Canister O-rings, FKM (x3)
• Convoluted tubing, large ID
• Convoluted tubing, small ID
• Stainless steel venturi jet pump mount
• Stainless steel pump bracket, extended
• Stainless steel EFI clamps, large ID (x2)
• Stainless steel EFI clamps, small ID (x2)
• Stainless steel socket head screws (x6)
• Thread forming nuts (x2)
• Zinc-plated steel screws

Optional Parts

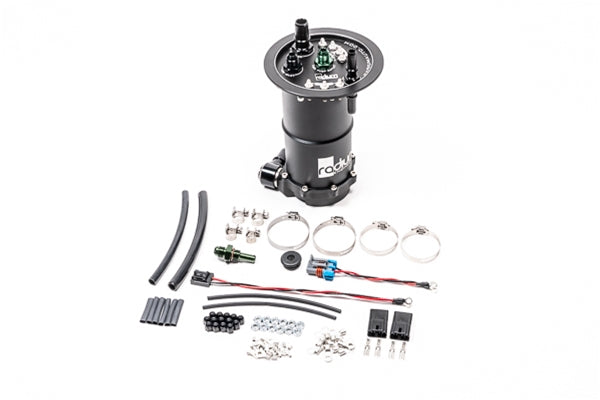

• Radium Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan (20-0860) – the Radium FHST this extension fits (required)

Important Notes

• Requires the Radium 20-0860 fuel hanger surge tank (sold separately)
• Compatible with deep tanks only (Audi R8 Type 4S and Lamborghini Huracan)
• NOT compatible with the Audi R8 Gen 1 (Type 42) or Lamborghini Gallardo (LP550-2, LP560-4, LP570-4)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Audi R8 Gen 2 (Type 4S)
• Lamborghini Huracan LP580-2
• Lamborghini Huracan LP610-4
• Lamborghini Huracan LP640-4
• Lamborghini Huracan EVO
• Lamborghini Huracan STO
• Lamborghini Huracan Tecnica

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
