Radium Engineering Fuel Hanger 2014–2019 C7 Corvette – Pumps Not Included

Radium Engineering Fuel Hanger 2014–2019 C7 Corvette – Pumps Not Included

Application: 2014–2019 Chevrolet Corvette C7
Part Type: Fuel pump hanger (pumps not included)
Part Number: 20-1010

The Radium Engineering 20-1010 fuel hanger is a direct replacement for the stock fuel pump assembly in the 2014–2019 C7 Corvette, with no cutting or modification required. An integrated collector keeps fuel available to the pump during aggressive driving, supplied from three independent sources: crossover fuel scavenged from the passive side of the tank via the reused OEM jet pump siphon, constant low-pressure return fuel from the regulator, and two one-way fill valves (355LPH each) in the base of the collector.

Selecting the right pump depends on expected power, fuel type and pressure requirements. If two aftermarket pumps are needed, the 20-0937 dual pump add-on is also required, and 20-1011 plumbing kits are available to simplify installation with high-flow fuel lines and fittings.

Key Features

• Drop-In Installation: Direct replacement for the OEM assembly – no cutting or modification

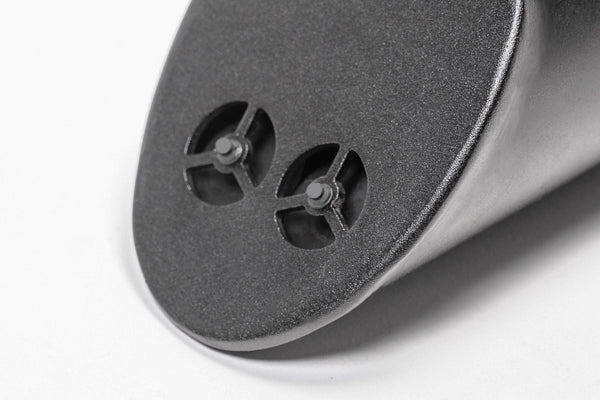

• Fuel Starvation Protection: Integrated collector fed by the OEM jet pump siphon, return fuel and two 355LPH one-way fill valves
• Merged Pump-Out Port: 10AN ORB female outlet in the top plate
• Pump Choice: Compatible with a wide range of pumps, including brushless
• High-Current Electrical: Stainless steel electrical studs, hermetically sealed serviceable connections and non-conductive anodised acorn nuts
• ETFE Wiring: In-tank wiring insulated with chemically resistant ETFE
• Fuel Compatibility: Petrol, methanol and E85 compliant

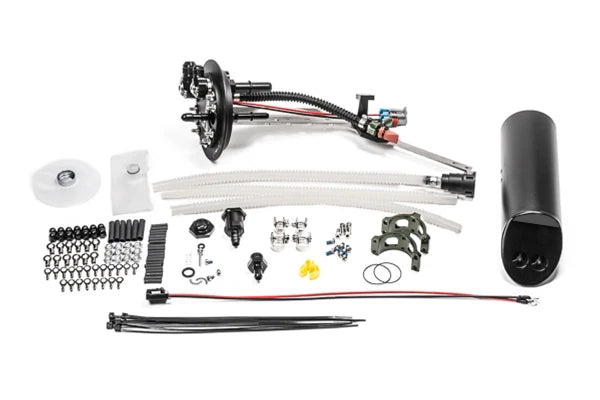

What's Included

• Partially assembled fuel hanger
• Two wiring harness styles
• Collector box
• Filter socks
• Pump mounting hardware
• Electrical kit for external wiring

Optional Parts

• Radium Engineering Dual Pump Add-On Mid 2003–2019 Corvette (20-0937) – adds a second pump
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Chevrolet Corvette C7 (2014-2019) (20-1011-03) – regulator, filter, lines and fittings
• Radium Fuel Hanger Plumbing Kit with Microglass Filter, Chevrolet Corvette C7 (2014-2019) (20-1011-05) – regulator, filter, lines and fittings
• Radium Fuel Pump Clamp for 41-43mm Pump Bodies (20-0441) – required for DW440, DW810, Protec 11928 and Fuelab 49614 pumps
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump

Important Notes

• Fuel pumps are not included
• The hanger eliminates the in-tank regulator and post-pump filter – an external fuel pressure regulator and a low-micron filter must be installed (both are included in the 20-1011 plumbing kits)
• The 20-1011 plumbing kits suit manual transmission vehicles only, due to fuel filter mounting interference
• Single-pump installs can reuse the OEM wiring, but an upgrade is recommended for full pump power; each aftermarket pump needs its own wiring kit
• Walbro F90000295 and Ti Automotive E5LM have no integrated check valve – a high-flow check valve is included for their outlet
• DW440, DW810, Protec 11928 and Fuelab 49614 (41–43mm bodies) require the 20-0441 pump clamp
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• 2014–2019 Chevrolet Corvette C7

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
