Radium Dual Fluid Lock Universal Catch Can Kit

Radium Dual Fluid Lock Universal Catch Can Kit

Application: Universal
Part Type: Dual Fluid Lock oil catch can kit with bracket
Part Number: 20-0005-FL

Radium's universal Fluid Lock catch cans help prevent sludge build-up in the intake, intercooler and throttle body by separating oil from crankcase gases before they reach the induction system. Radium's Fluid Lock® design (introduced in 2022) uses a patented internal mechanism that stops the reservoir from overfilling and holds collected fluid until the can is emptied, so oil cannot spill back into the induction system.

Each can is machined from solid 6061 aluminium with O-ring sealed halves and ports, so it is suitable for pressurised (forced induction) systems. The main inlet and outlet are 10AN ORB, and an integrated M8x1.25mm dipstick makes it easy to check the oil level. The dual kit pairs two cans on one universal bracket for engines that need separate PCV and crankcase vent cans.

Key Features

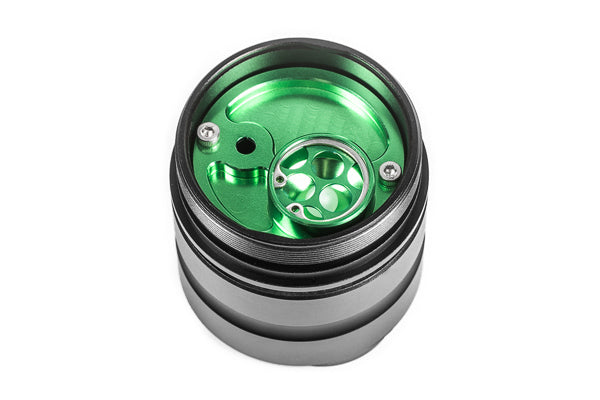

• Fluid Lock®: Patented mechanism prevents overfilling and holds collected fluid until emptied
• Boost Rated: O-ring sealed halves and ports suit forced induction systems
• Billet Construction: Machined from solid 6061 aluminium
• 10AN ORB Ports: Use barb or AN fittings to suit your plumbing

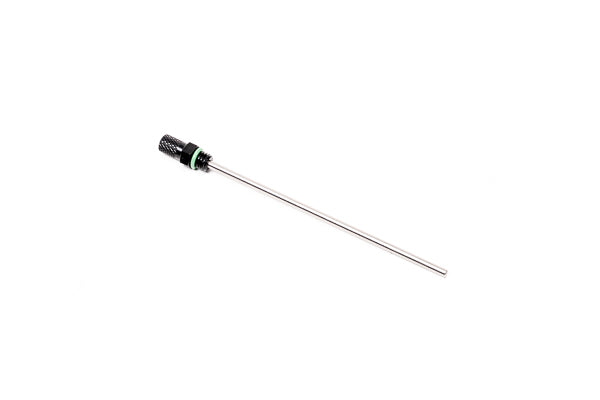

• Integrated Dipstick: M8x1.25mm dipstick for quick level checks
• Drain Port: 4AN ORB bottom port accepts the optional remote petcock drain kit

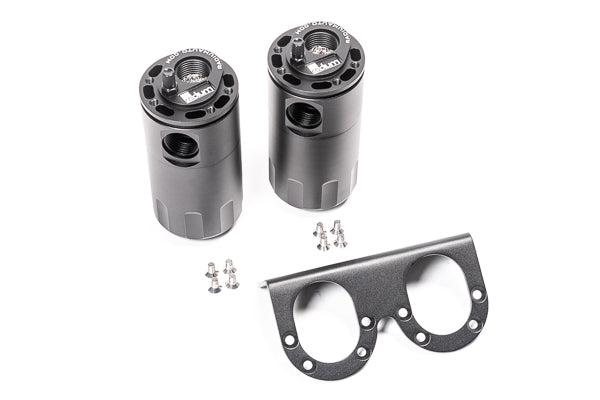

What's Included

• 2x Fluid Lock catch cans
• 1x Dual universal catch can bracket

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – remote drain that installs in the 4AN ORB bottom port
• Radium 10AN ORB Fitting to Air Filter (20-0050) – one of the compatible 10AN ORB adapter fittings

Important Notes

• Cans are supplied without fittings – 10AN ORB adapter fittings and hose are sold separately (barb fittings with spring clamps, or AN fittings with push-lock hose ends, can be used)
• Some engines need more than one catch can depending on the PCV system design
• Do not use with aftermarket crankcase vacuum pumps
• Drain periodically and check the level with the dipstick; excessive oil collection can indicate engine damage
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
