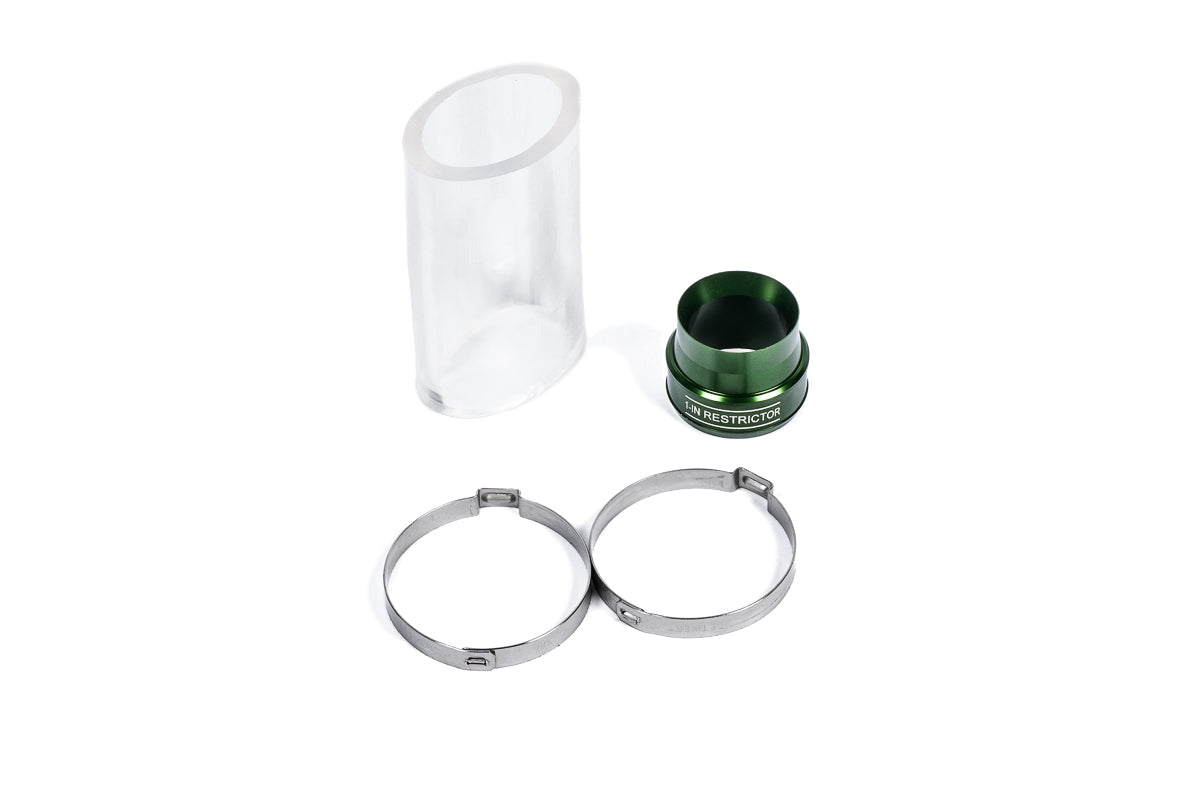

Radium Dry Break Probe Restrictor, 1"

The Radium Engineering 20-0704 Dry Break Probe Restrictor is a genuine Radium Engineering component for universal fuel system applications.

Designed to meet sanctioning bodies such as WRL (World Racing League) and ZRS (Zenith). Machined from 6061 aluminum and type-II anodized for corrosion resistance. For tech inspection, the laser engraving "1-IN RESTRICTOR" displays compliance. The press-fit outer diameter is 1.24" (31.6mm) making it compatible with most 1.5" dry break probes.

Zrs Rule

6.2. "The fueling path must include a 1.00-inch (25.4mm) internal diameter restrictor between the container and the filler/dry-break. ZRS may audit and inspect resictor size in tech or the pit lane at any time."

Wrl Rules

D.3.j. "The narrowest point of the hose, nozzle or funnel spout must be no larger than 1.000" inside diameter and made of a solid material."

D.3.m. "For any cars utilizing a quick disconnect/dry break for overflow, no larger than 1.000" restriction must be in place between QD/DB and container. 1" restrictors must also be in place on the vent side of a double-drybreak system where the vent recycles back into the dump can. Vent jugs must be clearly marked per D.3.a."

Installation

Press-fit the restrictor into the dry break probe inlet. Install the replacement tubing to the dry break and dump can barbs. NOTE: If pinch clamp pliers are not available, diagonal cutters can be used to cinch down the clamps.

Compatibility

• 20-0996 Dry Break, 1.5in, Male, PRV
• 20-0496 Dry Break, 1.5in, Male

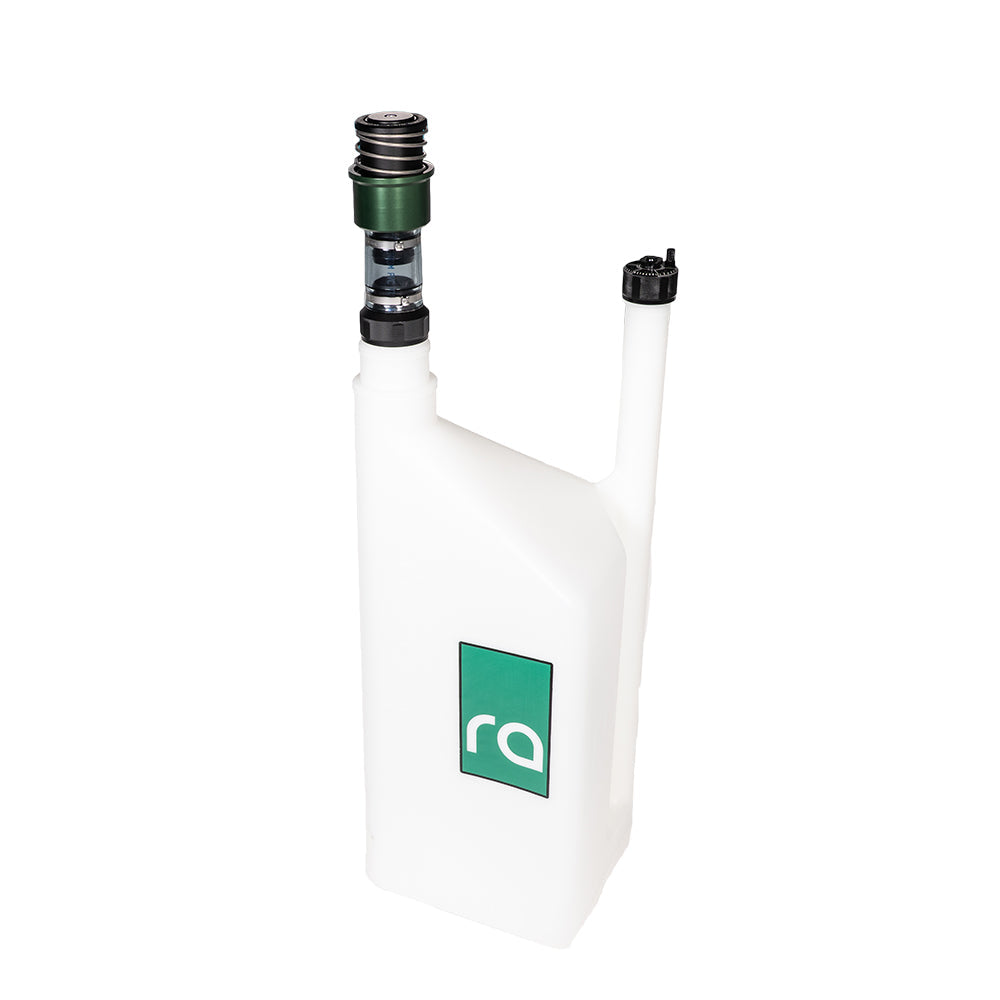

About the Radium Quick Fill Dump Cans

Dump cans are used in motorsports when quick refueling pit stops are essential. these dump cans can fill up to 14 times faster than a standard fuel jug.

The main difference between a "dump can" and a common "fuel jug" is the vent architecture. For quick filling, air entering the can must replace the exiting fuel at the same rate. If not, a vacuum will create a flow restriction and produce a "gurgle" or "chug" effect. These Radium Engineering dump cans are designed with a large 1.675" OD vent tube that comes from the bottom, minimizing refueling leaks and maximizing non restrictive air flow for quick-filling.

Application

• Universal — select to suit your fuel system

Available Part Numbers

• 15-0004 — Dump Can Dry Break Probe Cover (sold separately)
• 20-0687-00 — Dump Can Cap Assembly - Standard Filler (sold separately)
• 20-0697-00 — Quick Fill Dump Can, 6Gal, Standard Filler (sold separately)
• 20-0704 — Dry Break Probe Restrictor, 1" (this product)
• 20-0997 — Quick Fill Dump Can Caps (sold separately)
• 20-1687-01 — Dump Can Cap Assembly - Dry Break Filler (sold separately)
• 20-1697-01 — Quick Fill Dump Can, 6Gal, 1.5" Dry Break | PRV (sold separately)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Confirm fitment with Coore before ordering. Professional installation recommended.
