Radium 8AN ORB to 16mm SAE Male Fitting

Radium 8AN ORB to 16mm SAE Male Fitting

Application: Universal – 8AN ORB (3/4"-16) ports, including Radium fuel rails, surge tanks and fuel pressure regulators
Part Type: 8AN ORB to 16mm SAE quick connect male adapter fitting
Part Number: 14-0602

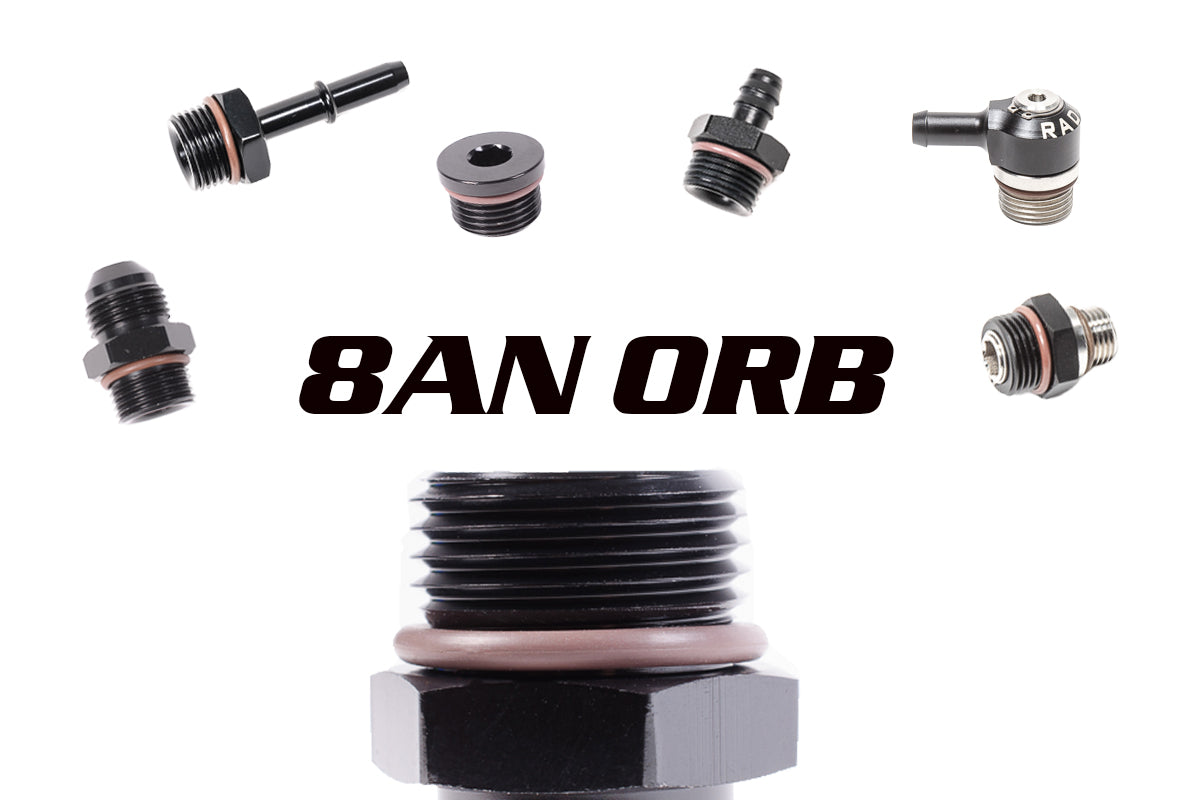

The Radium 14-0602 is part of Radium's 8AN ORB fitting range, listed under its 8AN ORB to SAE quick connect connections. It threads into an 8AN ORB (3/4"-16) O-ring port and provides an SAE quick connect male end.

Radium's 8AN ORB adapter fittings are designed for many Radium products, including fuel rails, surge tanks and fuel pressure regulators, but they can be used in any application with an 8AN ORB O-ring port. SAE quick connect fittings push on and secure to most modern USA, European and Japanese fuel injection systems, so OEM quick connect fuel lines can be adapted to aftermarket plumbing.

Key Features

• 8AN ORB Thread: 3/4"-16 O-ring boss thread
• SAE Quick Connect: Male SAE quick connect end for OEM-style quick connect fuel lines
• Radium Compatible: Suits Radium fuel rails, surge tanks and fuel pressure regulators, or any 8AN ORB port
• O-Ring Sealed: ORB connection seals on an O-ring

Important Notes

• Lubricate the O-rings with engine oil, O-ring lube or petroleum jelly before installation
• To confirm the SAE quick connect size you need, measure the outside diameter of the male fitting: 0.3125in = 5/16in, 0.375in = 3/8in, 0.500in = 1/2in, 0.625in = 5/8in

Vehicle Fitment

• Universal – see Application
