Radium 8AN ORB Pressure Sensor Adaptor - Toyota GR Yaris XPA16R/GR Corolla GZEA14R (w/8AN Fuel Rail)

Radium 8AN ORB Pressure Sensor Adaptor - Toyota GR Yaris XPA16R/GR Corolla GZEA14R (w/8AN Fuel Rail)

Application: Toyota GR Yaris, GR Corolla and 2018+ Toyota 2.0L / 2.5L engines
Part Type: 8AN ORB to Toyota fuel pressure sensor adapter
Part Number: 20-0663

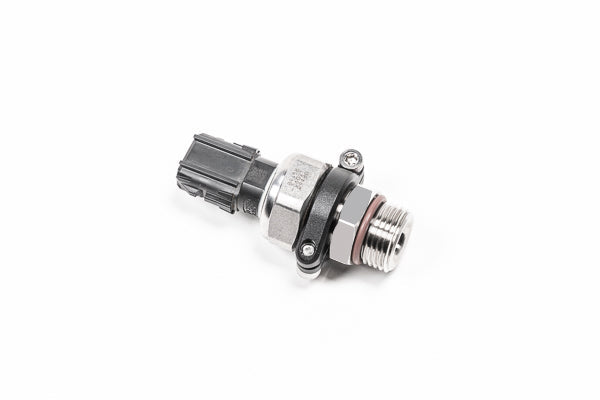

The Radium 8AN ORB to Toyota Pressure Sensor Adapter lets the OEM Toyota fuel pressure sensor be fitted to virtually any fuel rail with an 8AN ORB female port. The adapter clamps onto the Toyota sensor's 9.5mm bore, as used across several Toyota applications.

Originally developed for the 2022+ GR Corolla, it allows the sensor to be clocked into the correct position and is machined from anodised billet 6061 aluminium.

Key Features

• Retains OEM Sensor: Reuses the factory Toyota fuel pressure sensor
• 8AN ORB: Fits fuel rails with an 8AN ORB female port
• Clockable: Sensor can be clocked into the correct position
• Billet Construction: Anodised billet 6061 aluminium

Important Notes

• Requires a fuel rail with an 8AN ORB female port

Vehicle Fitment

• Toyota GR Corolla (2022+)
• Toyota GR Yaris (2020+)
• Toyota 2.0L engines (2018+)
• Toyota 2.5L engines (2018+)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
