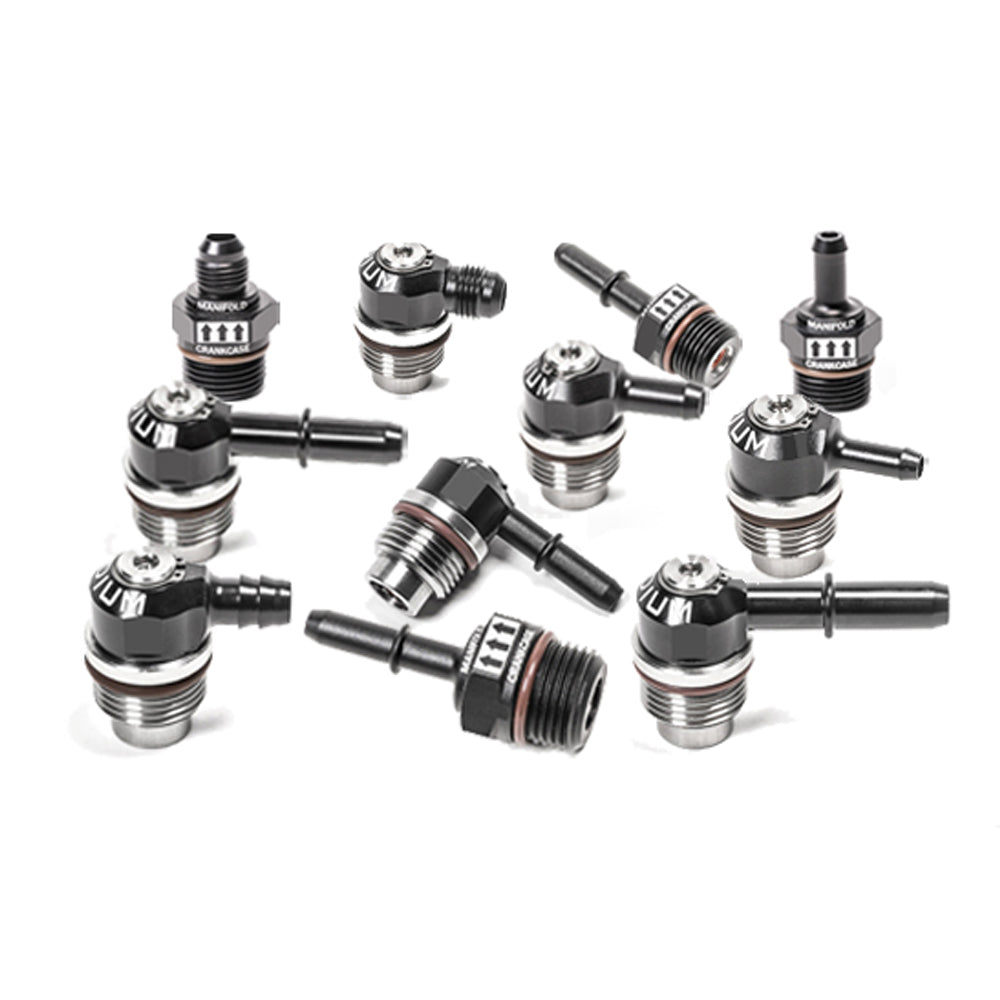

Radium 20-1000-10375-PCV Swivel Banjo PCV Valve, 10AN ORB to 3/8" SAE Quick Connect Male
Radium 20-1000-10375-PCV Swivel Banjo PCV Valve, 10AN ORB to 3/8" SAE Quick Connect Male
SKU: SKU: 20-1000-10375-PCV
More info
The Radium Engineering 20-1000-10375-PCV Swivel Banjo PCV Valve combines a Radium PCV valve with a low-profile 360° swivel banjo — 10AN ORB inlet to 3/8" SAE Quick Connect Male outlet.
Like an OEM PCV valve, the internal plunger dynamically meters crankcase vent airflow based on engine load. A proper PCV valve prevents the vacuum leak a check valve would create at low loads, closes during an intake backfire so combustible vapours cannot ignite in the crankcase, and closes under boost on turbocharged and supercharged engines to stop intake pressure entering the crankcase.
Key Features
- Dynamic metering — plunger meters vent airflow to engine load
- Boost and backfire protection — closes under positive pressure
- 360° swivel banjo — low-profile 90° outlet that rotates after installation
- Construction — stainless steel ORB, anodised aluminium quick connect, FKM/silicone O-rings
- Ready to fit — supplied fully assembled with a 10AN ORB FKM O-ring pre-installed
Specifications
| Part Number | 20-1000-10375-PCV |
| Inlet | 10AN ORB (7/8"-14) |
| Outlet | 3/8" SAE Quick Connect Male |
| Type | PCV valve with low profile swivel banjo |
| Clearance | Requires an extra 0.26" (6.7mm) of clearance |
| Compatibility | Radium Competition Catch Cans only |
| Sold | Individually |
Installation Notes
- Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before installation to prevent damage.
